    #1

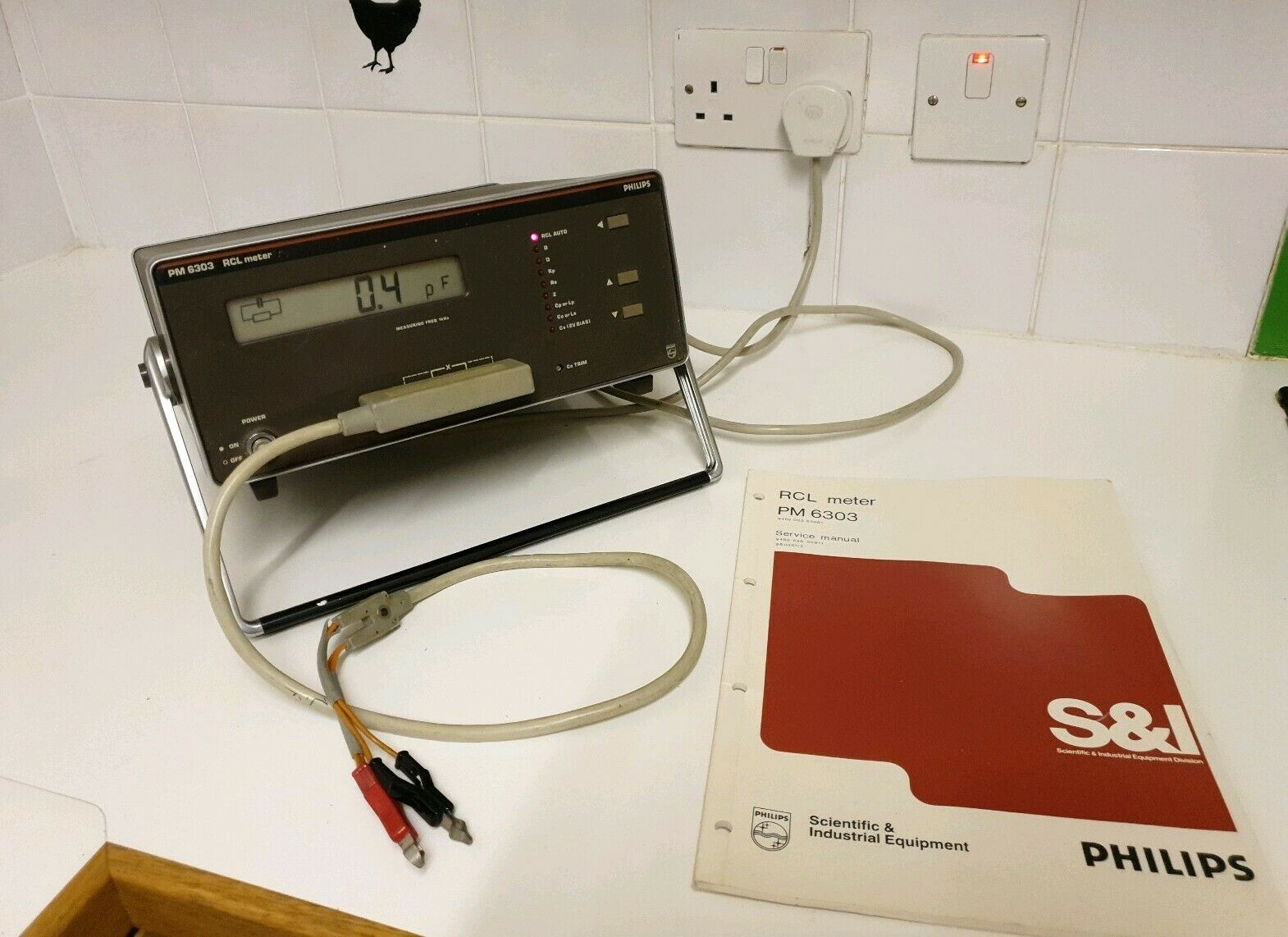

    recent addition Philips PM6303

    Recent addition to the test equipment line up, have been after one of these or similar for a long time. While the fluke test meter I have does capacitance it does not offer the range this does. Neither does it cover inductance and impedance etc.
    Attached Files
  • sam_sam_sam
    Badcaps Legend
    • Jul 2011
    • 6027
    • USA

    #2
    Re: recent addition Philips PM6303

    How well does it work

    Comment

    • llonen
      Badcaps Veteran
      • Sep 2014
      • 495
      • hampshire

      #3
      Re: recent addition Philips PM6303

      Pretty well actually I was having trouble identifying some weird banded capacitors in a scope I'm currently working on, pulled a good one from the board and it nailed it at 100nf. I checked it against the replacements going in and it nailed them within the working tolerance. Need to try it on some known inductor's, one of the reasons for obtaining the unit. Got it very cheap on an auction after some research showing these to be very expensive pieces of test equipment. It will do in circuit testing but can be affected by other components so if getting a strange result best to lift one end of or remove the component.
      Last edited by llonen; 12-23-2019, 09:26 PM.

      Comment
