    Here's another for the retro fleet. Someone gave me this around 2008, Dell Precision 530 workstation; dual skt603 with failed caps of course, Nichicon HM. At the time it was deemed not worth messing with and it sat on a shelf in the garage since; it was made 2002~2003-ish (datecodes on the caps were 2001, the 'dark era' for Nichicon HM series). It being buried under other stuff is probably the only thing that kept it from being scrapped.... I came across it the other day when I was scrapping the stuff on top of it and thought hmmmm....maybe a little retro status, considering it's a RAMBUS system, and it has a pair of 3GHz Prestonia's (the fastest it could take)...but apparently their values has gone up!! I stole the RAM out of it ages ago, but CPU's are still in it. RAMBUS survivors are becoming less every passing day. Recapped it and it's working.

    Blasted with the air hose and wiped down.... The real miracle with this one, the door is still on it and not broken!!

    Click image for larger version Name:	p530_0650.jpg Views:	0 Size:	221.2 KB ID:	3156243

    Click image for larger version Name:	p530_0651.jpg Views:	0 Size:	203.9 KB ID:	3156244

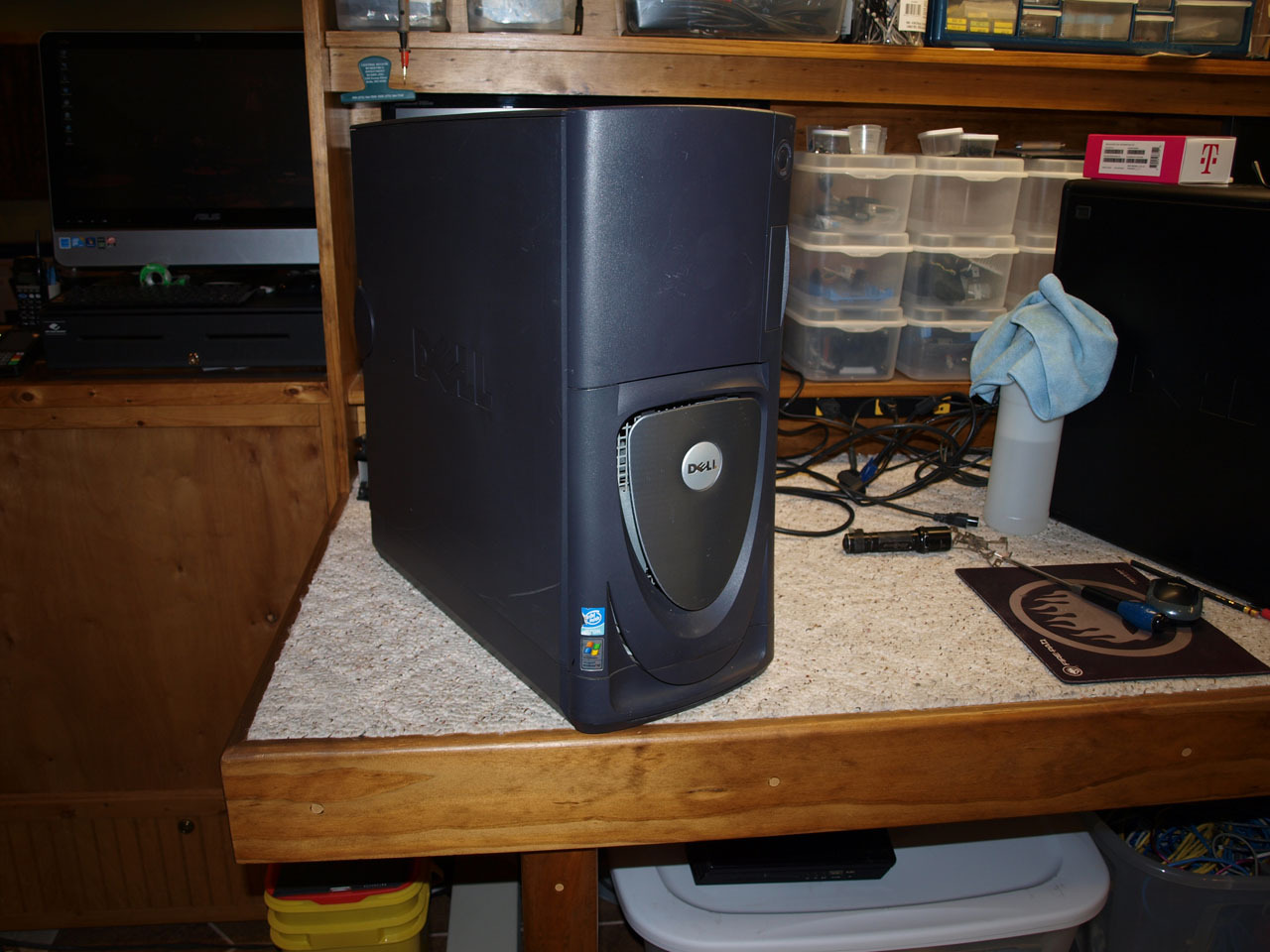

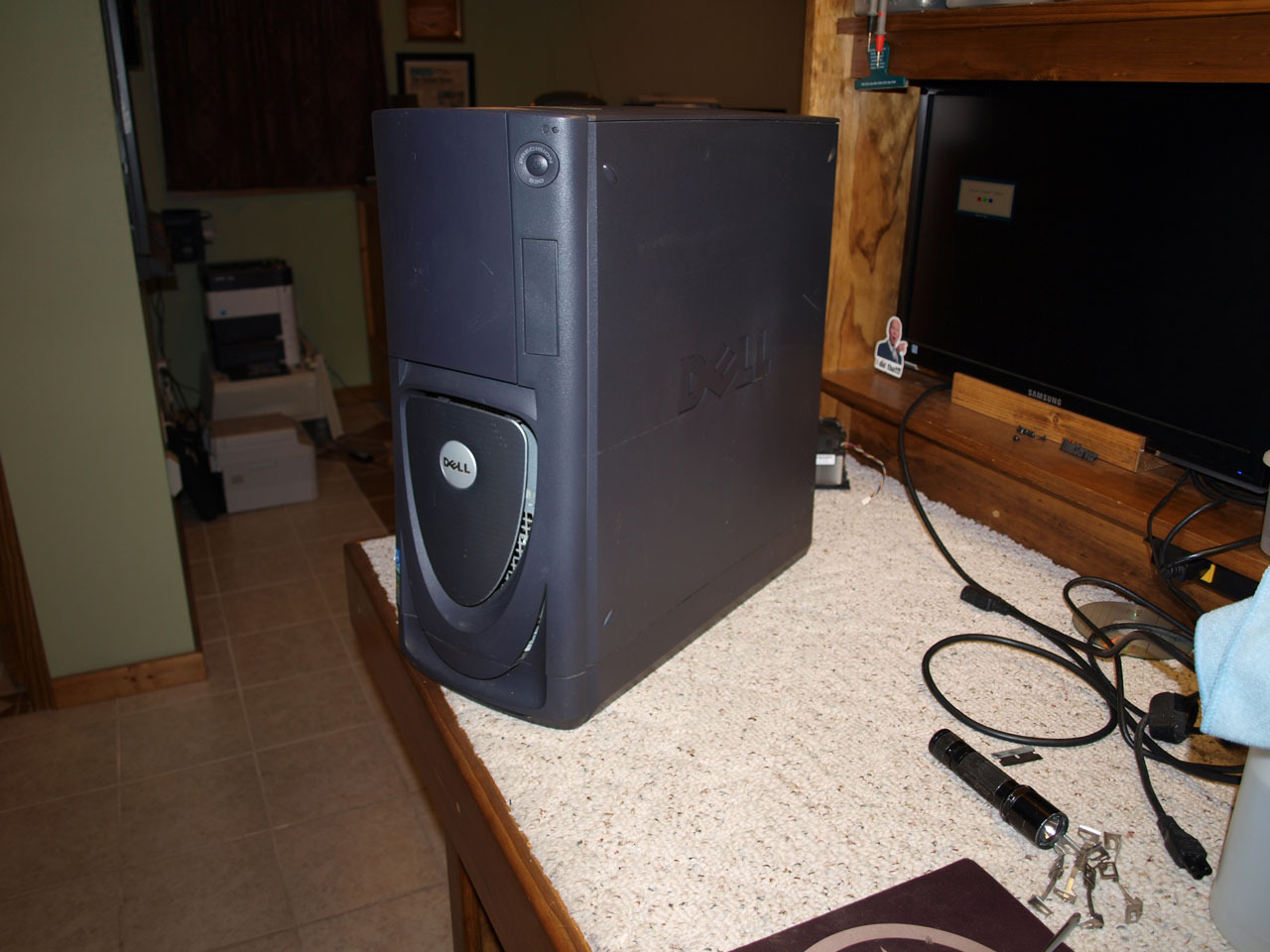

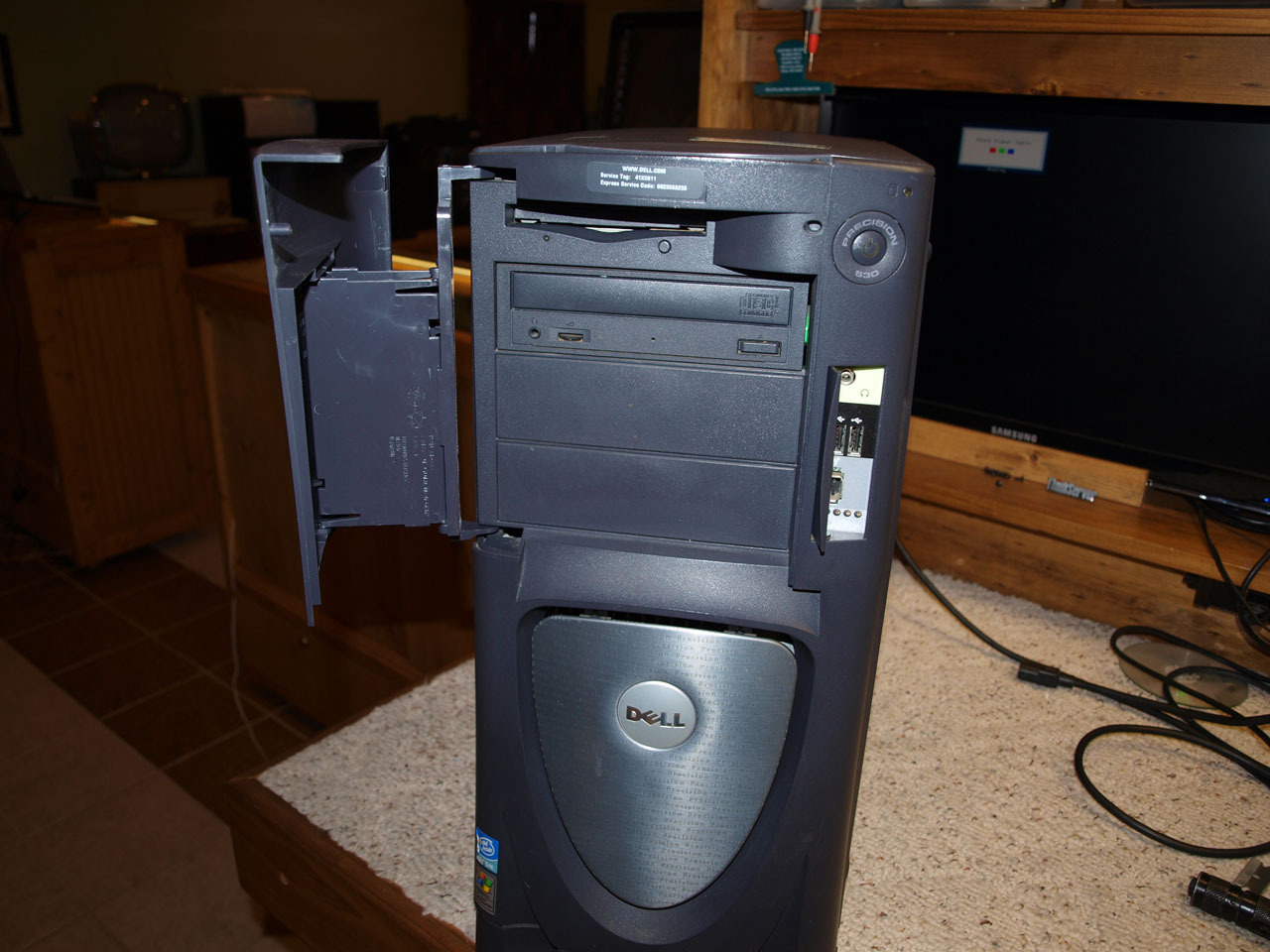

    Yup, miracle! In hunting, I looked around for these. The door was almost never there.

    Click image for larger version Name:	p530_0652.jpg Views:	0 Size:	206.8 KB ID:	3156245

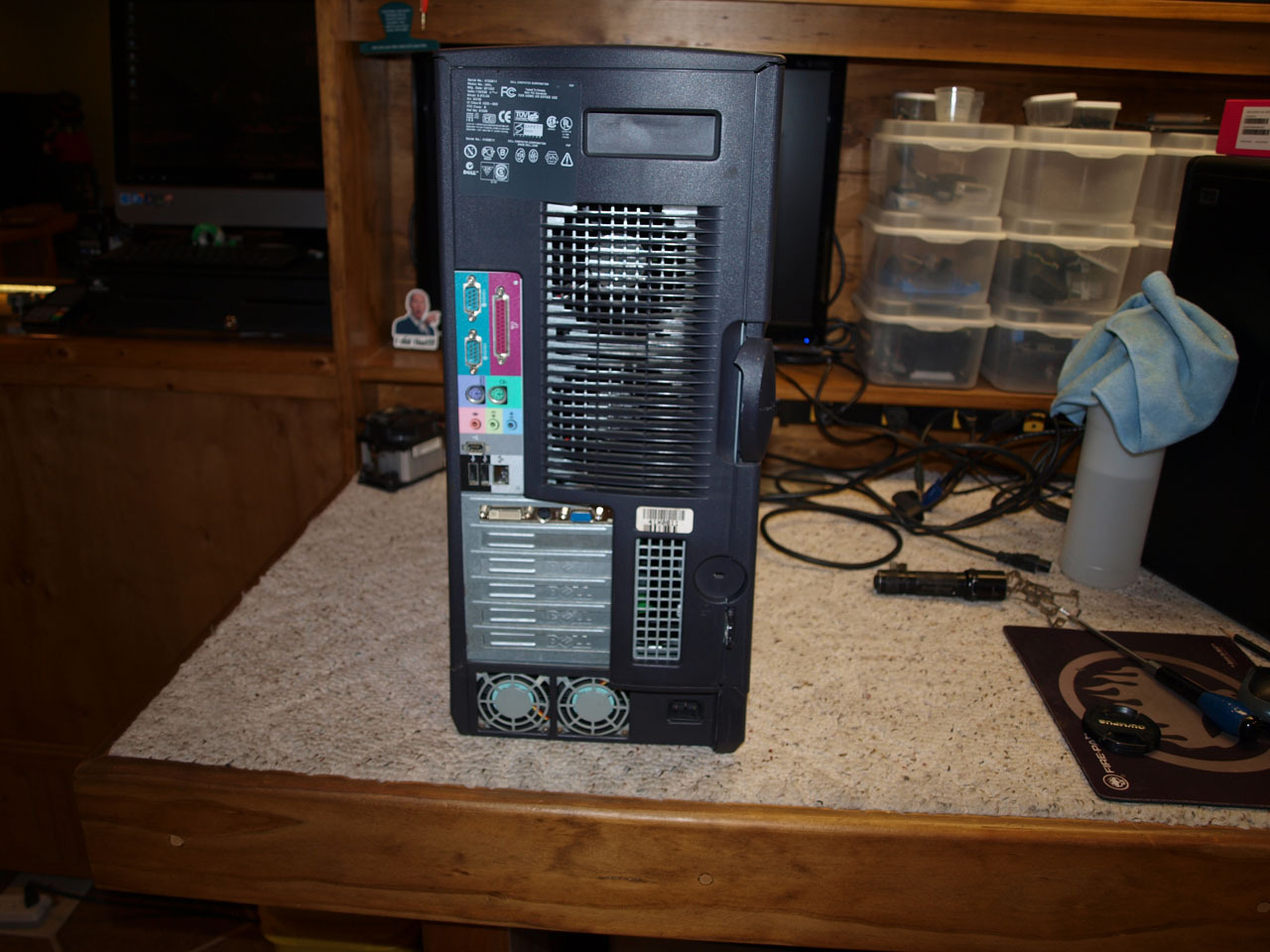

    Butt shot....

    Click image for larger version Name:	p530_0653.jpg Views:	0 Size:	228.3 KB ID:	3156246

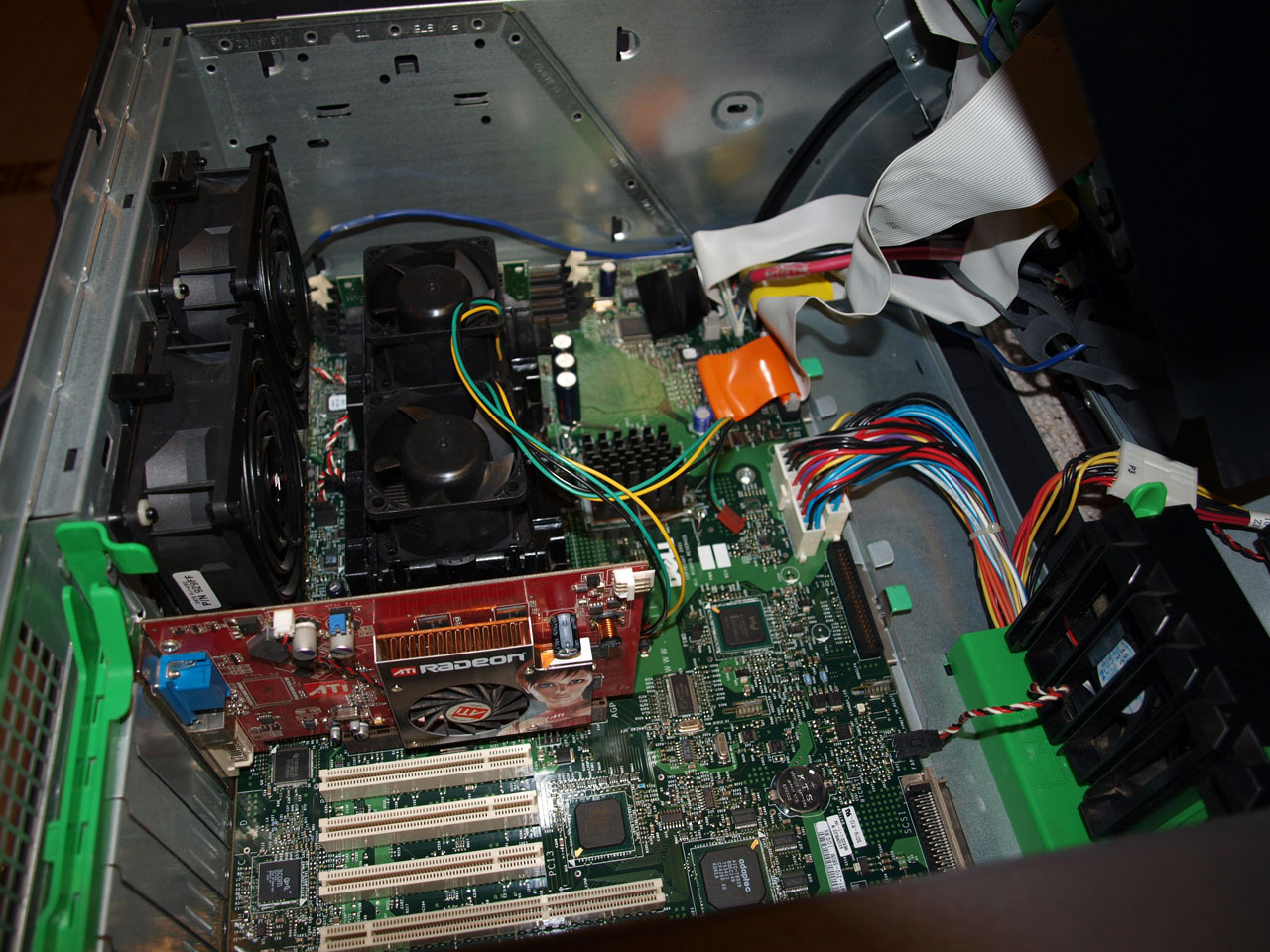

    Inside. Stuck an ATI x1600 Pro 512mb AGP GPU in it. Not sure what it originally had, I stole it over a decade ago.

    Click image for larger version Name:	p530_0654.jpg Views:	0 Size:	350.2 KB ID:	3156247

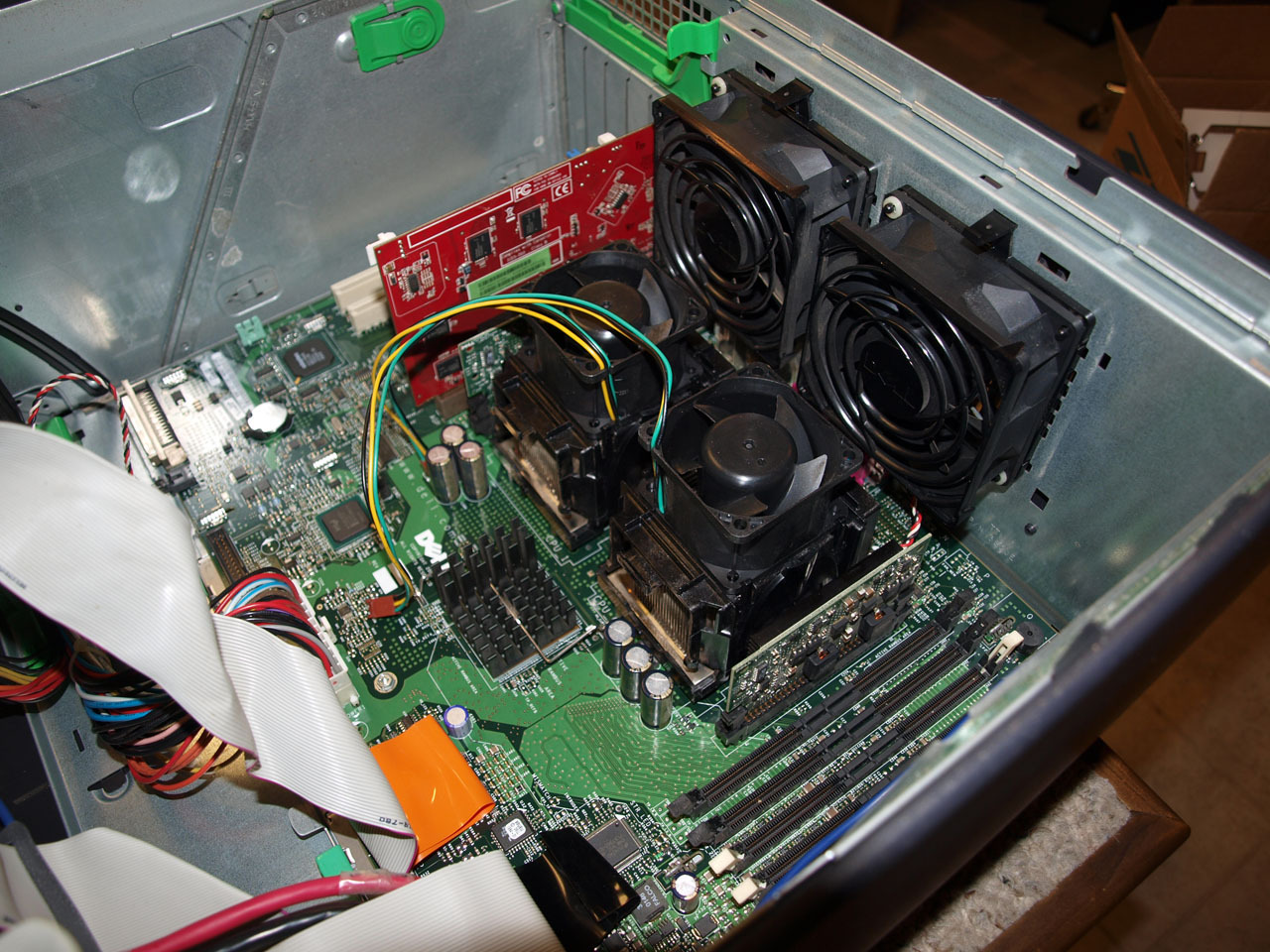

    CPU heatsinks & fans had also been robbed.....so I had to rummage through my box of old skt 603/604 parts. This is one of the few times Dell didn't use a proprietary heatsink/fan setup. The originals were really cheesy passives that I tossed ages ago, but the bases that held them were standard for any socket 603/604, thus any compatible heatsink could be used.

    Click image for larger version Name:	p530_0655.jpg Views:	0 Size:	375.0 KB ID:	3156248

    The box is about empty.....I don't see or deal with much 603/604 stuff....they're pretty antiquated now and weren't hugely popular back in the day as it was.

    Click image for larger version Name:	p530_0656.jpg Views:	0 Size:	159.2 KB ID:	3156249

    I ordered 2gb of ECC RDRAM, the most it can take...I'll wrap this one up then.... This will be a stellar XP box!
    <--- Badcaps.net Founder

    Badcaps.net Services:

    Motherboard Repair Services

    ----------------------------------------------
    Badcaps.net Forum Members Folding Team
    http://folding.stanford.edu/
    Team : 49813
    Join in!!
    Team Stats

    Comment


      what chipset is on that board? i tried google and wikipedia but it gave me inconsistent answers as to whether the ram limit is 2 or 4gb. so i guess it depends on what chipset they put on the system in the first place. if its the 850 or 850e chipset the ram limit should indeed be 2gb. but if its the 860 chipset which is multiprocessor capable for xeon cpus which is what i think it is, the ram limit should be 4gb with 2 repeaters whatever that is...

      Comment


        Originally posted by ChaosLegionnaire View Post
        what chipset is on that board? i tried google and wikipedia but it gave me inconsistent answers as to whether the ram limit is 2 or 4gb. so i guess it depends on what chipset they put on the system in the first place. if its the 850 or 850e chipset the ram limit should indeed be 2gb. but if its the 860 chipset which is multiprocessor capable for xeon cpus which is what i think it is, the ram limit should be 4gb with 2 repeaters whatever that is...
        I'm not sure.....but I'll have a peek when the RAM gets here...but I believe it to be an early 7500 chipset....but it may not be either; those were all for DDR IIRC (I've slept since those days).
        <--- Badcaps.net Founder

        Badcaps.net Services:

        Motherboard Repair Services

        ----------------------------------------------
        Badcaps.net Forum Members Folding Team
        http://folding.stanford.edu/
        Team : 49813
        Join in!!
        Team Stats

        Comment


          Originally posted by ChaosLegionnaire View Post
          what chipset is on that board? i tried google and wikipedia but it gave me inconsistent answers as to whether the ram limit is 2 or 4gb. so i guess it depends on what chipset they put on the system in the first place. if its the 850 or 850e chipset the ram limit should indeed be 2gb. but if its the 860 chipset which is multiprocessor capable for xeon cpus which is what i think it is, the ram limit should be 4gb with 2 repeaters whatever that is...
          It's an 860.
          <--- Badcaps.net Founder

          Badcaps.net Services:

          Motherboard Repair Services

          ----------------------------------------------
          Badcaps.net Forum Members Folding Team
          http://folding.stanford.edu/
          Team : 49813
          Join in!!
          Team Stats

          Comment


            Been a while since I've done one of these where some significant modding was necessary.....so here's a great candidate. This is a Gateway 2000 system from 2001 that had some junky athlon CPU in it, motherboard is a Gateway OEM'd MSI MS-6330. There is absolutely nothing about this that excites me except the heavy iron case....but there are some hurdles....

            This system came from the home of a heavy smoker. It stinks to high heaven, it was actually stinkiing up the shop.

            Click image for larger version  Name:	gw_0738.jpg Views:	0 Size:	218.6 KB ID:	3175831

            The system does work. Booted to WinME. Agonizingly slow with 256mb RAM....

            Click image for larger version  Name:	gw_0739.jpg Views:	0 Size:	286.7 KB ID:	3175832

            The biggest hurdle is visible in this pic; the IO area is part of the case. To put anything good in there, it will have to be surgically removed so a standard shield can be used.

            Click image for larger version  Name:	gw_0740.jpg Views:	0 Size:	271.5 KB ID:	3175833

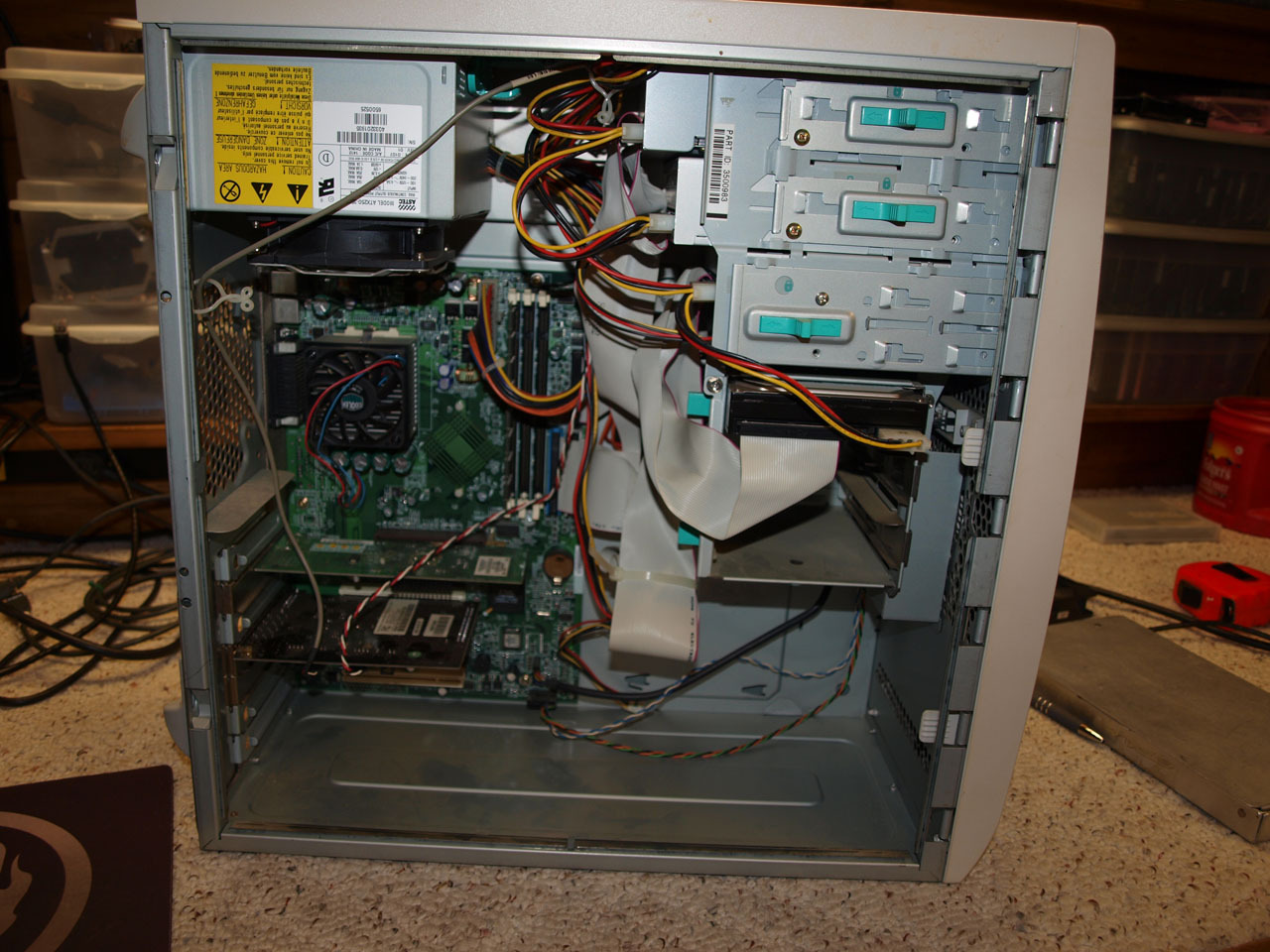

            Now time to disassemble it.

            Click image for larger version  Name:	gw_0746.jpg Views:	0 Size:	242.9 KB ID:	3175834

            Click image for larger version  Name:	gw_0747.jpg Views:	0 Size:	301.5 KB ID:	3175835

            Click image for larger version  Name:	gw_0748.jpg Views:	0 Size:	355.7 KB ID:	3175836

            You can see the nicotine stains on the blonde paint where the plastic trim was.... ICK!

            Click image for larger version  Name:	gw_0752.jpg Views:	0 Size:	243.3 KB ID:	3175837
            Sticker removed the IO area.

            Click image for larger version  Name:	gw_0756.jpg Views:	0 Size:	199.8 KB ID:	3175838

            Measured & Taped off.


            Click image for larger version  Name:	gw_0757.jpg Views:	0 Size:	204.6 KB ID:	3175839

            Cut.

            Click image for larger version  Name:	gw_0758.jpg Views:	0 Size:	190.8 KB ID:	3175840

            Test fitted with some random IO shield.

            Click image for larger version  Name:	gw_0759.jpg Views:	0 Size:	166.4 KB ID:	3175841

            Everything cleaned up and ready for the next step....picking a system core.

            Click image for larger version  Name:	gw_0763.jpg Views:	0 Size:	217.1 KB ID:	3175842

            Click image for larger version  Name:	gw_0764.jpg Views:	0 Size:	253.8 KB ID:	3175843

            Click image for larger version  Name:	gw_0765.jpg Views:	0 Size:	198.8 KB ID:	3175844

            I have ~8 different system cores that I've considered putting in this. Prerequisites are of course full ATX, 2 CPU's, and of course something that would be a significant computing upgrade compared to what was in it; thus the whole 'sleeper build'. The 'significant upgrade' requirement ruled out a couple dual slot 1 & slot 2 options....but there are still quite a few available. I'll have to tinker with a few and see what really 'pops'....
            Attached Files
            <--- Badcaps.net Founder

            Badcaps.net Services:

            Motherboard Repair Services

            ----------------------------------------------
            Badcaps.net Forum Members Folding Team
            http://folding.stanford.edu/
            Team : 49813
            Join in!!
            Team Stats

            Comment


              You did some very nice surgery work on this computer case and it is looking very nice I keep getting inspired by your handwork
              I have one question for you what type of tool did you use for this surgery that you did on this computer case
              One more question how did you determine where to cut the opening so that the motherboard would fit on the stand-offs would line up and PIC slots would also line up correctly
              Last edited by sam_sam_sam; 01-10-2024, 05:22 AM.
              9 PC LCD Monitor
              6 LCD Flat Screen TV
              30 Desk Top Switching Power Supply
              10 Battery Charger Switching Power Supply for Power Tool
              6 18v Lithium Battery Power Boards for Tool Battery Packs
              1 XBox 360 Switching Power Supply and M Board
              25 Servo Drives 220/460 3 Phase
              6 De-soldering Station Switching Power Supply 1 Power Supply
              1 Dell Mother Board
              15 Computer Power Supply
              1 HP Printer Supply & Control Board * lighting finished it *


              These two repairs where found with a ESR meter...> Temp at 50*F then at 90*F the ESR reading more than 10%

              1 Over Head Crane Current Sensing Board ( VFD Failure Five Years Later )
              2 Hem Saw Computer Stack Board

              All of these had CAPs POOF
              All of the mosfet that are taken out by bad caps

              Comment


                Originally posted by sam_sam_sam View Post
                You did some very nice surgery work on this computer case and it is looking very nice I keep getting inspired by your handwork
                I have one question for you what type of tool did you use for this surgery that you did on this computer case
                One more question how did you determine where to cut the opening so that the motherboard would fit on the stand-offs would line up and PIC slots would also line up correctly
                It's really not that hard. On most I do this to, they were the 'standard' IO of sorts, meaning there are always fixed positions; such as KB/MS, parallel, and serial ports. I'll use a removable IO shield of the same config and simply line up the port openings. I'll then trace the outer perimeter of the IO shield with a sharpie. Then measure from the outer edge inboard to the outer lip where it would latch into the case and them mark that off on the case....then tape off those marks and cut. I use a pneumatic die grinder on this one, it's a thicker steel case. A dremel with a reinforced cutoff wheel will also work, you just have to move slower & be a little more patient with it. Always cut on the waste side of the line/tape....if the opening is slightly small, nothing a file can't fix. Always make sure to file the edges anyway to remove burrs and sharp edges.

                Now an non-standard IO shield like the Aurora R7 I removed was a bit more complicated, as the IO ports on this one were not following any kind of standard; thus no reference points. This one required a lot of very careful measuring......
                <--- Badcaps.net Founder

                Badcaps.net Services:

                Motherboard Repair Services

                ----------------------------------------------
                Badcaps.net Forum Members Folding Team
                http://folding.stanford.edu/
                Team : 49813
                Join in!!
                Team Stats

                Comment


                  You sure it wasn't the HDD at fault for WinME being slow? I used it recently on a 500MHz Katmai build with a GF2 Pro/GTS w/ the same amount of RAM and it was pretty speedy.

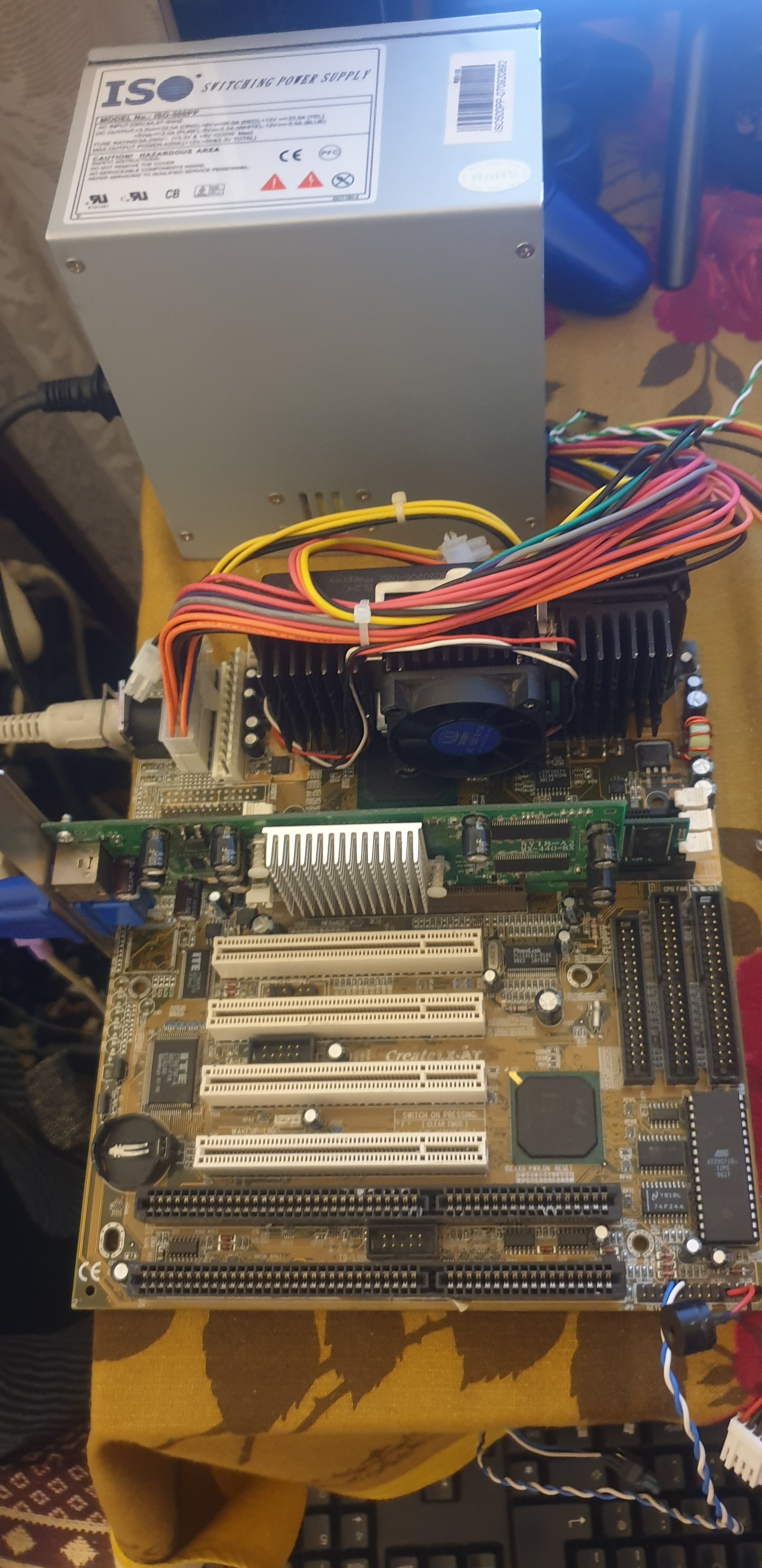

                  Onto funky stuff... dug this Baby-AT Tomato 6DLX and what I suspect (I am not fully sure) is a unlocked 266MHz P2, SL2HC. It'll clock to 333 just fine but I haven't pushed it past that. The BIOS is absolutely packed with features, and CPU speed is set thru BIOS - no jumpers whatsoever.

                  I'll prolly dump the 266 into my BE6-II and see if it can OC. Zida reports a max setting of 533 - but I have some quite high doubts it can jump that high....

                  Click image for larger version

Name:	20240110_200320.jpg
Views:	116
Size:	2.38 MB
ID:	3176201 Click image for larger version

Name:	20240110_200327.jpg
Views:	115
Size:	2.17 MB
ID:	3176197 Click image for larger version

Name:	20240110_200332.jpg
Views:	116
Size:	2.50 MB
ID:	3176199 Click image for larger version

Name:	20240110_193951.jpg
Views:	118
Size:	2.94 MB
ID:	3176200 Click image for larger version

Name:	20240110_194013.jpg
Views:	146
Size:	1.82 MB
ID:	3176196
                  Attached Files
                  Main rig:
                  Gigabyte B75M-D3H
                  Core i5-3470 3.60GHz
                  Gigabyte Geforce GTX650 1GB GDDR5
                  16GB DDR3-1600
                  Samsung SH-224AB DVD-RW
                  FSP Bluestorm II 500W (recapped)
                  120GB ADATA + 2x Seagate Barracuda ES.2 ST31000340NS 1TB
                  Delux MG760 case

                  Comment


                    I was seriously laughing at the names associated with that board!!

                    If you want to run it @ 533, get a cheap slotket and run a 533MHz medocino celeron in it; they can be had for peanuts. Any slotket can run a medocino. The fastest P2 it could run would be a 333....and a mendocino would spank it as it is, if for no other reason the full speed L2 cache. Being a LX chipset, don't waste your time trying to overclock....it won't be stable. You might get 75 to run fair with the right CPU, but it's a lot like the BX @ 133, it's always going to be quirky no matter what you do.
                    <--- Badcaps.net Founder

                    Badcaps.net Services:

                    Motherboard Repair Services

                    ----------------------------------------------
                    Badcaps.net Forum Members Folding Team
                    http://folding.stanford.edu/
                    Team : 49813
                    Join in!!
                    Team Stats

                    Comment


                      I just dropped a Celeron 433 in it w/ a old cheap PPGA-only slotket and it'll end up with that up on sale. Apparently the SL2HC is unlocked, something I have been looking for quite some time, so I don't mind parting ways with a Mendocino 433. (I have a 400, 533, 500 and IIRC I think a 466 as well but not sure. Didn't count the 333s in the BP6 as they go together.)

                      Slightly surprised it supports Mendocinos though - IIRC TRW shows only Covington support for the 6DLX.
                      Last edited by Dan81; 01-11-2024, 04:52 AM.
                      Main rig:
                      Gigabyte B75M-D3H
                      Core i5-3470 3.60GHz
                      Gigabyte Geforce GTX650 1GB GDDR5
                      16GB DDR3-1600
                      Samsung SH-224AB DVD-RW
                      FSP Bluestorm II 500W (recapped)
                      120GB ADATA + 2x Seagate Barracuda ES.2 ST31000340NS 1TB
                      Delux MG760 case

                      Comment


                        This one was wrapped up over the weekend. Is it one for Topcat's Weird Build Hall of Fame? No....but turned out good none the less.....

                        The motherboard has been chosen....and it was a tough call, there were several very worthy contenders, but this one was the best fit IMO.

                        Click image for larger version

Name:	gw_0766.jpg
Views:	284
Size:	241.4 KB
ID:	3179097

                        It's testing in the oven, and also analyzing power usage to see what PSU would be best suited for it. It's too heavy on the 12v rail to use the original.

                        Click image for larger version

Name:	gw_0767.jpg
Views:	158
Size:	242.5 KB
ID:	3179098

                        The mystery board sign in please..... Asus K8N-DL ebay rescue from about a year ago.

                        Click image for larger version

Name:	gw_0768.jpg
Views:	111
Size:	378.9 KB
ID:	3179099
                        Click image for larger version

Name:	gw_0769.jpg
Views:	105
Size:	379.0 KB
ID:	3179100

                        There were several parameters that had to be met to maintain front panel function; optical drives and the zip drive. This meant I needed an IDE / SATA hybrid; with 2 40-pin IDE channels, that this board has....and a SATA port for a SSD so it's not agonizingly slow. That was the deciding factor in the end with the other front-runner boards.

                        Next up is to depin & remove the proprietary front panel LED plug.

                        Click image for larger version

Name:	gw_0771.jpg
Views:	109
Size:	319.2 KB
ID:	3179101
                        Click image for larger version

Name:	gw_0772.jpg
Views:	111
Size:	311.4 KB
ID:	3179102

                        Just like that!!

                        Click image for larger version

Name:	gw_0773.jpg
Views:	107
Size:	263.8 KB
ID:	3179103

                        USB ports and front panel cabling back in the case.

                        Click image for larger version

Name:	gw_0775.jpg
Views:	157
Size:	209.0 KB
ID:	3179104

                        Now for the motherboard standoffs. The brass ones came off the original board; 6 all together....but this board needed 9....and I didn't have any more of the gateway Brass ones....but fear not, the plastic ones fit the config just fine as you can see.

                        Click image for larger version

Name:	gw_0776.jpg
Views:	109
Size:	349.6 KB
ID:	3179105

                        ...and in the board goes!!

                        Click image for larger version

Name:	gw_0777.jpg
Views:	112
Size:	289.0 KB
ID:	3179106

                        Click image for larger version

Name:	gw_0778.jpg
Views:	110
Size:	251.9 KB
ID:	3179107
                        Click image for larger version

Name:	gw_0779.jpg
Views:	107
Size:	288.1 KB
ID:	3179108

                        Now here's why this board was such a marvelous fit in this case..... Installed the HDD cage and note how the notch in the board so elegantly wraps the HDD cage. That couldn't have been planned any better!! A couple of the motherboard candidates would have required deletion of the HDD cage.

                        Click image for larger version

Name:	gw_0780.jpg
Views:	109
Size:	300.6 KB
ID:	3179109

                        Click image for larger version

Name:	gw_0781.jpg
Views:	108
Size:	332.5 KB
ID:	3179110

                        Now for those unsightly IDE ribbons..... I tidied them up the best I could.

                        Click image for larger version

Name:	gw_0782.jpg
Views:	107
Size:	327.6 KB
ID:	3179111

                        Now for the power supply. This is a Seasonic 500W with fresh caps and a hefty 12v rail. Perfect for this system


                        Click image for larger version

Name:	gw_0785.jpg
Views:	109
Size:	414.2 KB
ID:	3179112

                        SSD in an adapter tray.
                        Click image for larger version

Name:	gw_0787.jpg
Views:	109
Size:	318.8 KB
ID:	3179113

                        Buttoning up.

                        Click image for larger version

Name:	gw_0792.jpg
Views:	112
Size:	283.2 KB
ID:	3179114

                        Installed Win7 on this.
                        Click image for larger version

Name:	gw_0793.jpg
Views:	104
Size:	265.7 KB
ID:	3179115

                        ...and a little Q3A

                        Click image for larger version

Name:	gw_0794.jpg
Views:	110
Size:	255.3 KB
ID:	3179116


                        System specs as follows:

                        Asus K8N-DL motherboard
                        2x dualcore Opteron 280's @ 2.4GHz
                        6GB DDR1-3200 ECC - Rumor has it, it can unofficially run 12gb...but I don't have the RAM to try it
                        Nvidia 9800GT Momaka's favorite single-slotter
                        120gb Kingston SSD
                        <--- Badcaps.net Founder

                        Badcaps.net Services:

                        Motherboard Repair Services

                        ----------------------------------------------
                        Badcaps.net Forum Members Folding Team
                        http://folding.stanford.edu/
                        Team : 49813
                        Join in!!
                        Team Stats

                        Comment


                          Nice. I have an nearly total opposite build in mind to build and will likely pick up one of those good ole' trusty DeepCool Tesseract cases.

                          Wanna pick a guess what it'll be?
                          Main rig:
                          Gigabyte B75M-D3H
                          Core i5-3470 3.60GHz
                          Gigabyte Geforce GTX650 1GB GDDR5
                          16GB DDR3-1600
                          Samsung SH-224AB DVD-RW
                          FSP Bluestorm II 500W (recapped)
                          120GB ADATA + 2x Seagate Barracuda ES.2 ST31000340NS 1TB
                          Delux MG760 case

                          Comment


                            Originally posted by Dan81 View Post
                            Nice. I have an nearly total opposite build in mind to build and will likely pick up one of those good ole' trusty DeepCool Tesseract cases.

                            Wanna pick a guess what it'll be?
                            It's gotta be that BP6 or that 694D you've got coming.
                            <--- Badcaps.net Founder

                            Badcaps.net Services:

                            Motherboard Repair Services

                            ----------------------------------------------
                            Badcaps.net Forum Members Folding Team
                            http://folding.stanford.edu/
                            Team : 49813
                            Join in!!
                            Team Stats

                            Comment


                              At first I was leaning towards the BP6 too but figured the 694D would make more of a killer 370 build with that Tesseract. Gotta give Deepcool credit, they made one hell of a case. That, and I was feeling really uncomfortable modding the sockets on the BP6, given these are as rare as hell where I live.

                              AGP4x, VIA chipset and the 4 SDR slots make for quite a good expansion horizon. Might drop some really mean Socket 462 copper coolers - assuming I can get their clips swapped, as the 694D (and I suspect the VP6 would've had that issue too but idk) Pro seems to have the well known clearance issue that buggers me to no end on SS7 and 370 boards.

                              Might have to figure what GPU to go for - it's gotta be something DX9 or early DX10, but also has to be a fairly good performer. So far a few candidates to it would be a HD3450 AGP (made by ASUS), a Gecube 9600 Pro and a 3D Prophet 9700 Pro.
                              Also got a single socket "plan B" board - the well known K7S5A, recapped with Rubies and a few polys off scrap first gen 360s without the HDMI ports.
                              Last edited by Dan81; 01-16-2024, 01:08 PM.
                              Main rig:
                              Gigabyte B75M-D3H
                              Core i5-3470 3.60GHz
                              Gigabyte Geforce GTX650 1GB GDDR5
                              16GB DDR3-1600
                              Samsung SH-224AB DVD-RW
                              FSP Bluestorm II 500W (recapped)
                              120GB ADATA + 2x Seagate Barracuda ES.2 ST31000340NS 1TB
                              Delux MG760 case

                              Comment


                                Speak of being lucky. Same seller I ordered the 694D just packed and will send a VLB based 486 pack.

                                ID'd so far:

                                - mobo is a Aquarius Systems MB-4D33NR w/ actual socket 3. Unknown CPU though I suspect either a 486DX-50 or a DX2-66.
                                - GPU is a VLB Trident TVGA9200
                                - has a VLB IDE controller
                                - 2x NICs (!!) - one is a UMC card, the other is a 3com

                                Will likely make a nice 95, 3.1 and DOS machine - I've been wanting to do something 486 based in quite a long time and was always waiting for a proper mobo.
                                Main rig:
                                Gigabyte B75M-D3H
                                Core i5-3470 3.60GHz
                                Gigabyte Geforce GTX650 1GB GDDR5
                                16GB DDR3-1600
                                Samsung SH-224AB DVD-RW
                                FSP Bluestorm II 500W (recapped)
                                120GB ADATA + 2x Seagate Barracuda ES.2 ST31000340NS 1TB
                                Delux MG760 case

                                Comment


                                  Originally posted by Dan81 View Post
                                  I've been wanting to do something 486 based in quite a long time and was always waiting for a proper mobo.
                                  Should have said something....I have a Micronics 486DX4@100 here I have zero plans for...could toss a couple VP6 fixer-uppers in with it....


                                  Anyway, for today's magic, the beginning stages of this monster Gateway server system. I am not going to reuse the original board, while it's a dual Tualatin, it's otherwise a complete turd....as a server, this thing is useless for anything, so the goal is more of a minor sleeper/gamer/era-specific workstation setup. First step is board selection. The front-runner is this Supermicro P4DCE+; dual skt603 Prestonia Xeon board. One of the first; 860 chipset and RDRAM. The prerequisites are really only SCSI for the SCA cage. I also had to make sure it'll pair with the PSU specs, the power supply in this case has a pretty weaksauce 12v rail, but the 5v and 3.3v are beasts! This board will definitely play nice with this PSU after a good run in the oven. There's one more model board on ebay of similar era I am considering, but it's live bidding and already bid up more than I really want to spend....so I'm probably going to pass on that one....so here we are!!

                                  The board doesn't have onboard SCSI, so I just added a card with RAID functions.

                                  Click image for larger version  Name:	gw_0799.jpg Views:	0 Size:	392.0 KB ID:	3203853

                                  Of course in testing I was having some issues with the controller.... Anytime that happens, the first thing I check is firmwares...and sure enough, ancient version....updated!

                                  Click image for larger version  Name:	gw_0800.jpg Views:	0 Size:	284.9 KB ID:	3203854

                                  Problems went away.

                                  So here's the system core so far:


                                  Click image for larger version  Name:	gw_0801.jpg Views:	0 Size:	369.5 KB ID:	3203855

                                  Click image for larger version  Name:	gw_0802.jpg Views:	0 Size:	404.2 KB ID:	3203856

                                  Now a closer look at the case. A butt shot.....


                                  Click image for larger version  Name:	gw_0803.jpg Views:	0 Size:	258.3 KB ID:	3203857

                                  Click image for larger version  Name:	gw_0804.jpg Views:	0 Size:	194.8 KB ID:	3203858

                                  Amazingly enough all the caddies were there. There was one drive present; a 36gb 10k Cheetah, all the rest of the trays had their dummy drives in them. The drive was blank, someone wiped it.

                                  Click image for larger version  Name:	gw_0805.jpg Views:	0 Size:	216.7 KB ID:	3203859

                                  Click image for larger version  Name:	gw_0809.jpg Views:	0 Size:	267.3 KB ID:	3203863

                                  Inside:

                                  Click image for larger version  Name:	gw_0806.jpg Views:	0 Size:	262.7 KB ID:	3203860

                                  Click image for larger version  Name:	gw_0807.jpg Views:	0 Size:	313.4 KB ID:	3203861

                                  The SCA backplane. Unlike newer stuff that was made during the transition from SCSI to SAS, there's no interchangeable SAS/SATA backplane, this is too old...which is why it's doomed to SCSI.

                                  Click image for larger version  Name:	gw_0808.jpg Views:	0 Size:	288.3 KB ID:	3203862

                                  An eATX board will fit this case with no modifications (atleast that I'm aware of as of now), but there's some electrical mods that will need to be made for the front panel connections and the PSU. The ATX connector is standard pinning and voltages, but there's no 4/8-pin EPS plugs, so they'll have to be added. I could also run any ATX PSU in this with some minor modification; would just have to make a frame/bracket for it....but I'd like to keep that portion original, which is why anything really modern was ruled out (weak +12v rail).

                                  More to come.
                                  <--- Badcaps.net Founder

                                  Badcaps.net Services:

                                  Motherboard Repair Services

                                  ----------------------------------------------
                                  Badcaps.net Forum Members Folding Team
                                  http://folding.stanford.edu/
                                  Team : 49813
                                  Join in!!
                                  Team Stats

                                  Comment


                                    I'll PM you next week about them. Still gotta find what would the prices to ship it outside US be and get my friend to help charging my card. Especially as I've been getting interested into VP6s since Epictronic and BigBadBioligist's VP6 research.
                                    Last edited by Dan81; 01-25-2024, 03:51 AM.
                                    Main rig:
                                    Gigabyte B75M-D3H
                                    Core i5-3470 3.60GHz
                                    Gigabyte Geforce GTX650 1GB GDDR5
                                    16GB DDR3-1600
                                    Samsung SH-224AB DVD-RW
                                    FSP Bluestorm II 500W (recapped)
                                    120GB ADATA + 2x Seagate Barracuda ES.2 ST31000340NS 1TB
                                    Delux MG760 case

                                    Comment


                                      Originally posted by Dan81 View Post
                                      Especially as I've been getting interested into VP6s since Epictronic and BigBadBioligist's VP6 research.
                                      Weird you say this. I built 3 custom polymer VP6's many many many years ago (like back when the VP6 was still usable in the real world) and sold them to an individual that had some specific use; and they agreed to return them to me when they finished with them and took them out of service. They did return two of them several years ago, one is still MIA. They never would tell me what they were being used for; I did ask. I still have them.

                                      Back to this build......

                                      Today was the disassembly stage.

                                      Click image for larger version

Name:	gw_0810.jpg
Views:	167
Size:	241.6 KB
ID:	3204436
                                      Click image for larger version

Name:	gw_0811.jpg
Views:	73
Size:	258.6 KB
ID:	3204437

                                      Click image for larger version

Name:	gw_0812.jpg
Views:	73
Size:	293.5 KB
ID:	3204438

                                      Click image for larger version

Name:	gw_0813.jpg
Views:	73
Size:	319.0 KB
ID:	3204439

                                      The backplane. If I really wanted to use modern drives in this, I could simply remove the backplane and just use internal cables with the drives. The trays latch in the front, so the drives would stay put.....but I think I'm just liking the revived old SCSI instead. old world SCSI gear is something else that's beginning to vanish. Controllers & cables are plentiful, but good drives are rapidly drying up; both HDD and ODD.

                                      Click image for larger version

Name:	gw_0814.jpg
Views:	93
Size:	204.4 KB
ID:	3204440

                                      Motherboard disconnected.


                                      Click image for larger version

Name:	gw_0815.jpg
Views:	76
Size:	286.7 KB
ID:	3204441

                                      Board & PSU out....along with the SCA backplane.

                                      Click image for larger version

Name:	gw_0817.jpg
Views:	72
Size:	350.8 KB
ID:	3204442

                                      Motherboard tray.

                                      Click image for larger version

Name:	gw_0820.jpg
Views:	74
Size:	270.8 KB
ID:	3204443

                                      Case shelled out. All parts need to be cleaned.

                                      Click image for larger version

Name:	gw_0822.jpg
Views:	74
Size:	270.6 KB
ID:	3204444

                                      All the parts.

                                      Click image for larger version

Name:	gw_0825.jpg
Views:	97
Size:	231.4 KB
ID:	3204445

                                      Overall, this is a fabulously made case, heavy & thick old iron.

                                      One thing I'm still contemplating is ordering a couple 3GHz Prestonia CPU's....they're about 90 bucks for a pair.....but only one guy has them, and they're not easy to come by anymore. They're the fastest CPU the board could take; 400FSB only. The board has a pair of 2.2GHz that came with it. I'll ponder that one, as I don't have a lot in this....just the memory I bought. I bought the motherboard in a lot of two identical. I sold the other board after testing it for what I had in both, so that was a wash.

                                      Anyway, to be continued.
                                      <--- Badcaps.net Founder

                                      Badcaps.net Services:

                                      Motherboard Repair Services

                                      ----------------------------------------------
                                      Badcaps.net Forum Members Folding Team
                                      http://folding.stanford.edu/
                                      Team : 49813
                                      Join in!!
                                      Team Stats

                                      Comment


                                        No, I haven't forgotten about this build....I've just been busy with other crap... I broke down and grabbed a pair of 3GHz CPU's for it, they're not here yet though....but that won't stop me from starting to button this up....but there were a few things that had to be done first....one thing at a time though...

                                        Shiny & clean!

                                        Click image for larger version

Name:	gw_0826.jpg
Views:	146
Size:	290.6 KB
ID:	3214893

                                        SCA HDD's selected. Pair of 146gb 15,000 RPM.


                                        Click image for larger version

Name:	gw_0828.jpg
Views:	52
Size:	337.3 KB
ID:	3214894

                                        This project wasn't without a casualty. Little plastic latch had broken. This would cause the face to not stay on. Nothing some JB weld couldn't handle.

                                        Click image for larger version

Name:	gw_0829.jpg
Views:	68
Size:	112.2 KB
ID:	3214895

                                        Good as new!

                                        Click image for larger version

Name:	gw_0830.jpg
Views:	68
Size:	84.9 KB
ID:	3214896


                                        Now for the front panel connectors. The original was a proprietary setup with a ribbon.

                                        Click image for larger version

Name:	gw_0832.jpg
Views:	53
Size:	390.2 KB
ID:	3214897

                                        Had to sever some traces, as they had all the LED's sharing a common, the new motherboard does not share this, and won't work right if tried (been there)....but here we are!

                                        Click image for larger version

Name:	gw_0836.jpg
Views:	54
Size:	439.0 KB
ID:	3214898

                                        Click image for larger version

Name:	gw_0837.jpg
Views:	52
Size:	413.2 KB
ID:	3214899

                                        Back in the case.

                                        Click image for larger version

Name:	gw_0838.jpg
Views:	71
Size:	221.3 KB
ID:	3214900

                                        Face back on and SCA trays inserted.

                                        Click image for larger version

Name:	gw_0839.jpg
Views:	70
Size:	189.0 KB
ID:	3214901

                                        Next up is the power supply I had to add an 8-pin EPS connector to use this supply with this board. This was an interestingly designed power supply. ALl rectification is done internally along with standby voltages. The modules only provide the usable power for the PC. This PSU will power up, have standby, and run the fans at low speed with no modules inserted.

                                        Click image for larger version

Name:	gw_0840.jpg
Views:	54
Size:	295.9 KB
ID:	3214902

                                        I removed the I2C cabling, as it interfaces with the original motherboard for the front panel LED's, The new board won't interface with it, so to save clutter, I just removed it.

                                        Click image for larger version

Name:	gw_0842.jpg
Views:	51
Size:	355.6 KB
ID:	3214903

                                        Added the 8-pin plug. I had enough ground through holes for all 4 wires, so each wire got its own. The +12, I only had 2 free through holes....so I had to doublejack them. Not a big deal, this board pulls very little from the +12v rail anyway....but it won't run without this connector installed.

                                        Click image for larger version

Name:	gw_0843.jpg
Views:	52
Size:	350.2 KB
ID:	3214904

                                        Done.

                                        Click image for larger version

Name:	gw_0845.jpg
Views:	54
Size:	321.1 KB
ID:	3214905

                                        Tested. Works.

                                        Click image for larger version

Name:	gw_0846.jpg
Views:	53
Size:	349.5 KB
ID:	3214906

                                        Installing. Pay no attention to the poor cable management at this point....

                                        Click image for larger version

Name:	gw_0849.jpg
Views:	52
Size:	422.2 KB
ID:	3214907

                                        Click image for larger version

Name:	gw_0850.jpg
Views:	51
Size:	329.5 KB
ID:	3214908

                                        That's all until the CPU's get here....Stuck a magnificent period-specific GPU in this one.
                                        <--- Badcaps.net Founder

                                        Badcaps.net Services:

                                        Motherboard Repair Services

                                        ----------------------------------------------
                                        Badcaps.net Forum Members Folding Team
                                        http://folding.stanford.edu/
                                        Team : 49813
                                        Join in!!
                                        Team Stats

                                        Comment


                                          We interrupt your regularly scheduled build to show off Topcat's completely pimped out Precision T7910. This was a freebie from a local resort that survived being hammered because the grunts couldn't find the HDD's, they mistook the optical for a 'hard drive' and beat that with a hammer....no, I'm not kidding!!

                                          Anyway... It had 64gb RAM spread across 8 of its 16 slots and 2x Xeon E5-2690 v4 CPU's and a big turd of a NVS 310 GPU. I didn't change the CPU's, they are a decent balance of clock speed and core count; 28 cores / 56 threads!! Wowza!! I did however up the RAM to 128GB with matching modules to what was in it....and after some research upgraded the GPU's to a pair of Quadro K5200 8gb cards. This system does support SLI, but for quadro's only....no GTX / RTX's will do it.... Licensing thing from nvidia....workstation versus game....so here we are!!

                                          I didn't dwell too much on the gore, but here's a few. Testing some things and RAM added.

                                          Click image for larger version  Name:	t7910_0851.jpg Views:	0 Size:	303.3 KB ID:	3218589

                                          SAS card pulled. The plastic pegs that hold the heatsink on broke immediately. That processor on the card gets miserably hot. Had to replace the pegs and the thermal grease.

                                          Click image for larger version  Name:	t7910_0860.jpg Views:	0 Size:	321.6 KB ID:	3218590

                                          Pulled the SAS card for this: A Dell NVMe adapter with 2x slots inside. I added a 1TB M.2 for OS / boot.

                                          Click image for larger version  Name:	t7910_0861.jpg Views:	0 Size:	262.5 KB ID:	3218591

                                          Next up, I added the 4 bay 2.5" SAS cage to go along with the existing 4 bay 3.5" cage below it. The 2.5" cage is an option.

                                          Click image for larger version  Name:	t7910_0862.jpg Views:	0 Size:	218.3 KB ID:	3218592

                                          These fans were part of the kit.

                                          Click image for larger version  Name:	t7910_0863.jpg Views:	0 Size:	240.5 KB ID:	3218593

                                          Click image for larger version  Name:	t7910_0864.jpg Views:	0 Size:	262.6 KB ID:	3218594

                                          SAS card replaced under the NVMe adapter and connected to the SAS cages. These cages are empty for now, but leaves lots of room for expansion for more drives.

                                          Click image for larger version  Name:	t7910_0865.jpg Views:	0 Size:	229.4 KB ID:	3218595

                                          Wiring tidied up.

                                          Click image for larger version  Name:	t7910_0866.jpg Views:	0 Size:	261.6 KB ID:	3218596

                                          Note the crack on the slimline optical tray. Yes, it survived the hammering. The drive was destroyed, but it's a common/standard SATA slimline. I have boxes full of them. I had to take a heatgun to it to reshape it, but it does latch into place. Yes, this is what they beat up thinking it was a 'hard drive'. I'm just glad they stopped there. Most of the other systems I got from them were pulverized beyond any form of salvage or reuse.

                                          Click image for larger version  Name:	t7910_0867.jpg Views:	0 Size:	272.7 KB ID:	3218597

                                          ...and there you have it!! A totally pimp-a-licious Precision T7910!! The only thing I couldn't find were the liquid coolers that were also optional for these. Very rare apparently.

                                          Click image for larger version  Name:	t7910_0868.jpg Views:	0 Size:	293.6 KB ID:	3218598

                                          Click image for larger version  Name:	t7910_0869.jpg Views:	0 Size:	255.8 KB ID:	3218599

                                          System specs:

                                          Precision T7910
                                          2x Xeon E5-2690 v4 @ 2.6GHz x14 cores per CPU. 28 cores 56 threads
                                          128GB ECC DDR4
                                          2x Quadro K5200 8GB GPU's in SLI; 16gb dedicated video RAM
                                          1TB M.2 boot storage
                                          12G SAS adapter w/ 8 bays for storage expansion
                                          Win10 Enterprise

                                          This would bring a nice price on ebay....but I'll try to rehome it locally.
