    Insignia 39d400na14

    I have this insignia 39d400na14 that has a shorted ic. Its clearly burnt but i am having a hard time finding that part. It reads:
    AUO
    m106-11
    fg823

    And i can clearly see a small pinhole and scorching where it shorted out. Can anyone help me find this small ic?
    Tags: None
    • ReeceyBurger123
      Never Give Up !
      • May 2014
      • 7325
      • Britain
      #2
      Re: Insignia 39d400na14

      Did you even check google ? Lol here is some links:

      http://www.aliexpress.com/store/prod...890354676.html

      google.com/auo m106-11 Second link messed up but paste into google.
      Please Do Not PM My Page Asking For Help Badcaps Is The Place For Advise, Page Linked For Business Reasons Only. Anyone Doing So Will Be Banned Instantly !

      https://www.facebook.com/Telford-Tel...7894576335359/

        Comment

        • budm
          Badcaps Legend
          • Feb 2010
          • 40746
          • USA
          #3
          Re: Insignia 39d400na14

          Can we see the picture of this board and the burnt parts?
          It is AUOPTO. Is it on the main or the T-CON board?
          Never stop learning
          Basic LCD TV and Monitor troubleshooting guides.
          http://www.badcaps.net/forum/showthr...956#post305956

          Voltage Regulator (LDO) testing:
          http://www.badcaps.net/forum/showthr...999#post300999

          Inverter testing using old CFL:
          http://www.badcaps.net/forum/showthr...er+testing+cfl

          Tear down pictures : Hit the ">" Show Albums and stories" on the left side
          http://s807.photobucket.com/user/budm/library/

          TV Factory reset codes listing:
          http://www.badcaps.net/forum/showthread.php?t=24809

            Comment

            • james28909
              Senior Member
              • May 2012
              • 53
              • someplace
              #4
              Re: Insignia 39d400na14

              Yes i checked google sir, the numbers didnt match perfectly so i were unsure.
              @budm it is on the tcon board but the tcon is soldered to the panel sadly. I will try to get some high res pics and post. Its clearly burnt though

                Comment

                • james28909
                  Senior Member
                  • May 2012
                  • 53
                  • someplace
                  #5
                  Re: Insignia 39d400na14

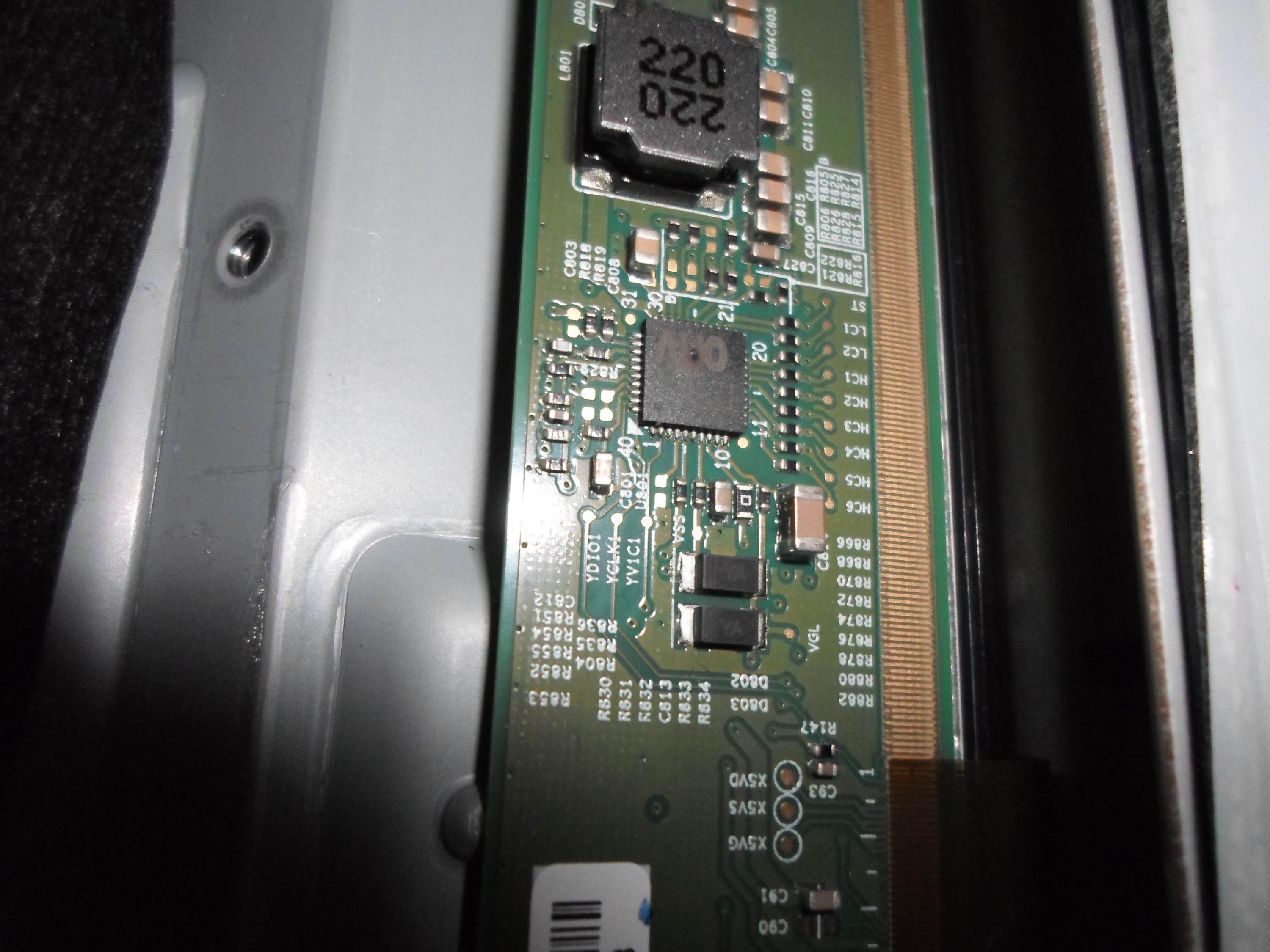

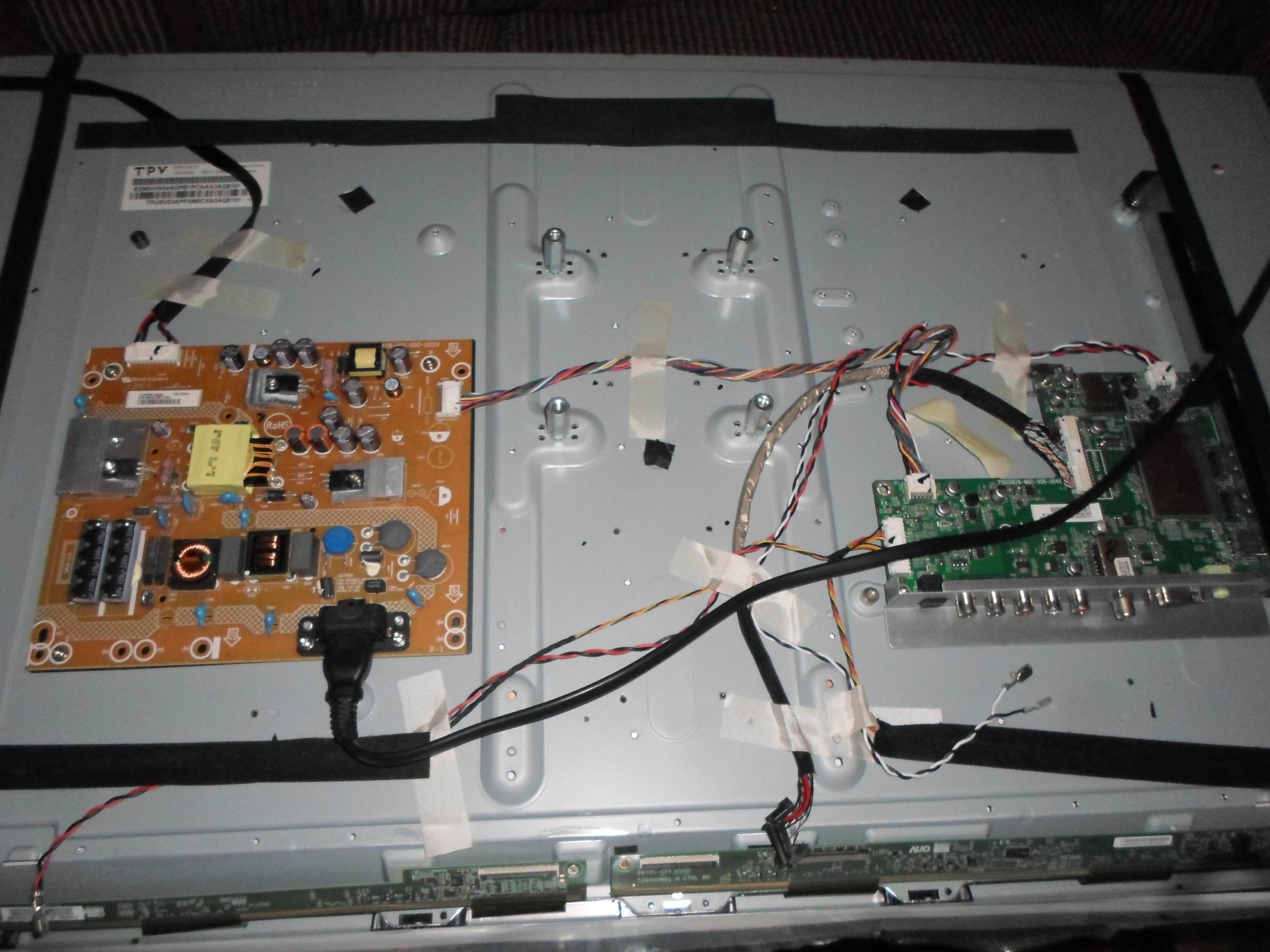

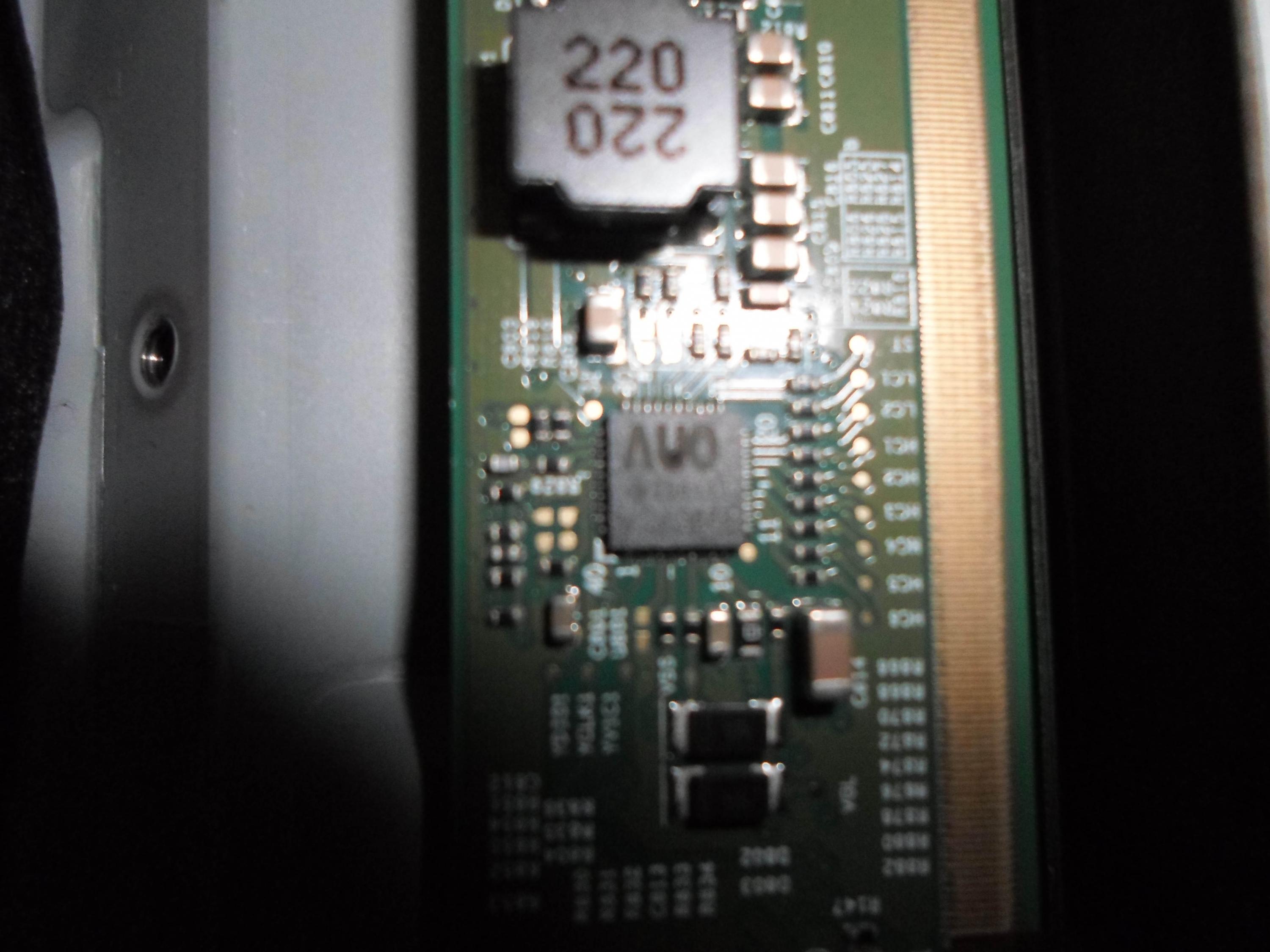

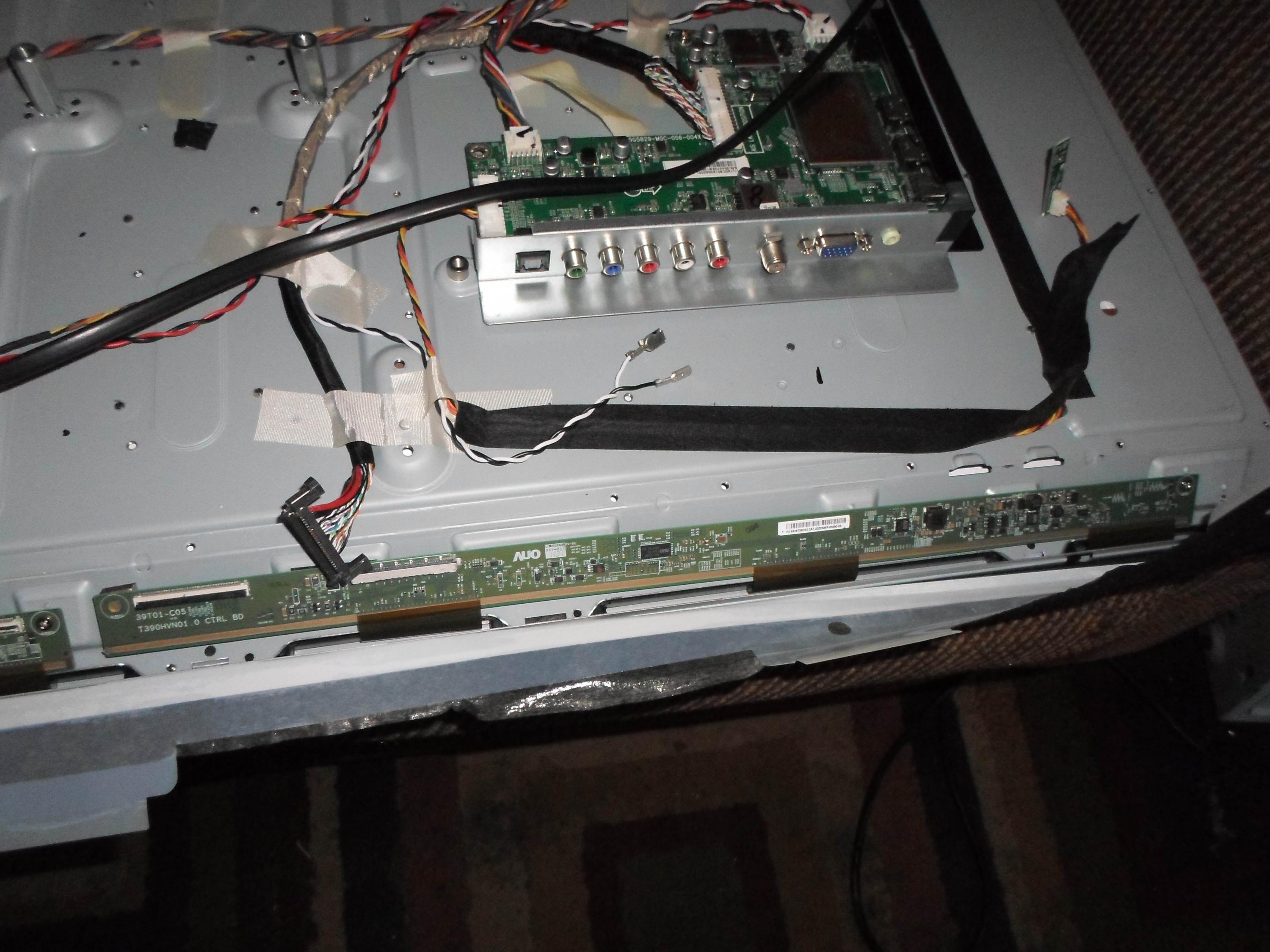

                  here are some pics. i could not get good lighting to get the part number for some reason. but here you go..
                  the linked ic has different numbers after part number.
                  mine reads:
                  AUO
                  m106-11
                  fg823

                  linked part reads:
                  AUO
                  m106-11
                  EEE3S i think

                  will that part work?

                  heres another on ebay: http://goo.gl/7tFQgi
                  Attached Files
                  Last edited by james28909; 03-28-2016, 11:32 AM.

                    Comment

                    • james28909
                      Senior Member
                      • May 2012
                      • 53
                      • someplace
                      #6
                      Re: Insignia 39d400na14

                      can anyone confirm that ic from ali express will work? thanks

                      EDIT: i see here that the third number on my chip is either a serial number or a production batch number so i think the part linked above might work, but i would still appreciate if someone a little more knowledgeable would chime in with some good ole confirmation
                      Last edited by james28909; 03-28-2016, 02:40 PM.

                        Comment

                        • CapLeaker
                          Leaking Member
                          • Dec 2014
                          • 8210
                          • Canada
                          #7
                          Re: Insignia 39d400na14

                          What you have to lose? 2 bucks?
                          Last edited by CapLeaker; 03-28-2016, 03:43 PM.

                            Comment
