    Re: Emerson LC401EM2F

    Originally posted by BFraley
    I dont have a schematic for the tv and i dont have any software to open any of the adobe files or pdf files on my computer. .
    Well there is one in the post above first download a reader
    http://www.adobe.com/products/reader.html

    Do not post in more than one thread - I suggest you go in the other one
    and edit it to say posted in error. - you cant delete it altogether.

    We can help a lot more if you please post good clear pictures of the whole chassis, and then pictures of each board, front and back (in the same orientation) and close up of connectors, (max resolution 2000x2000 and 2MB) using the manage attachments button, which is found by clicking "go advanced" under quick reply.

    Please do not post inline and offsite as they slow down the loading of pages.

    Examples of what is needed

    https://www.badcaps.net/forum/attach...7&d=1280167246

    https://www.badcaps.net/forum/attach...6&d=1280167246

    https://www.badcaps.net/forum/attach...4&d=1280167246

    It will be useful if you can say what the supposed fault was and a bit about yourself - skills tools etc. Please say also what tests you have carried out
    assuming you have read both the therads you have posted in.
    Please upload pictures using attachment function when ask for help on the repair
    http://www.badcaps.net/forum/showthread.php?t=39740

    Comment

    • BFraley
      New Member
      • Feb 2013
      • 4
      • USA

      #22
      Re: Emerson LC401EM2F

      Click image for larger version

Name:	IMG_1818.JPG
Views:	1
Size:	1.93 MB
ID:	1920997

      Click image for larger version

Name:	IMG_1819.JPG
Views:	1
Size:	2.06 MB
ID:	1920998

      Click image for larger version

Name:	IMG_1820.JPG
Views:	1
Size:	1.97 MB
ID:	1920999

      Click image for larger version

Name:	IMG_1821.JPG
Views:	1
Size:	2.32 MB
ID:	1921000

      Click image for larger version

Name:	IMG_1822.JPG
Views:	1
Size:	2.46 MB
ID:	1921001

      Click image for larger version

Name:	IMG_1823.JPG
Views:	1
Size:	2.35 MB
ID:	1921002

      Click image for larger version

Name:	IMG_1824.JPG
Views:	1
Size:	2.52 MB
ID:	1921003

      Click image for larger version

Name:	IMG_1825.JPG
Views:	1
Size:	2.11 MB
ID:	1921004

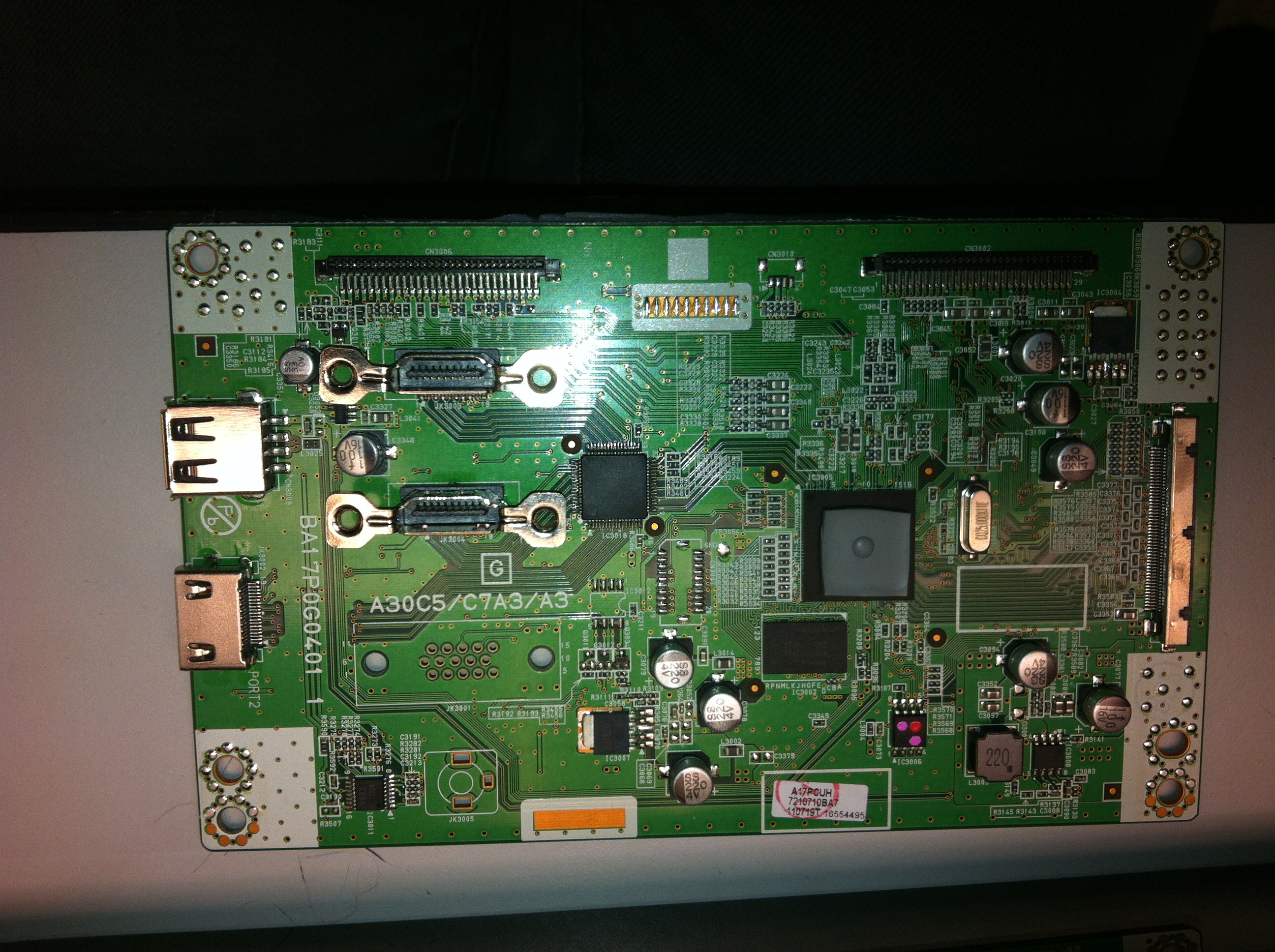

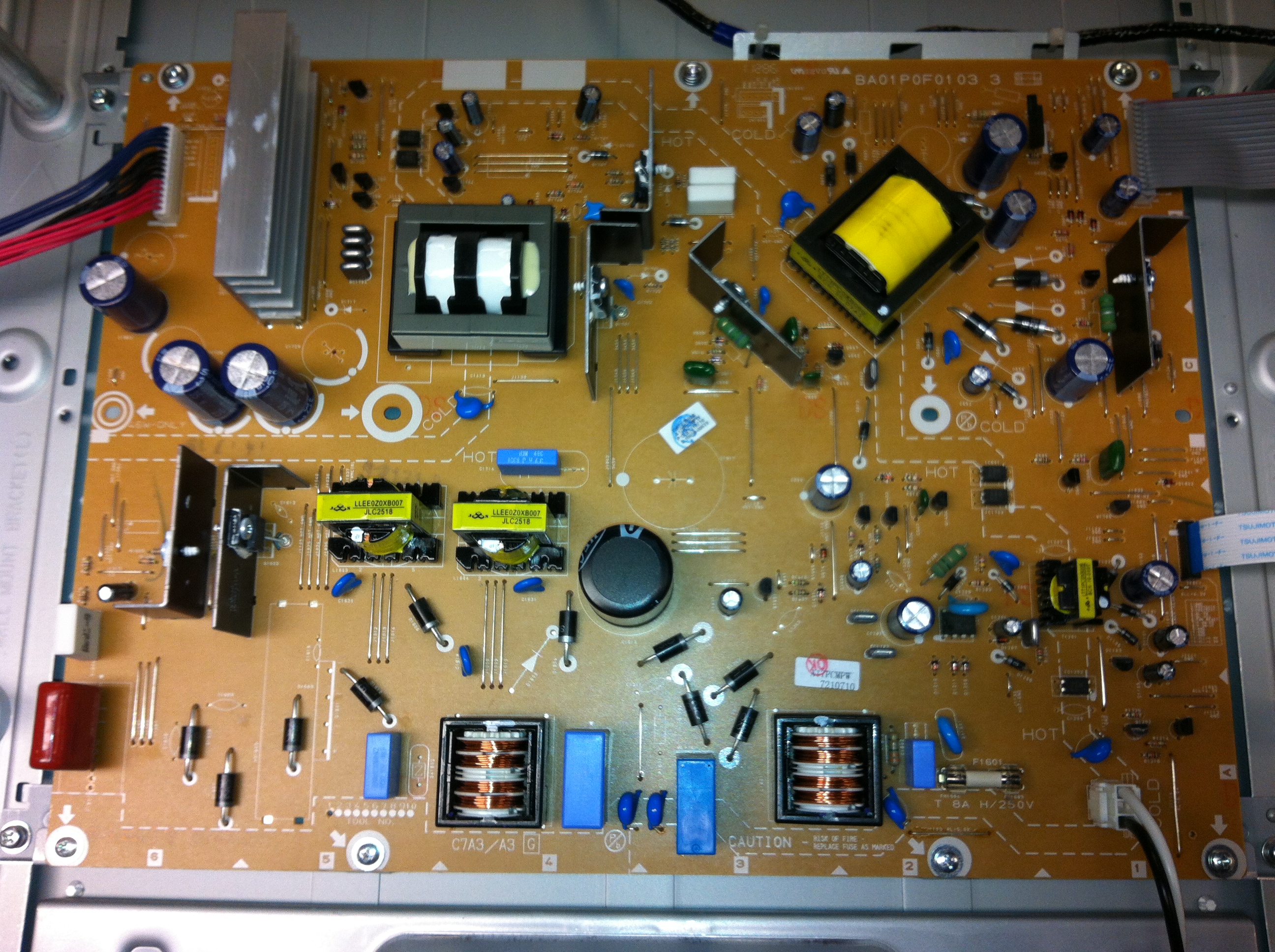

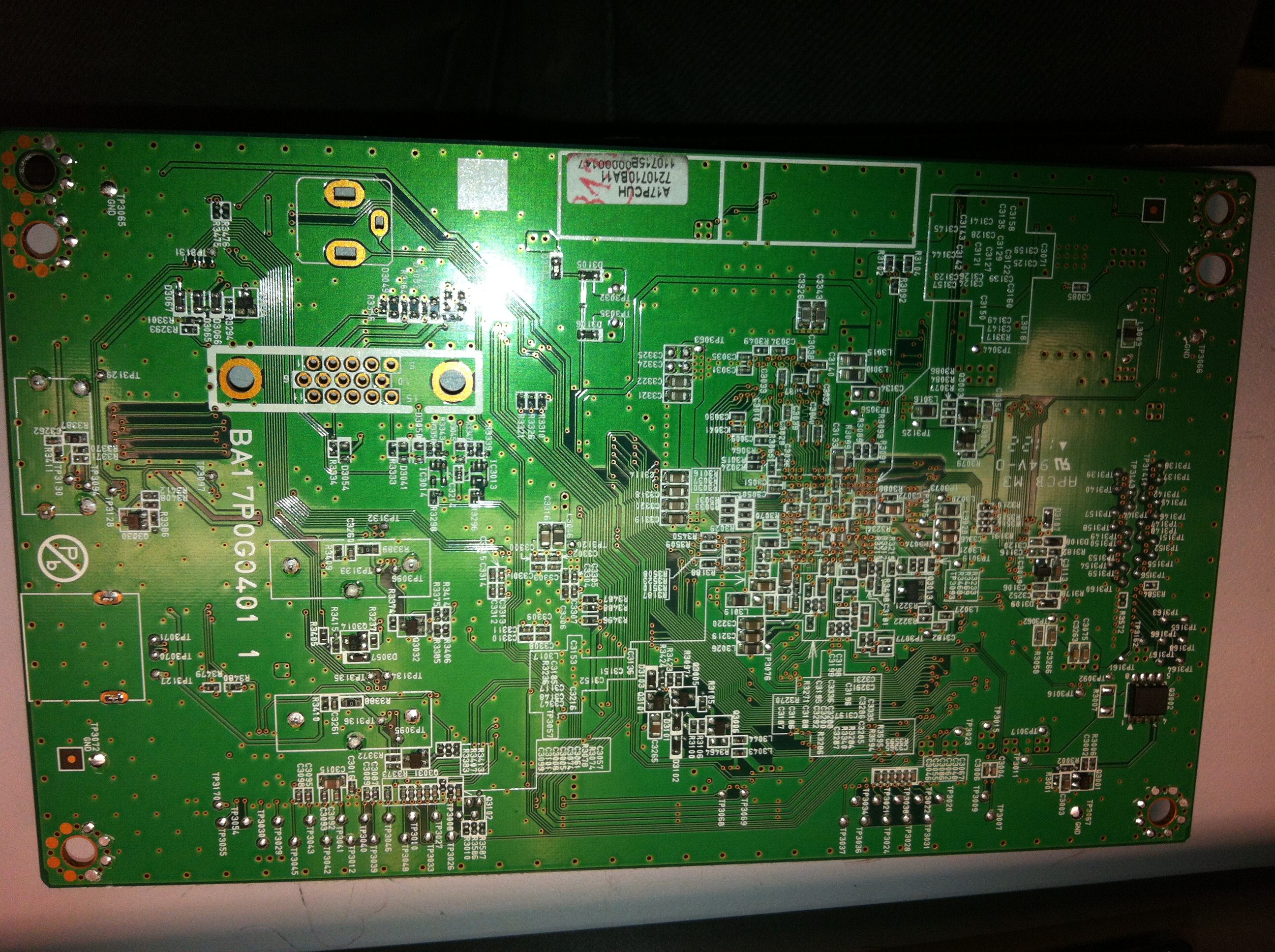

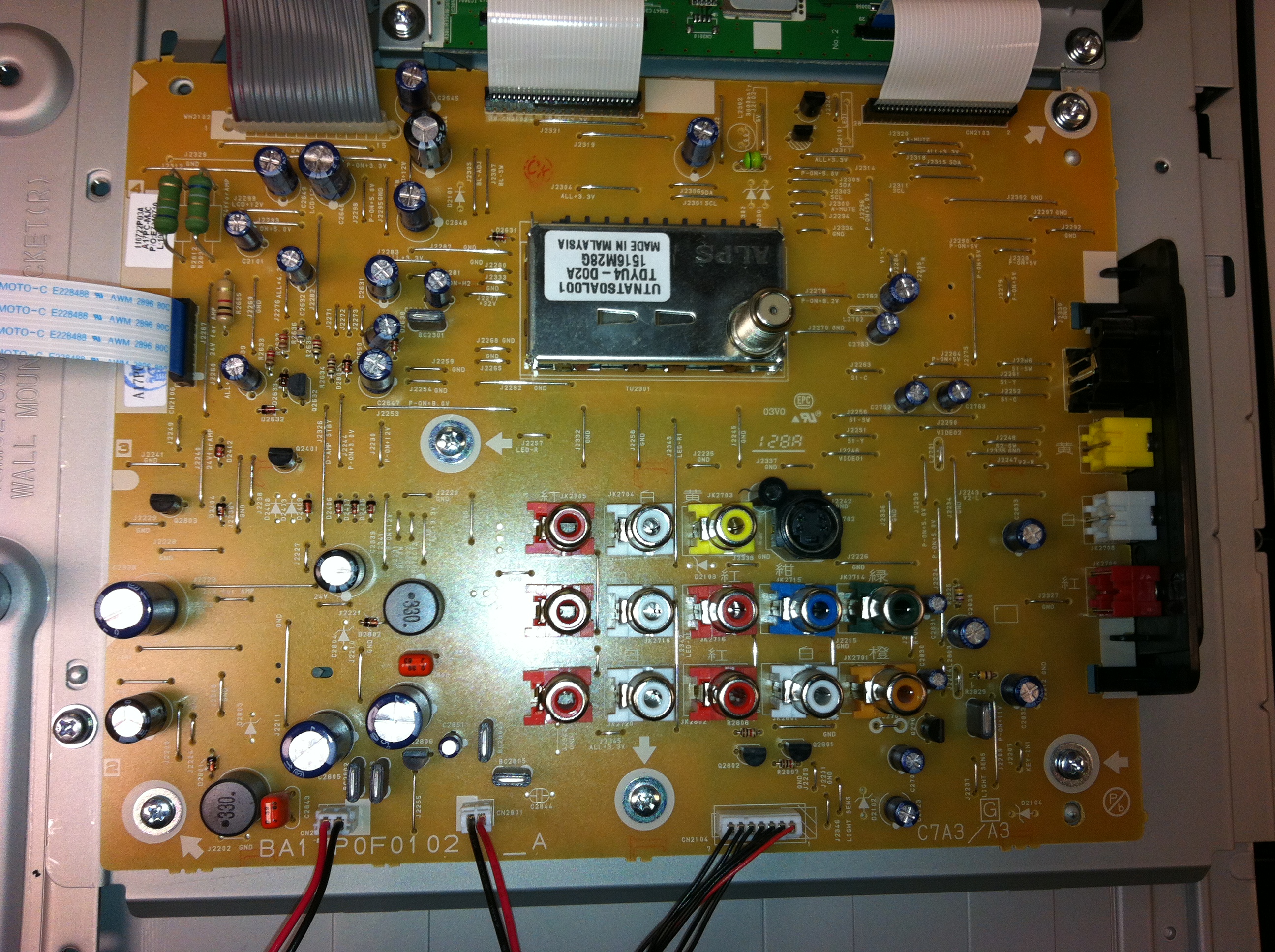

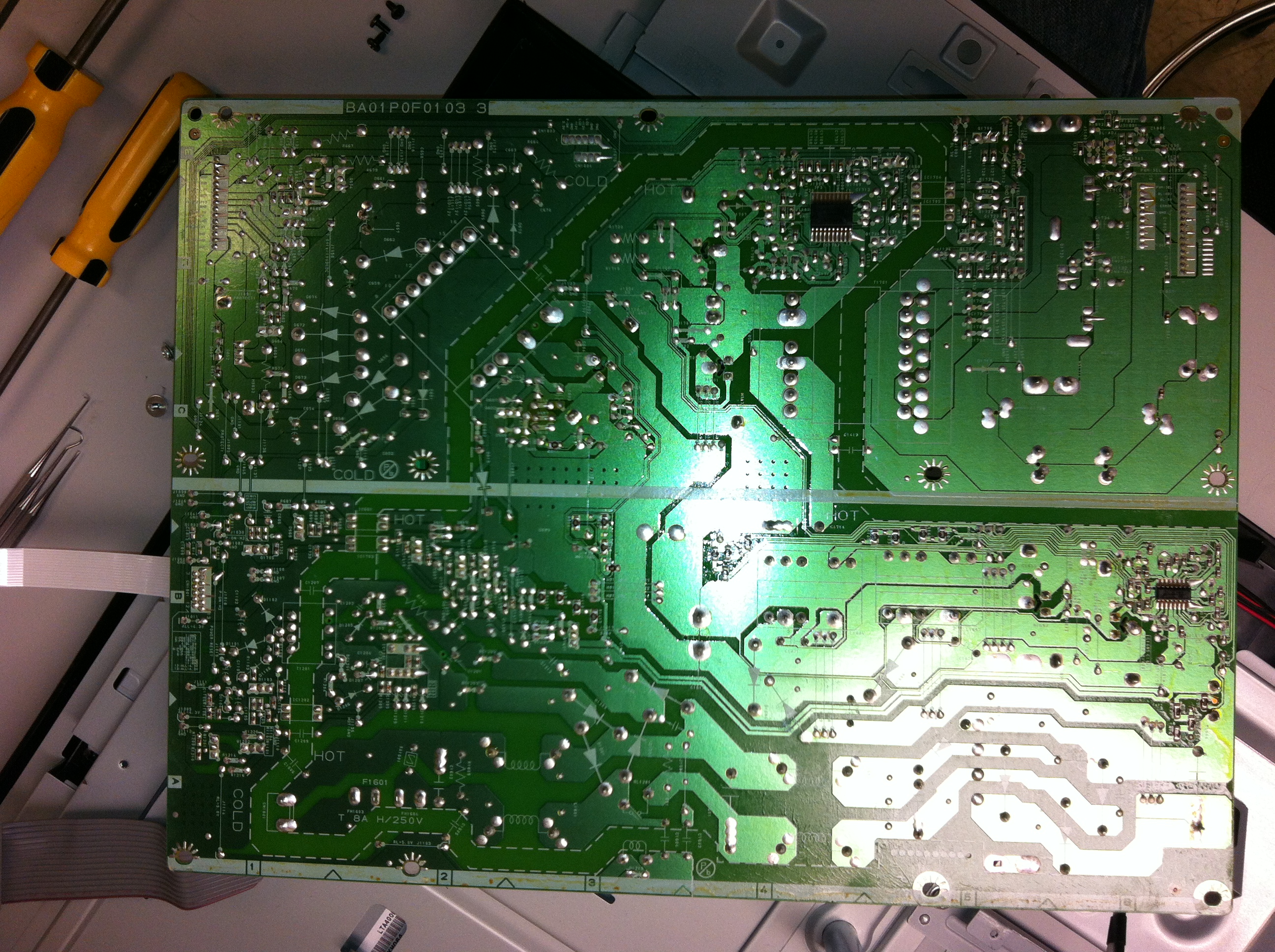

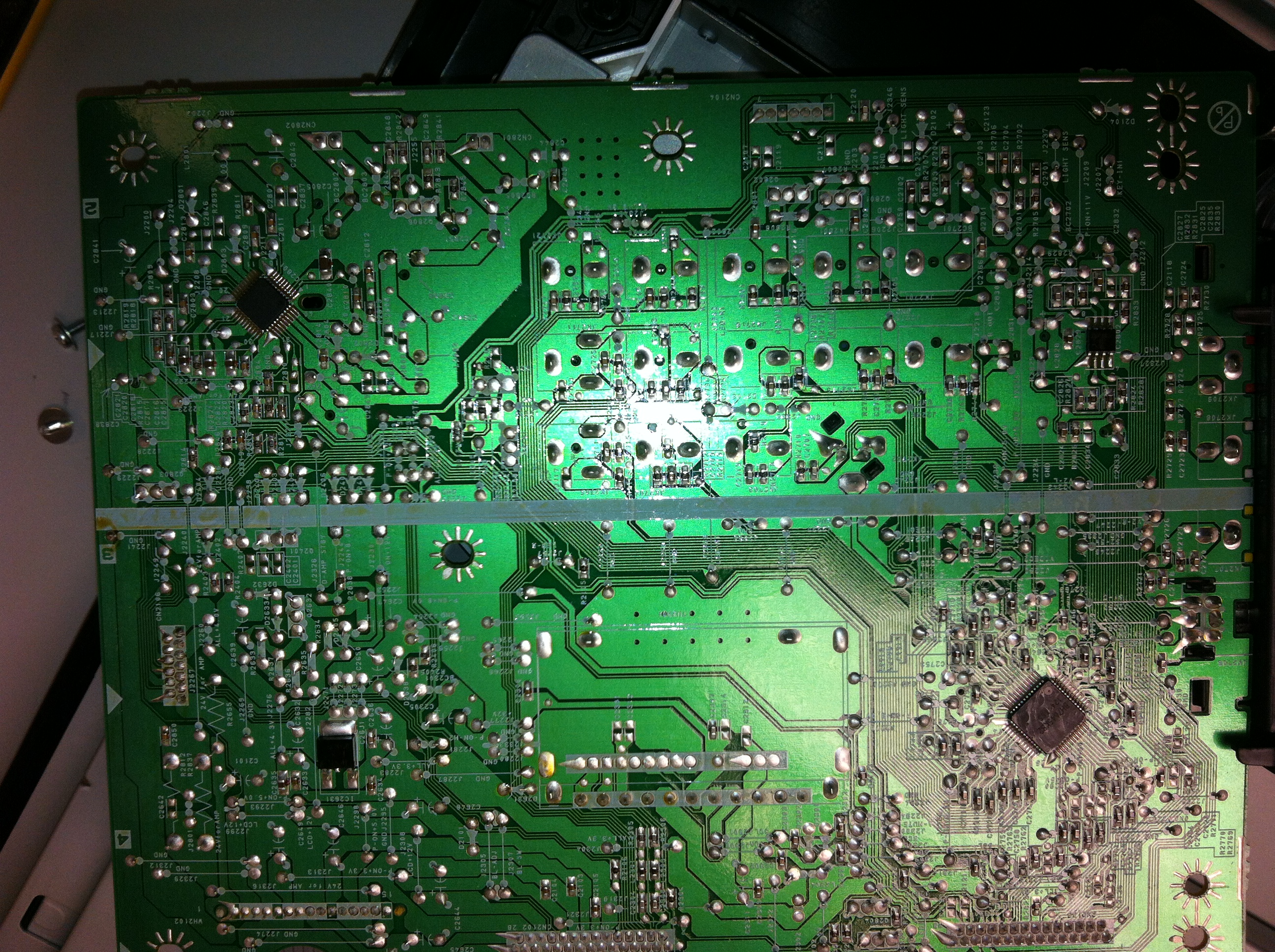

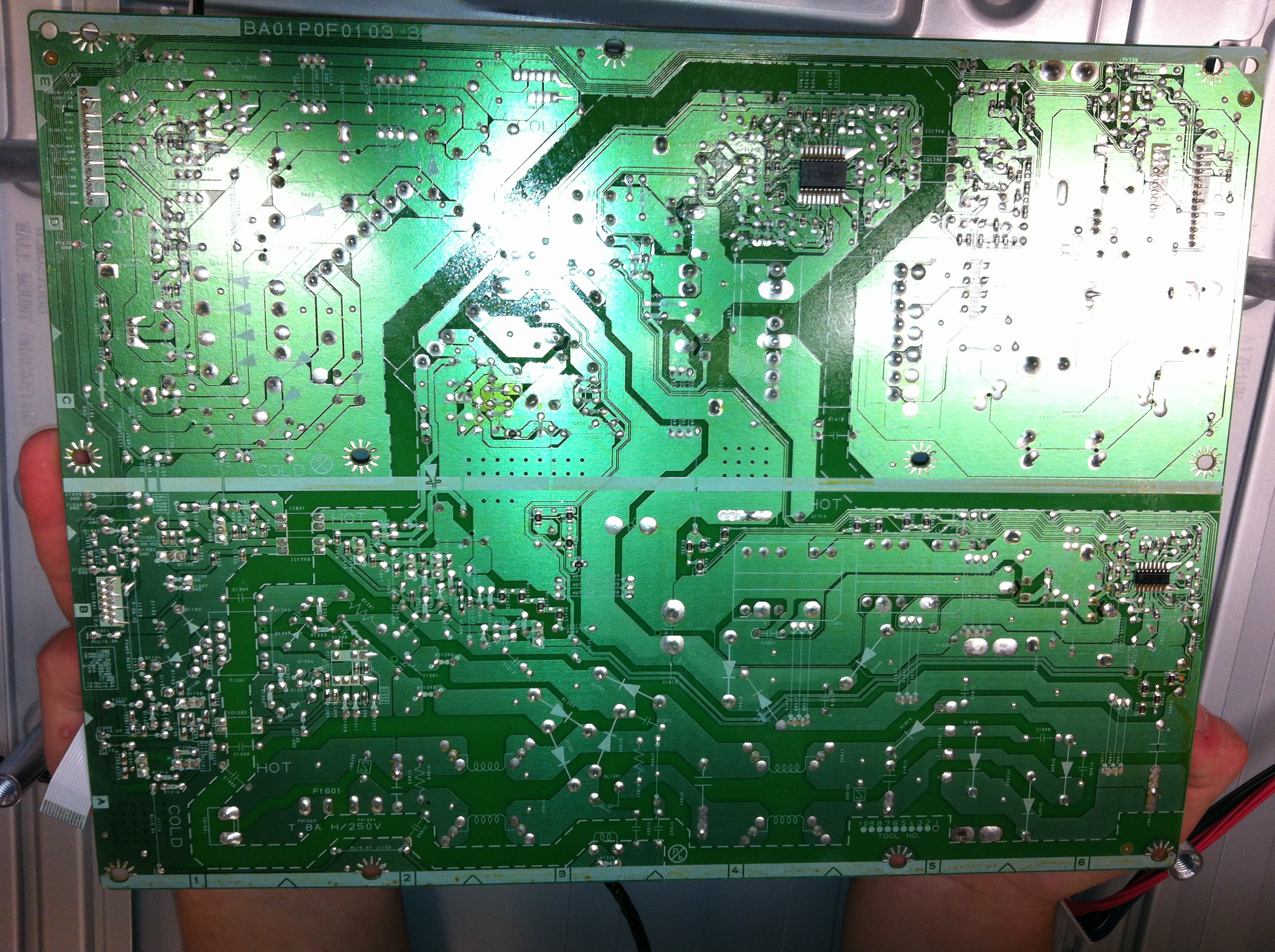

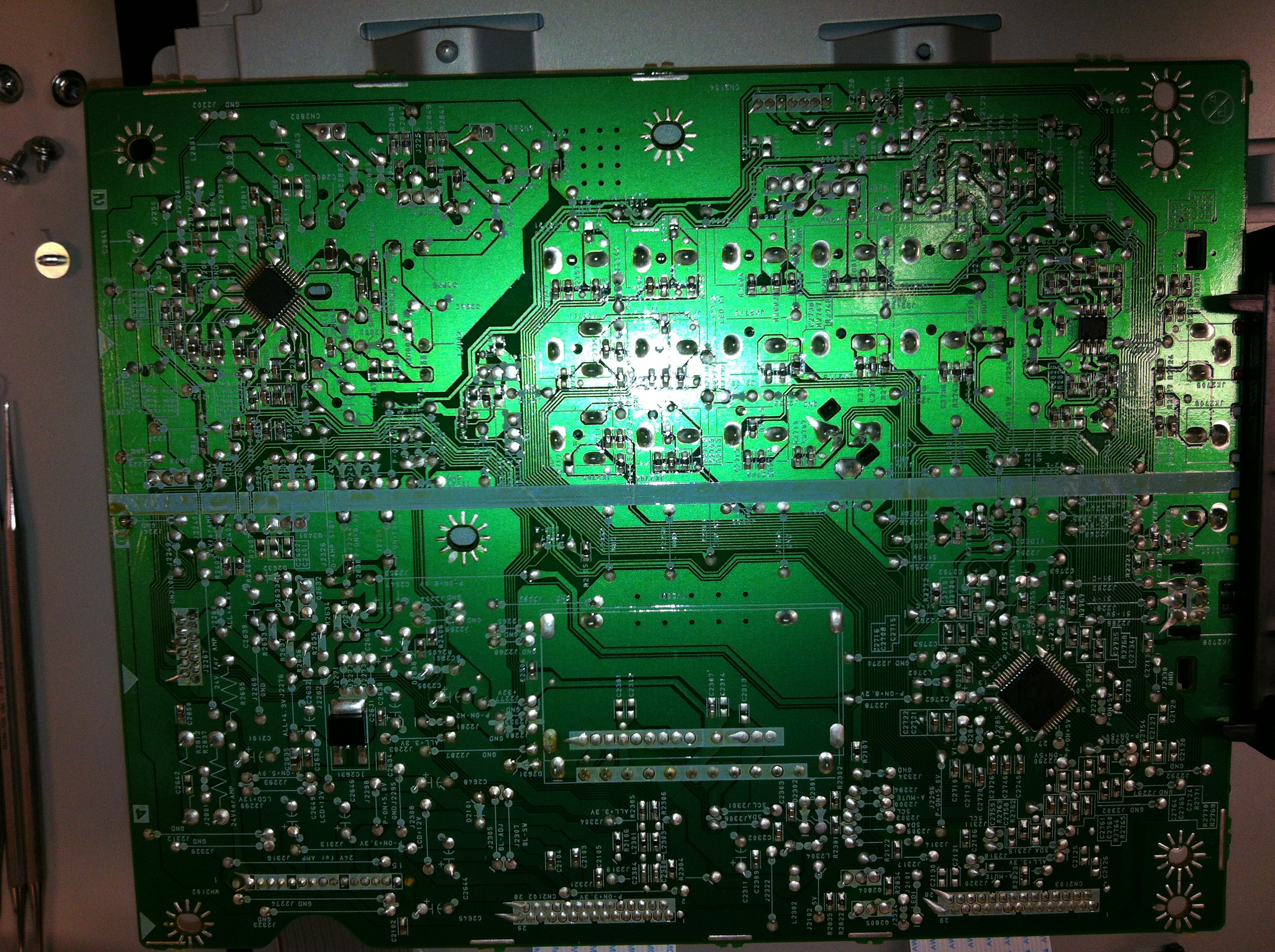

      Those are the pictures of the different boards

      Comment

      • BFraley
        New Member
        • Feb 2013
        • 4
        • USA

        #23
        Re: Emerson LC401EM2F

        I took out a few diodes (D606, D1401, D1603, D1215) because of the weird readings they were giving me actualy connected in the board and all of them are good.

        Comment

        • wrd0225
          New Member
          • Apr 2014
          • 9
          • United States

          #24
          Re: Emerson LC401EM2F

          How do I get the back off of the Emerson LC401EM2F? How many and which screws do I remove? I need to repair where the antenna connects.

          Comment

          • wrd0225
            New Member
            • Apr 2014
            • 9
            • United States

            #25
            Re: Emerson LC401EM2F

            Originally posted by BFraley
            I took out a few diodes (D606, D1401, D1603, D1215) because of the weird readings they were giving me actualy connected in the board and all of them are good.
            I worked on computers, and now my TV went out because a storm knocked my antenna down and pulled the cable sideways and damaged the connector on the back of the set. How do I get the back off of the Emerson LC401EM2F? How many and which screws do I remove? I need to repair where the antenna connects?
