Want to check if these silicone rectifiers are bad / shorted (IN5402) but not ever tested one before.
Is it possible to do with a multi meter?
Is it possible to do with a multi meter?
-
-
Re: Can you test a silicone rectifier with a MM?
Yes, does your meter have a diode mode ?Please Do Not PM My Page Asking For Help Badcaps Is The Place For Advise, Page Linked For Business Reasons Only. Anyone Doing So Will Be Banned Instantly !
https://www.facebook.com/Telford-Tel...7894576335359/ -
Re: Can you test a silicone rectifier with a MM?
yep, similar to how you test a transistor?Comment
-
Re: Can you test a silicone rectifier with a MM?
Yeah similar, check the out:
https://m.youtube.com/watch?v=qSDRsz5-t7IPlease Do Not PM My Page Asking For Help Badcaps Is The Place For Advise, Page Linked For Business Reasons Only. Anyone Doing So Will Be Banned Instantly !
https://www.facebook.com/Telford-Tel...7894576335359/Comment
-
Re: Can you test a silicone rectifier with a MM?
cheers, and can a mosfet be tested in circuit?Comment
-
Re: Can you test a silicone rectifier with a MM?
No worries, also a mosfet can be tested in circuit. If you find it to be shorted take it out to check again.Please Do Not PM My Page Asking For Help Badcaps Is The Place For Advise, Page Linked For Business Reasons Only. Anyone Doing So Will Be Banned Instantly !
https://www.facebook.com/Telford-Tel...7894576335359/Comment
-
Re: Can you test a silicone rectifier with a MM?
Alright think I might have a dodgy mosfet, it doesn't seem to drain.
negative probe on source
and positive probe on the drain
0.718v (even after shorting the gate and the drain or shorting all 3 legs)

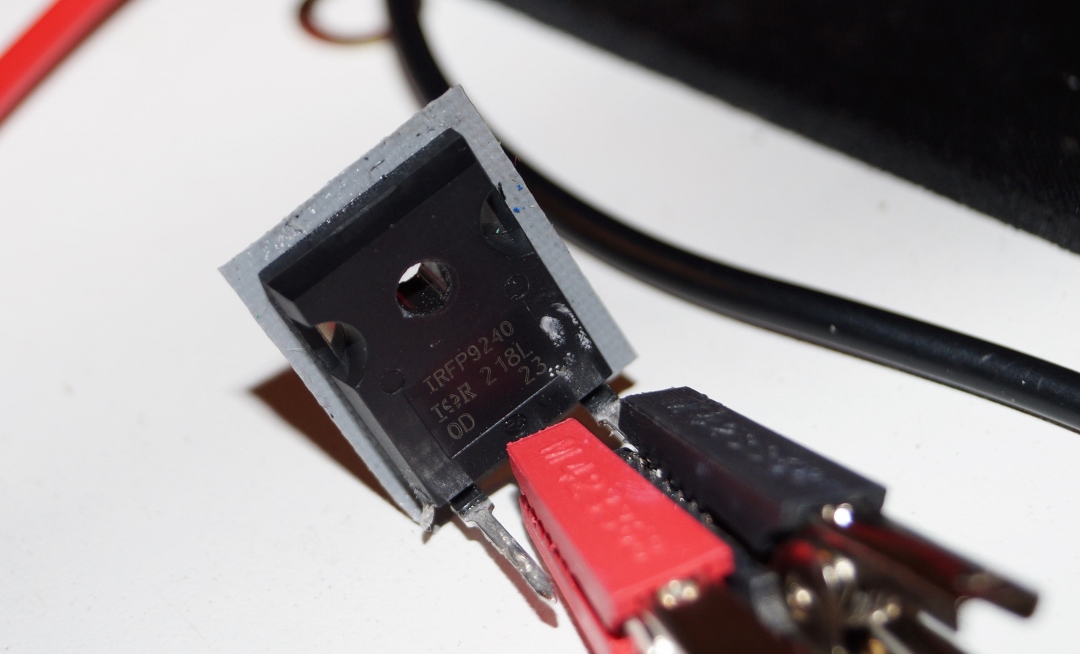

IRFP9240Last edited by mikay786; 11-22-2015, 04:39 PM.Comment
-
Re: Can you test a silicone rectifier with a MM?
Put meter in Ohm mode to see if it shows low resistance between Source and Drain pins, when semi shorted out it will no longer act like semiconductor.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: Can you test a silicone rectifier with a MM?
Not used ohm mode before I think, but I think this is correct mode (unless you meant continuity mode)

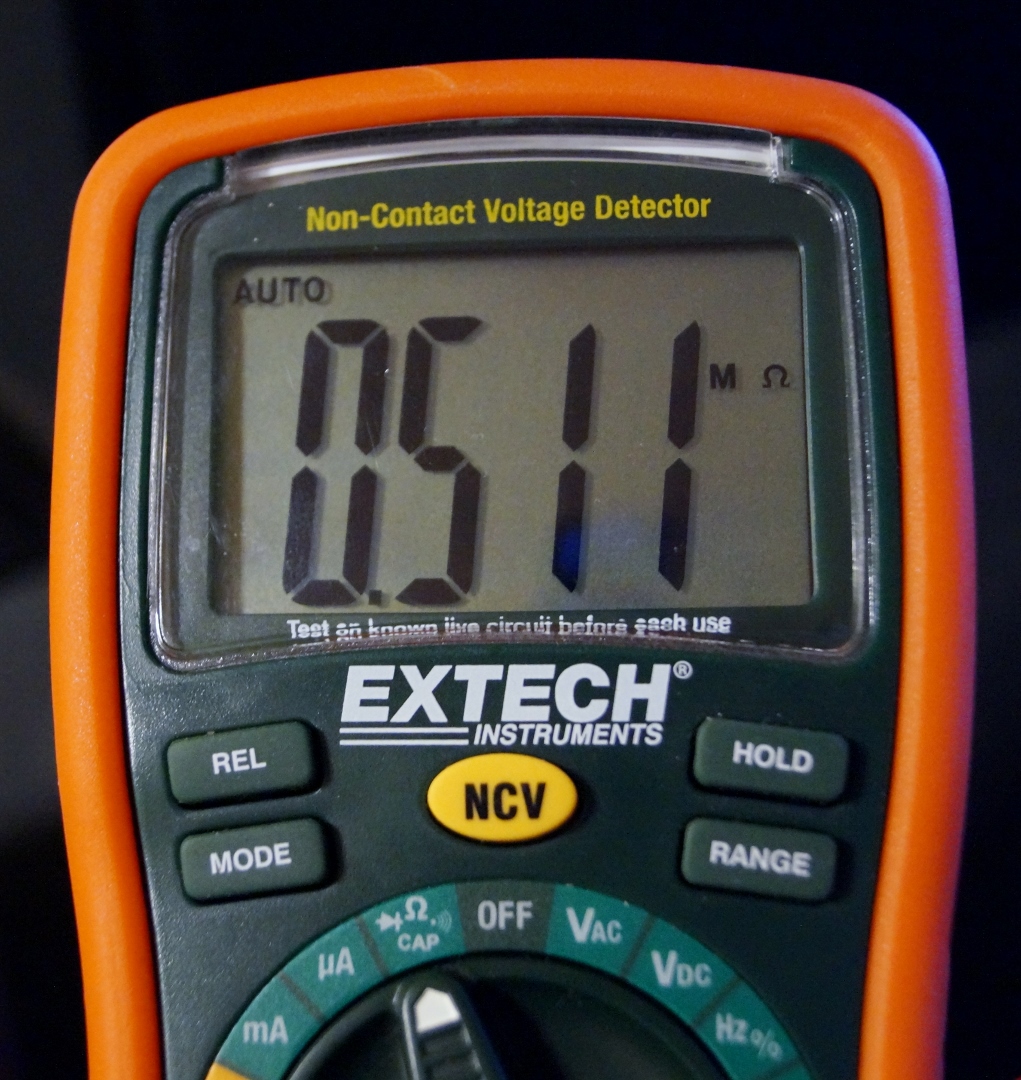

reading 0.511m Ohm
see pics
is that too low / shorted?Attached Filesif you find these attachements useful please consider making a small donation to the site
Comment
-
-
Re: Can you test a silicone rectifier with a MM?
511 Thousand Ohms, not shorted.
That meter can be easily confused by the beginner.Last edited by budm; 11-22-2015, 05:01 PM.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: Can you test a silicone rectifier with a MM?
how come it doesn't drain?Comment
-
Re: Can you test a silicone rectifier with a MM?
There's a IRFP240 mosfet next to it, will test that. Problem is sub keeps blowing fusesComment
-
Re: Can you test a silicone rectifier with a MM?
It is P-CH MOSFET with body diode, reverse the red and black probe and see what resistance you get.
https://cdn.badcaps-static.com/pdfs/...554c20d56c.pdfNever stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Last edited by budm; 11-22-2015, 05:09 PM.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: Can you test a silicone rectifier with a MM?
theres a IRFP240 + IRFP9240 in a pair.
Which one should I reverse? (Ive been testing the IRFP9240 so far)Comment
-
Re: Can you test a silicone rectifier with a MM?
on the IRFP9240 when I put the negative on the drain and positive on the source I get 0.L when testing in ohm modeComment
-
Re: Can you test a silicone rectifier with a MM?
That is what I expected, the 500K Ohms was the reading of the body Diode of the MOSFET when you have Red on the Drain and Black on the Source, so when you reverse the probe, the diode is in reverse bias so the meter show OL -Over range. look at the spec sheet of the MOSFET.
99% of the POWER MOSFET failure will be shorted (Low Ohms) beteen Source and Drain pin.Last edited by budm; 11-22-2015, 05:24 PM.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: Can you test a silicone rectifier with a MM?
so it is shorted?Comment
-
Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: Can you test a silicone rectifier with a MM?
https://cdn.badcaps-static.com/pdfs/...45405cdf4f.pdf
On the IRFP240 when I put
positive on drain
negative on source
in ohm mode I get 2.103m ohm
when I reverse I get 0.L
Is that shorted?
----------------------
In diode mode the polarity on this ones seems reversed?Comment
-
I read EBOOK of Testing Electronic Component and found that
"In order to test the small blue resin coated ceramic disk capacitor which has 104 50v specification,it is possible to test this small ceramic capacitor by making use of analogue meter.
Set to times 10Kohm that has 12v output from the probe to check disorder of ceramic capacitor.
It is not uncommon that testing result of digital capacitance meter is okay,But It show shorted reading when you check it with analogue meter."
Is it really possible to test small ceramic disc capacitor with analogue... -
