Lets play name this connector...

[NxB]

What is the official name for this connector so that I can buy the male end. I know I've seen similar ones on thinkpad LCDs.

[Phaihn]

Re: Lets play name this connector...

You lost me. :L

[370forlife]

Re: Lets play name this connector...

Yelling connector?

[NxB]

Re: Lets play name this connector...

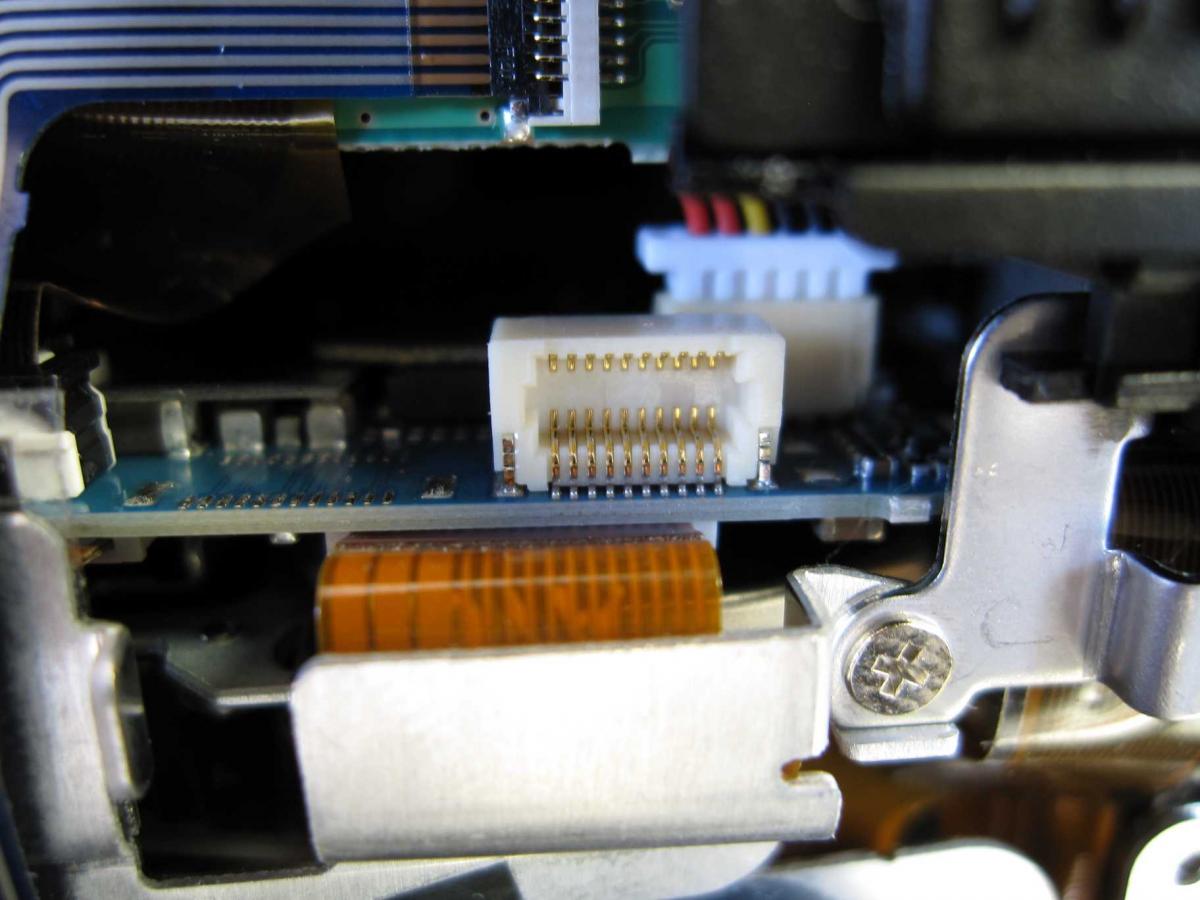

Ok, to be specific the white connector at the top. I want to buy the male end that plugs into this. I don't know what its called (ie, RJ-45, DB-9). If someone knows what this style of connector is called.

[Phaihn]

Re: Lets play name this connector...

oh oh i know Domo kun.

[lucky13]

Re: Lets play name this connector...

Darn, I should have kept that 4" thick Digikey catalog. Might spot it going from beginning to the end....

I've seem similiar ones in iPods....

Sorry I duuno

[Toasty]

Re: Lets play name this connector...

What type/make board is that on?
Dimensions? Width Height ?
Contact pitch (center to center)?
Brand/manufacturer marks or numbers anywhere?
What does it mate to?
Can you show the matching connector?

Toast

[kikkoman]

Re: Lets play name this connector...

http://www.jst-mfg.com/product/detail_e.php?series=147

they're the only mfg i found that makes right-angle connectors of that type.

don't know if the pitch is right.

[ratdude747]

Re: Lets play name this connector...

well at least we have a connector type. search around some. you moght find it elsewhere.

[NxB]

Re: Lets play name this connector...

Yes, right angle connector. It appears to be the Toshiba Mips JTAG port on the bottom of an Cannon HV20/30 logic board. It has no noticeable markings that I see.

[lucky13]

Re: Lets play name this connector...

These connectors are so small that they typically may only have a graphic symbol on it that's all. I'd say Kikkoman has found it for you.

Here is from Digikey catalog:
http://search.digikey.com/scripts/Dk...MCS-G-TF(N)-ND

[NxB]

Re: Lets play name this connector...

Has 60 pins, connector only has 20. I'll have to email them and ask if they make one like that.

[Toasty]

Re: Lets play name this connector...

They only have the 60 position in the JMC series. (non-stocked)

Do a DigiKey search on: JMDSS
Then check mark the "In Stock" box and select 20 in the "Number of Positions" below that.

Perusing those results yields this as a possible candidate:
http://search.digikey.com/scripts/Dk...=455-1894-1-ND

Review the JMD datasheet info to verify the size.

https://cdn.badcaps-static.com/pdfs/...f4dedcf781.pdf

Minimum quantity is 10 @ $1.31100 or $13.11

Toast

[NxB]

Re: Lets play name this connector...

Thanks. I'll measure and see. It might be a pain to solder wires to the male because of the SMD mount but at least we have a candidate.

[weirdlookinguy]

Re: Lets play name this connector...

Lvds?
