Re: Vizio E65x-C2 question about Gamma
I did fire up the TV again, tuned a channel and a good live picture was present!
I did fire up the TV again, tuned a channel and a good live picture was present!
-
They call me......."threadkiller"
-
Re: Vizio E65x-C2 question about Gamma
May be the MLCC has gone open circuit.
https://product.tdk.com/info/en/prod...c02/index.htmlNever stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
I'm pretty sure this is it!

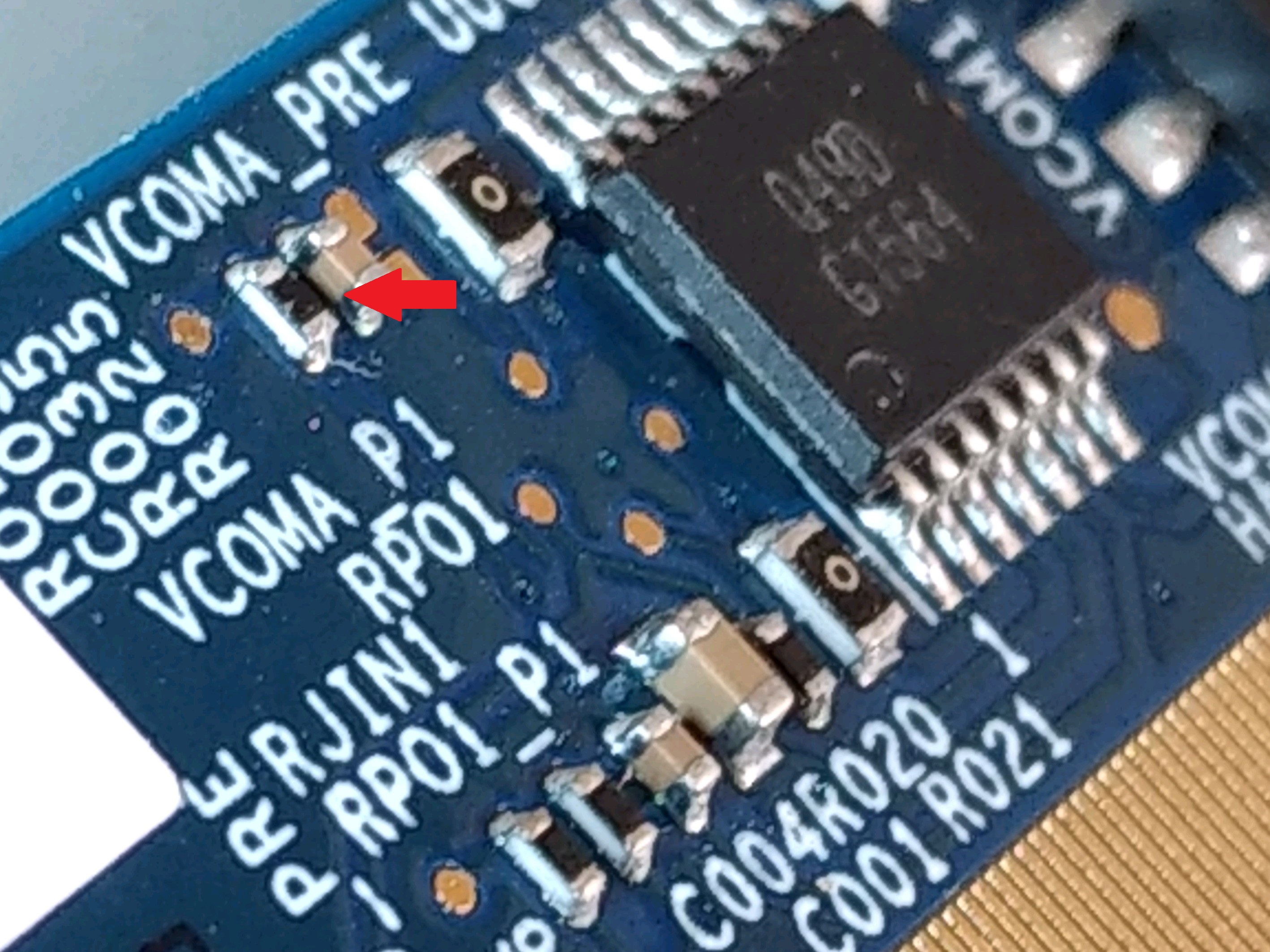

Have a look at this MLCC in the picture, I see a horizontal crack in it. It also appears this is part of the VCOM circuit.
One pic with arrow to denote the cap. Enlarged view may cause loss of clarity. I took this with my cel phone.Attached Filesif you find these attachements useful please consider making a small donation to the site
They call me......."threadkiller"Comment
-
-
