Vizio vw46l weird picture

[Malachi]

Just got this tv today for free. It turns but the screen is weird.

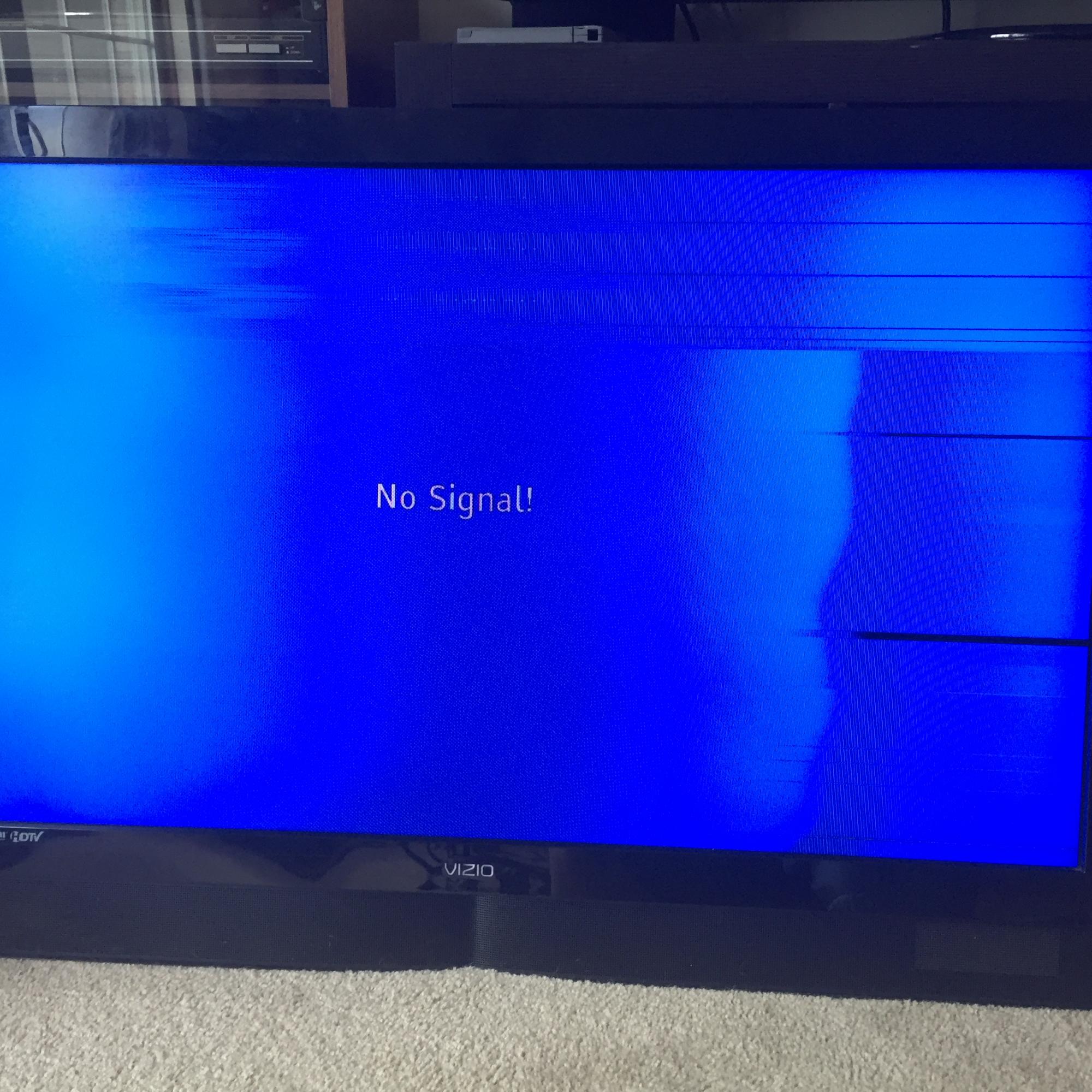

When first turned in the screen has a darker area on the right that then slowly fades away.
The screen then has weird lines.

[budm]

Re: Vizio vw46l weird picture

You already try having ribbon cables between T-CON and LCD panel connected one at a time?

[Malachi]

Re: Vizio vw46l weird picture

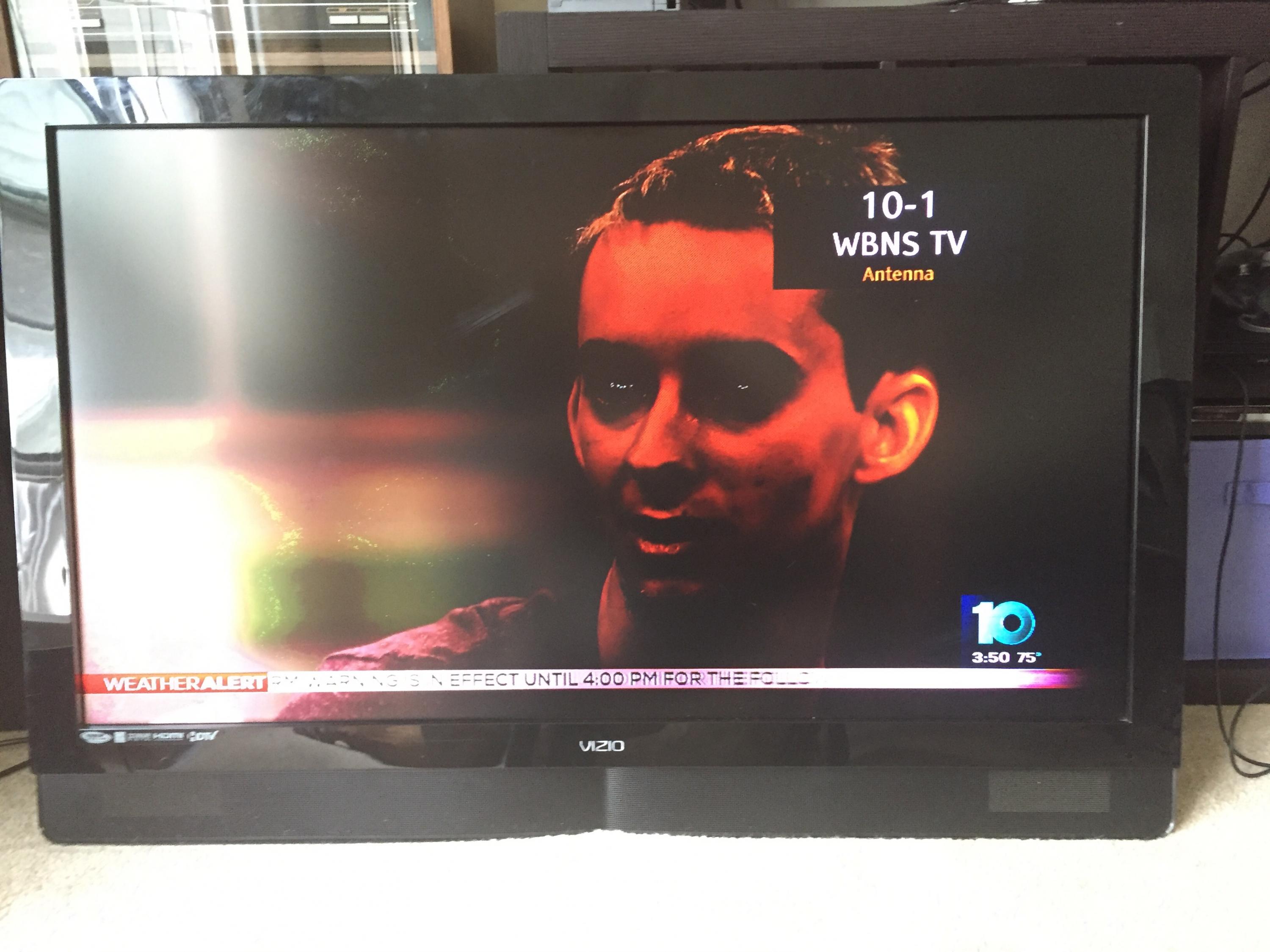

Another picture. Coloring looks weird.

[budm]

Re: Vizio vw46l weird picture

It is strange that it does not show horizontal lines on the screen when you have images on the screen.
The off color looks like bad Gamma Voltages.
Need to check Gamma Voltages and also try reseating the cables.

[Malachi]

Re: Vizio vw46l weird picture

I lol try to check voltages. Is there a certain board that is on? Mainboard, t-con?
It didn't come with a stand so it will be harder to work on

[budm]

Re: Vizio vw46l weird picture

T-CON board.

[Malachi]

Re: Vizio vw46l weird picture

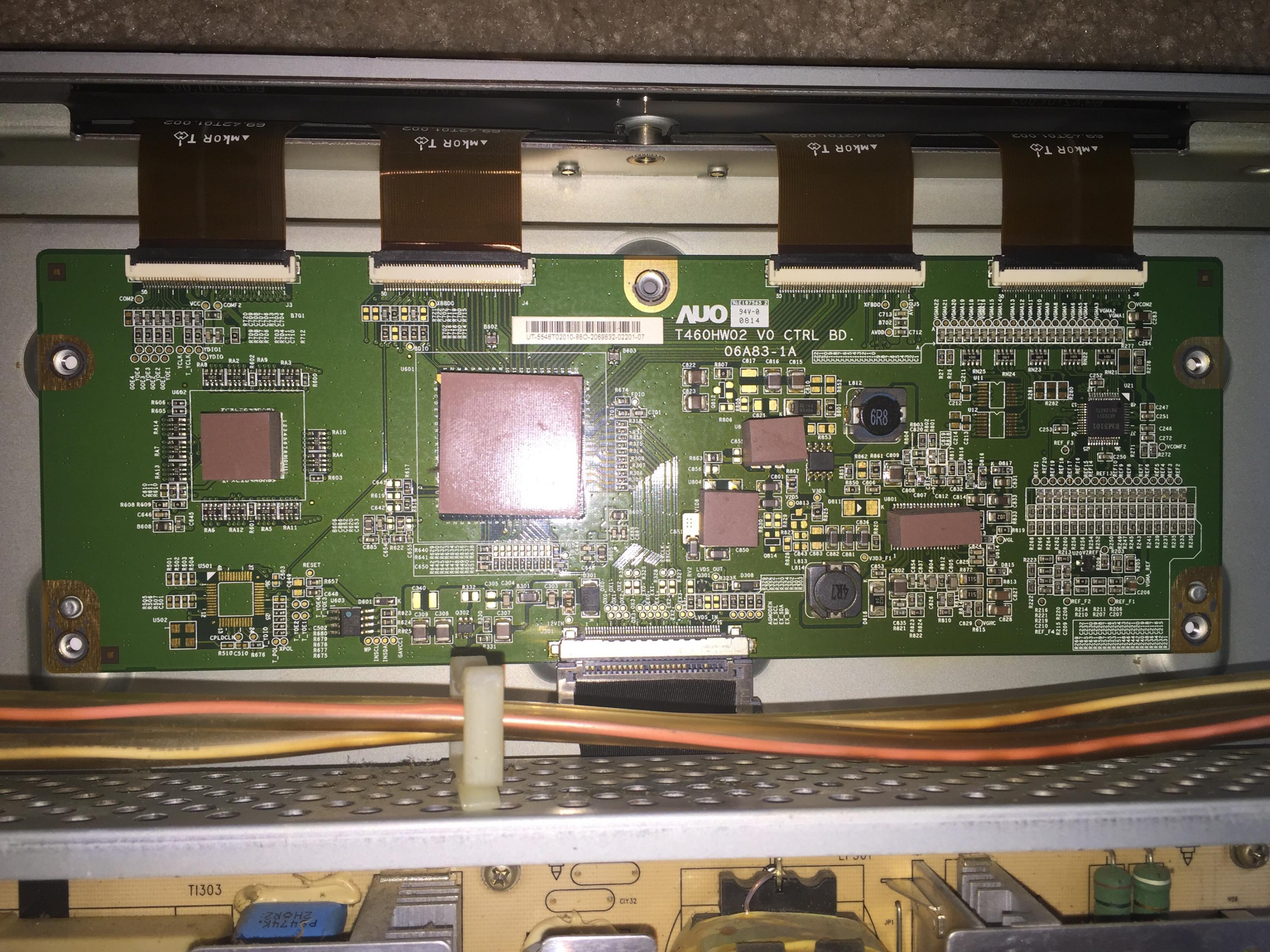

Here is the tcon. Where do I measure?
eBay has working tons for $20.

[Malachi]

Re: Vizio vw46l weird picture

You already try having ribbon cables between T-CON and LCD panel connected one at a time?

There are 4 cabbles from the tcon to the panel. Should I try with just 1 at a time?

[Malachi]

Re: Vizio vw46l weird picture

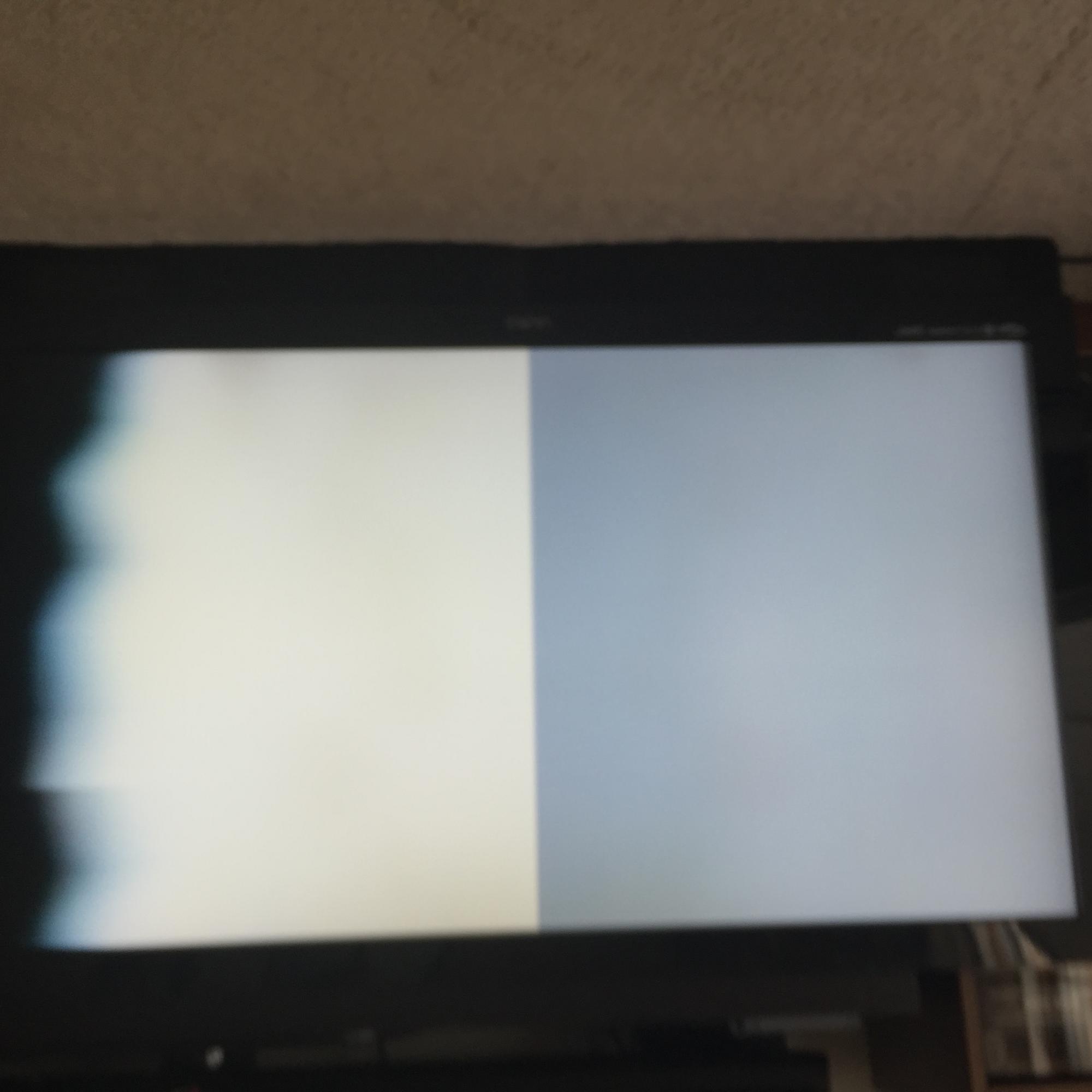

Two right tcon ribbons disconnected.
The black fades till it disappears.
For some reason this picture is flipped. The white is the right side.

[Malachi]

Re: Vizio vw46l weird picture

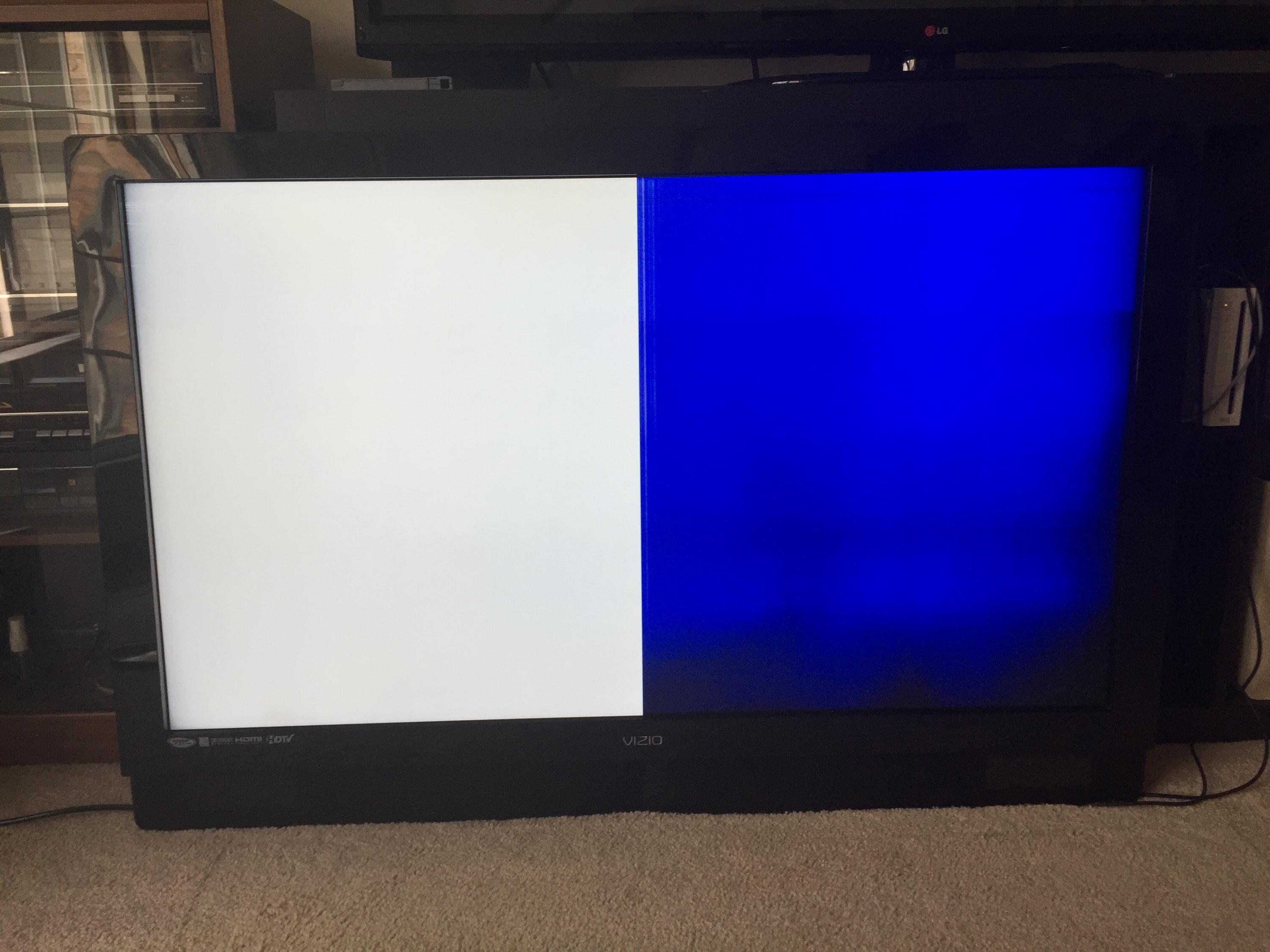

This is with the two left ones disconnected.

[budm]

Re: Vizio vw46l weird picture

https://www.badcaps.net/forum/attach...8&d=1461701641
You can check the DCV at VGMA1~22 test points next, or for $20 you can try a new T-CON.

[Malachi]

Re: Vizio vw46l weird picture

VGMA#
1. 15.43v
2. 15.26v
3. 15.09v
4. 12.78v
5. 11.85v
6. 10.92v
7. 10.23v
8. 9.88v
9. 8.23v
10. 8.01v
11. 7.87v
12. 7.09v
13. 6.96v
14. 6.76v
15. 5.28v
16. 4.96v
17. 4.34v
18. 3.49v
19. 2.65v
20. 0.57v
21. 0.41v
22. 0.26v

[budm]

Re: Vizio vw46l weird picture

I do not expect the #2 and #3 should not be the same. 9~7 and 12~14 also have <0.5V different.

[Malachi]

Re: Vizio vw46l weird picture

I corrected #2. I wrote them down on paper as I measured, then typed them in.
The others are correct.
What does it indicate to you?

[budm]

Re: Vizio vw46l weird picture

Need to find TOM66 spread sheet in the thread some where to fill that in and look at the graph.

[Malachi]

Re: Vizio vw46l weird picture

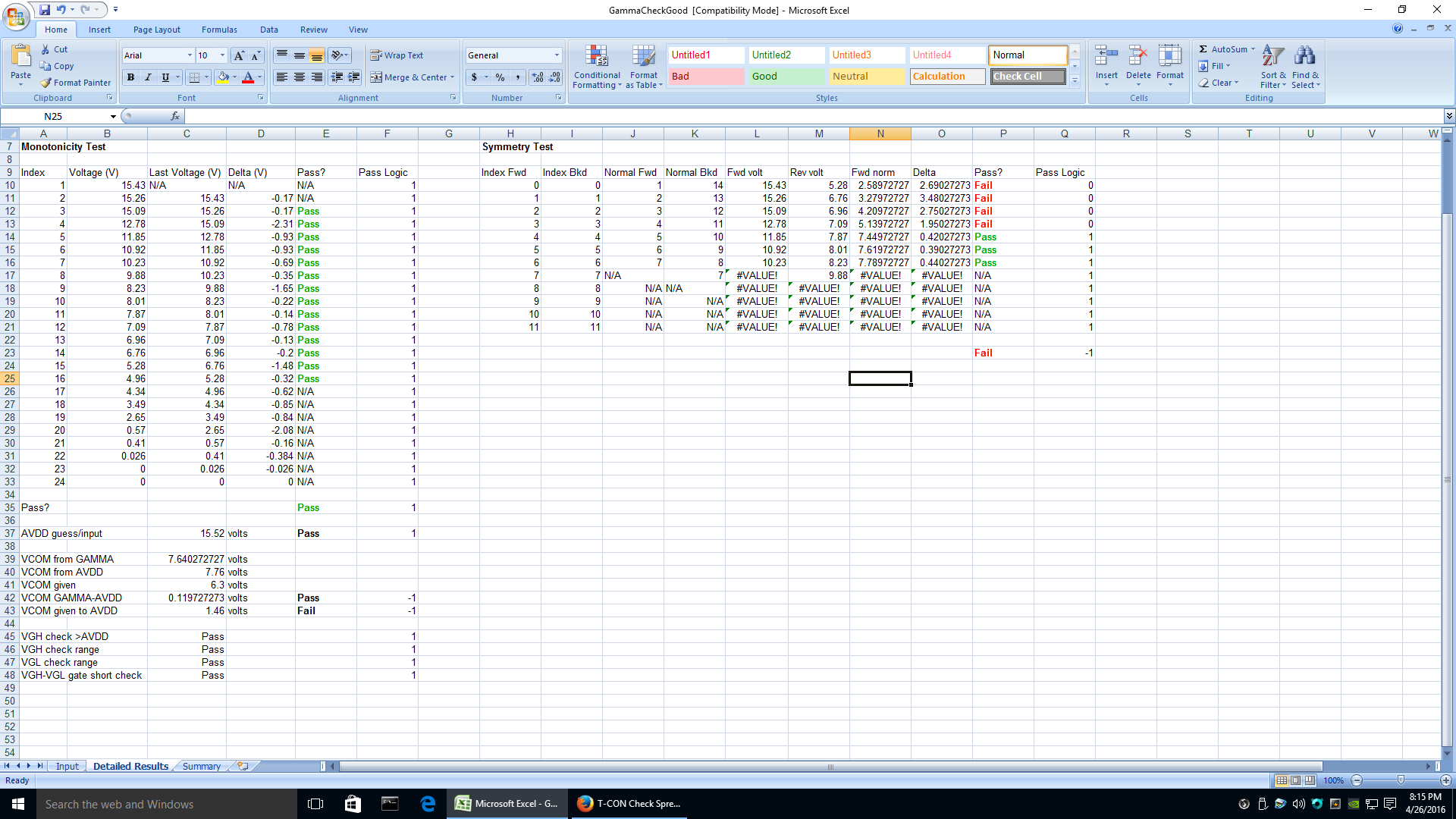

I found his spreadsheet thread. It says you need to find AVDD, VCOM, VGH AND VGL.
I found AVDD it reads 15.52v.
I couldn't find just VCOM but I found VCOMF2, not sure if it's the same. It read 6.83v.
Didn't find VGH but found VGHC, it reads 28.79v and VGL IS -6.19v.

I've never used a spreadsheet. I downloaded his utility link but have no idea how to use it. Lol

[Malachi]

Re: Vizio vw46l weird picture

I got my 25 year old son to help me with excel. There were 2 more entry spots available that I didn't have data for. I only had VGMA 1-22 but there were spots for 1-24, so I dont know if that affects anything.

[Malachi]

Re: Vizio vw46l weird picture

I ordered a tcon board. Now I wait.

[budm]

Re: Vizio vw46l weird picture

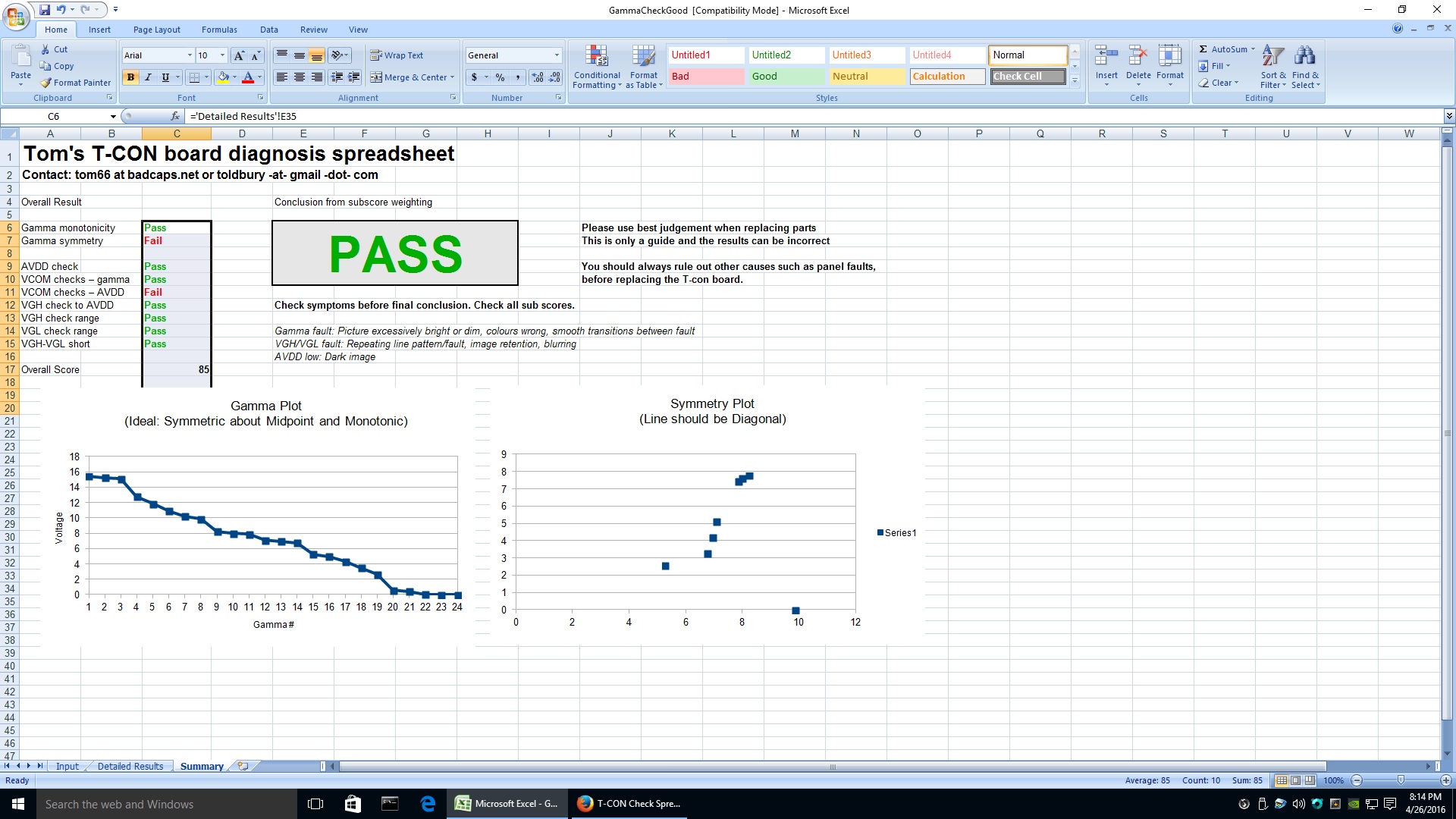

I hope that will be the T-CON problem, the strange thing is that it shows as PASS in the spread sheet.

[Malachi]

Re: Vizio vw46l weird picture

Some ones say fail. What is strange is that the tcon board in my tv is a different number than what shows at shopjimmy.

This is the number of the one in my tv. T460HW02
