    Un46c8000x

    Hello

    I have UN46C8000X Samsung TV , I have short circuit in power supply "PSLF251B02A" in these components ( ICM891=G5207 , QM891=230N06L ,QM892=STD452S)
    we don't have these components in the Turkey So, I want datasheet to these component or power supply schematic or any information about these components please , I want your help friends
    Attached Files
    Electronic Engineer from Syria,Aleppo
  • abdekader
    Senior Member
    • Jul 2014
    • 73
    • Turkey

    #2
    Re: Un46c8000x

    no help , no one known information about these components ?
    Electronic Engineer from Syria,Aleppo

    Comment

    • abdekader
      Senior Member
      • Jul 2014
      • 73
      • Turkey

      #3
      Re: Un46c8000x

      no help , no one known information about these components ?
      Electronic Engineer from Syria,Aleppo

      Comment

      • budm
        Badcaps Legend
        • Feb 2010
        • 40746
        • USA

        #4
        Re: Un46c8000x

        https://cdn.badcaps-static.com/pdfs/...1931b51c26.pdf

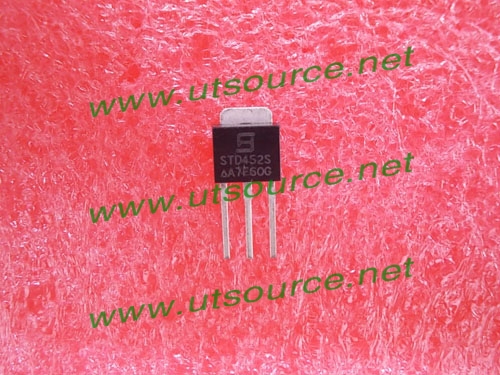

        STD4525:

        230N06L:

        Did you even try searching the web at all at least?
        Last edited by budm; 05-28-2015, 02:22 PM.
        Never stop learning
        Basic LCD TV and Monitor troubleshooting guides.
        http://www.badcaps.net/forum/showthr...956#post305956

        Voltage Regulator (LDO) testing:
        http://www.badcaps.net/forum/showthr...999#post300999

        Inverter testing using old CFL:
        http://www.badcaps.net/forum/showthr...er+testing+cfl

        Tear down pictures : Hit the ">" Show Albums and stories" on the left side
        http://s807.photobucket.com/user/budm/library/

        TV Factory reset codes listing:
        http://www.badcaps.net/forum/showthread.php?t=24809

        Comment

        • abdekader
          Senior Member
          • Jul 2014
          • 73
          • Turkey

          #5
          Re: Un46c8000x

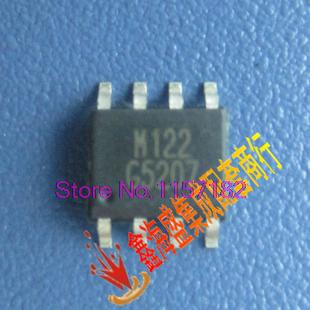

          thank you budm , but i don't find this IC G5207 in Turkey , Do you know IC the same work this IC please
          Electronic Engineer from Syria,Aleppo

          Comment

          • tibimakai
            Badcaps Legend
            • Jan 2012
            • 3680
            • USA

            #6
            Re: Un46c8000x

            Some components are available, only from China.

            Comment
