    Panasonic TH-L37U20A Blown Rectifier?

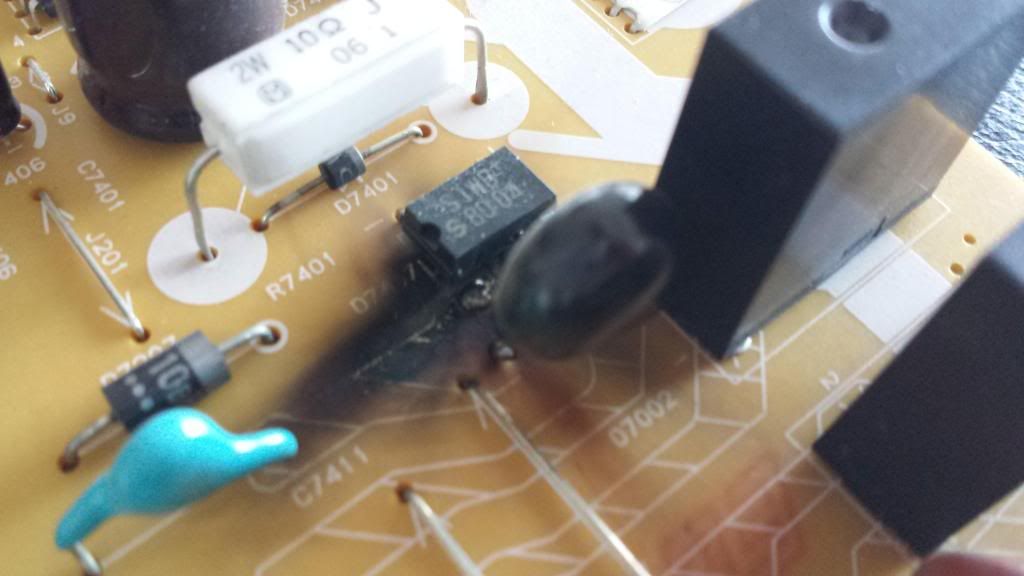

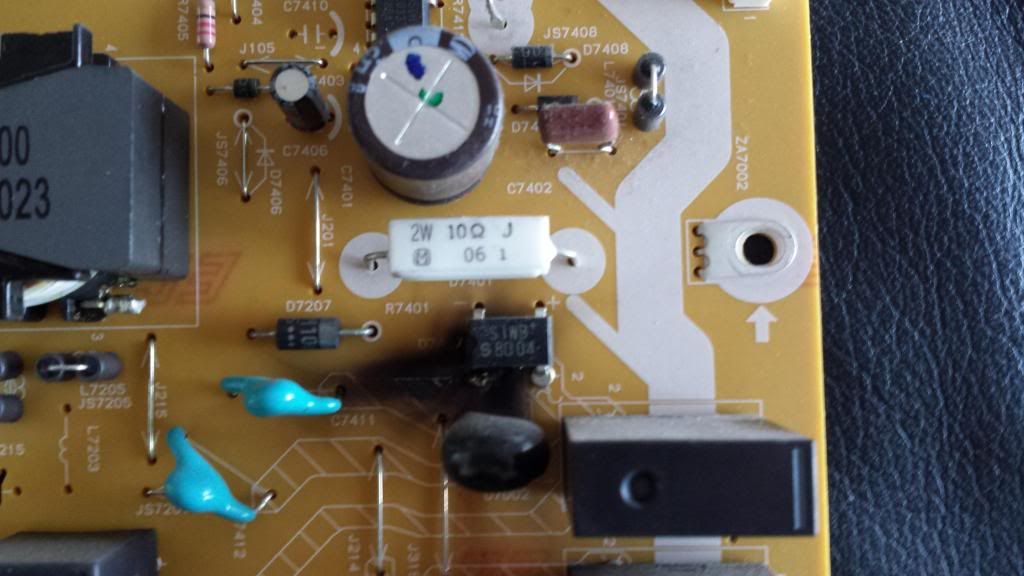

    I've got a Panasonic TH-L37U20A which I've taken apart from found a blown rectifier, seen here:

    http://i1208.photobucket.com/albums/...psae37723c.jpg

    http://i1208.photobucket.com/albums/...ps8109d2fe.jpg

    It's also blown the main fuse with it but thats no problem the issue is I don't know where to find a replacement that's exactly the same.

    To save you looking at the pictures the chip reads S1WB (1st Line), S80 04 (2nd Line), the closest thing I could find is this one on eBay:

    http://www.ebay.com/itm/S1WB60-Manu-...:X:RTQ:US:1123

    But the second line doesn't match. Where can I find a replacement?
    Tags: None
    • max1636
      Senior Member
      • Dec 2013
      • 80
      • Australia
      #2
      Re: Panasonic TH-L37U20A Blown Rectifier?

      I have some of these sitting around:
      http://www.goldmine-elec-products.co...es/G18636B.jpg

      I don't suppose I could use one of them If I extended the connections out or something?
      Last edited by max1636; 12-21-2013, 11:09 PM. Reason: /

        Comment

        • R_J
          Badcaps Legend
          • Jun 2012
          • 9555
          • Canada
          #3
          Re: Panasonic TH-L37U20A Blown Rectifier?



          Its a 800 volt 1 amp bridge rectifier, Should be able to get one anywhere.
          http://www.digikey.ca/product-search...=0&pageSize=25

          That large bridge you have would work but would be a pain in the ... to mount it.
          Last edited by R_J; 12-22-2013, 04:57 PM.
