  • tom66
    EVs Rule
    • Apr 2011
    • 32560
    • UK
    #41
    Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

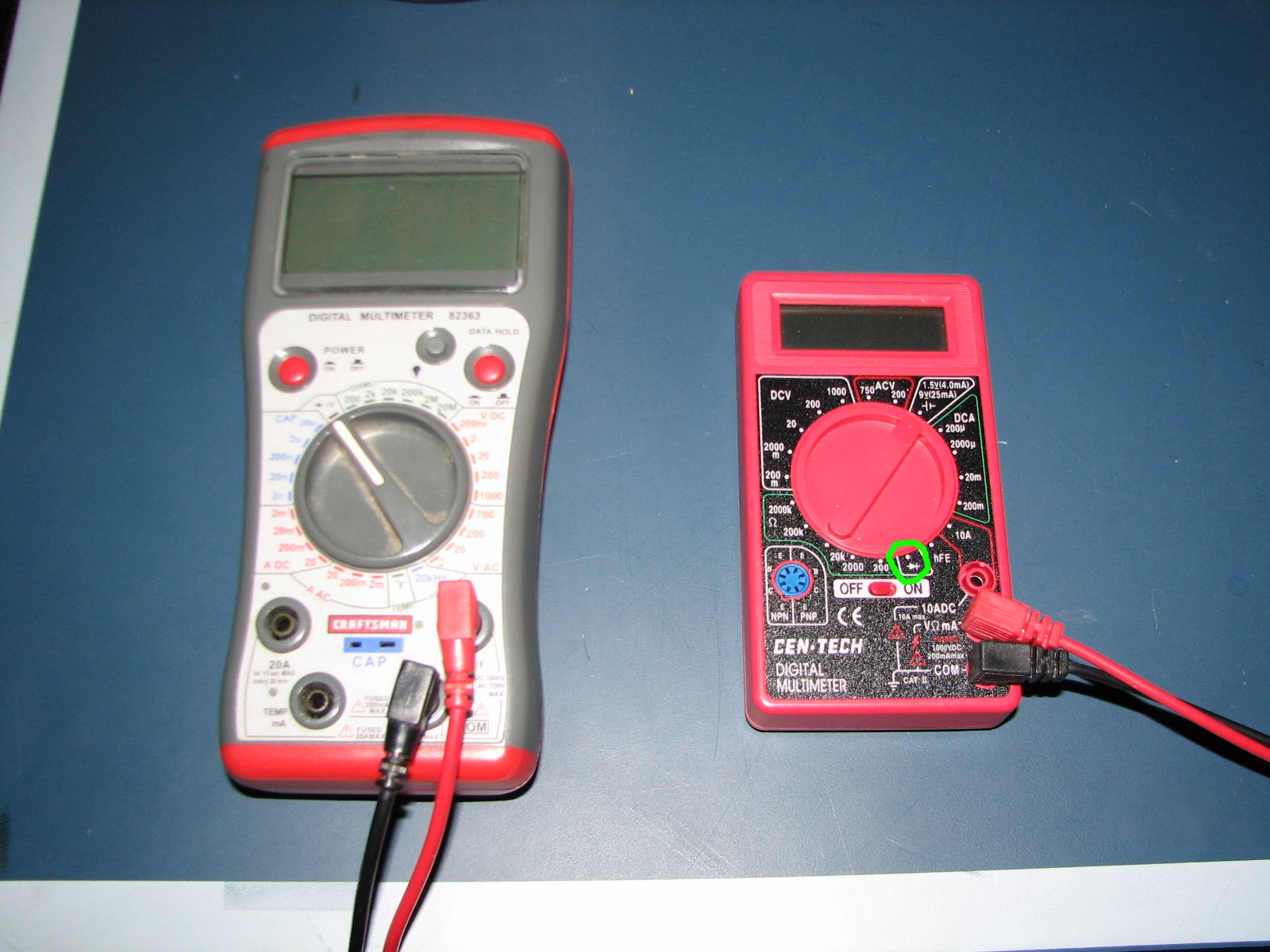

    Use this mode and retest the diodes.
    Attached Files

    if you find these attachements useful please consider making a small donation to the site

    Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
    For service manual, schematic, boardview (board view), datasheet, cad - use our search.

      Comment

      • retiredcaps
        Badcaps Legend
        • Apr 2010
        • 9271
        #42
        Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

        Originally posted by ComputerGeek
        Ok I am not sure how to measure ohms properly, I thought I recall younot being able to hold in onthere for too long
        With power off and device unplugged, you can measure resistance for as long as you want. You never measure resistance with power on. See this thread for why.

        https://www.badcaps.net/forum/showthread.php?p=207859

        If you are measuring amps, some multimeters caution that you can't measure for more than xyz seconds (typically 15 seconds). Some really cheap multimeters don't have fuses on the amps jack. Remember, we typically never require an amps measurement in 99.99% cases.

        The biggest problem newbies have with multimeters is the interpretation of the results. They get confused with "1", "0L", and report "no reading". This is especially apparent when asking them to check for a shorted component.

        tom66 is quick learner wrt to dealing with newbies. He now writes his multimeter responses in similar fashion to mine. I know he participates in other forums where people have more experience and he would never write responses in that fashion.
        Last edited by retiredcaps; 01-08-2012, 04:24 PM.
        --- begin sig file ---

        If you are new to this forum, we can help a lot more if you please post clear focused pictures (max resolution 2000x2000 and 2MB) of your boards using the manage attachments button so they are hosted here. Information and picture clarity compositions should look like this post.

        We respectfully ask that you make some time and effort to read some of the guides available for basic troubleshooting. After you have read through them, then ask clarification questions or report your findings.

        Please do not post inline and offsite as they slow down the loading of pages.

        --- end sig file ---

          Comment

          • ComputerGeek
            Badcaps Veteran
            • Oct 2011
            • 262
            • USA
            #43
            Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

            Originally posted by retiredcaps
            With power off and device unplugged, you can measure resistance for as long as you want. You never measure resistance with power on. See this thread for why.

            https://www.badcaps.net/forum/showthread.php?p=207859

            If you are measuring amps, some multimeters caution that you can't measure for more than xyz seconds (typically 15 seconds). Some really cheap multimeters don't have fuses on the amps jack. Remember, we typically never require an amps measurement in 99.99% cases.

            The biggest problem newbies have with multimeters is the interpretation of the results. They get confused with "1", "0L", and report "no reading". This is especially apparent when asking them to check for a shorted component.

            tom66 is quick learner wrt to dealing with newbies. He now writes his multimeter responses in similar fashion to mine. I know he participates in other forums where people have more experience and he would never write responses in that fashion.
            I notice though that when I hold the probes on a resistor or something similar the resistance starts going down, I believe because the component gets Saturated with the test voltage, Am I incorrect in thinking this?

            When do I take the reading when the Number stops moving, when I first put it on?

            Thanks!

            Originally posted by tom66
            Use this mode and retest the diodes.
            So is this what you want me to test?

            So do 12 tests on each one is that correct? Do the 6 I did but then switch leads like

            D203 Top in Picture,

            R1-2B,
            R1-3B,
            R2-1B,
            R2-3B,
            R3-1B,
            R3-2B,

            B1-2R,
            B1-3R,
            B2-1R,
            B2-3R,
            B3-1R,
            B3-2R,

            B=Black Probe, R= Red Probe

            Is That Right?

              Comment

              • ComputerGeek
                Badcaps Veteran
                • Oct 2011
                • 262
                • USA
                #44
                Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                Also, when I do keep it on there it goes out of the 2k ohm range what should I do?

                  Comment

                  • retiredcaps
                    Badcaps Legend
                    • Apr 2010
                    • 9271
                    #45
                    Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                    Originally posted by ComputerGeek
                    I notice though that when I hold the probes on a resistor or something similar the resistance starts going down,
                    In circuit readings are not accurate due to other surrounding components. If you take a resistor and measure it out of circuit, a good multimeter will find display a correct and stable reading in about 1 second or less.
                    --- begin sig file ---

                    If you are new to this forum, we can help a lot more if you please post clear focused pictures (max resolution 2000x2000 and 2MB) of your boards using the manage attachments button so they are hosted here. Information and picture clarity compositions should look like this post.

                    We respectfully ask that you make some time and effort to read some of the guides available for basic troubleshooting. After you have read through them, then ask clarification questions or report your findings.

                    Please do not post inline and offsite as they slow down the loading of pages.

                    --- end sig file ---

                      Comment

                      • ComputerGeek
                        Badcaps Veteran
                        • Oct 2011
                        • 262
                        • USA
                        #46
                        Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                        Originally posted by retiredcaps
                        In circuit readings are not accurate due to other surrounding components. If you take a resistor and measure it out of circuit, a good multimeter will find display a correct and stable reading in about 1 second or less.
                        Yeah I usually test out of the circuit, I don't know were I got that info from Probably my uncle. Anyway, I just tried it again and it worked fine.

                        ^^^Is the post above correct or my thoughts on testing?

                          Comment

                          • retiredcaps
                            Badcaps Legend
                            • Apr 2010
                            • 9271
                            #47
                            Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                            For a diode that looks like this -><-, think of two separate diodes in physical package.

                            Pin 1 is left, pin 2 is the middle, pin 3 is right. Set your multimeter on diode test. Measure

                            Black on pin 1, red on pin 2. Record reading.
                            Red on pin 1, black on pin 2. Record reading.

                            Black on pin 2, red on pin 3. Record reading.
                            Red on pin 2, black on pin 3. Record reading.

                            Thus, you will have 4 readings for these types of diodes which makes sense if you think of them as two separate "normal" diodes.
                            --- begin sig file ---

                            If you are new to this forum, we can help a lot more if you please post clear focused pictures (max resolution 2000x2000 and 2MB) of your boards using the manage attachments button so they are hosted here. Information and picture clarity compositions should look like this post.

                            We respectfully ask that you make some time and effort to read some of the guides available for basic troubleshooting. After you have read through them, then ask clarification questions or report your findings.

                            Please do not post inline and offsite as they slow down the loading of pages.

                            --- end sig file ---

                              Comment

                              • ComputerGeek
                                Badcaps Veteran
                                • Oct 2011
                                • 262
                                • USA
                                #48
                                Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                                OK, Here goes,

                                D203
                                b1-r2 1422
                                r1-b2 177
                                b2-r3 177
                                r2-b3 1422

                                D202
                                b1-r2 quick beep then starts at 1000 then climbs out of range
                                r1-b2 230
                                b2-r3 230
                                r2-b3 quick beep then starts at 1000 then climbs out of range

                                D201
                                b1-r2 quick beep then starts at 1000 then climbs out of range
                                r1-b2 quick beep then stays at 230
                                b2-r3 quick beep then stays at 230
                                r2-b3 quick beep then starts at 1000 then climbs out of range

                                  Comment

                                  • ComputerGeek
                                    Badcaps Veteran
                                    • Oct 2011
                                    • 262
                                    • USA
                                    #49
                                    Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

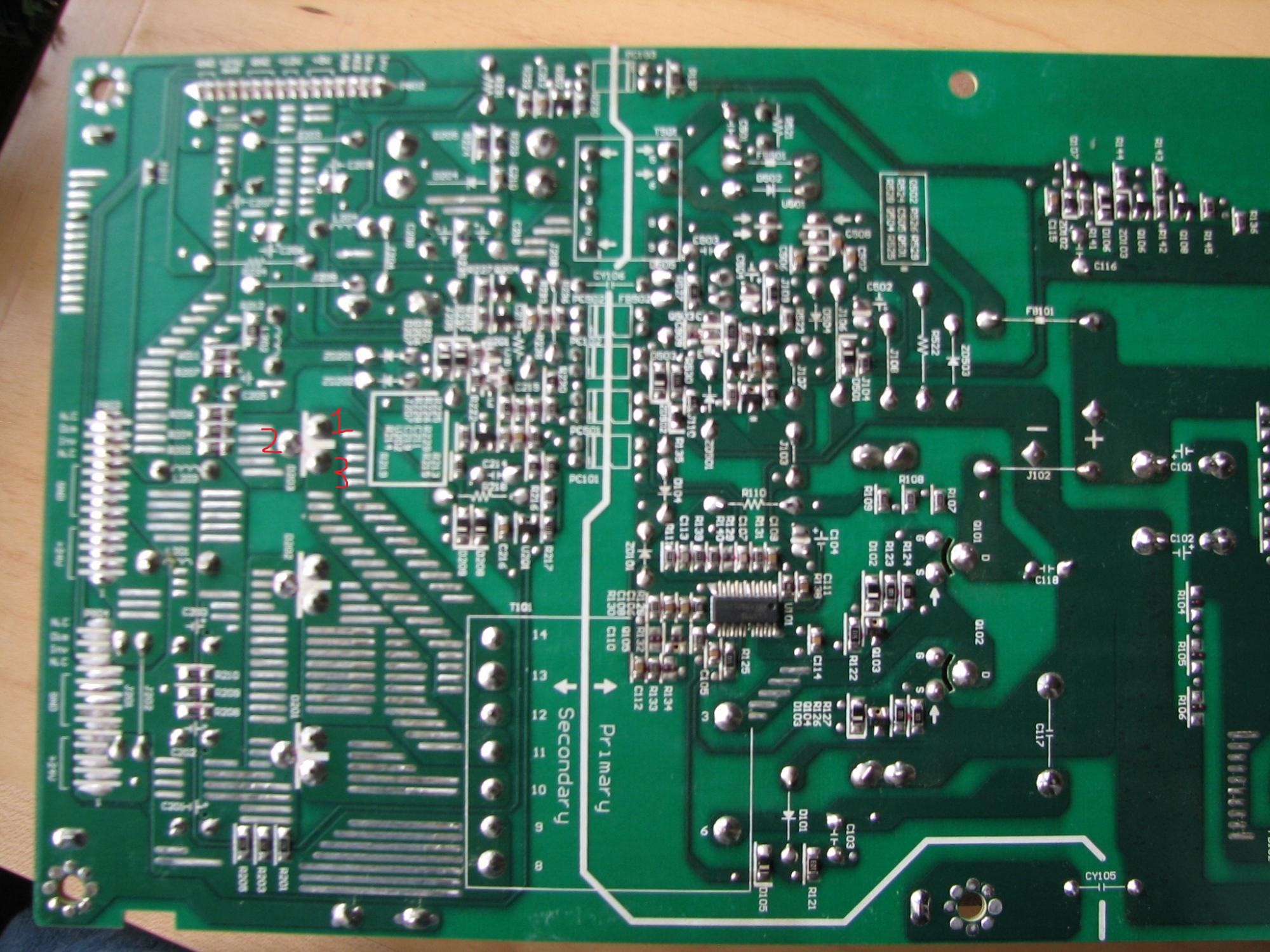

                                    This is the order I did them in.

                                    Thanks!
                                    Attached Files

                                    if you find these attachements useful please consider making a small donation to the site

                                      Comment

                                      • retiredcaps
                                        Badcaps Legend
                                        • Apr 2010
                                        • 9271
                                        #50
                                        Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                                        D201, D202, and D203 all test okay according to your measurements.
                                        --- begin sig file ---

                                        If you are new to this forum, we can help a lot more if you please post clear focused pictures (max resolution 2000x2000 and 2MB) of your boards using the manage attachments button so they are hosted here. Information and picture clarity compositions should look like this post.

                                        We respectfully ask that you make some time and effort to read some of the guides available for basic troubleshooting. After you have read through them, then ask clarification questions or report your findings.

                                        Please do not post inline and offsite as they slow down the loading of pages.

                                        --- end sig file ---

                                          Comment

                                          • retiredcaps
                                            Badcaps Legend
                                            • Apr 2010
                                            • 9271
                                            #51
                                            Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                                            In re-reading post @29, tom66 wants pins 1-3 and vice versa 3-1 tested as well.

                                            So add the following readings for all 3 diodes.

                                            black on pin 1, red on 3
                                            red on pin 1, black on 3.
                                            --- begin sig file ---

                                            If you are new to this forum, we can help a lot more if you please post clear focused pictures (max resolution 2000x2000 and 2MB) of your boards using the manage attachments button so they are hosted here. Information and picture clarity compositions should look like this post.

                                            We respectfully ask that you make some time and effort to read some of the guides available for basic troubleshooting. After you have read through them, then ask clarification questions or report your findings.

                                            Please do not post inline and offsite as they slow down the loading of pages.

                                            --- end sig file ---

                                              Comment

                                              • ComputerGeek
                                                Badcaps Veteran
                                                • Oct 2011
                                                • 262
                                                • USA
                                                #52
                                                Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                                                Ok here you are,

                                                D203
                                                b1-r3 Connected Beeps
                                                r1-b3 Connected Beeps

                                                D202
                                                b1-r3 Connected Beeps
                                                r1-b3 Connected Beeps

                                                D201
                                                b1-r3 Connected Beeps
                                                r1-b3 Connected Beeps

                                                  Comment

                                                  • retiredcaps
                                                    Badcaps Legend
                                                    • Apr 2010
                                                    • 9271
                                                    #53
                                                    Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                                                    Originally posted by ComputerGeek
                                                    D203
                                                    b1-r3 Connected Beeps
                                                    What does connected beeps mean? What is the actual reading on the display?
                                                    --- begin sig file ---

                                                    If you are new to this forum, we can help a lot more if you please post clear focused pictures (max resolution 2000x2000 and 2MB) of your boards using the manage attachments button so they are hosted here. Information and picture clarity compositions should look like this post.

                                                    We respectfully ask that you make some time and effort to read some of the guides available for basic troubleshooting. After you have read through them, then ask clarification questions or report your findings.

                                                    Please do not post inline and offsite as they slow down the loading of pages.

                                                    --- end sig file ---

                                                      Comment

                                                      • ComputerGeek
                                                        Badcaps Veteran
                                                        • Oct 2011
                                                        • 262
                                                        • USA
                                                        #54
                                                        Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                                                        Originally posted by retiredcaps
                                                        What does connected beeps mean? What is the actual reading on the display?
                                                        Sorry wasn't clear The meter just makes a constant beep like when you touch the probes together. The reading is 001 Thanks!

                                                          Comment

                                                          • retiredcaps
                                                            Badcaps Legend
                                                            • Apr 2010
                                                            • 9271
                                                            #55
                                                            Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                                                            Originally posted by ComputerGeek
                                                            The reading is 001 Thanks!
                                                            The reason I'm so picky is that diode/continuity varies greatly on multimeters. Some cheap multimeters will beep "continuous" if the resistance is less than 1800 ohms. Most, however, will beep "continuous" for less than 50 ohms.

                                                            So reporting a beep leaves us guessing as to what the real measurement is.

                                                            Same goes for the voltage used on diode testing. Some show "0L" or "1" when voltage goes over 2 V. Others use 3 V for the threshold.
                                                            --- begin sig file ---

                                                            If you are new to this forum, we can help a lot more if you please post clear focused pictures (max resolution 2000x2000 and 2MB) of your boards using the manage attachments button so they are hosted here. Information and picture clarity compositions should look like this post.

                                                            We respectfully ask that you make some time and effort to read some of the guides available for basic troubleshooting. After you have read through them, then ask clarification questions or report your findings.

                                                            Please do not post inline and offsite as they slow down the loading of pages.

                                                            --- end sig file ---

                                                              Comment

                                                              • ComputerGeek
                                                                Badcaps Veteran
                                                                • Oct 2011
                                                                • 262
                                                                • USA
                                                                #56
                                                                Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                                                                Originally posted by retiredcaps
                                                                The reason I'm so picky is that diode/continuity varies greatly on multimeters. Some cheap multimeters will beep "continuous" if the resistance is less than 1800 ohms. Most, however, will beep "continuous" for less than 50 ohms.

                                                                So reporting a beep leaves us guessing as to what the real measurement is.

                                                                Same goes for the voltage used on diode testing. Some show "0L" or "1" when voltage goes over 2 V. Others use 3 V for the threshold.
                                                                Ok No Problem I understand, I have Been using the Craftsman Meter BTW

                                                                Now what?

                                                                Thanks!

                                                                  Comment

                                                                  • ComputerGeek
                                                                    Badcaps Veteran
                                                                    • Oct 2011
                                                                    • 262
                                                                    • USA
                                                                    #57
                                                                    Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                                                                    What Should I do now?

                                                                      Comment

                                                                      • tom66
                                                                        EVs Rule
                                                                        • Apr 2011
                                                                        • 32560
                                                                        • UK
                                                                        #58
                                                                        Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                                                                        The readings you show are most likely good for the PSU.

                                                                        Post a close up of the connector going from the main board to PSU, on both ends. If there is a label next to the connector, make it easy to see in the picture. We have not established if PSON is good.
                                                                        Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
                                                                        For service manual, schematic, boardview (board view), datasheet, cad - use our search.

                                                                          Comment

                                                                          • ComputerGeek
                                                                            Badcaps Veteran
                                                                            • Oct 2011
                                                                            • 262
                                                                            • USA
                                                                            #59
                                                                            Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

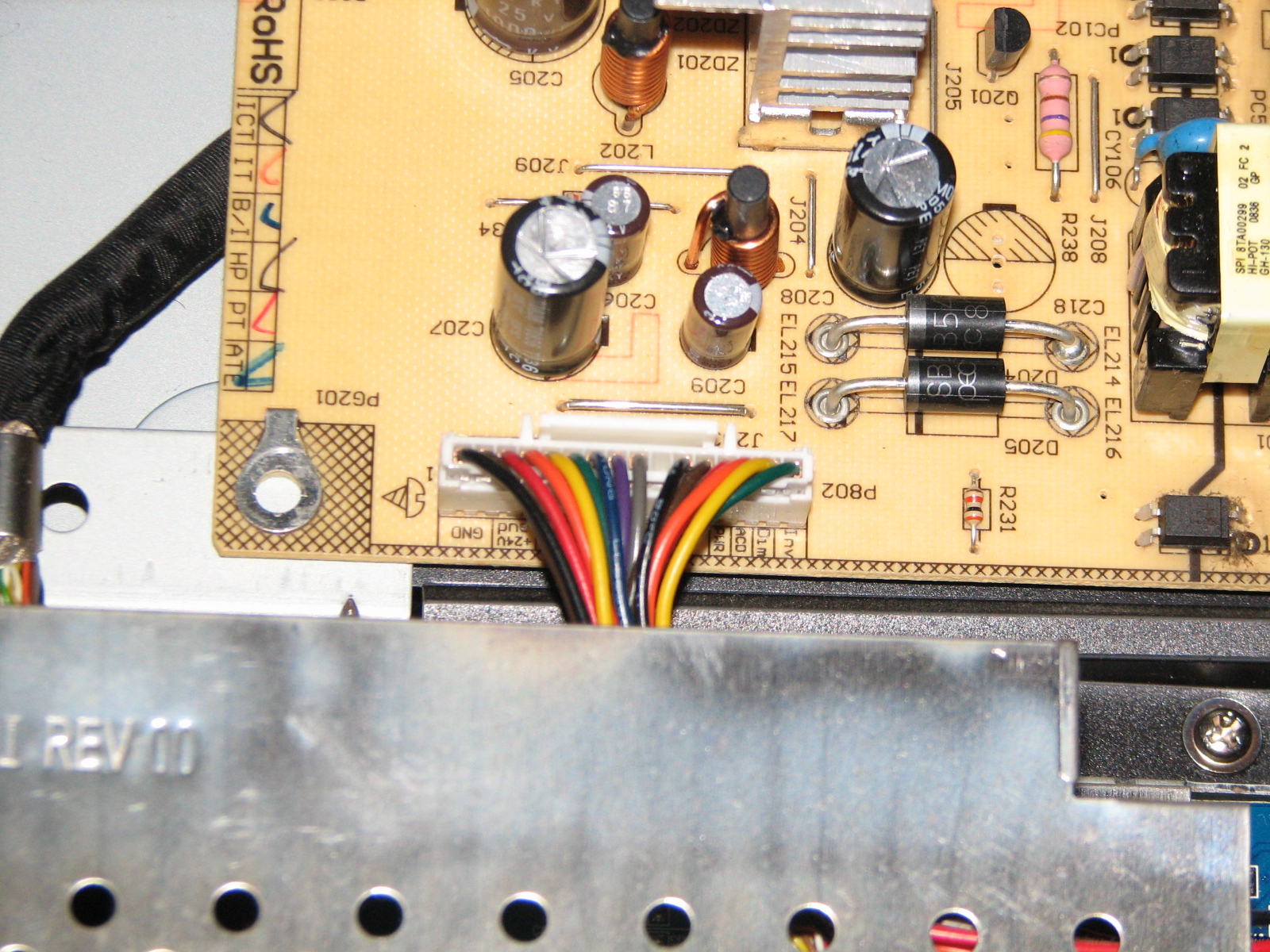

                                                                            Sorry for the delay in Responding, Here are the Pictures the only label is on the power board and the pin out is,

                                                                            1,2 Gnd
                                                                            3,4 24v+
                                                                            5,6,7 Gnd
                                                                            8,9 12v+
                                                                            10,11,12 5v+
                                                                            13 Pwr
                                                                            14 ACD
                                                                            15 D1m
                                                                            16 Inv
                                                                            Attached Files

                                                                            if you find these attachements useful please consider making a small donation to the site

                                                                              Comment

                                                                              • tom66
                                                                                EVs Rule
                                                                                • Apr 2011
                                                                                • 32560
                                                                                • UK
                                                                                #60
                                                                                Re: Toshibia 40rv525u Green Blinking light and questions about Caps!!

                                                                                Check the Pwr pin.
                                                                                Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
                                                                                For service manual, schematic, boardview (board view), datasheet, cad - use our search.

                                                                                  Comment

                                                                                  Previous 1 2 3 4 5 6 7 8 template Next

                                                                                  Related Topics

                                                                                  Collapse
                                                                                  • jxrepman
                                                                                    Asus X453MA won't turn on and green led light blinking
                                                                                    by jxrepman
                                                                                    Hi there,

                                                                                    I have this ASUS X453MA Laptop that's not turning on. When I plug in the charger, the green light just keeps on blinking and pressing the power button does nothing.

                                                                                    I have checked the charger and it is giving 19+ V

                                                                                    I have disconnected the battery and pressed power button for 30 seconds.

                                                                                    I tried another RAM stick.

                                                                                    Tried disconnecting the keyboard and touchpad.

                                                                                    Tried disconnecting the HDD and the wifi adapter.

                                                                                    The problem persists.

                                                                                    Hope you could help me out on this one. Thank you.
                                                                                    12-14-2024, 06:40 AM
                                                                                  • MOSSEP
                                                                                    Monitor Audio RSW12 - Green light, but no sound
                                                                                    by MOSSEP
                                                                                    Hi

                                                                                    Im hoping someone might be able to give me some idea of what may be wrong with my Monitor Audio RSW12 Sub.

                                                                                    Ive owned it since new in around 2002, so would really like to keep it running if I can, it was the first ‘decent' bit of audio equipment I ever purchased and is a little sentimental.

                                                                                    The issue I had was that it would power up with the red light, but sometimes the green light would not come on and I would get no bass from it. If the green light did come on though, I would get sound out of it.

                                                                                    I have already tried replacing all of the...
                                                                                    01-26-2025, 08:33 AM
                                                                                  • MOSSEP
                                                                                    Monitor Audio RSW12 - Green light but no audio
                                                                                    by MOSSEP
                                                                                    Hi

                                                                                    Im hoping someone might be able to give me some idea of what may be wrong with my Monitor Audio RSW12 Sub.

                                                                                    Ive owned it since new in around 2002, so would really like to keep it running if I can, it was the first ‘decent' bit of audio equipment I ever purchased and is a little sentimental.

                                                                                    The issue I had was that it would power up with the red light, but sometimes the green light would not come on and I would get no bass from it. If the green light did come on though, I would get sound out of it.

                                                                                    I have already tried replacing all of the...
                                                                                    01-26-2025, 08:18 AM
                                                                                  • lcdcaps1
                                                                                    820-2610-A Sys onewire help, no green light. Please help from the gurus
                                                                                    by lcdcaps1
                                                                                    Hi

                                                                                    I have an 820-2610-A motherboard that has no green light.
                                                                                    I have noticed is when I do a SMC reset the light on the Magsafe blinks.
                                                                                    From My understanding, the sys onewire circuit is responsible for the green light on the magsafe
                                                                                    The sys onewire circuit on this model and others is more involved
                                                                                    I was hoping if anyone knows about this and how it works, can reply and let me know
                                                                                    I know this is an old model but I am sure there are people who still works on these or knows about them

                                                                                    I get 1.1v on the C7771 capacitor and will replace...
                                                                                    11-06-2023, 01:28 PM
                                                                                  • naddaw000
                                                                                    Toshiba 55U7863DG - green light blinking (17MB130S)
                                                                                    by naddaw000
                                                                                    Hello, I am trying to bring back to life my Toshiba 55U7863DG, which has never been the most reliable device - keep on annoying me with its slowness and some random start-up/shutdown issues requiring to unplug the AC. But yesterday it finally said goodbye and decided to not turn on again. Green light is blinking, I've seen this behaviour before and thought that these are some temporary whims again, but unfortunately not this time.

                                                                                    I have checked that my TV is build based on the 17MB130S board, which seems to be quite popular and easy to buy as a used one. Still I would like to ask...
                                                                                    1 Photo
                                                                                    12-02-2023, 01:35 PM
                                                                                  • Loading...
                                                                                  • No more items.
                                                                                  Working...
