How to Disconnect Ribbon Cable please ..

07-03-2012, 03:37 AM

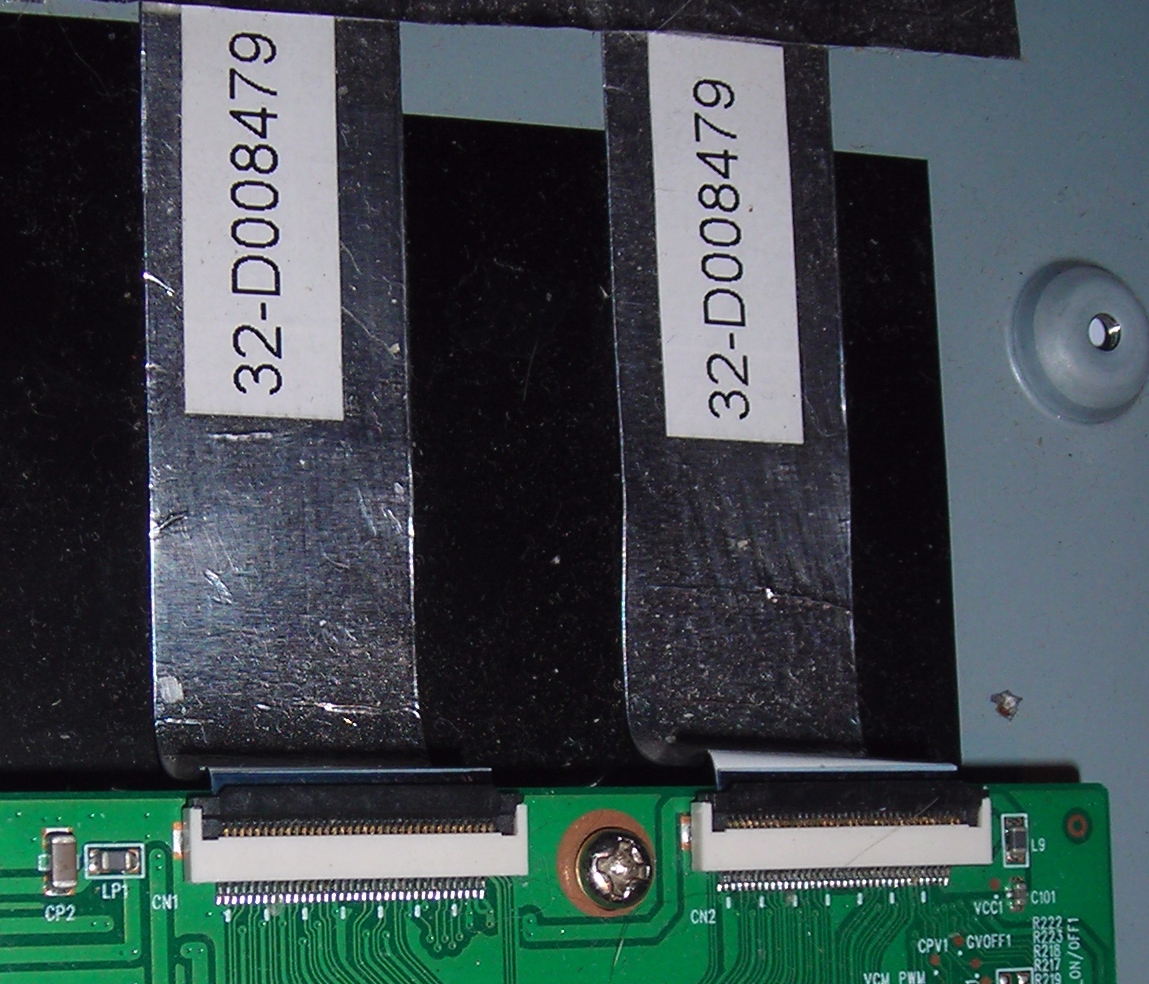

Hi..I have ribbon cables on a viewsonic VX2235wm-5 Monitor ..Can someone please tell me how do I disconnect safely as I have never done this before and I read one has to be very careful ...I have attached photo ...Thankyou
Attached Files
Tags: None
popeye

Senior Member

Join Date: May 2011

Posts: 155
#2

07-03-2012, 05:48 AM

Re: How to Disconnect Ribbon Cable please ..

it looks like you gently prise up the black part of the clip a finger nail either side so as not to put any undue presure on it.
