Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
bump. A replacement y-Main is around 30 with shipping. Go for it or give up and recycle?
bump. A replacement y-Main is around 30 with shipping. Go for it or give up and recycle?
-
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
(double post)Comment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
Does the screen glow at all when powered up ? May have to check in a dark room. And how do you know the buffers are good ?Comment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
The screen doesn't blink nor glow. I really don't know if the buffers are good; someone suggested earlier in the thread that the Y-Main may be bad.Comment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
https://www.youtube.com/watch?v=51SZsfH60EY
how to test buffers for shortsComment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?

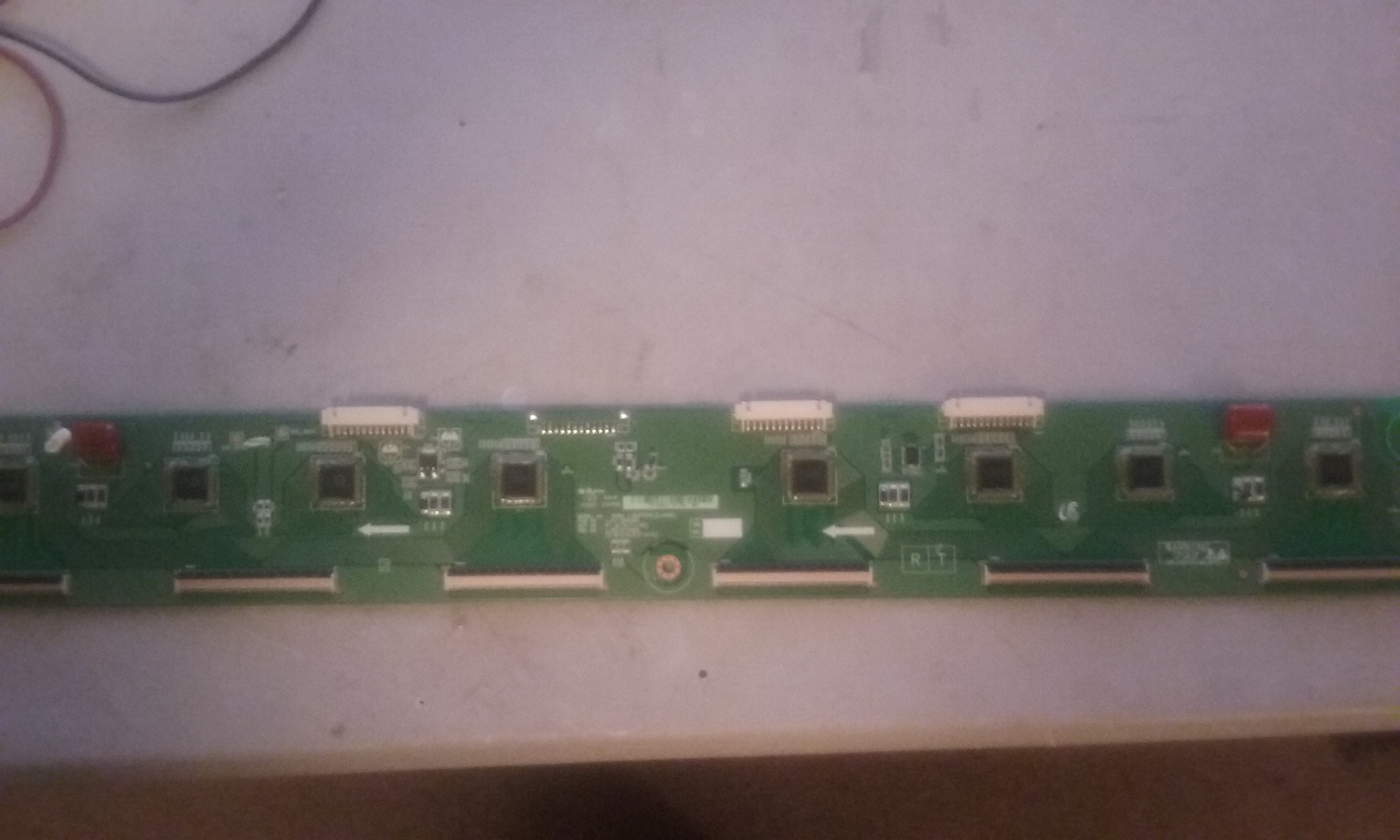

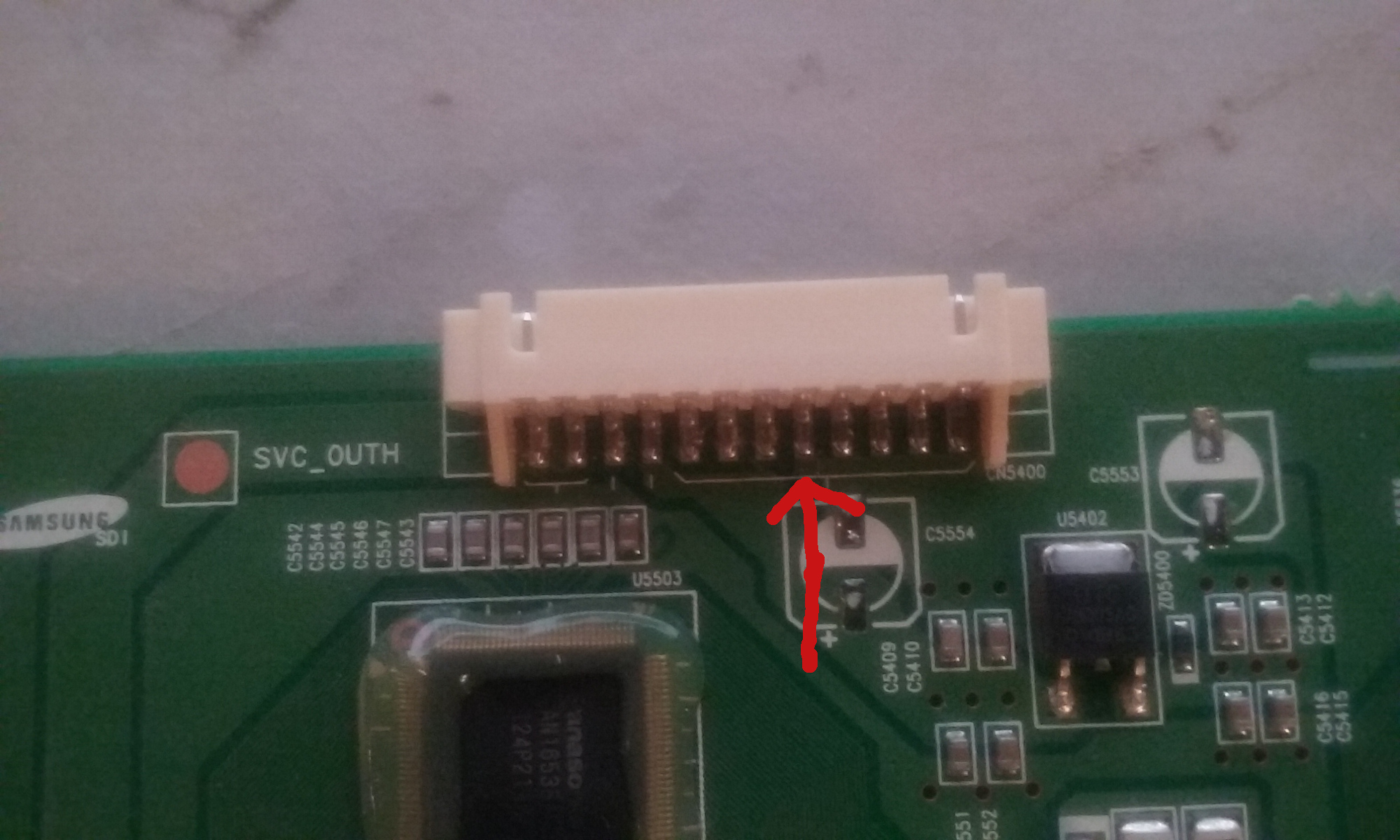

Alrighty, see the pics. One is a crappy pic of the entire board, the other is a closeup of the white port on the left side of the board. I used the pin indicated to test each ribbon port, both sides. They measured around .761 though it varied. Are they supposed to measured anything at all?Attached Filesif you find these attachements useful please consider making a small donation to the site
Comment
-
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
bumpComment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
761 is ok, as long as the other way measures open.Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
For service manual, schematic, boardview (board view), datasheet, cad - use our search.Comment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
bumpComment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
bump.Comment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
I guess I'll be taking 'er to a repair shop then. I'm really interested in why this thing isn't working. I'll post back eventually. Thanks to everyone who tried to help.
Comment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
if a y main was really cheap maybe worth trying one you can always re sell it i guess but some times a crack can be really hard to see expecially if its right on the edge and is small.I suppose it depends on what the tv shop will charge to diagnose the fault.Comment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
Y-Main is around 35 with shipping. I just wish there was something I could do to make sure that was it. Can you suggest anything I can do to test the Y-Main before I take it into the shop?Comment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
I cant myself as never worked really on plasmas only ever fixed one myself but maybe tom or one of the other more experienced members may chime in but as the threads gone quite there probably all out of ideas too.Comment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
Can you provide a photo of your Y-main?Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
For service manual, schematic, boardview (board view), datasheet, cad - use our search.Comment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?

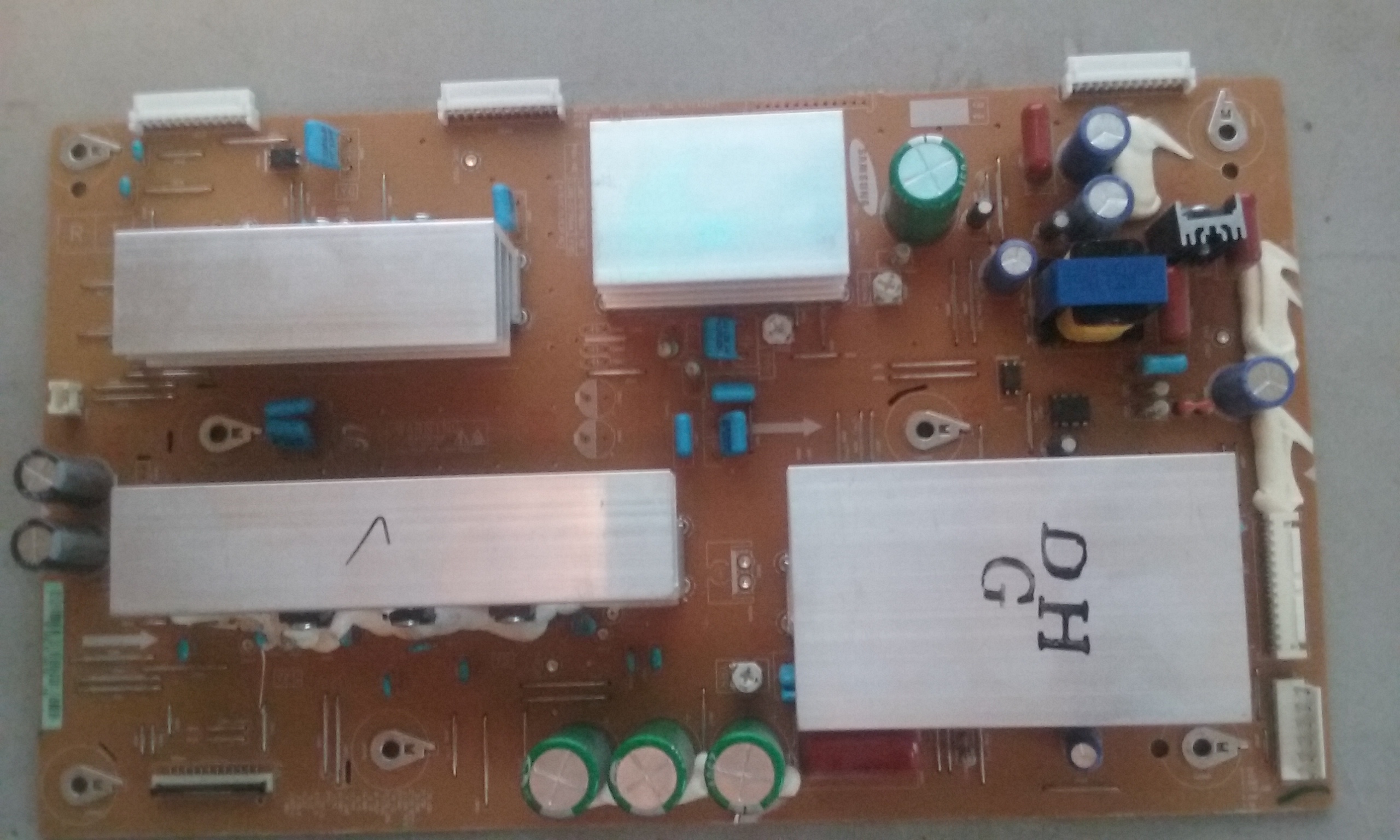

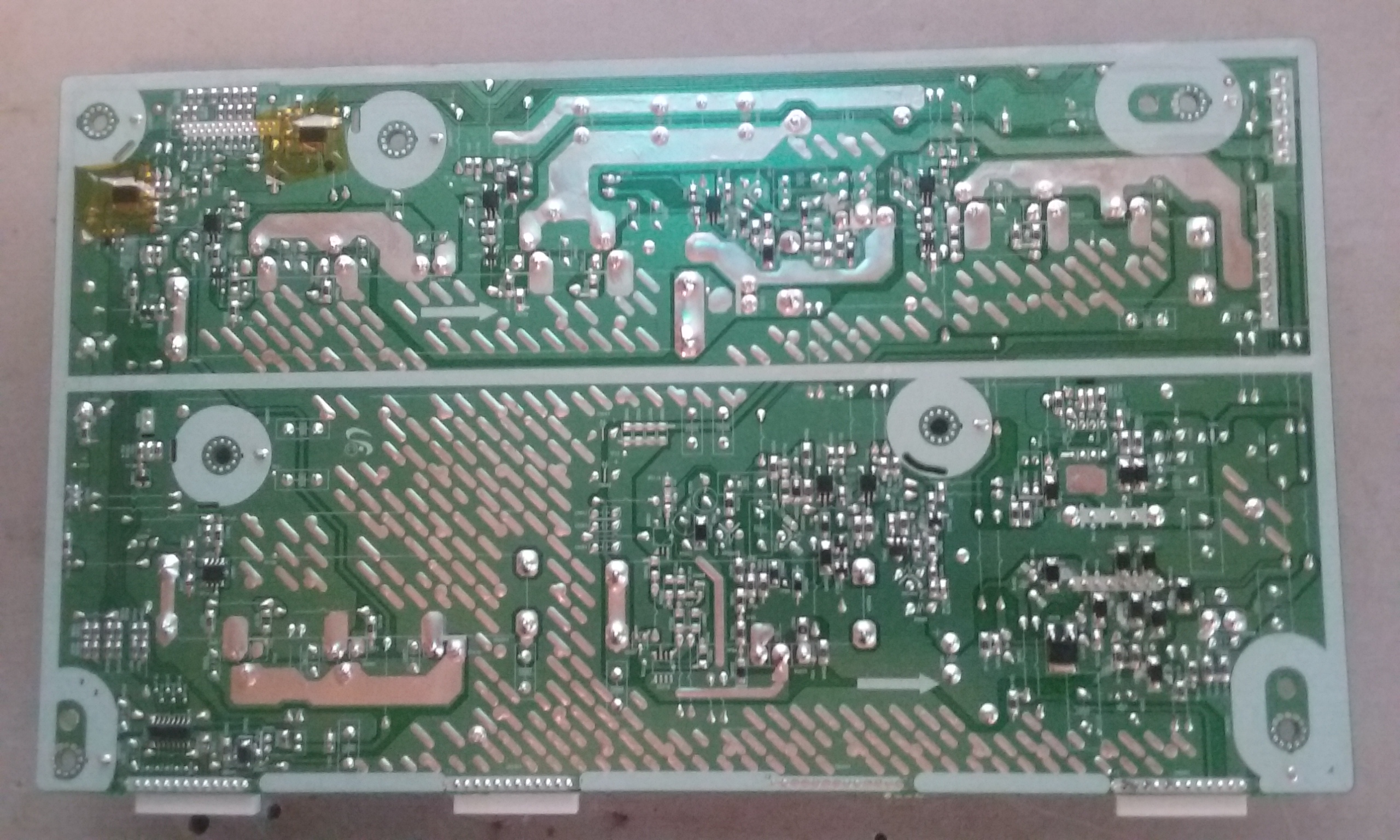

Here you go. I posted earlier about what I assume is some sort of residue on the back of the board.Attached Filesif you find these attachements useful please consider making a small donation to the site
Comment
-
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
Do you know how to check for short circuit, theres is no point buying random boards while not knowing what one is at fault ?Please Do Not PM My Page Asking For Help Badcaps Is The Place For Advise, Page Linked For Business Reasons Only. Anyone Doing So Will Be Banned Instantly !
https://www.facebook.com/Telford-Tel...7894576335359/Comment
-
Re: Samsung pn51d440a5d: No Picture - Bad Logic Board?
im sure tom will chime in with some tests to do if this was my board i would be testing all the components on the heat sinks etc for short circuit devices etc.Comment
-
