Re: Vizio va22lfhdtv10t no backlight.
What are the part numbers of the mosfets?
What are the part numbers of the mosfets?
-
-
Re: Vizio va22lfhdtv10t no backlight.
Im going to do my best on this, The chips are so small.
4828
BA9E3V
Show just like that on both chips.
There is a 16 pin chips close to them. Part #
OZ9938GNComment
-
Re: Vizio va22lfhdtv10t no backlight.
Spec AO4828:
https://cdn.badcaps-static.com/pdfs/...5aa66196c4.pdf
Check the resistance between S and D to see if they show low resistance.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: Vizio va22lfhdtv10t no backlight.
Checked resistance between s2,s1 to d1,d2 . Im getting around 9.0 to start but it quickly starts to down to 0.Comment
-
Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: Vizio va22lfhdtv10t no backlight.

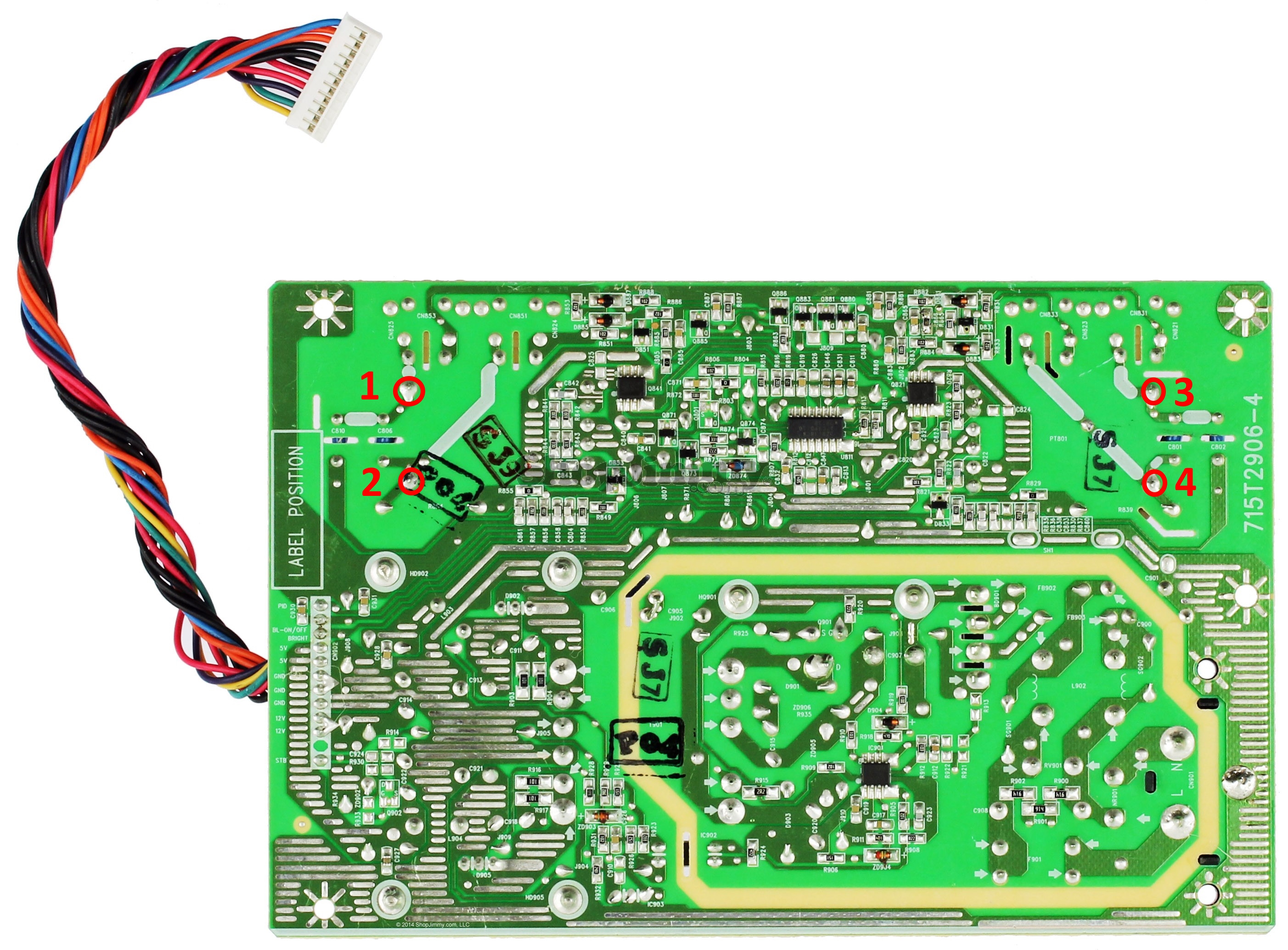

Lets take the resistance readings of the inverter transformer's high Voltage windings.
Check the resistance between pin 1 and pin 2.
Check the resistance between pin 3 and pin 4.
BTW, you can have bad lamps problem and you will need test lamps (at least two) to verify.Attached Filesif you find these attachements useful please consider making a small donation to the site
Last edited by budm; 06-01-2015, 11:50 AM.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
-
Re: Vizio va22lfhdtv10t no backlight.
OK, they do not have low resistance which is typical the symptom when they failed, you are getting the readings in the thousands so they do not look bad.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
