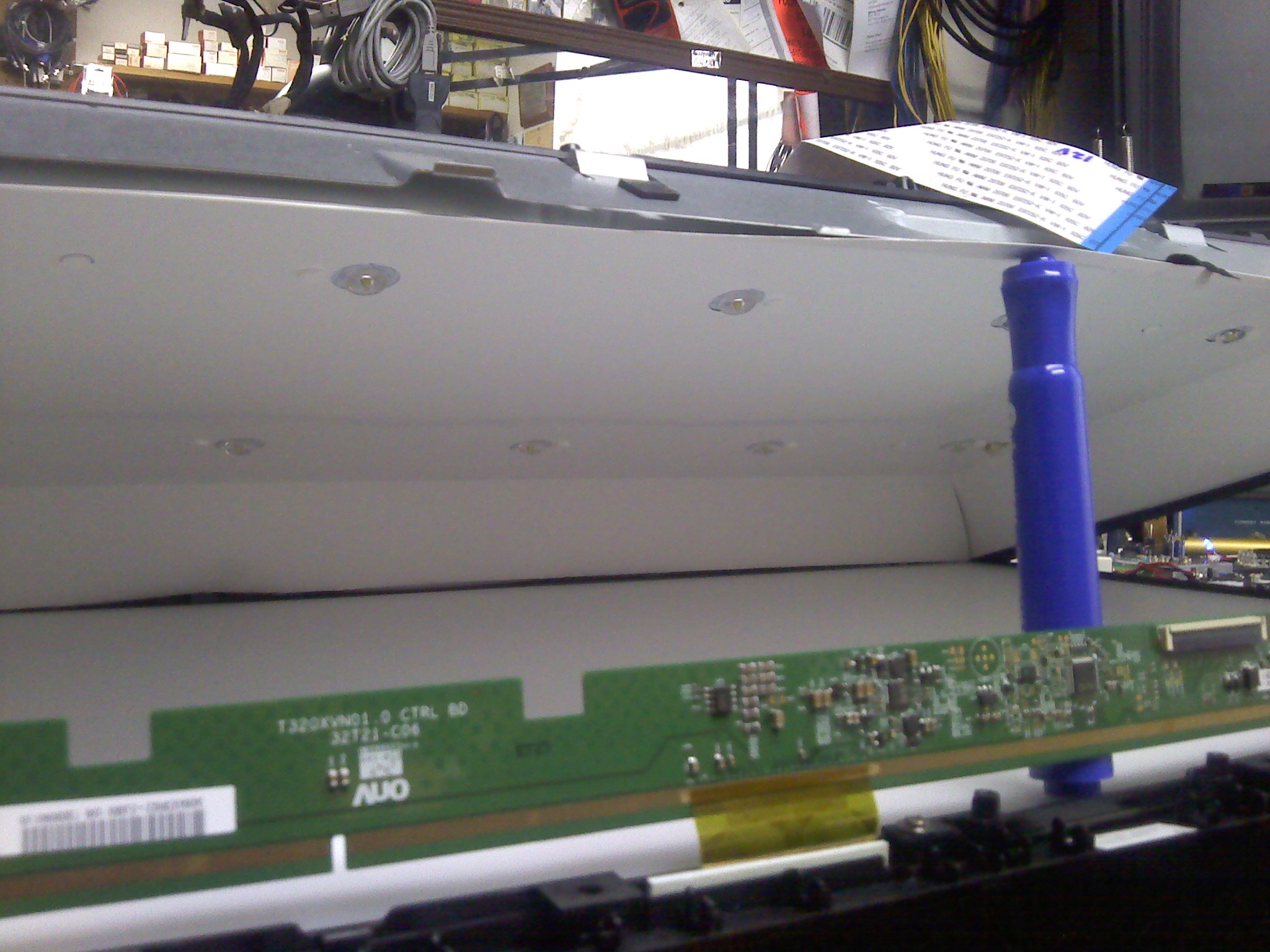

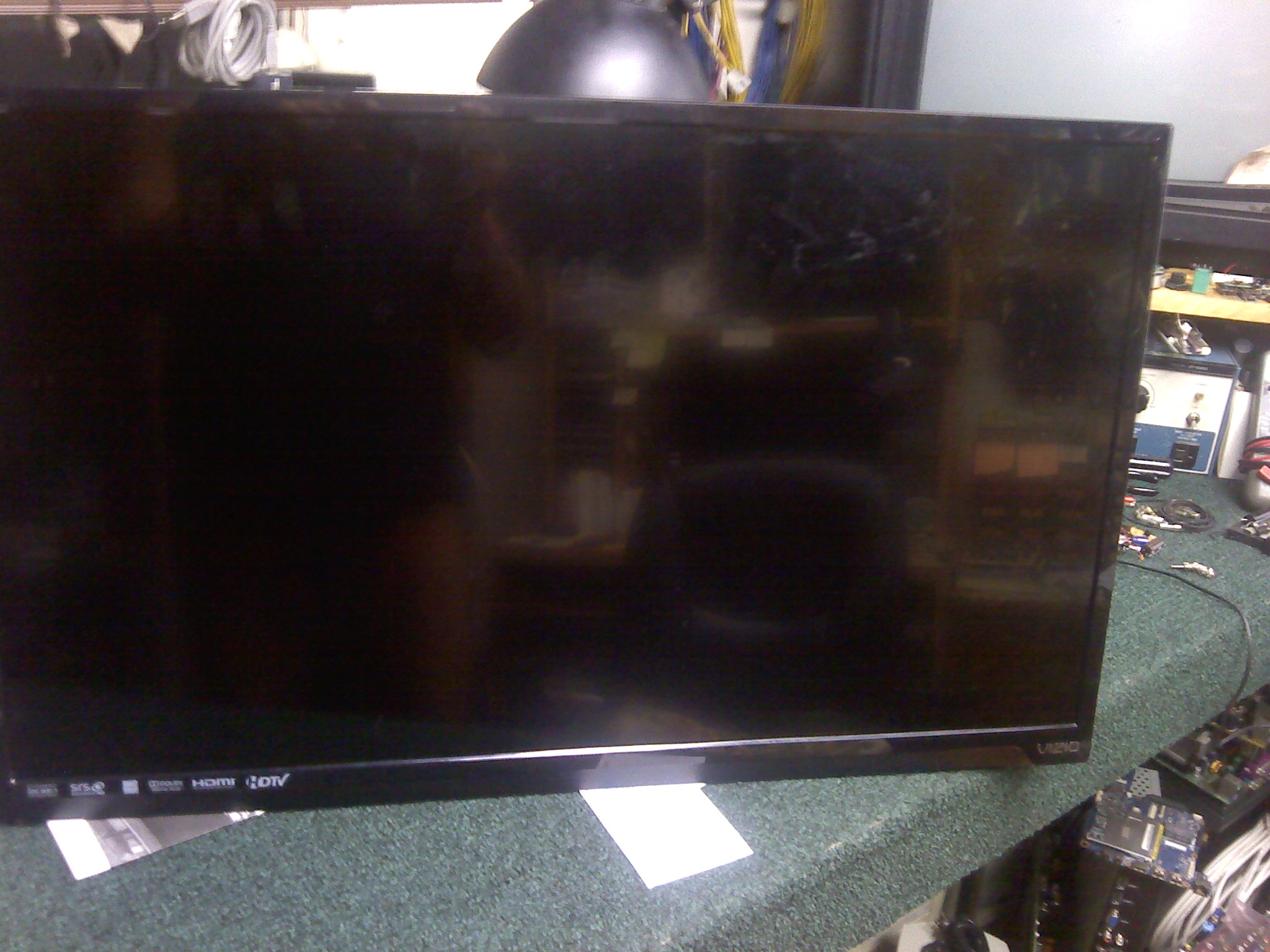

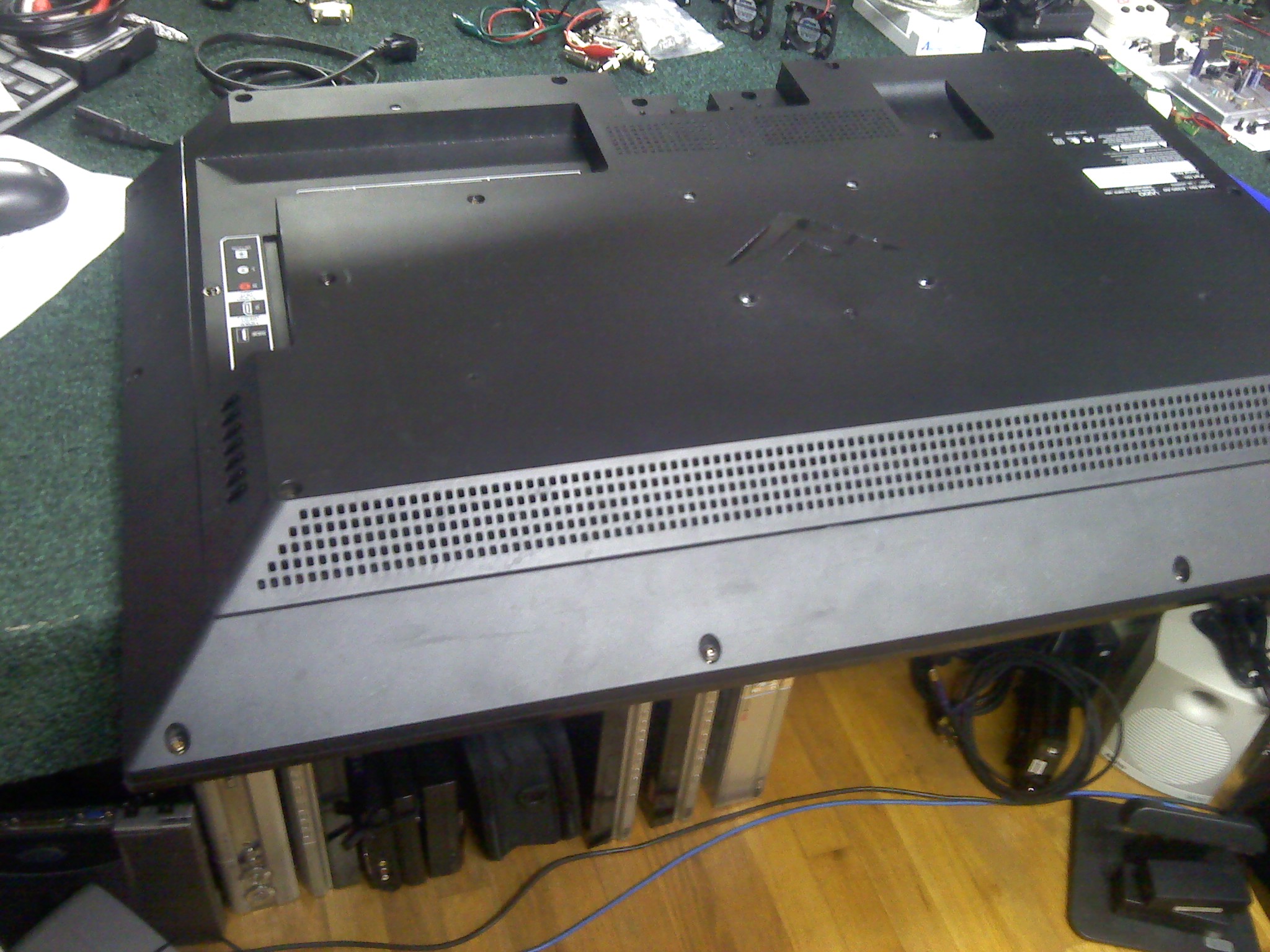

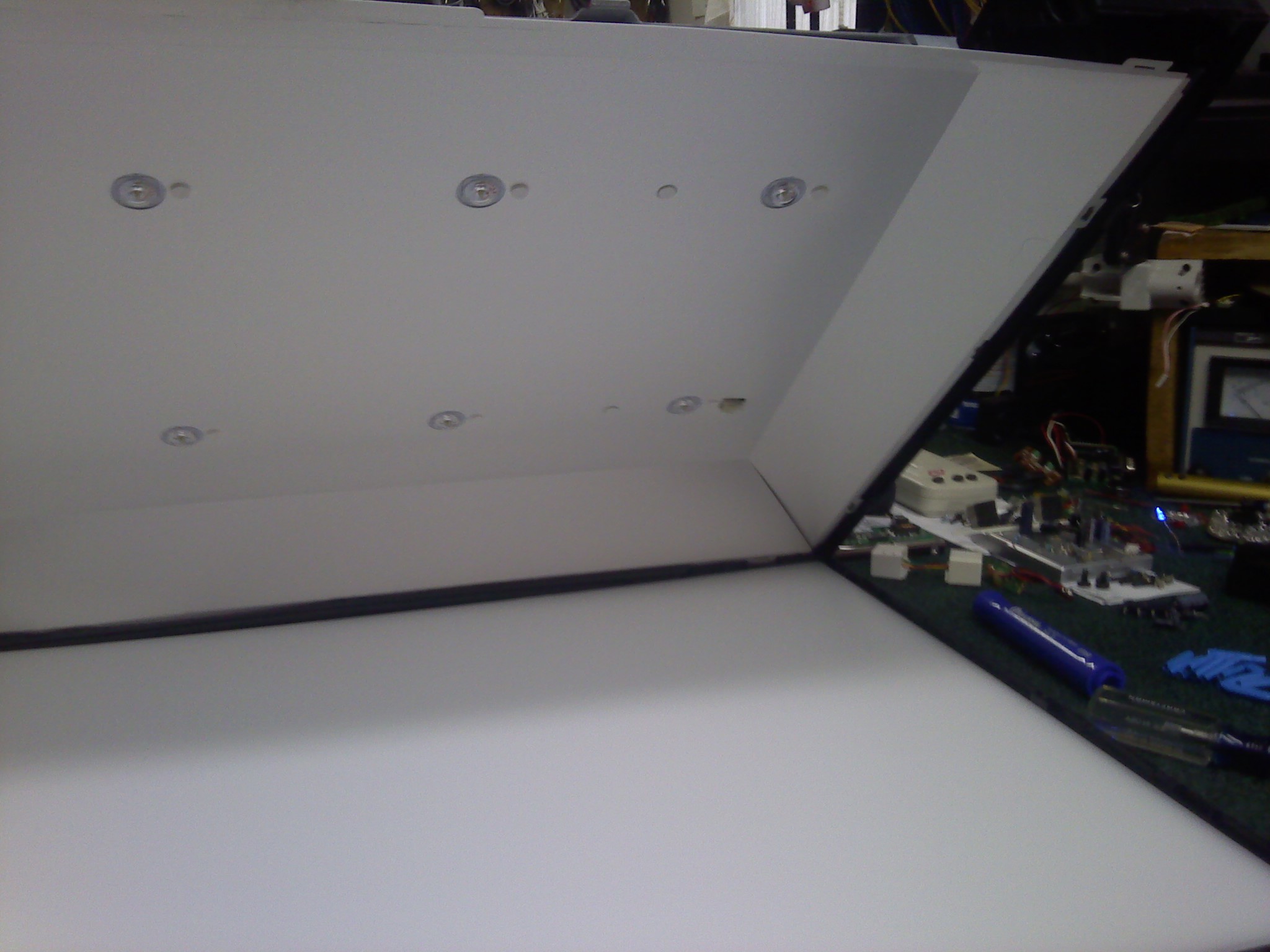

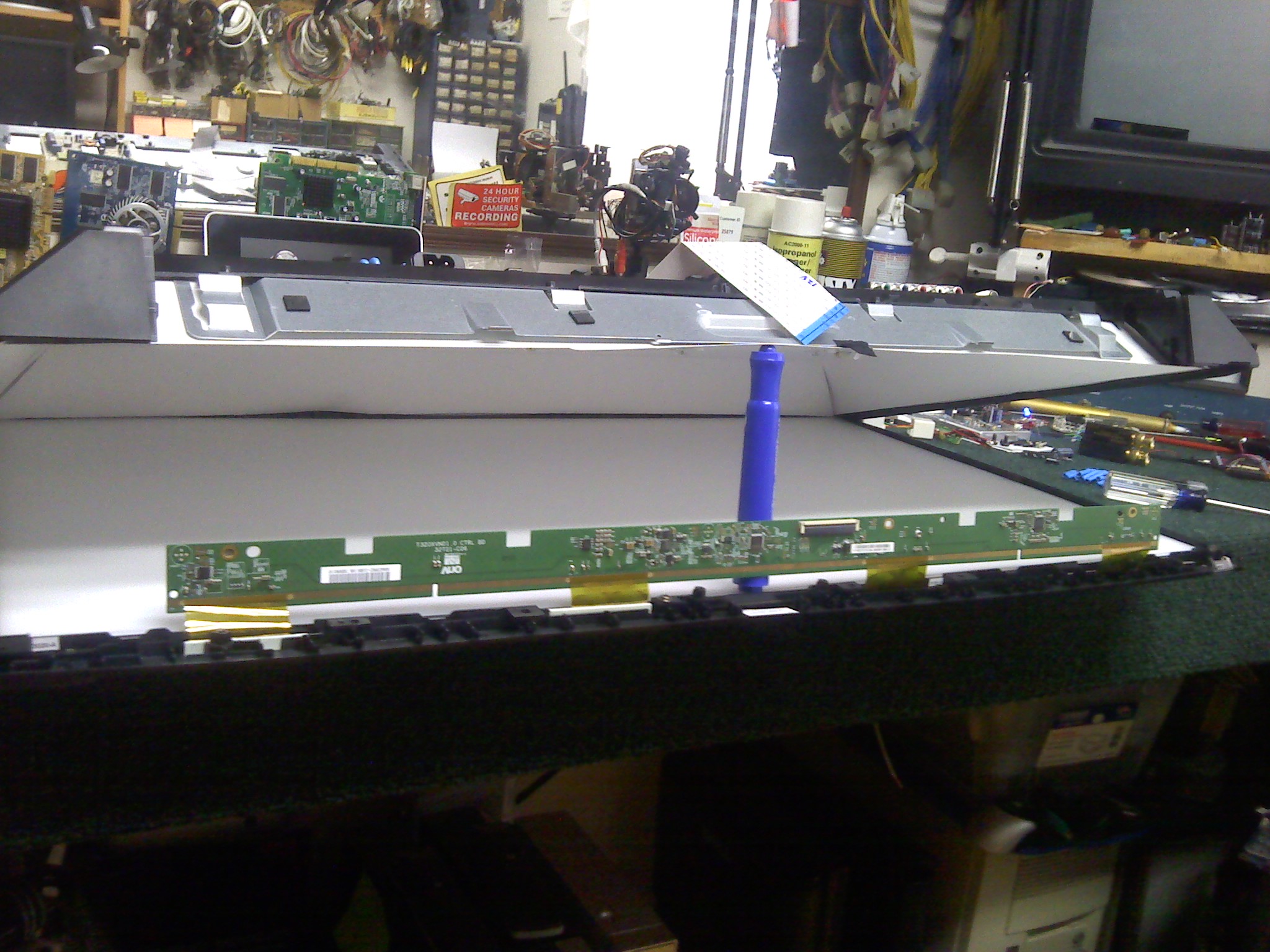

This 32": led lcd has a cracked screen, Uses an led light box. Never seen this before, so I thought I would share.
Attached Files
-
-
Re: vizio E320ao autopsy
So instead of a long strip of LEDs it has just a few behind the panel? Interesting, not seen that myself either...any clue on manufacturing date?Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
For service manual, schematic, boardview (board view), datasheet, cad - use our search. -
Re: vizio E320ao autopsy
The guy that brought it to me, said it was less than a year old.Comment
-
Re: vizio E320ao autopsy
I have seen them in Samsung, it is back-lit (deeper chassis) instead of edge-lit (thinner chassis, edge-lit just like monitor). With back-lit, they can do zone dimming better than edge-lit.
I also use them for light box and for taking pictures of the circuit boards.Last edited by budm; 01-05-2014, 08:52 PM.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: vizio E320ao autopsy
I had heard of it, but only on premium TV, like LE40A950, called local dimming, not available except on a few exclusive models. Some edge lit TV have 5xVertical and 2xHorizontal dimming, must produce awful halo effect though.
This one probably lights them all up at same brightness regardless.Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
For service manual, schematic, boardview (board view), datasheet, cad - use our search.Comment
-
Re: vizio E320ao autopsy
I would like to do a hack like "budm" did ,And use the chassis to drive another panel. I couldn't find any info on the net. The chassis supply's 12v to panel and 40 v to the led'sComment
-
