    ADI Microscan A707 & BenQ FP731 LCD's

    Hi All,
    I have an annoying issue with a ADI monitor I have, I turn it on it boots up then 20 to 30 seconds latter it goes black, the led is still green but no monitor, turn it of then on, same deal, I have looked at the boards in it for a dry solder or a dead diode or a rounded pot, but nothing that catches my eye, I hope I'm in the right place for this post, and let me say what an impressive forum you lot have here, going to be a great help for future situations I can see that, ( I like playing with things that stop lol )


    I also have a BenQ FP731, model Q-7T3, it just stopped one day for no reason, I thought it might be the fuse in it "T2A H250V" I took it out tonight to see if it is any good, need to get a multi meter tomorrow, any sort of a heads up with this would be greatly appreciated as well. thank you in advance and much Peace to you all.
    The best mathematical equation I have ever seen: 1 cross + 3 nails = 4 given.

    Gigabyte G31M-S2L
    Intel Pentium Dual-Core E5200 @ 2500 MHz
    Memory:4096 MB (2 x 2048 DDR2)
    2x Video:Radeon HD 2400 PRO & Radeon 9200 SE
    320 & 500 Gig sata hdds
    DVD-Rom Drive :SONY DVD-ROM
    DVD-Rom Drive :TSSTcorp CDDVDW
    DVD-Rom Drive :TSSTcorp CDDVDW
    Monitor Type :CMC 19AW-19"
    Monitor Type :LG - L1717S-17"
    Monitor Type :ADI Microscan A707-17"
    Operating Sys:Windows XP Home 5.01.2600 SP-3
    Tags: None
    • EGuevarae
      Badcaps Legend
      • Nov 2008
      • 1336
      • USA
      #2
      Re: ADI Microscan A707 & BenQ FP731 LCD's

      Welcome yo the forums. As always, pictures would help.
      There are 10 kind of people in this world: those that understand binary, and those who don't.
      • ASUS ROG Maximus IX Code
      • Intel Core i5-7600K 3.8GHz
      • 16gb GSKILL TridentZ RGB DDR4-3200
      • 1 M2 SSD + 2 WD Blue 1TB (Mirrored)
      • Windows 10 Pro x64
      • GeForce GT1050
        2 x Acer KA240H + 1 Vewsonic VP2130 21 (a cap replacement job )

        Comment

        • Norm_au
          New Member
          • May 2009
          • 4
          #3
          Re: ADI Microscan A707 & BenQ FP731 LCD's

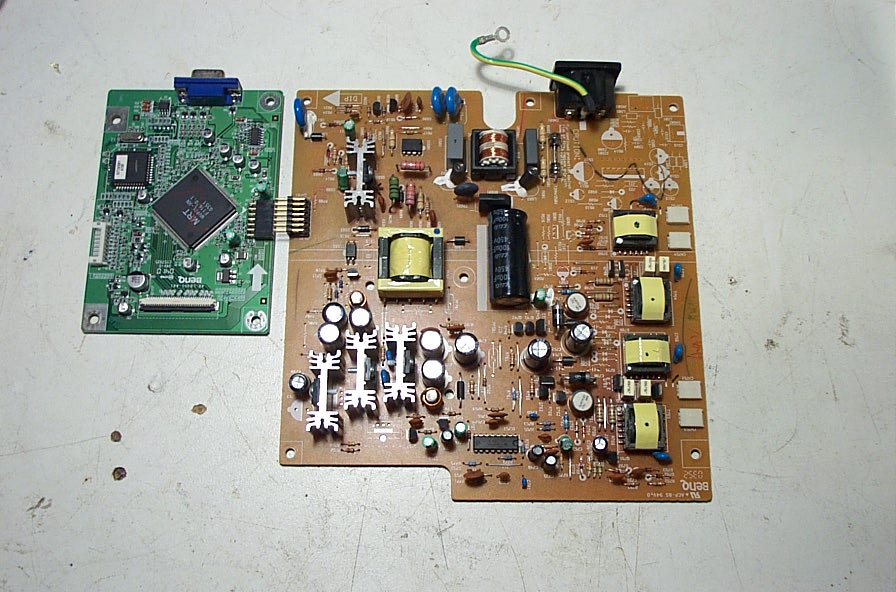

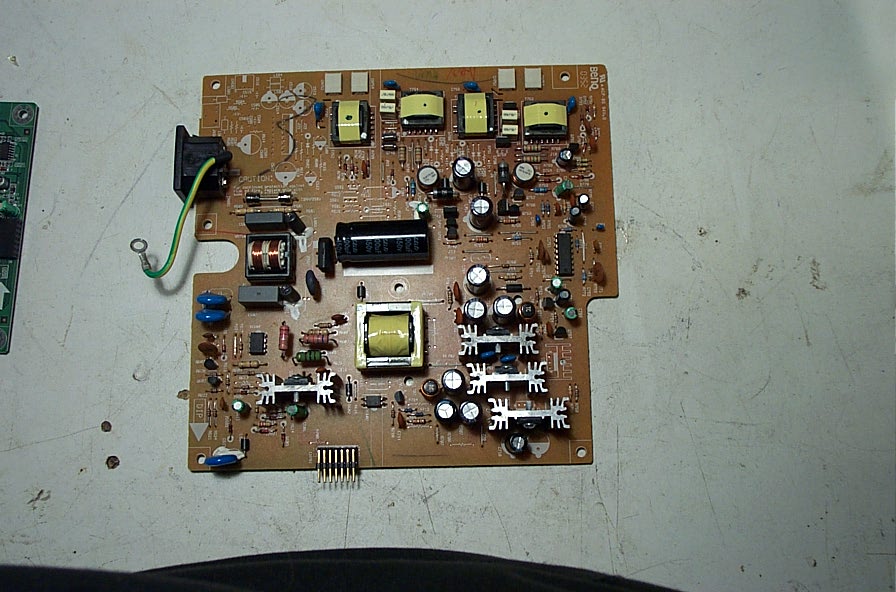

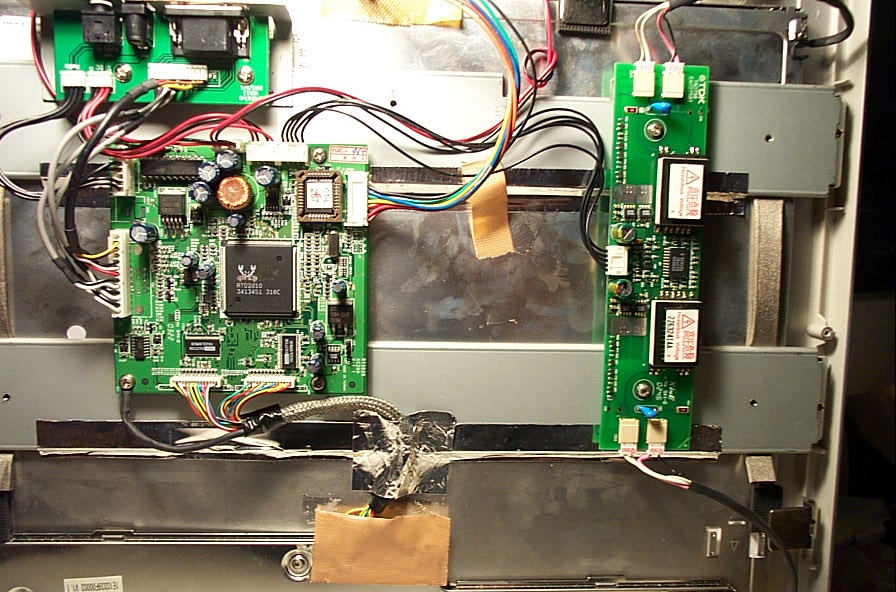

          Hi eguevarae, thanks for the welcome and reply, here are some images, the ADI one, I could be wrong and no dought am, but I think the small board to the right could be my trouble, and of course there is the BenQ I replaced the fuse today I couldn't get the ceramic one so I just got the glass one, any way still only getting the green led to say it is on but black screen, I hope these pics are what you were asking for, if not please let me know. Peace
          Attached Files
          The best mathematical equation I have ever seen: 1 cross + 3 nails = 4 given.

          Gigabyte G31M-S2L
          Intel Pentium Dual-Core E5200 @ 2500 MHz
          Memory:4096 MB (2 x 2048 DDR2)
          2x Video:Radeon HD 2400 PRO & Radeon 9200 SE
          320 & 500 Gig sata hdds
          DVD-Rom Drive :SONY DVD-ROM
          DVD-Rom Drive :TSSTcorp CDDVDW
          DVD-Rom Drive :TSSTcorp CDDVDW
          Monitor Type :CMC 19AW-19"
          Monitor Type :LG - L1717S-17"
          Monitor Type :ADI Microscan A707-17"
          Operating Sys:Windows XP Home 5.01.2600 SP-3

            Comment

            • EGuevarae
              Badcaps Legend
              • Nov 2008
              • 1336
              • USA
              #4
              Re: ADI Microscan A707 & BenQ FP731 LCD's

              Originally posted by Norm_au
              Hi eguevarae, thanks for the welcome and reply, here are some images, the ADI one, I could be wrong and no dought am, but I think the small board to the right could be my trouble, and of course there is the BenQ I replaced the fuse today I couldn't get the ceramic one so I just got the glass one, any way still only getting the green led to say it is on but black screen, I hope these pics are what you were asking for, if not please let me know. Peace
              Right. The right side board is the inverter (ADI). What brand/series/rating are the two caps at the inverter's input? I fixed a similar inverter changing the caps for two Nichicons 150uf 16v. The monitor just flickered a lot, and after a while it just turned off. After the recap, no problems , and it has been working 24/7 for a month.
              As for the BenQ, you should check the 5707s, check the fuse at the inverter's section input, and resolder all the transformer's pins as a start. I can't see any bulged cap on the pics. If you post the info on them, someone will jump in with a replacement suggestion in no time.
              There's a great thread in the forum for the Q7T3/4 around. I think the credit goes to Davmax for that one.
              There are 10 kind of people in this world: those that understand binary, and those who don't.
              • ASUS ROG Maximus IX Code
              • Intel Core i5-7600K 3.8GHz
              • 16gb GSKILL TridentZ RGB DDR4-3200
              • 1 M2 SSD + 2 WD Blue 1TB (Mirrored)
              • Windows 10 Pro x64
              • GeForce GT1050
                2 x Acer KA240H + 1 Vewsonic VP2130 21 (a cap replacement job )

                Comment

                • Norm_au
                  New Member
                  • May 2009
                  • 4
                  #5
                  Re: ADI Microscan A707 & BenQ FP731 LCD's

                  ok, first the ADI here is all the markings from the two caps [105 degree c] temp it can go to I guess, then [M2026] [EVL] [NKcon] [56UF] [25V] I looked on the BenQ board and could find nothing even close to 5707 or F707, and are the two square box's either side of the brass coil block the fuses you talk of ?. thx for your help.
                  The best mathematical equation I have ever seen: 1 cross + 3 nails = 4 given.

                  Gigabyte G31M-S2L
                  Intel Pentium Dual-Core E5200 @ 2500 MHz
                  Memory:4096 MB (2 x 2048 DDR2)
                  2x Video:Radeon HD 2400 PRO & Radeon 9200 SE
                  320 & 500 Gig sata hdds
                  DVD-Rom Drive :SONY DVD-ROM
                  DVD-Rom Drive :TSSTcorp CDDVDW
                  DVD-Rom Drive :TSSTcorp CDDVDW
                  Monitor Type :CMC 19AW-19"
                  Monitor Type :LG - L1717S-17"
                  Monitor Type :ADI Microscan A707-17"
                  Operating Sys:Windows XP Home 5.01.2600 SP-3

                    Comment

                    • EGuevarae
                      Badcaps Legend
                      • Nov 2008
                      • 1336
                      • USA
                      #6
                      Re: ADI Microscan A707 & BenQ FP731 LCD's

                      Originally posted by Norm_au
                      ok, first the ADI here is all the markings from the two caps [105 degree c] temp it can go to I guess, then [M2026] [EVL] [NKcon] [56UF] [25V] I looked on the BenQ board and could find nothing even close to 5707 or F707, and are the two square box's either side of the brass coil block the fuses you talk of ?. thx for your help.
                      5707 is the part no. of the transistors that drive the transformers.

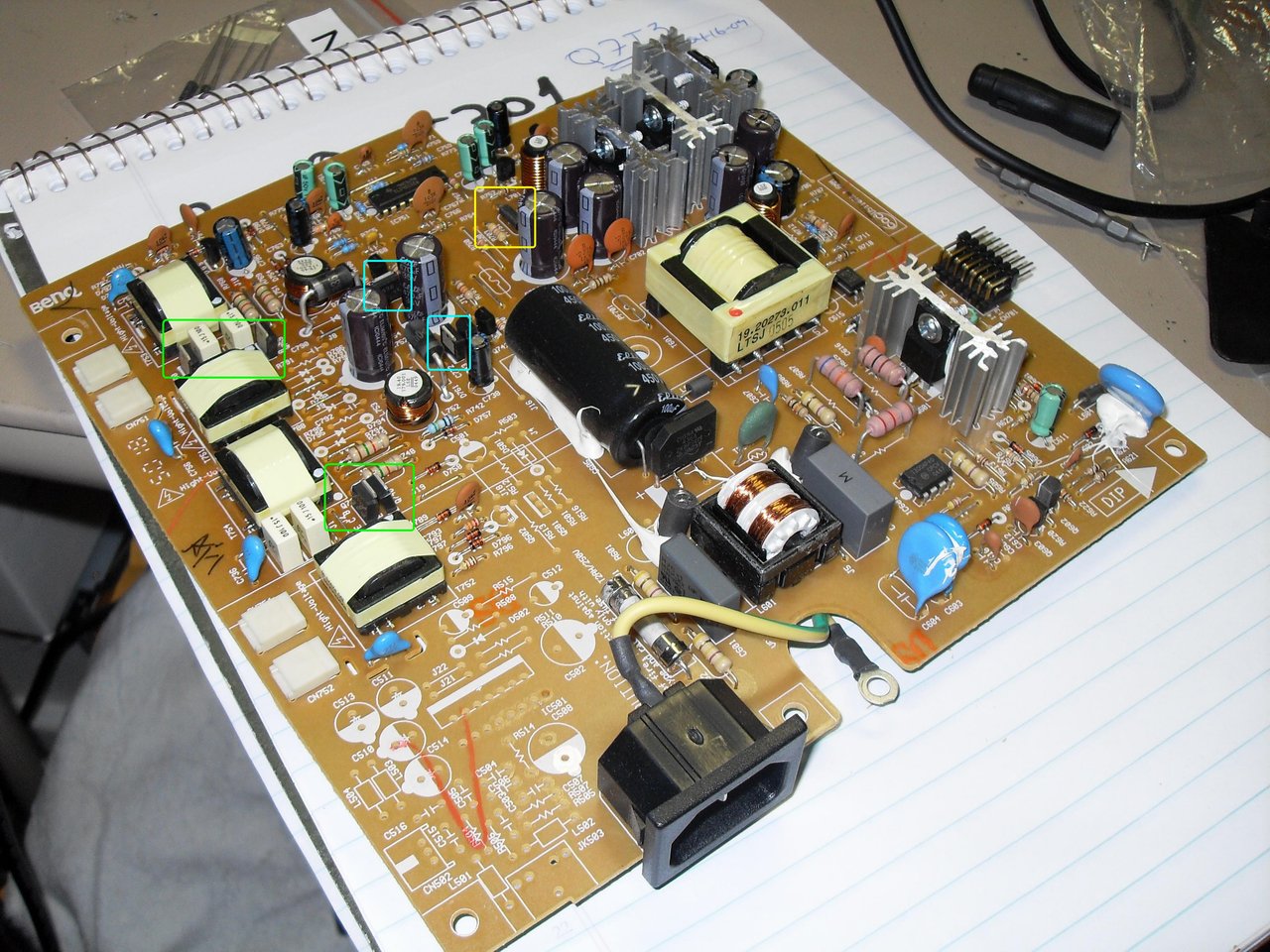

                      Look at the picture (is a bigger/better picture of your board). Green ones are the 5707. Blue ones are something you should check too. And yellow is the picofuse you must see if it is open or not.
                      Attached Files
