    connector/cable identification

    Looking to identify a connector/cable. If I get it from the manufacturer, it will take two weeks to get to me. Hoping its something I can get from digikey/mouser. I can't imagine its proprietary.

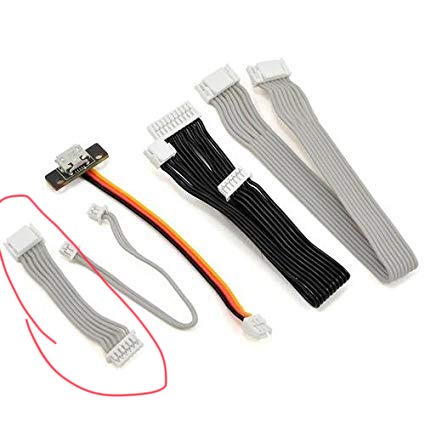

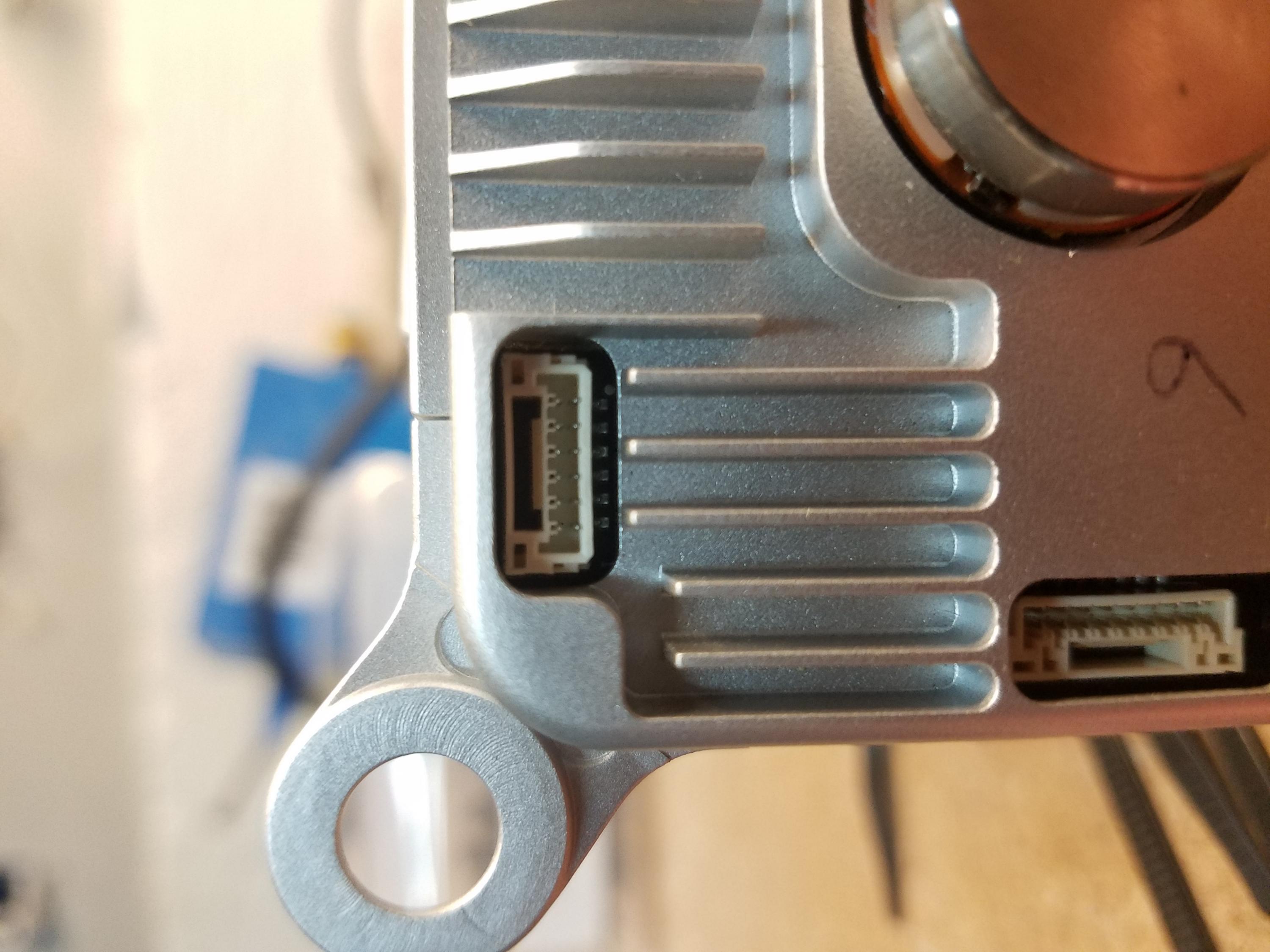

    The connector is a little less than a half inch wide. Please see attached photo of cable. I will attach photo of socket shortly.

    Attached Files
    Tags: None
    • Bterrier
      Senior Member
      • Apr 2018
      • 72
      • USA
      #2
      Re: connector/cable identification

      Attached Files

        Comment

        • R_J
          Badcaps Legend
          • Jun 2012
          • 9535
          • Canada
          #3
          Re: connector/cable identification

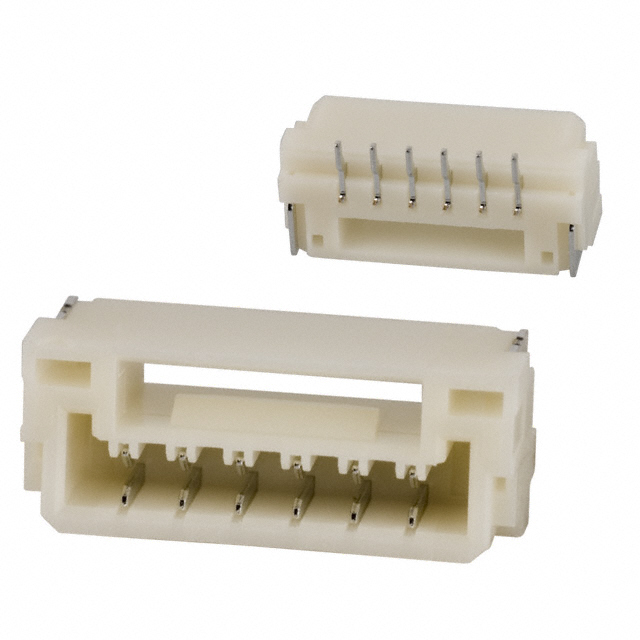

          Is this it BM06B-GHS-TBT(LF)(SN)(N)
          Attached Files
          Last edited by R_J; 09-06-2018, 02:38 PM.

            Comment

            • R_J
              Badcaps Legend
              • Jun 2012
              • 9535
              • Canada
              #4
              Re: connector/cable identification

              This is the plug GHR-06V-S, this should be the pins SSHL-002T-P0.2
              Digikey has them
              Here is the series pdf
              Attached Files
              Last edited by R_J; 09-06-2018, 09:53 PM.
