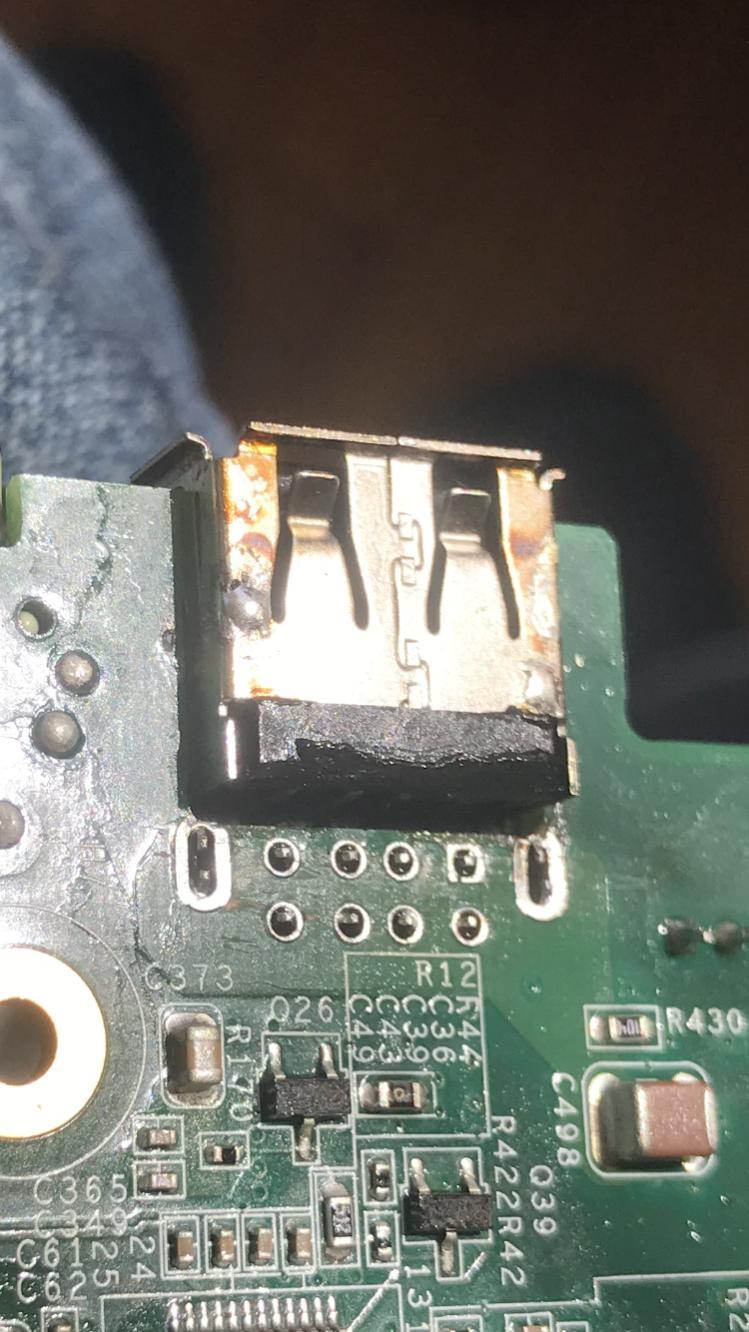

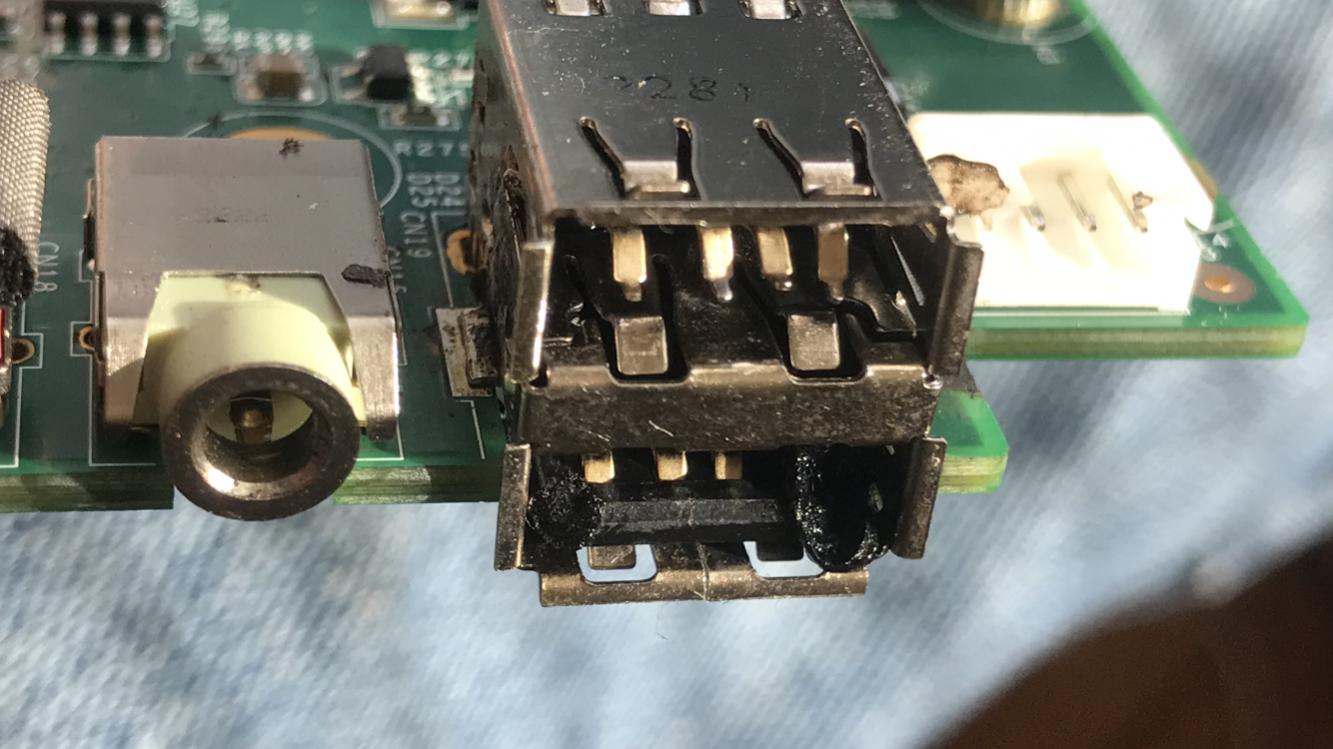

Looking for the following USB port, have not had any luck... Note the offest and the pads to solder it on the PCB... Suggestions, or links would be appreciated..
Attached Files
-
-
Re: Trying to source USB port..
maybe this one?
https://www.aliexpress.com/item/High...ceBeautifyAB=0 -
Re: Trying to source USB port..
Sweet, looks good enough to order...! Many thanks !Comment
-
Re: Trying to source USB port..
Never thought to look here... How long did it take you out of curiosity ?Comment
-
Re: Trying to source USB port..
The pins on the rear of the USB in that Aliexpress link look offset to me but they aren't on your PCB.
Check here for a more suitable one. https://www.aliexpress.com/store/111...ext=double+usb
I have bought plenty of connectors and ports from them. Usually takes a couple of weeks to get to the UK.Comment
-
I have a thinkpad L480 NM-B461 rev 1.0 laptop functioning normally with Type 1 port (JUSBC1)
if you use port type C 2 (JDOCK1) with a usb type meter it only displays 5v, thank you
I tried to look at the schematic diagram USBC_VBUS20, which is the port path from JusBC 1 to U4701 then goes to the system2 charging IC, why is there no system2 path leading to the charging IC on the TYPEC_VBUS20 port which is JDOCK1, thank you for your help.
if you look at the power sequence there must be 2 types of port type C a (JUSBC1) via U4701 and port type C b (JDOCK1)
On the type... -
I have two TCL A30 phones.
Old Phone: This phone worked fine for years, then stopped charging If you plugged a charger into it, the phone would make the charging sound, the phone would tell you it is charging, but the battery icon would not have the charging symbol in it and the battery would not charge.I tried new battery, same behavior.
New Phone: Works fine, bought as a donor board to try and repair Old Phone
My interest here is to repair Old Phone, using components parts off New Phone if needed. I am not interested in replacing Old Phone with New Phone.... -
I am having some trouble with troubleshooting a Asus X532FL rev 2.0 motherboard, which does not power on. So at the first MOSFET, I am getting 19V at the drain, and then 3.2V on both gate and source (compared with ground). Of course, the 2nd MOSFET's source will have 3.2v at source.
First MOSFET is a QM3056M6 and 2nd MOSFET is a QM0930M3
I already checked first MOSFET and source and gate are not shorted (drain with source not shorted either). Also I have 1.7V at the LDO rail (measured at the keyboard connector, as the power button is on the keyboard).
First... -
Hi all,
I sent my ProArt Studiobook 16 OLED (H7600, 12th Gen Intel) to the local repair guys to have a very simple DC in port replaced. I sourced the part myself on accessoires-asus (french company) after struggling to find the right part in the UK. It looked completely the same to the installed part from what I can tell. Originally the only issue with the laptop was a bad / loose DC connection, and so the computer and battery acted completely normal aside from a very poor connection that would fail at certain angles. After the repair was completed I brought it home and used it for... -
I got this recently as-is. Gigabyte 1070 video card.
DVI port is removed. I don't know why.
A wire is soldered across two spots where it looks like the DVI port was. I don't know why.
I've read of people simply ripping out DVI ports and the rest of the cards still working fine. Never read anything about soldering a wire in there for some reason.
The card seems to work fine, except it's stuck in low clock speeds. While starting a game or benchmarking, the clocks may momentarily increase to around where they should be, then goes way back down and stays...
