Re: Samsung LN52A650A1FXZA dead, standby LED just flashes repeatedly

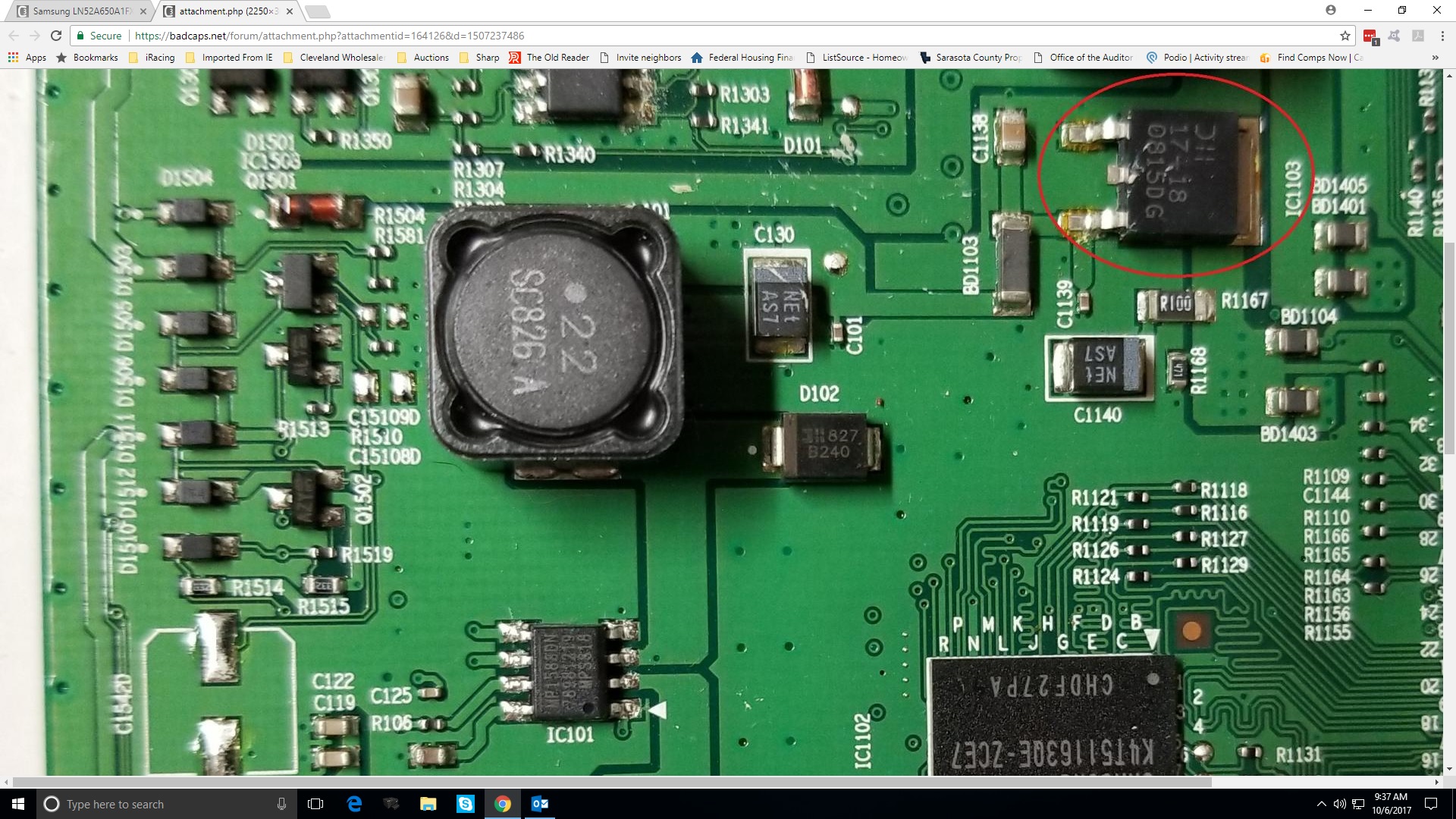

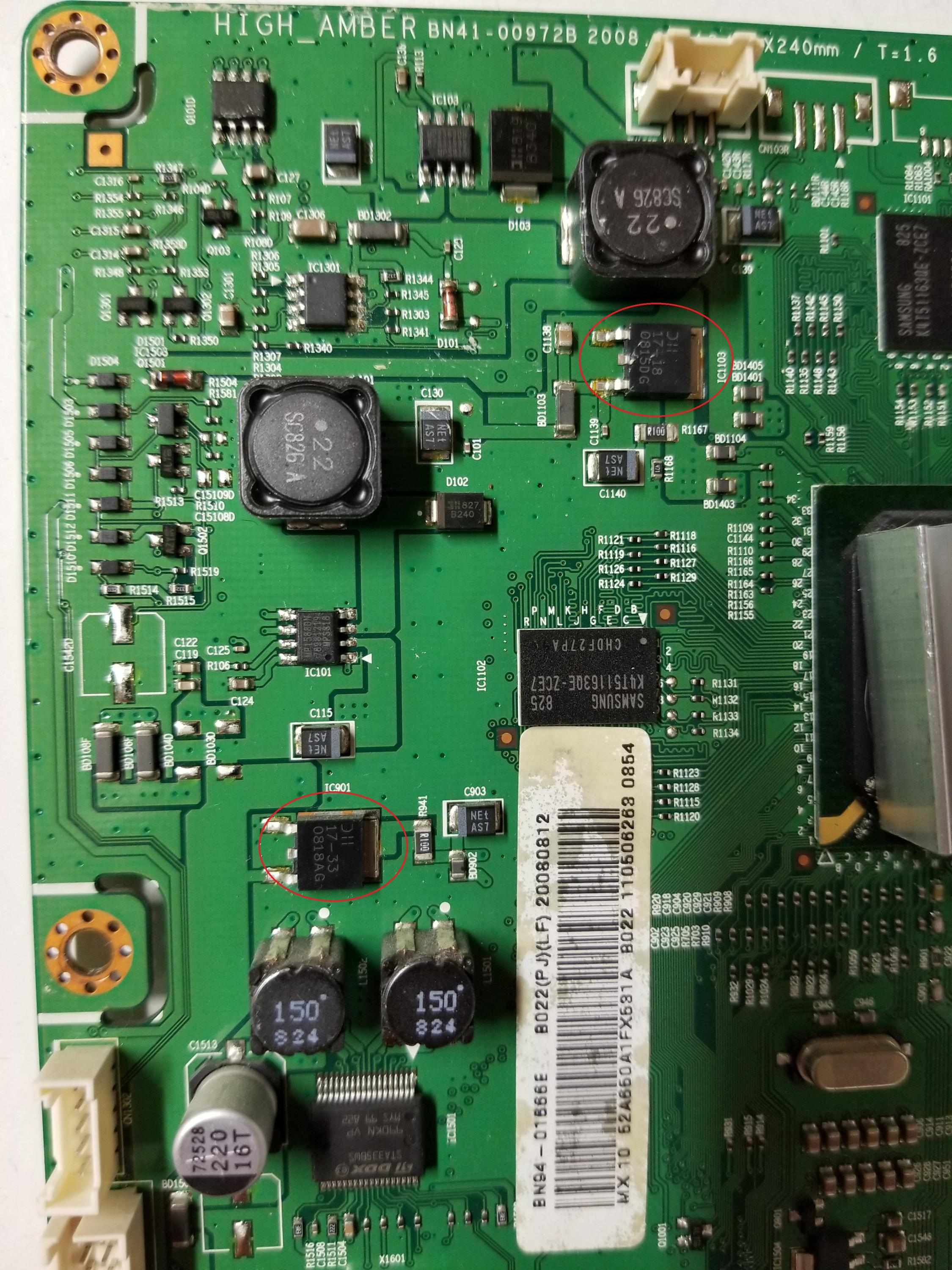

1k ohms, on the good and the bad board. You're talking about these 2 right?
1k ohms, on the good and the bad board. You're talking about these 2 right?
Attached Files
-
Last edited by kevinm34232; 10-05-2017, 03:05 PM. -
Re: Samsung LN52A650A1FXZA dead, standby LED just flashes repeatedly
If that 3.3V regulator output is the one that feeds the input of 1.8V regulator then the one you measure resistance between the output of one regulator to the input of another regulator then it cannot be 1K resistance between the two pins.
Need to find the schematic of that main board to find out where that 1.8V regultor gets its input Voltage from. May be start check the resistance between the input of that 1.8V regulator and output pins of other regulator to see which one shows < 1 Ohm.
You can try downloading these service manuals:
http://elektrotanya.com/?q=showresul...oria=&kat2=all
BTW, what is the designator number for that 1.8V REGULATOR IC? U???, IC?????Last edited by budm; 10-05-2017, 09:07 PM.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: Samsung LN52A650A1FXZA dead, standby LED just flashes repeatedly
Yes the 3.3v regulator is IC901, 1.8v regulator is IC1103 and has 2.4v at input.Attached FilesComment
-
-
Re: Samsung LN52A650A1FXZA dead, standby LED just flashes repeatedly
The input pin of IC1103 leads back to pin 3 of IC101 (MP1583DN)
http://www.monolithicpower.com/Deskt...ocument?id=238
NM I replaced this IC voltages normal but still same problem thanks for the help..Last edited by kevinm34232; 10-06-2017, 08:45 AM.Comment
-
Re: Samsung LN52A650A1FXZA dead, standby LED just flashes repeatedly
OK, so the input Voltage of 1.8V regulator IC1103 is not fed by the other 3.3V regulator IC901, the input comes from switching regulator generated by IC101.
Did you download the service manual? May be IC101 feedback circuit is the problem.Never stop learning
