Panasonic TCP-42S2 6blink

[tw2005]

Re: Panasonic TCP-42S2 6blink

slide 96

the only combinations involving SC20 removed staying on which is the same as removing A20 are:

A20,A32 - TV stays on

A20,A31,A32 - TV stays on

A31,A32 feed to the C boards

[bikerbuddy]

Re: Panasonic TCP-42S2 6blink

tw 2005 I ran the test u mention with all cables hook up and remove C10 connector and sc20 and I did get 8blinks .

also I checked the voltages on the blue caps on C 633 I get 51 volts, facing the caps on right leg same for C 632 no power on the left leg ,
On C413 the smaller blue cap I have 205 volts on the left leg and no power on the right leg .

All these voltage are measured when power up and before going to the 6 blink.

All the transistors and diodes i got from outsource and found some of the parts were defective right out of the shipment .some diode were dead no reading .

Also I have check the voltage on SC board

TP 82= 15.2 V
TP 99 = 0 V
TP 46 =0.11 V
TP 101= 0 V
TP 102 = 4.95 V
TP 3 = .30 V
TP SOS = 4.23V

If there is any thing comes to mind for me to look up just give me a shout ,I may look into getting another Sc board ,Just may.Thanks for help

[tw2005]

Re: Panasonic TCP-42S2 6blink

tw 2005 I ran the test u mention with all cables hook up and remove C10 connector and sc20 and I did get 8blinks .

also I checked the voltages on the blue caps on C 633 I get 51 volts, facing the caps on right leg same for C 632 no power on the left leg ,
On C413 the smaller blue cap I have 205 volts on the left leg and no power on the right leg .

All these voltage are measured when power up and before going to the 6 blink.

All the transistors and diodes i got from outsource and found some of the parts were defective right out of the shipment .some diode were dead no reading .

Also I have check the voltage on SC board

TP 82= 15.2 V
TP 99 = 0 V
TP 46 =0.11 V
TP 101= 0 V
TP 102 = 4.95 V
TP 3 = .30 V
TP SOS = 4.23V

If there is any thing comes to mind for me to look up just give me a shout ,I may look into getting another Sc board ,Just may.Thanks for help

If TP SOS6 4.23V(I assume since you have neither 6 or 7 labelled) then the SC is faulted. On initial start up it goes high momentarily then low, if staying high then it's faulted.

Which parts were faulted from UT ? I have not had any dramas yet, touch wood.

[tom66]

Re: Panasonic TCP-42S2 6blink

If you only get 53V on the bank of blue caps, that's bad. The ER circuit isn't charging them up. You can check the SS board for a comparison of what the voltage should be.

[bikerbuddy]

Re: Panasonic TCP-42S2 6blink

Ok guys I finally got this tv going I bought a used SC board on line , the board was supposed to be a for parts or repair , After the board arrived I started to check out all the fets and diodes ,they all checked out good, put the board in and start it up , it started right up and been running for the last three days.

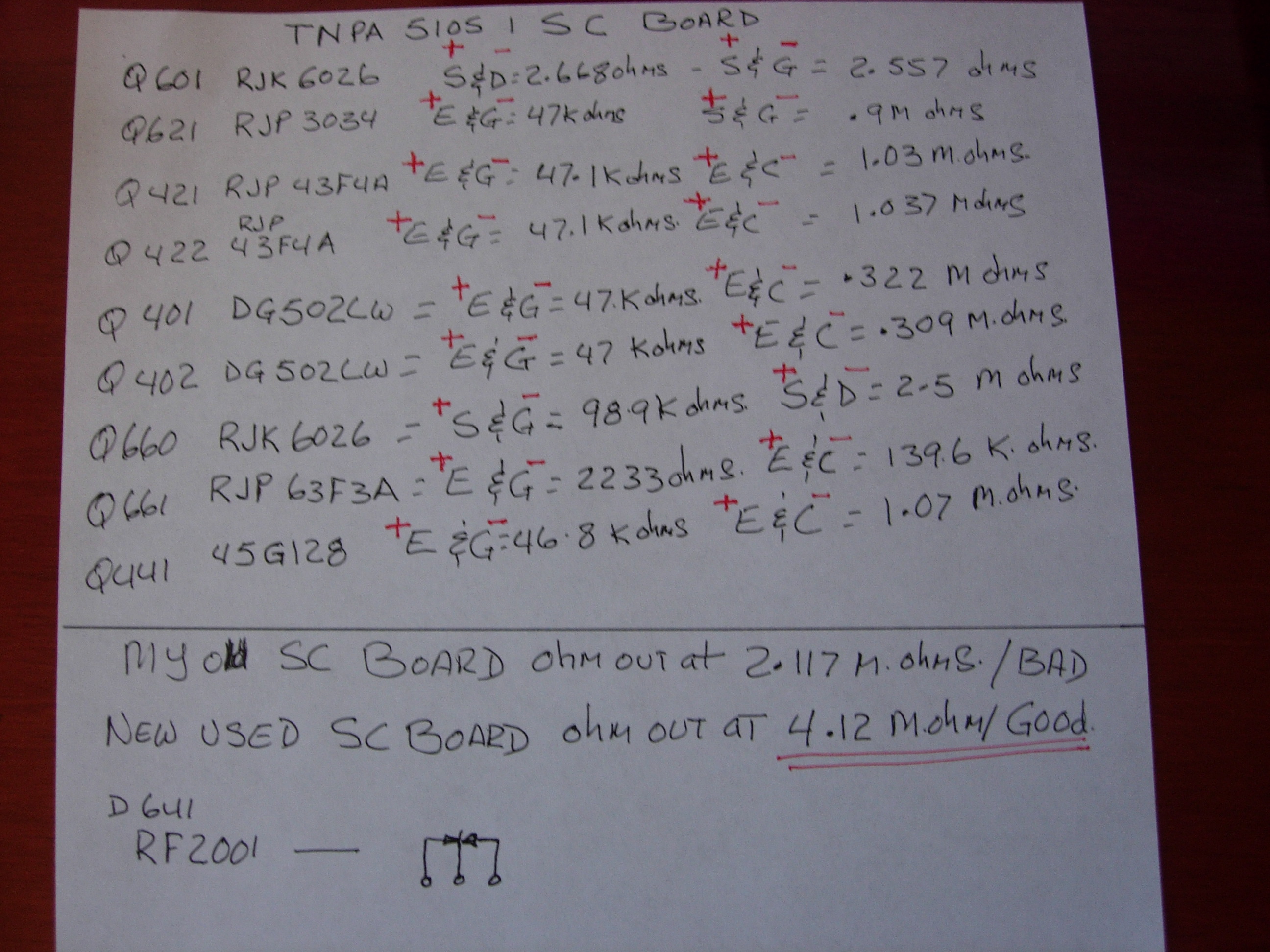

Here are some test results from checking the transistors and fets :-
+ indicates red lead on multitester
_ indicates black lead on multitester

[bikerbuddy]

Re: Panasonic TCP-42S2 6blink

I wish to thank wt2005 and Tom 66 for your guidance .

[tw2005]

Re: Panasonic TCP-42S2 6blink

Ok guys I finally got this tv going I bought a used SC board on line , the board was supposed to be a for parts or repair , After the board arrived I started to check out all the fets and diodes ,they all checked out good, put the board in and start it up , it started right up and been running for the last three days.

Here are some test results from checking the transistors and fets :-
+ indicates red lead on multitester
_ indicates black lead on multitester

those results from working or not working board? Q601 you have at 2 and bit ohms?

[bikerbuddy]

Re: Panasonic TCP-42S2 6blink

Those results are for a working SC board tw2005
