    Vizio E320VL Left Right Screen Swapped

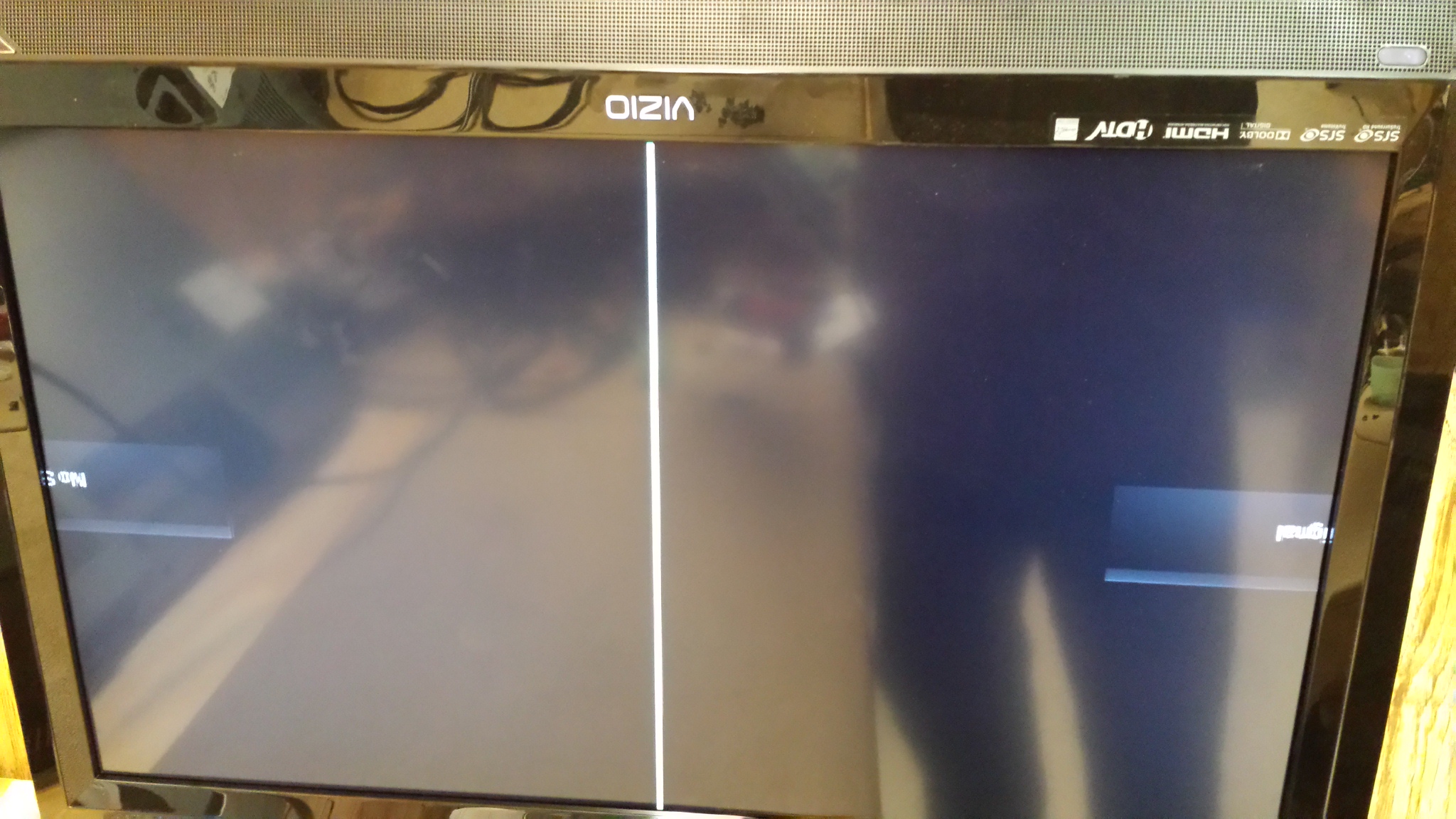

    TV video left/right is swapped.There is about a 1/8" vertical lines in middle of screen. TV is upside down because back and stand are off and the bottom is too weak so picture is upside down. Main board and tcon are one board. Pretty sure its a board and not a screen problem.
