    GCH-A35 PCB pinout

    Does anyone have knowledge of the pinouts on the GCH-A35 PCB for various wine refrigerators? I'm trying to replace a board in my Haier wine cooler. The original uses two smaller boards (hammy.com.cn #PCB80830K2.В), one for each zone. This was apparently obsoleted and replaced with a single GCH-A35 driving both zones. Sadly, the pinouts are slightly different. The old board amounts to 20 total pins whereas the new unified board only uses 16 total pins. I'm assuming some of the pins were made redundant, but without tearing the whole unit apart (it's welded shut) I cannot trace all the wires. If someone had either a wiring diagram or a pinout for the PCB, that would be immensely helpful.

    Last edited by robross0606; 11-21-2016, 06:35 PM.
    Tags: None
    • oceen246
      New Member
      • Feb 2017
      • 3
      • USA
      #2
      Re: GCH-A35 PCB pinout

      Hey robross0606, did you ever find what you were looking for?

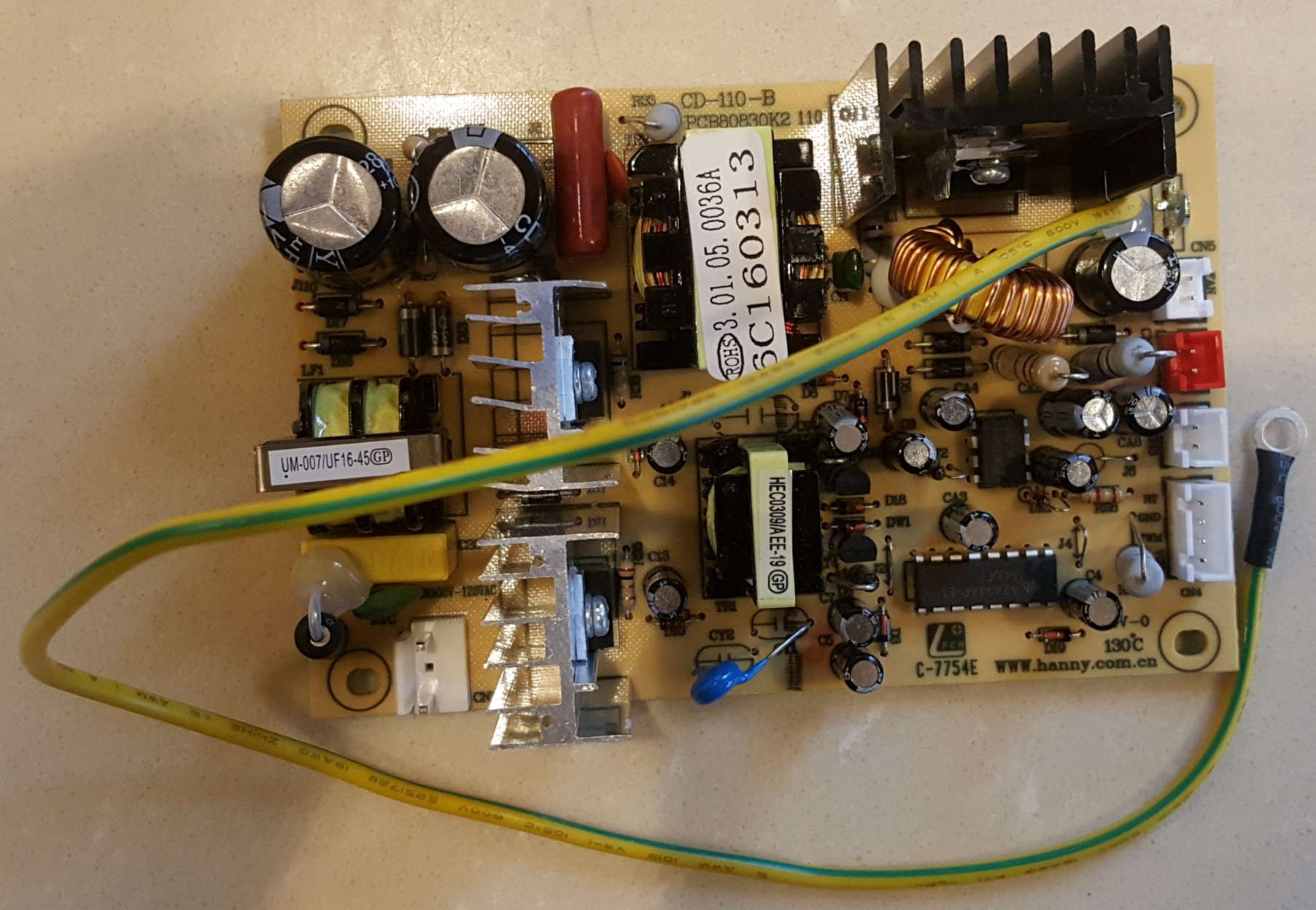

      Where did you find the GCH-A35 PCB? I need that specific one for my Kolarik wine cooler, however it seems that they sent me the one you need PCB80830K2
      Attached Files

        Comment

        • robross0606
          New Member
          • Nov 2016
          • 7
          • United States
          #3
          Re: GCH-A35 PCB pinout

          Originally posted by oceen246
          Hey robross0606, did you ever find what you were looking for?
          Where did you find the GCH-A35 PCB? I need that specific one for my Kolarik wine cooler, however it seems that they sent me the one you need PCB80830K2
          If that picture is current, it sure looks like you did. Interested in perhaps swapping boards? I haven't been able to do anything with my PCB80830K2 because the pins don't match. My unit has been sitting here unused for a while.

          How much did they charge you for the GCH-A35? Where did did you get it?

            Comment

            • oceen246
              New Member
              • Feb 2017
              • 3
              • USA
              #4
              Re: GCH-A35 PCB pinout

              I took that picture yesterday. I got the card from Kalorik directly, for $36 shipped.
              I am interested in swapping, it should work out for the both of us.

                Comment
