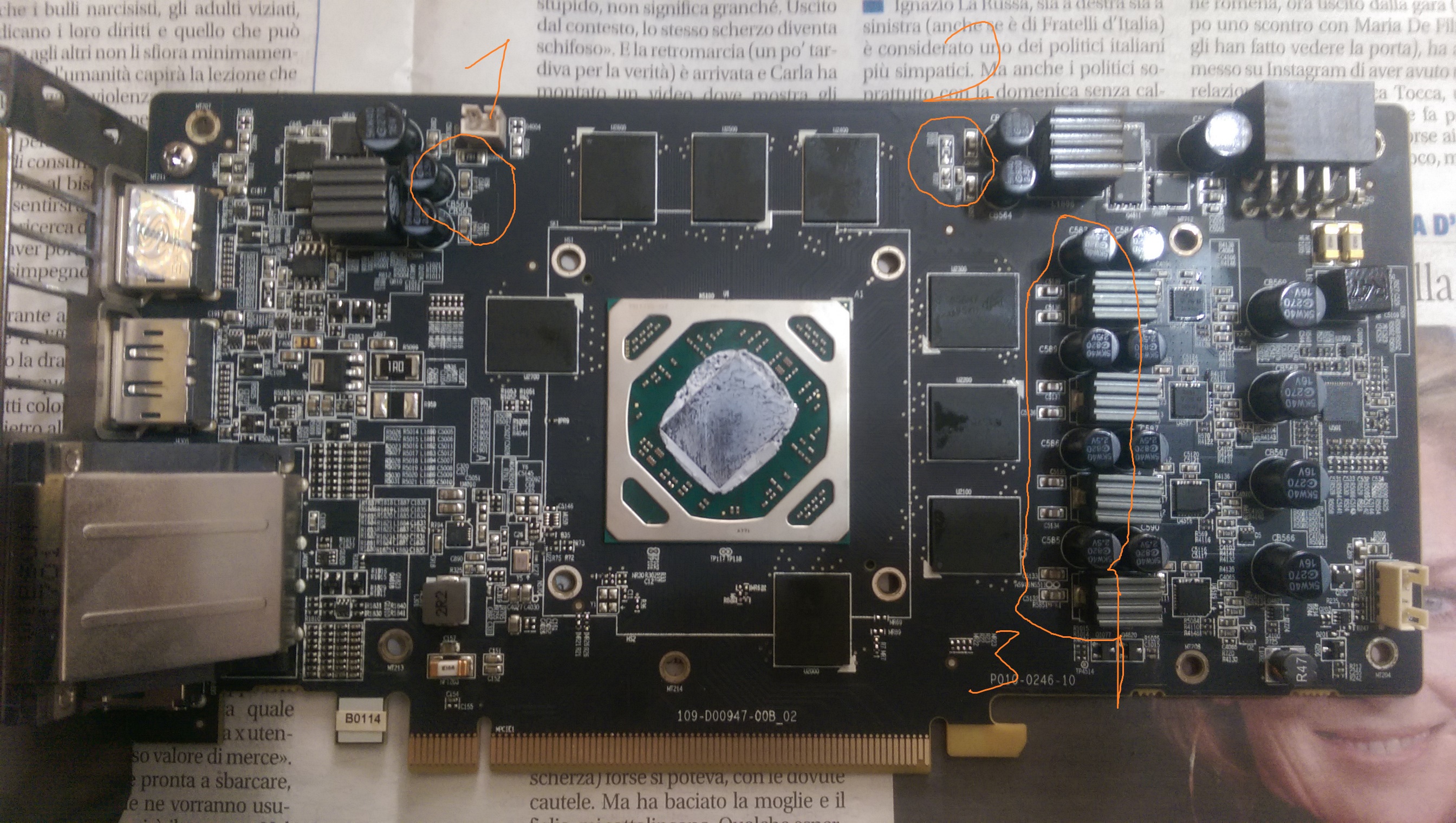

Hello, the capacitors in the circle of the video card are short-circuited, which line do you think I should start with?
Attached Files
-
Hello
two small ceramic capacitors with values 040. Can you tell me
whether they are half short circuit or full short circuit?
Thank you -
Hi All, I have a 9th Gen Dell Optiplex micro PC motherboard which doesn't power on. When I connect the motherboard with power adapter, it goes into safe mode and turns off. So from info I have gathered online, it looks like there is a short circuit on the motherboard. So can you guys help me with figuring out the issue?
I am new to electronics repair, so my queries could be naive but I am ready to learn.
So I have a multimeter and a solder with me. But I can try to get a variable voltage power supply with a thermal camera as well. From what I seen online, best way is... -
Hello everyone
Small technical problem on a Nintendo Switch lite
Here's what I noticed: the USB port has been damaged internally, with a short circuit on the power supply line to the small fuse.
After replacing the USB connector, the short circuit went away and I can't see any other short circuit in the whole motherboard.
When I charge the console, it seems to be charging: I get 15 volts and an amperage of 0.450 A.
Then, after a while, the amperage increases to 1.1 A and the BQ24193 charging chip starts to heat up, as evidenced... -
Hello.
I have seen a short circuit tester made with 3 * 9V batteries, a voltage limiter component and a resistor connected to the probes of a multimeter.
The theory is that the meter becomes sensitive enough to read very low resistances and the lowest resistance to ground on a circuit is likely to be a short circuit in that area.
Link
The Amazing $1 Short Finder Upgraded! Convert ... - YouTube
https://www.youtube.com/watch?v=0eixDdCpiO4
My multimeter isn't normally sensitive to very small resistance, but when I put a 1 mega ohm resistor... -
Hello. MSI B250 Gaming M3 board, short-circuit on the power supply. Found a problematic mosfet VQ1
(N-PK616BA_PDFN8-HF) soldered it out - short circuit is gone. I replaced VQ1 + VQ5 (N-PK632BA_PDFN8-HF). VQ1 was replaced with PK618. After starting attempt VQ1 is lit again. What can be the problem? In the driver?
Schematic and Boardview here
...04-04-2025, 03:57 PM
