    Delta V.R.M. on Dell P4 Mobo

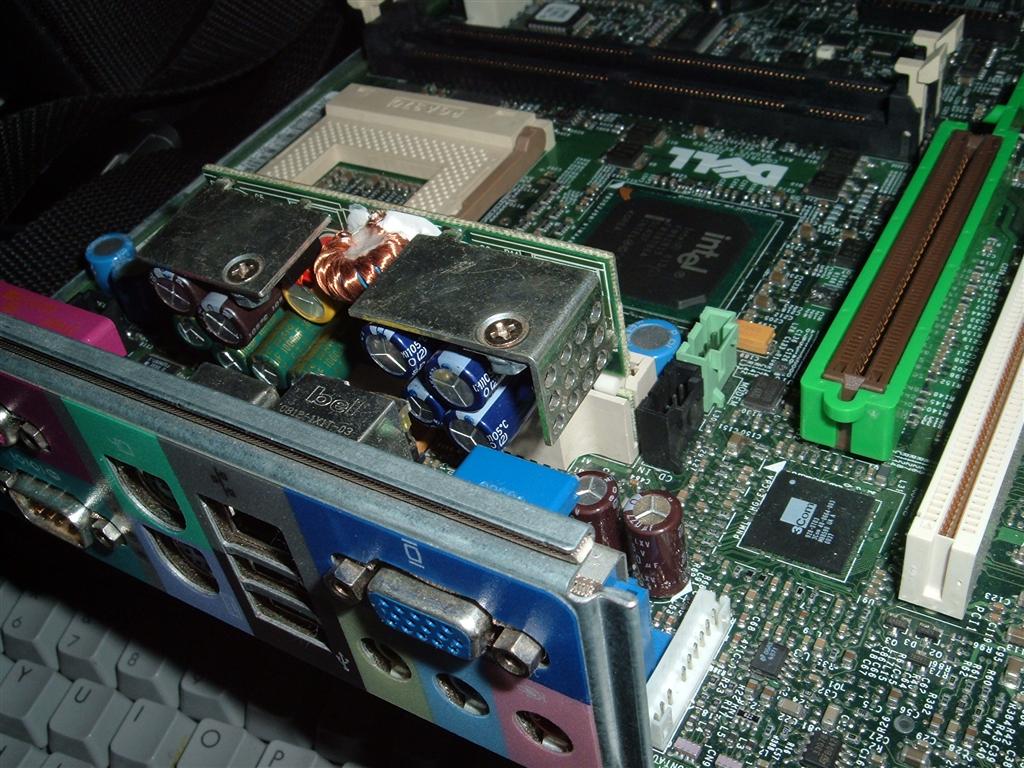

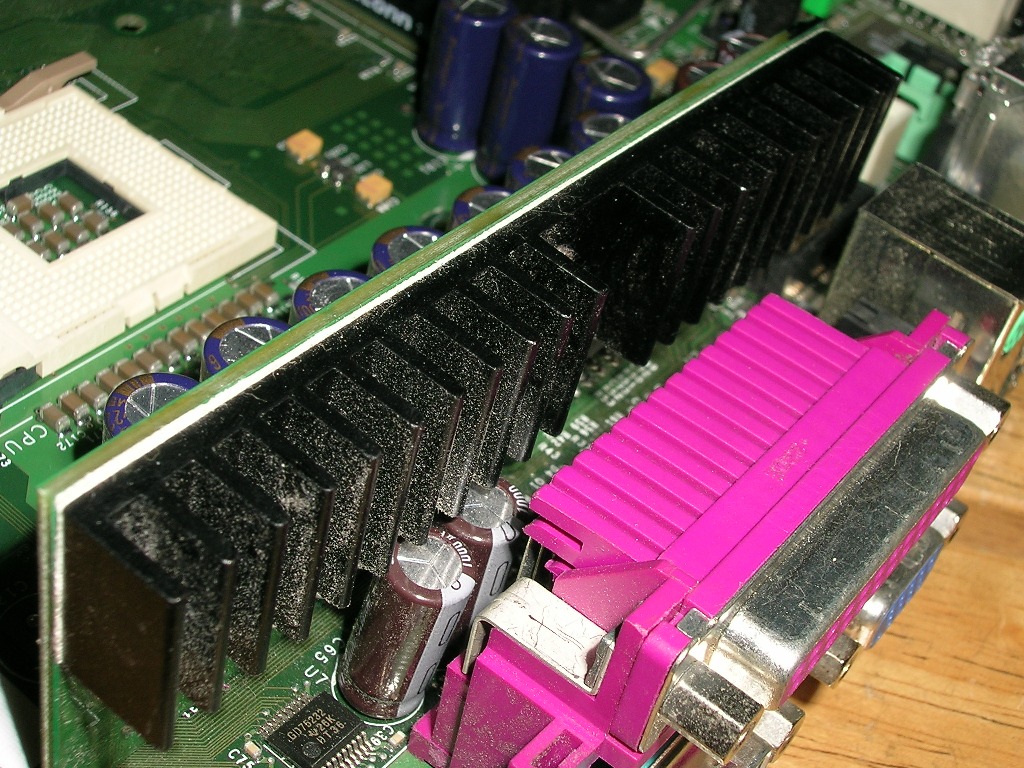

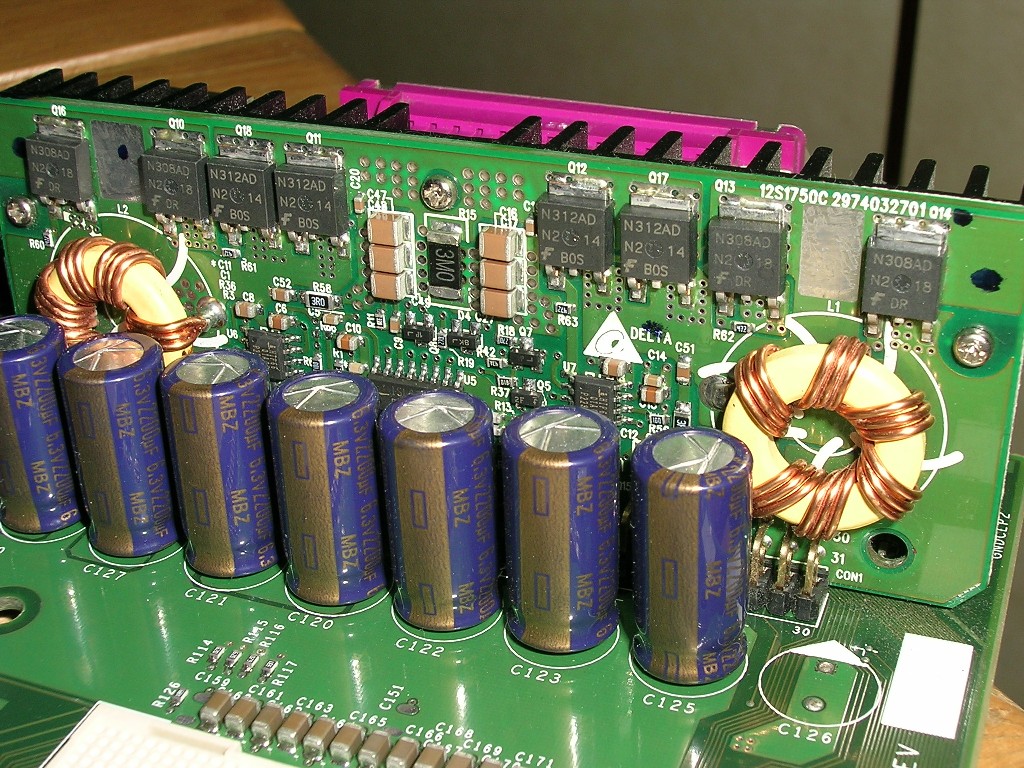

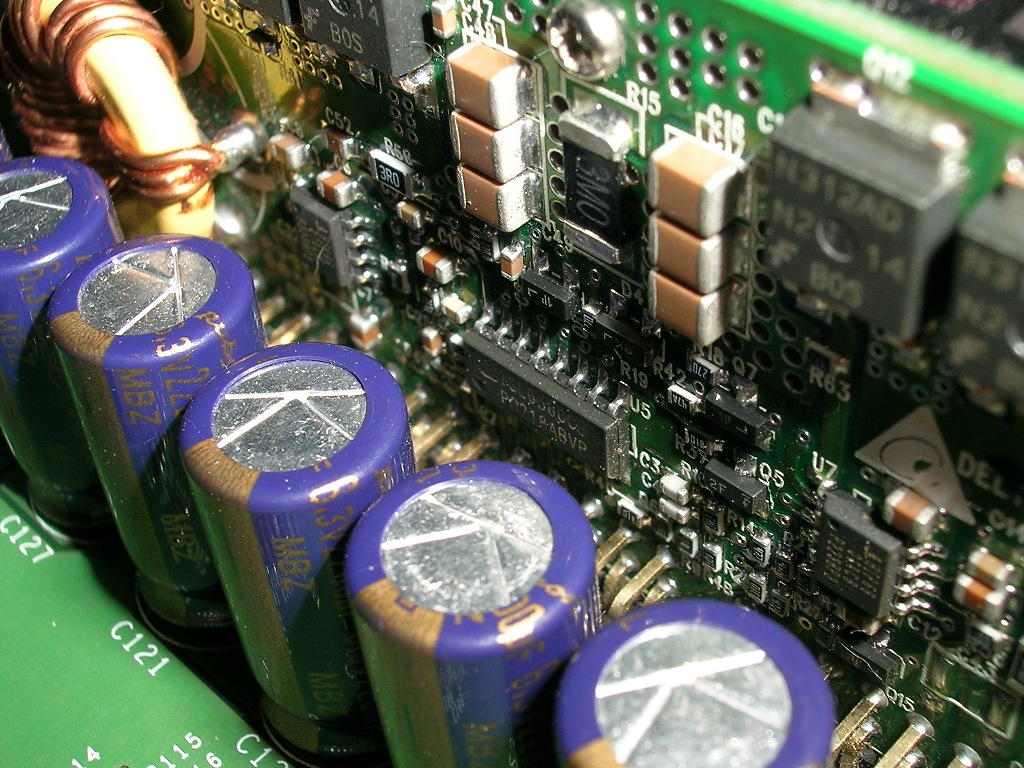

    I spotted a 2-phase V.R.M. made by Delta on Dell P4 mobo ... V.R.M. input uses Chemicon KZG 16v/1800u whereas the output uses Rubycon MBZ 6.3v/2200u. A black anodised heatsink is attached to the back of VRM PCB (MOSFET switches).
    Attached Files
    Tags: None
    • weirdlookinguy
      Badcaps Legend
      • Sep 2007
      • 1638
      #2
      Re: Delta V.R.M. on Dell P4 Mobo

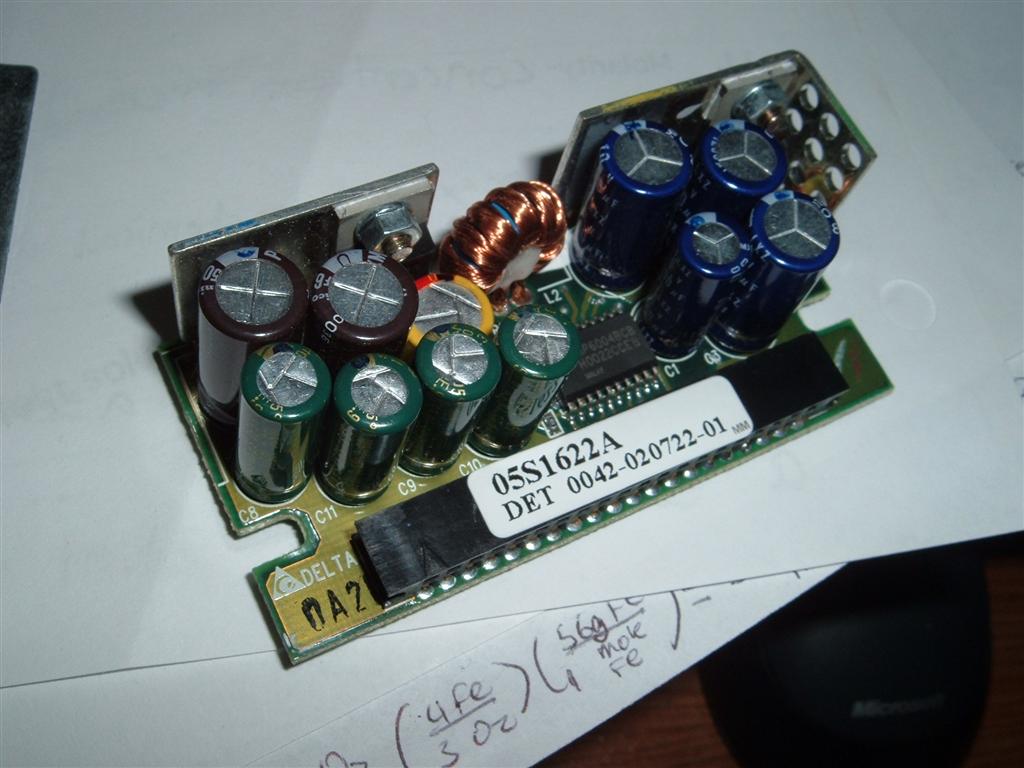

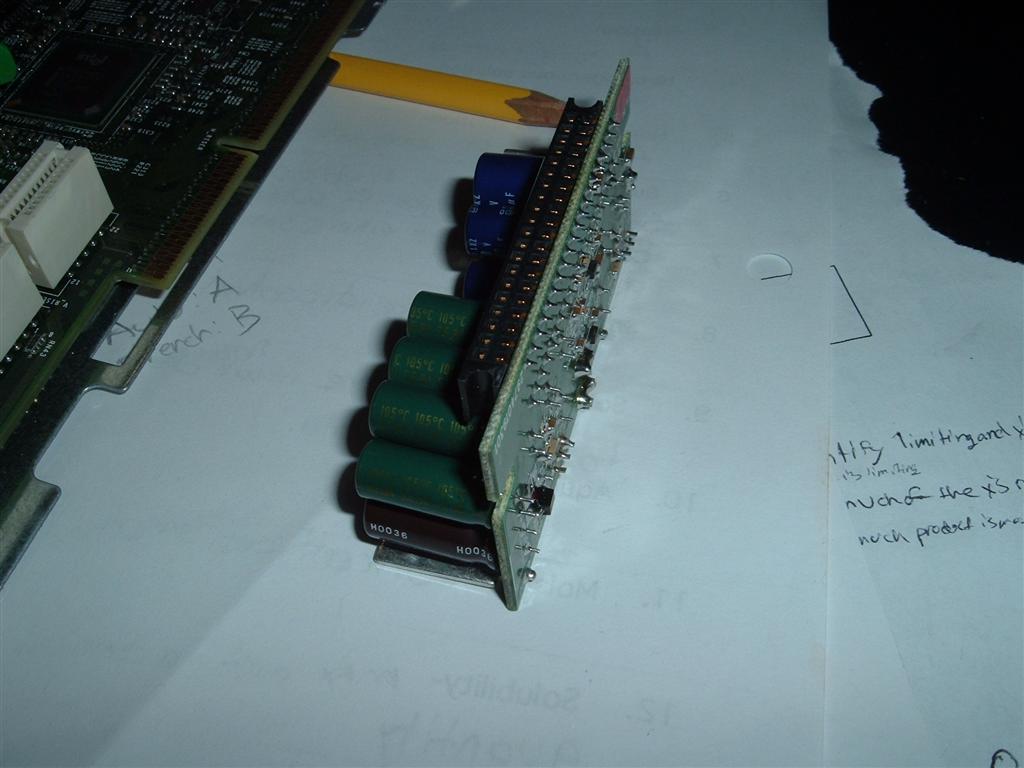

      Here's a Delta VRM from a Pentium 3 board, came out of a GX150 I believe. Manufactured December of 2000 in Mexico.

      I don't get why people hate Dell so much, they may use shit PSU's but their motherboards are usually of decent quality with good caps.
      Attached Files
