SMD diode identification

09-23-2022, 08:32 AM

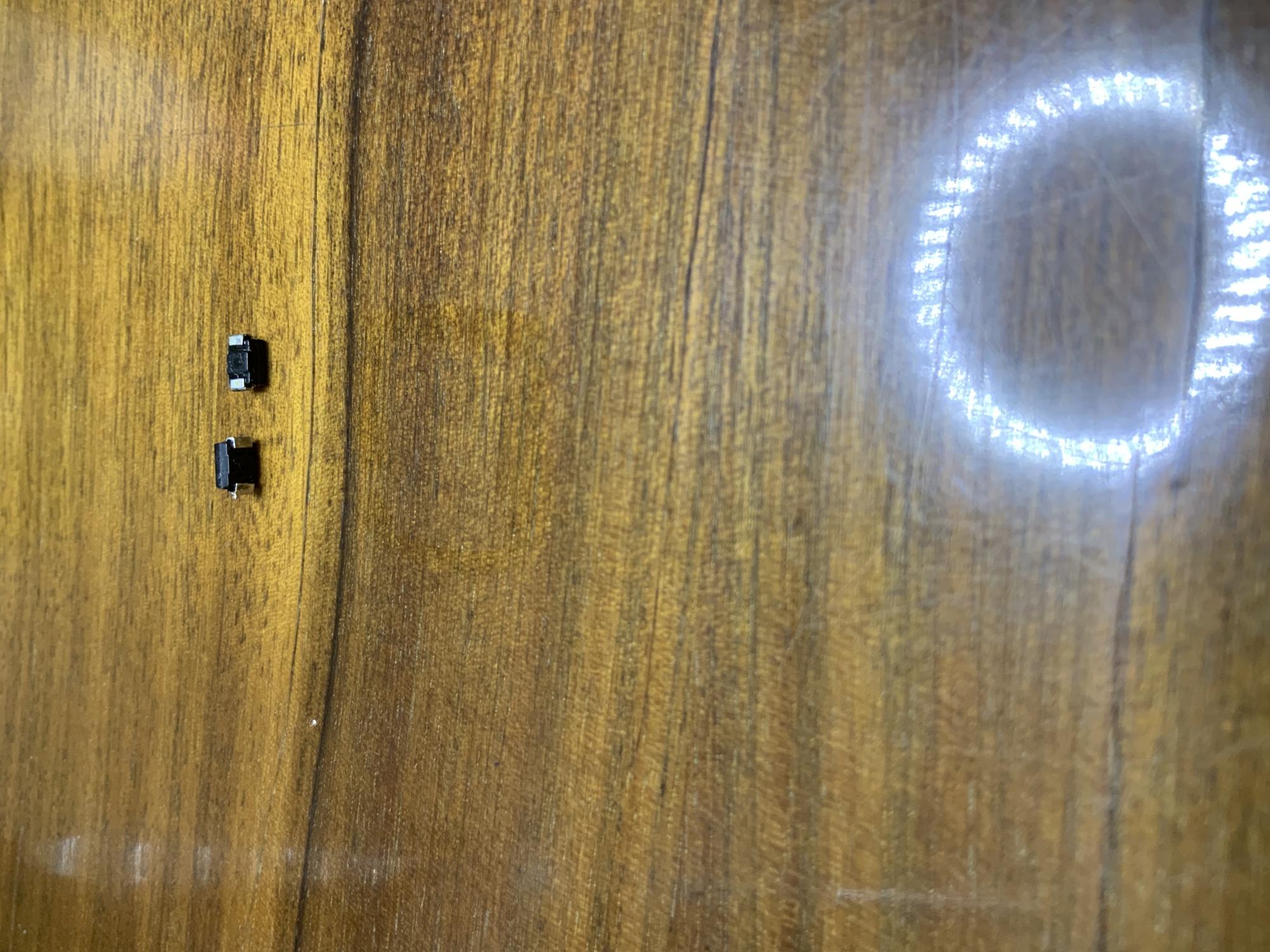

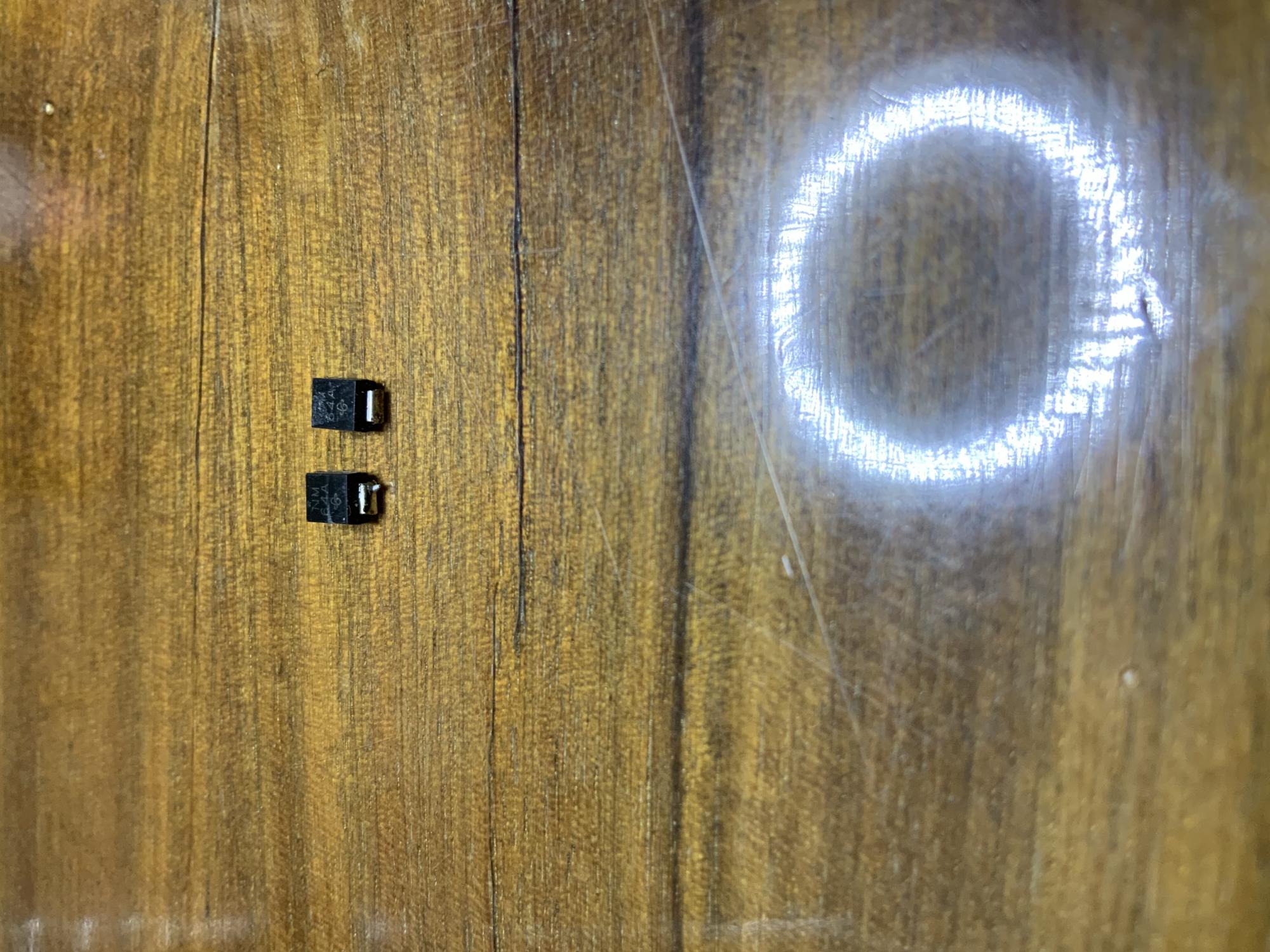

I have to replace the surface mount diodes in the attached picture, because they are open, so I need help in identifying them. The marking on the printed circuit board starts with the letters CR, the markings on the diodes are NM 64 A. The dimensions of the diodes are 3.5 x 5.5 millimeters. Which one should I order as replacements?
Attached Files

Last edited by dftntm; 09-23-2022, 08:56 AM.
Tags: None
lotas

Badcaps Legend

Join Date: Jan 2016

Posts: 4458

Country: Russia
#2

09-23-2022, 09:17 AM

Re: SMD diode identification

This is your TVS - Transient Voltage Suppressors (NM) - SMBJ64A
Comment
stj

Great Sage 齊天大聖

Join Date: Dec 2009

Posts: 30919

Country: Albion
#3

09-23-2022, 09:23 AM

Re: SMD diode identification

64v tvs diode
Comment
dftntm

New Member

Join Date: Oct 2017

Posts: 7

Country: Italy
#4

09-23-2022, 10:16 AM

Re: SMD diode identification

Thank you!
