identify bad smd cap

07-25-2013, 05:16 AM

hey,

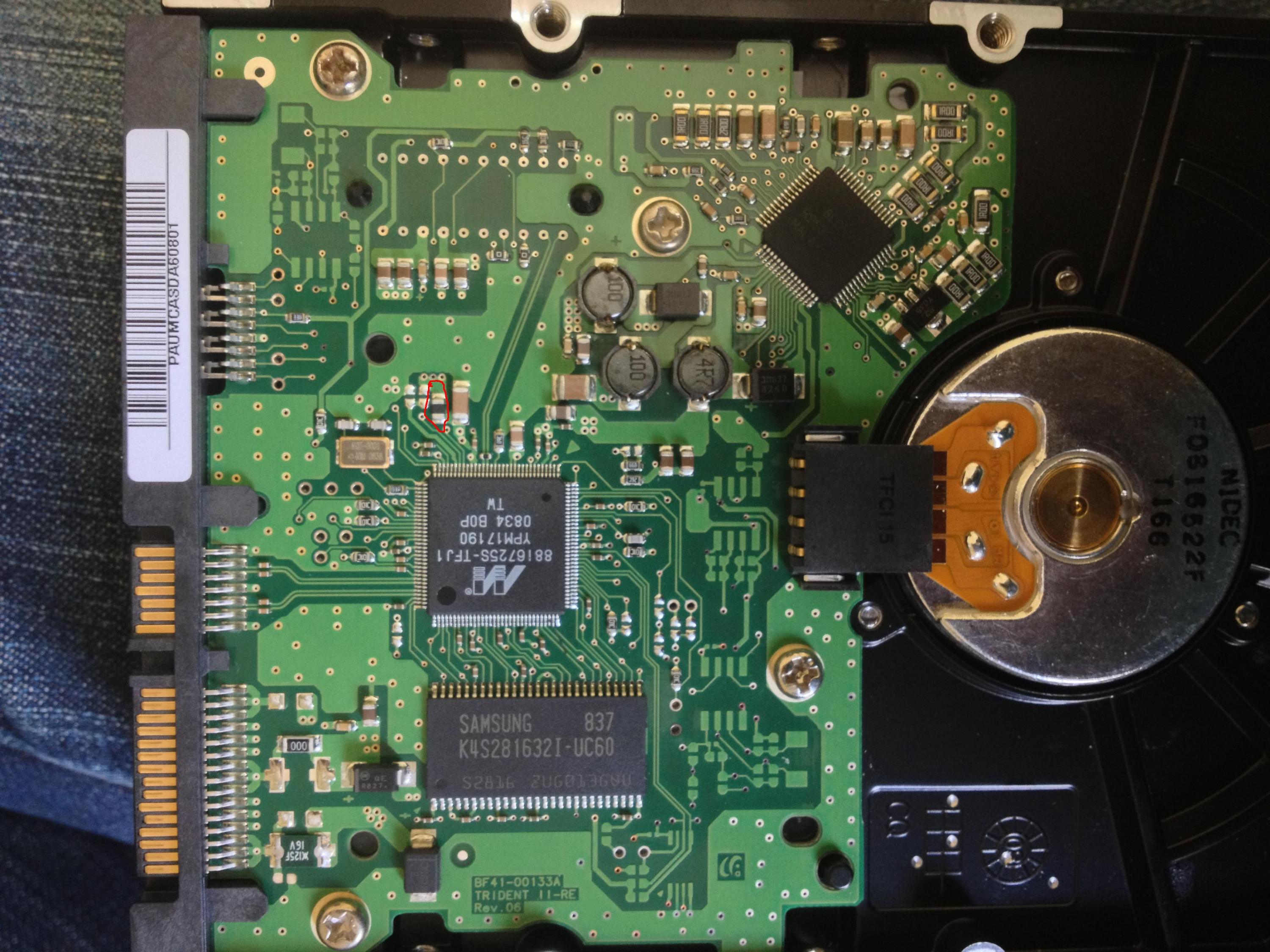

i got this hd from a freind at work,
it's not spinning,

i think i found a bad cap,
it's shorted...

could a smd cap get shorted?
and how can i know it's rating,?

maybe it's a coil....
Attached Files

Last edited by s_henya; 07-25-2013, 05:19 AM.
Tags: None
budm

Badcaps Legend

Join Date: Feb 2010

Posts: 40746

Country: USA
#2

07-25-2013, 08:50 AM

Re: identify bad smd cap

SMD MLC (Muti Layer Ceramic) type caps do fail shorted, that looks more like SMD inductor.

Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956

Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999

Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl

Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/

TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809
Comment
Calchaqui

Senior Member

Join Date: Oct 2005

Posts: 112
#3

07-25-2013, 04:26 PM

Re: identify bad smd cap

Just pull it out. Will be hard goting spining again
