SEM2107 Inverter IC pdf wanted

Collapse
X
Collapse
+ More Options
Posts

  • Time
  • Show
Clear All
new posts
  • dick_barton
    Badcaps Legend
    • Aug 2015
    • 6642
    • Wales

    #1

    SEM2107 Inverter IC pdf wanted

    Has anyone the PDF for this inverter driver IC?
    Thanks
    Willing to help but I'm no expert.
  • dick_barton
    Badcaps Legend
    • Aug 2015
    • 6642
    • Wales

    #2
    Re: SEM2107 Inverter IC pdf wanted

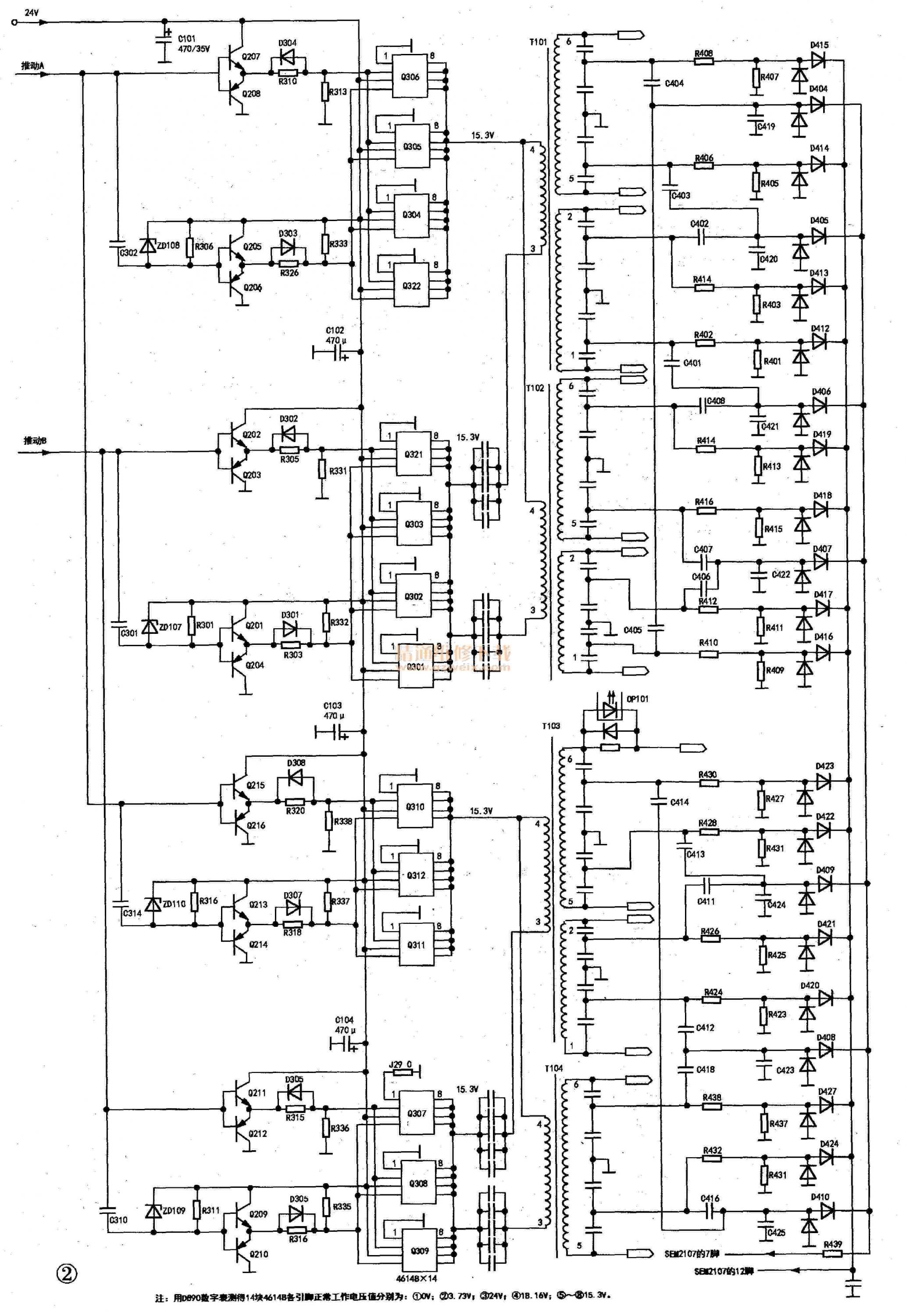

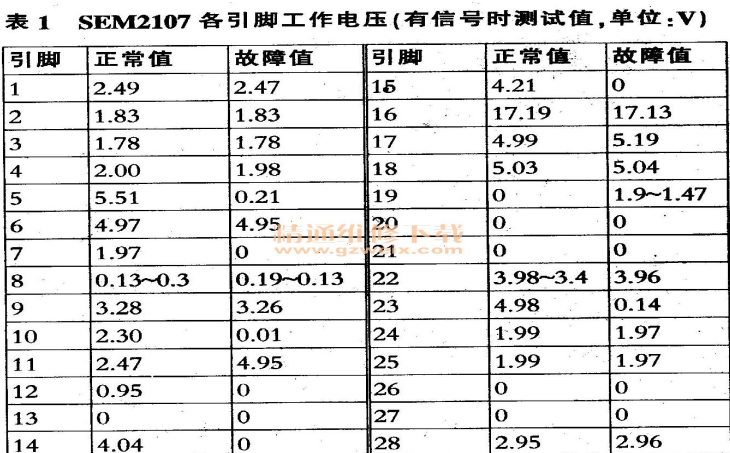

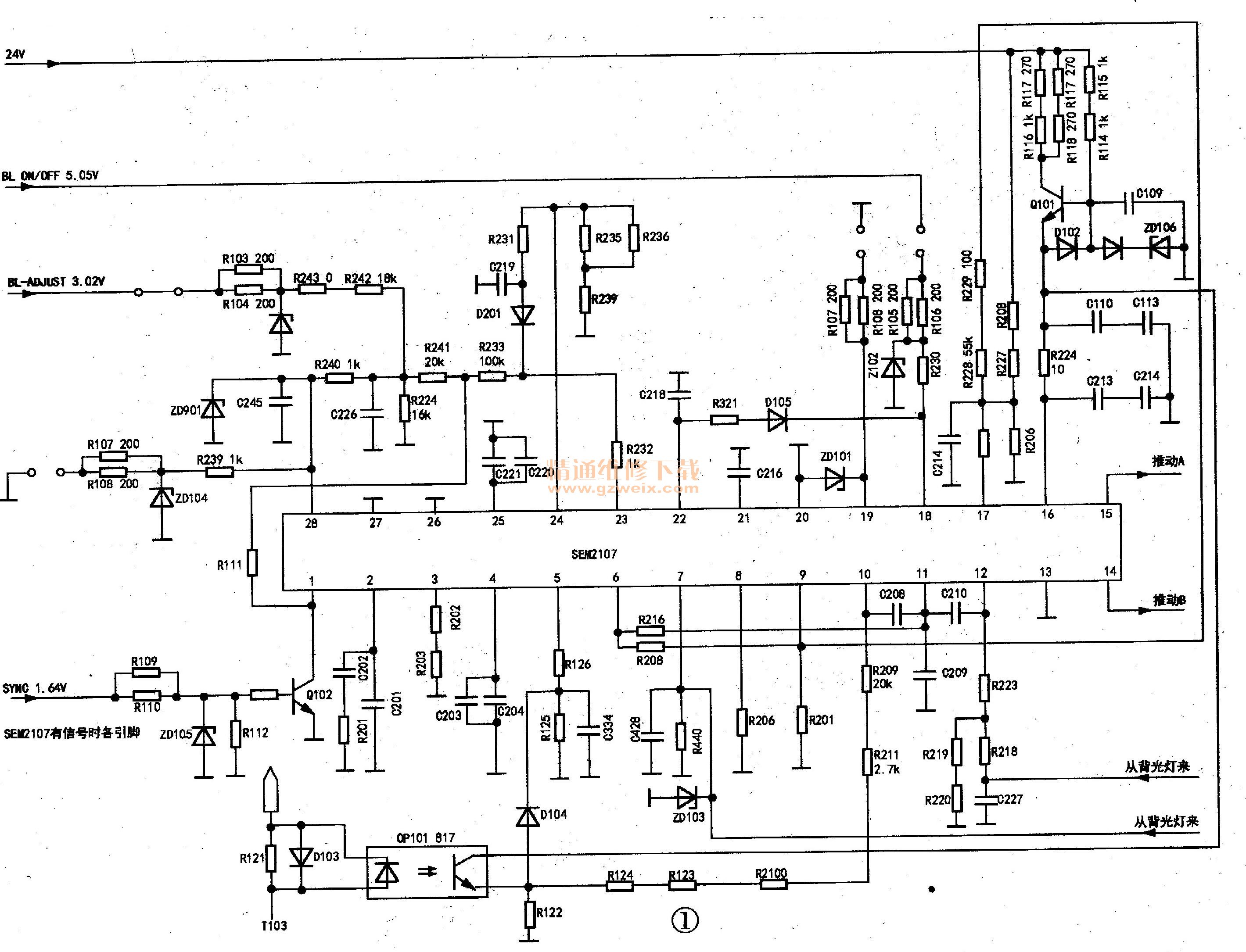

    Found this information so far after quite a bit of searching but it would be good to find an available pdf for the IC
    The circuit looks very similar to that of the SSI_400_14A0 inverter board
    Attached Files
    Willing to help but I'm no expert.

    Comment

    • R_J
      Badcaps Legend
      • Jun 2012
      • 9516
      • Canada

      #3
      Re: SEM2107 Inverter IC pdf wanted

      I think this is close?
      Attached Files
      Last edited by R_J; 06-03-2018, 10:32 AM.

      Comment

      • dick_barton
        Badcaps Legend
        • Aug 2015
        • 6642
        • Wales

        #4
        Re: SEM2107 Inverter IC pdf wanted

        Hi RJ,
        That's the problem I really don't know. Searching the internet people have offered other equivalents but they have a lower pinout count so I'm still looking.
        Thanks for the pdf for the SEM2007. Interestingly it does has the same pinout count.
        Cheers

        Edit
        I think the SEM2007 may well be a lower power version of the SEM2107. Looking good thanks.

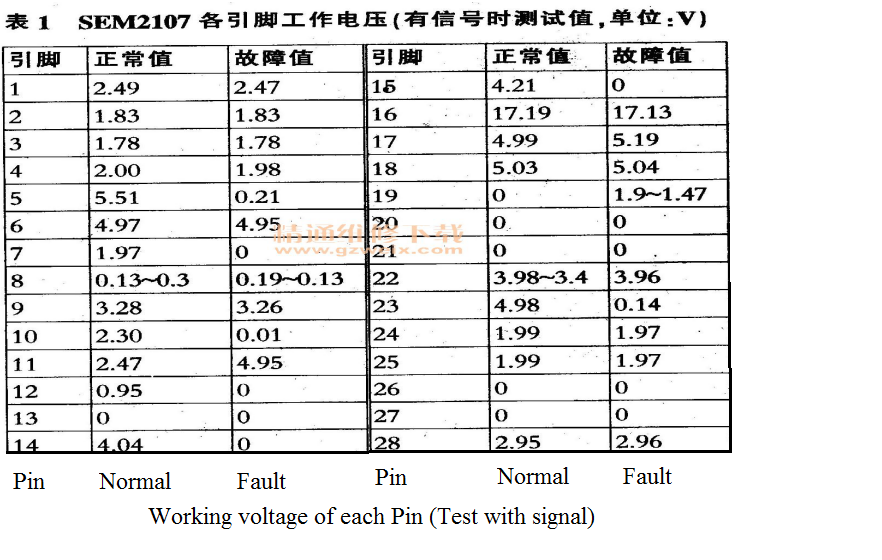

        Update of Working Voltage Chart
        Attached Files
        Last edited by dick_barton; 06-03-2018, 12:06 PM.
        Willing to help but I'm no expert.

        Comment

        • akhylues
          New Member
          • Aug 2023
          • 1
          • IR

          #5
          Re: SEM2107 Inverter IC pdf wanted

          i think this is similar.

          SEM2106
          Attached Files

          Comment
