Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

[alfredomfr1]

After turning on I can see image for a few seconds after that no image and a blinking code 2 slow 5 fast.

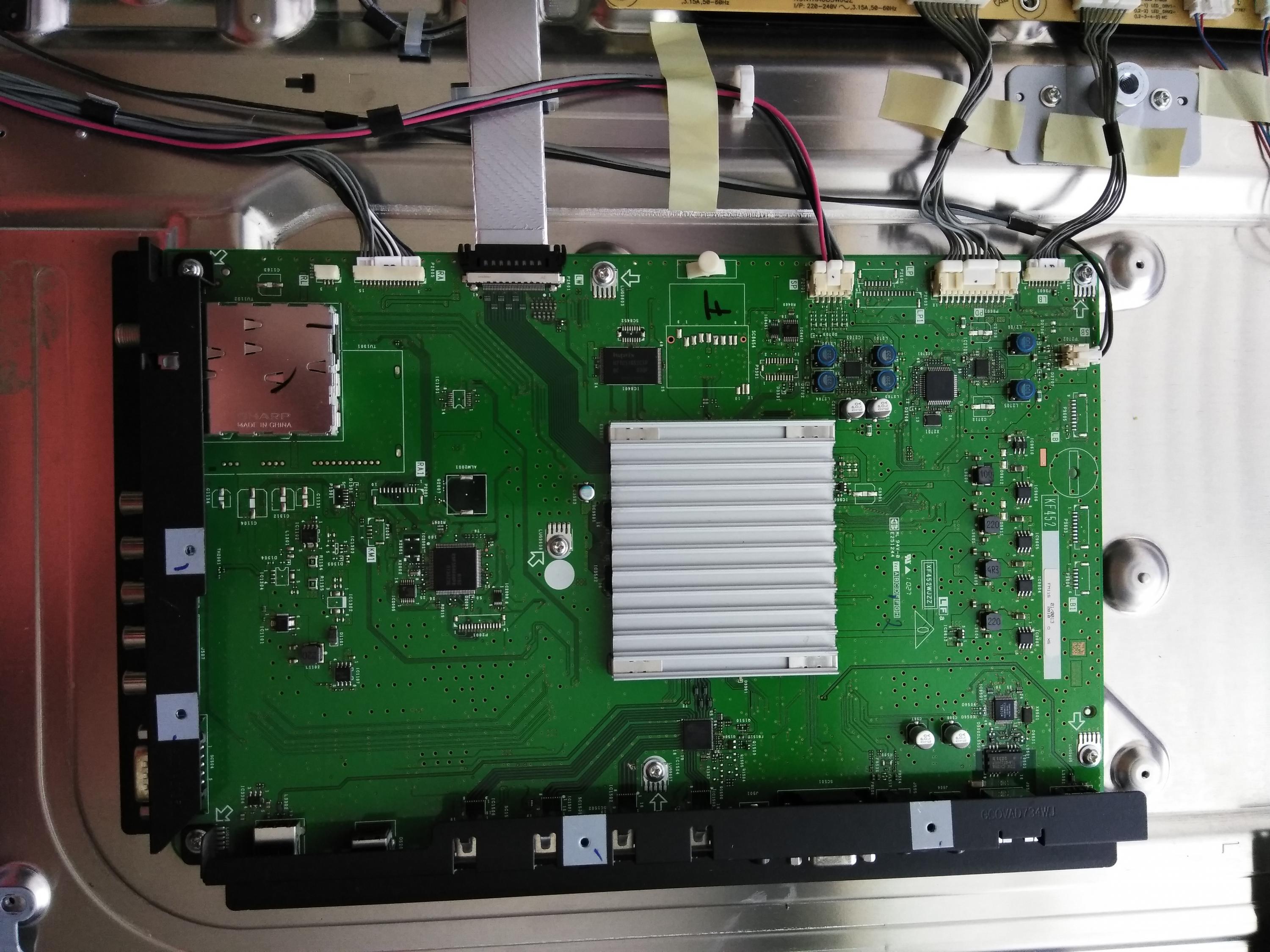

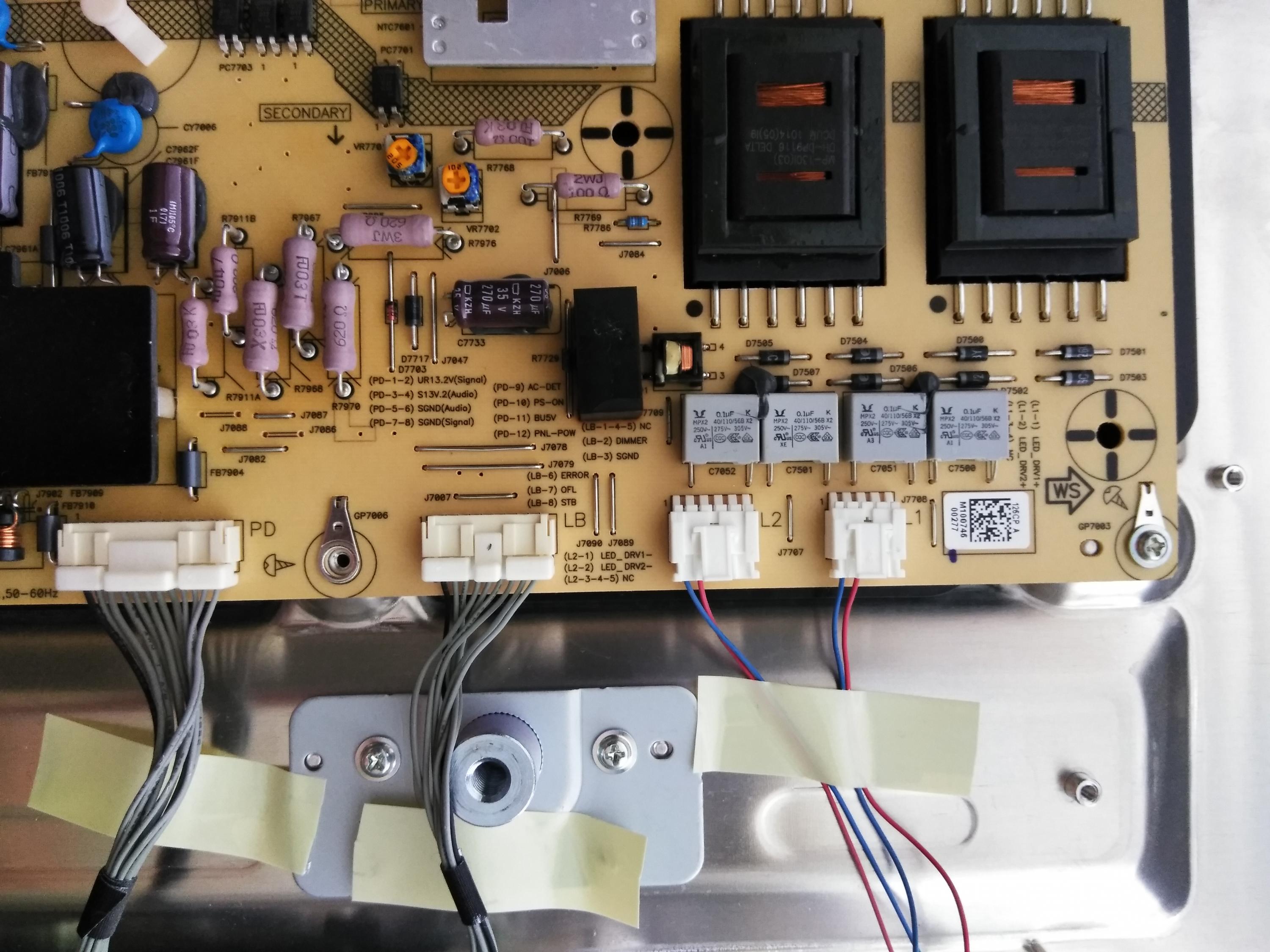

Only 7.3v from PL connector to T-Con (should be 12v), even with the PL cable disconnected from the T-Con.
I suspect a problem with the PS, I need some help, Thanks in advance.

[budm]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

You should post this in the TV thread.

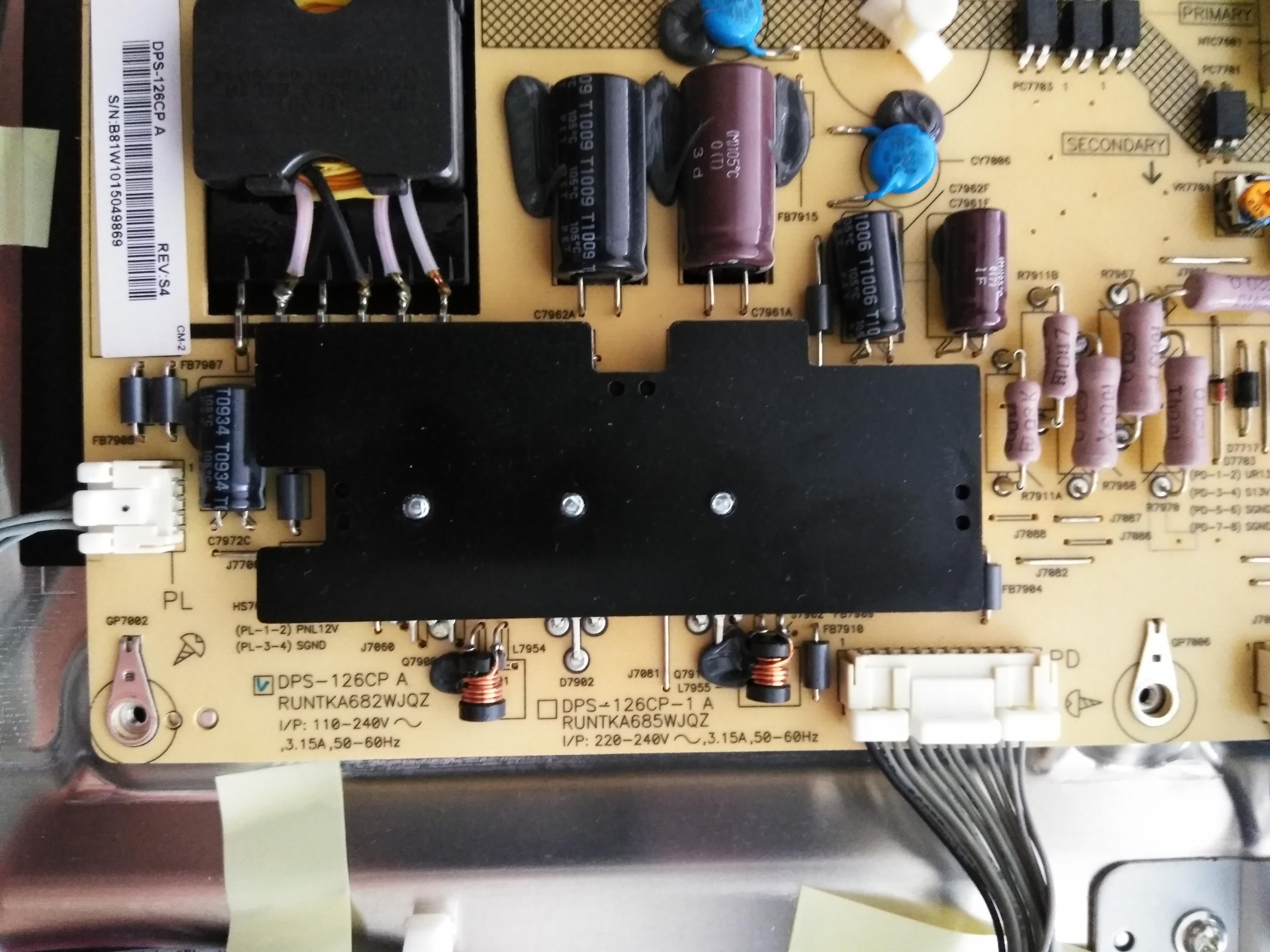

More likely to be bad 4-PIN switched 12V LDO regulator IC Q790? (the black glue is covering the last digit, P/N KIA??????) under the black heatsink right next the 'DPS-126CP A'.

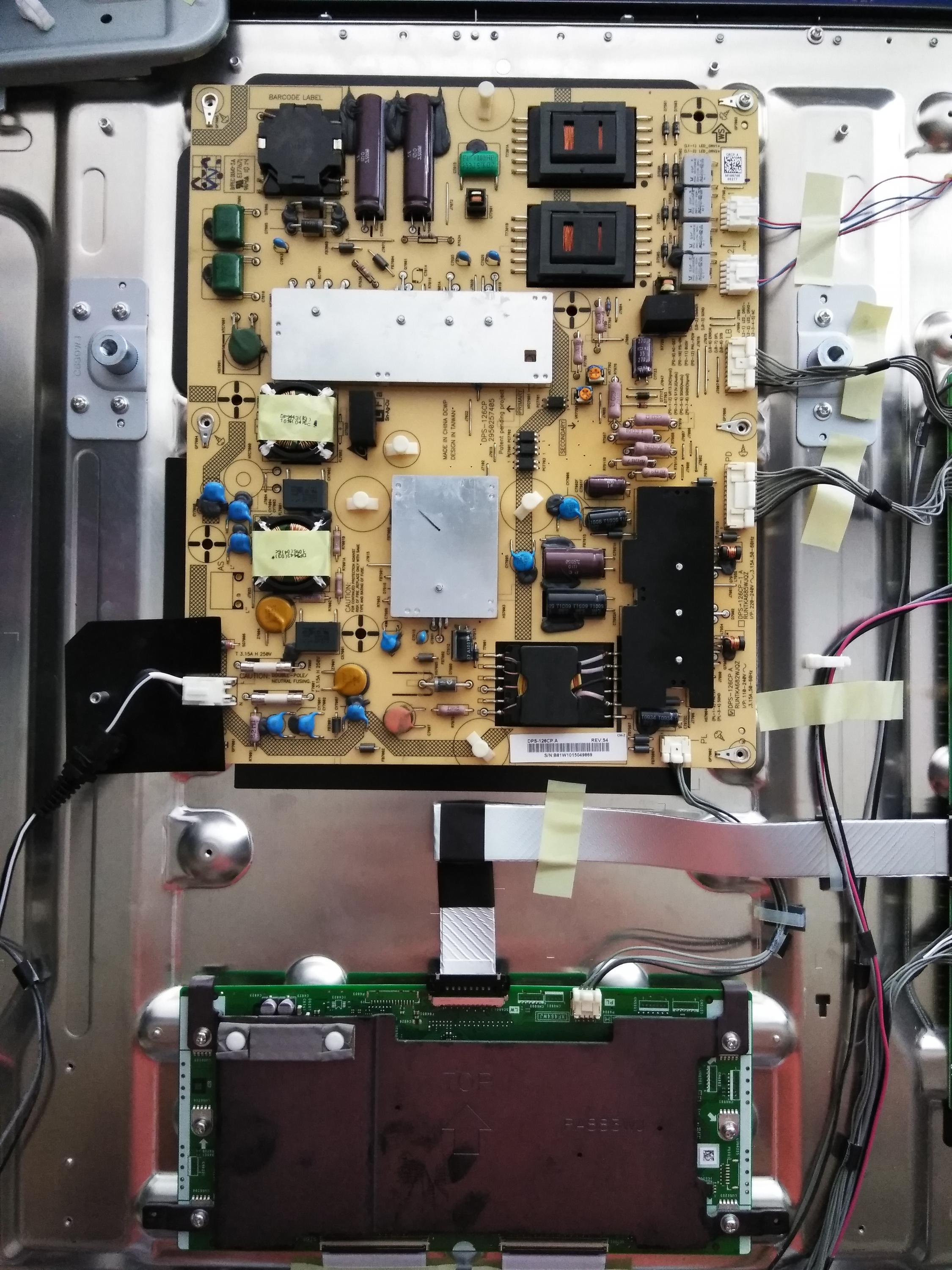

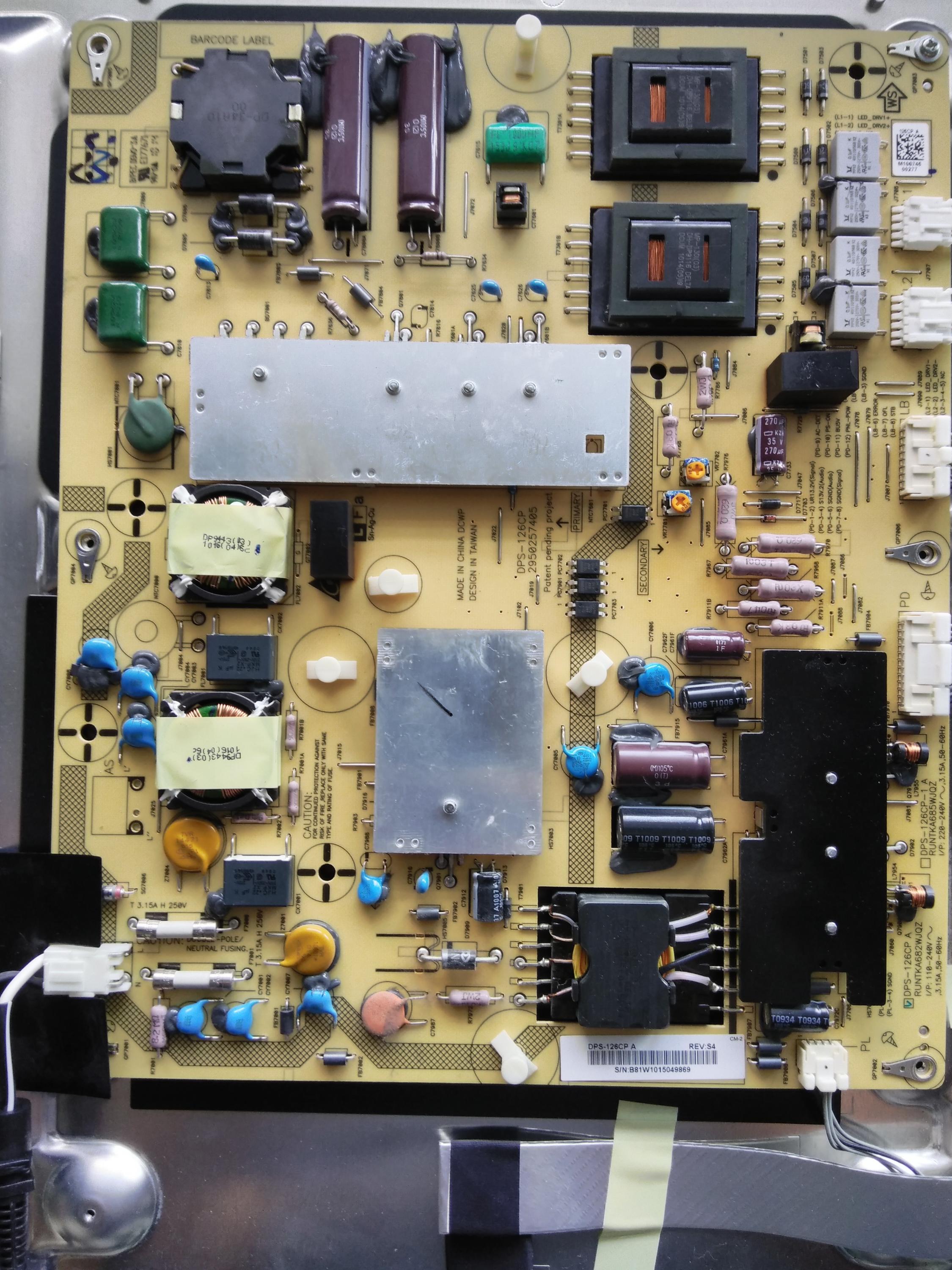

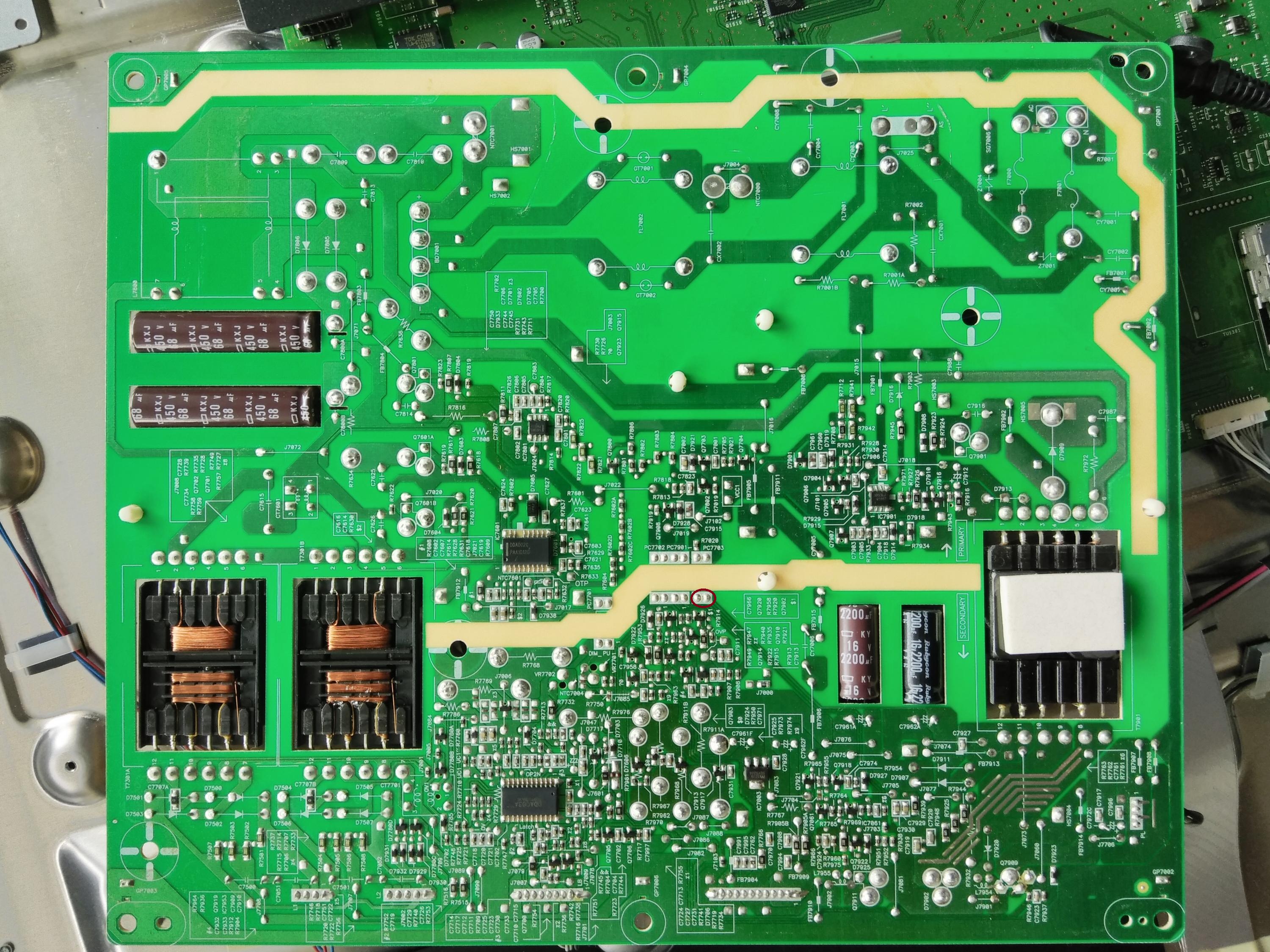

Can we get the good clear straight shot hi-res of the whole top and bottom side of this power supply 'DELTA DPS-126CP A'?

[alfredomfr1]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

How can I move this thread to TV Thread?

[budm]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

It looks like is moved by admin already.
So check out that IC790? as in post #2.

[alfredomfr1]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

IC790
From right to left
When the screen is working 13v, 0v, 7.23v, 2.69v.
After less than a minute fluctuating 14.1 to 14.30v, 0, 0, 0

[budm]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

It is bad, it is 12V LDO regulator and it is commonly failed IC.
You need to remove it to get the P/N as printed on the body, it should be KIA?????
https://www.badcaps.net/forum/showth...602#post592602

[alfredomfr1]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

Ok, I will do the job now

[alfredomfr1]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

Kia378

[budm]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

Are you sure that is all printed on the body?
I.E. should be kia378r12pi

https://www.ebay.com/itm/5PCS-KIA378...-/272872526580

[alfredomfr1]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

Yes is KIA378R12PI and thanks for the ebay link.
Estimated delivery April 13, see you soon and thanks again for your help

[alfredomfr1]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

KIA378R12PI replaced, TV working again.
Thanks budm

[maxvalutech]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

This is a great example of knowledge working together with good communication and pics to bring about a successful outcome. Well done.

[budm]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

Thanks for follow-up, and it only takes 11 posts.

[rachidabl]

Re: Sharp LC-40LE810UN Blinking Code 2 slow-5 fast

Hi friends
same problem encountered with lc 40le824 similar to 810un
symptoms tv pluged on 12v present for awhile then drops 0v/ 5v remains /n0 inverter votage only the v led blinks twice in cycle.
Action a solution from a friend consist to short cicuit pin 3 & 4 off phto coupler pc7703 to bypass blinking errors .
When done sharp and bottons light tv ok
