32lg3000 sound ok but no picture

[budm]

Re: 32lg3000 sound ok but no picture

L416 is an Inductor isn't it?

[nbdy]

Re: 32lg3000 sound ok but no picture

Yes, but on the scheme it stands MBW3216-501TF,when i type it in google it says
FILTER BEAD MBW3216-501TF 500 OHM

and it goes to PANEL_POWER,and it is not the only induktor with this mark,it got several more,but nowhere induction standing

[budm]

Re: 32lg3000 sound ok but no picture

Can I see the picture of this inductor to see how it is being used on the board?

[nbdy]

Re: 32lg3000 sound ok but no picture

You want the service manual,or should i take a picture ???

[budm]

Re: 32lg3000 sound ok but no picture

I found this service manual: LG 32LG300C, not sure if it matches your TV or not
Picture of the part and where it is used will help alot.

[nbdy]

Re: 32lg3000 sound ok but no picture

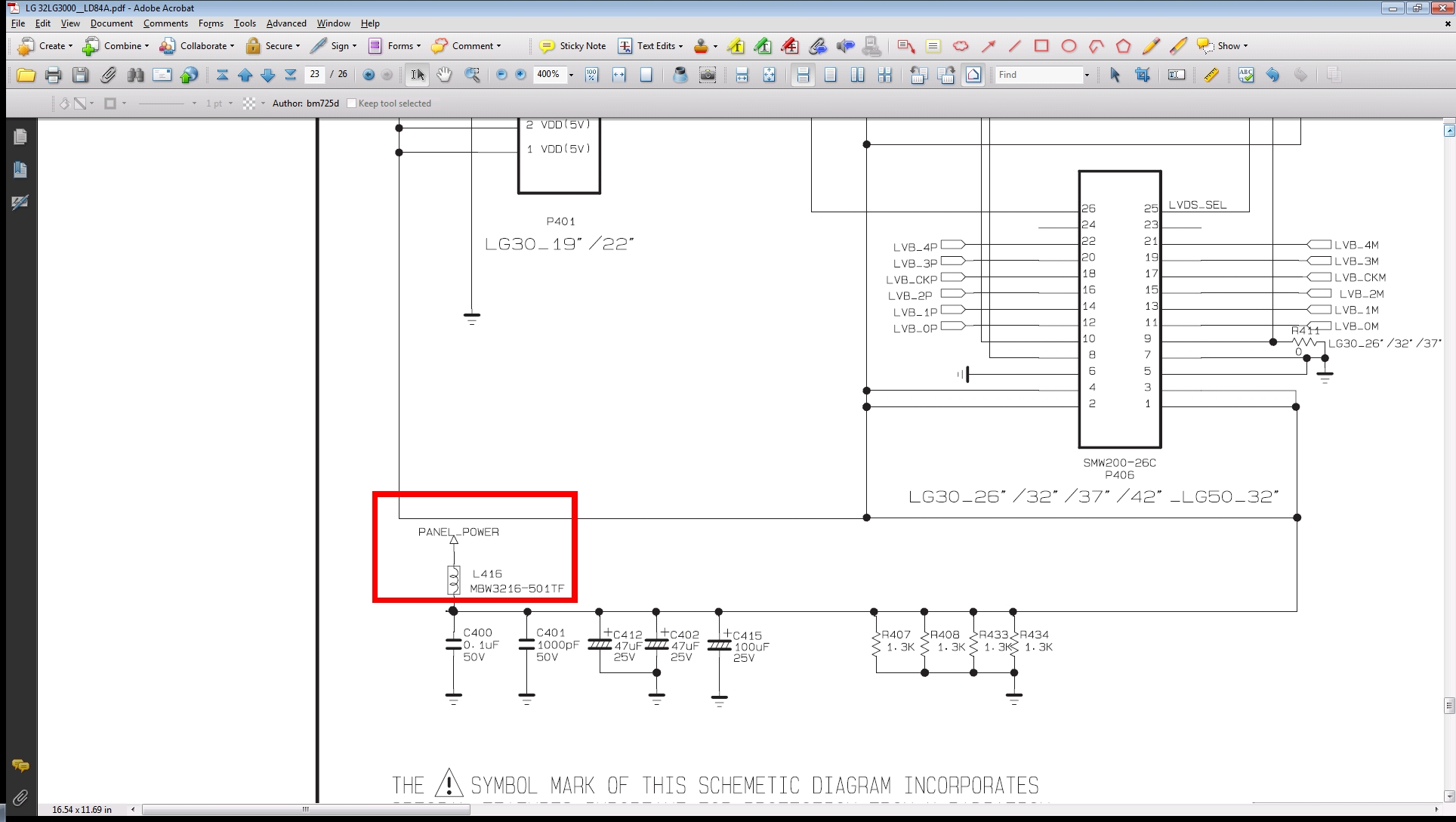

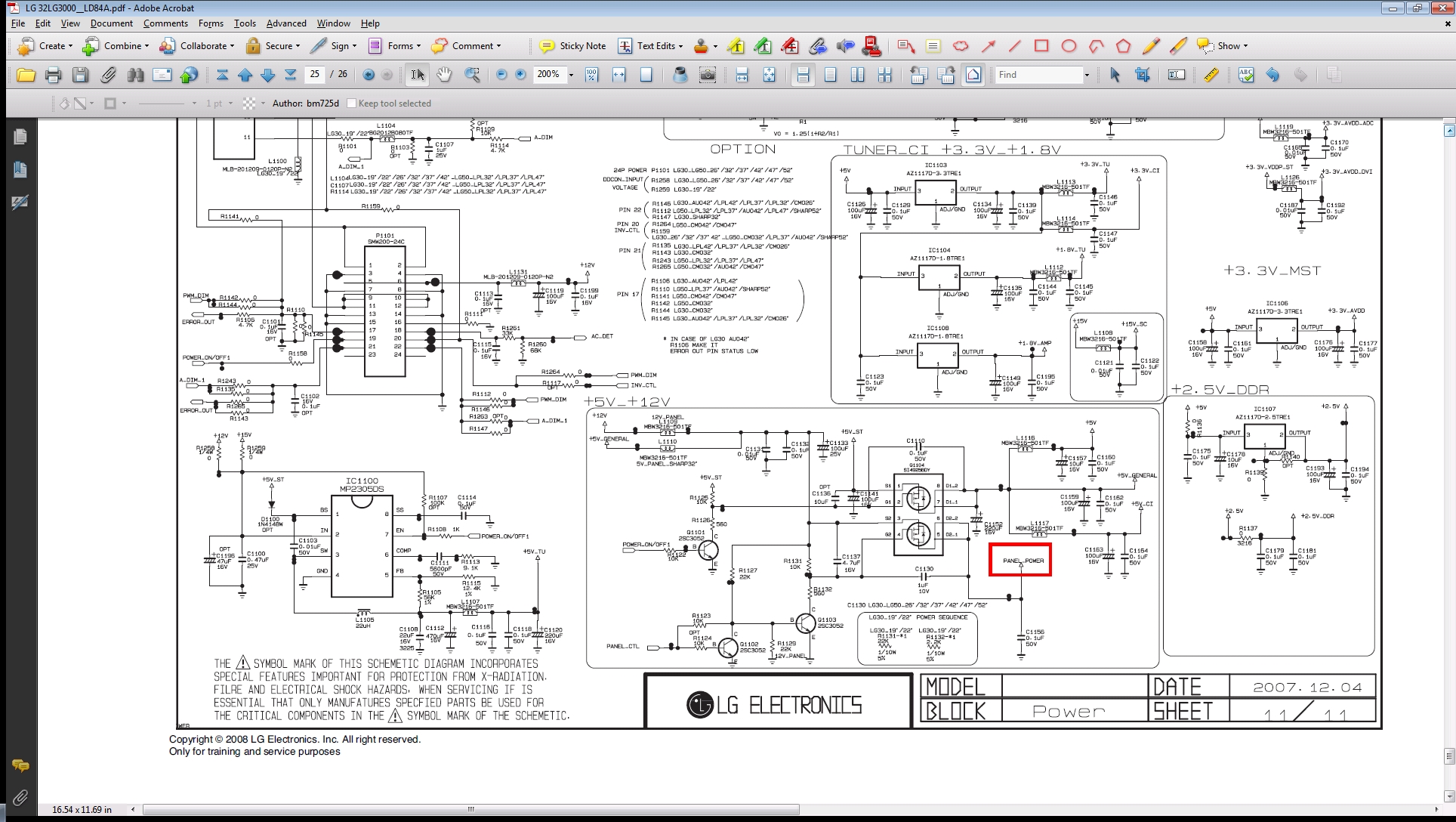

It's on page 23 under modules down left

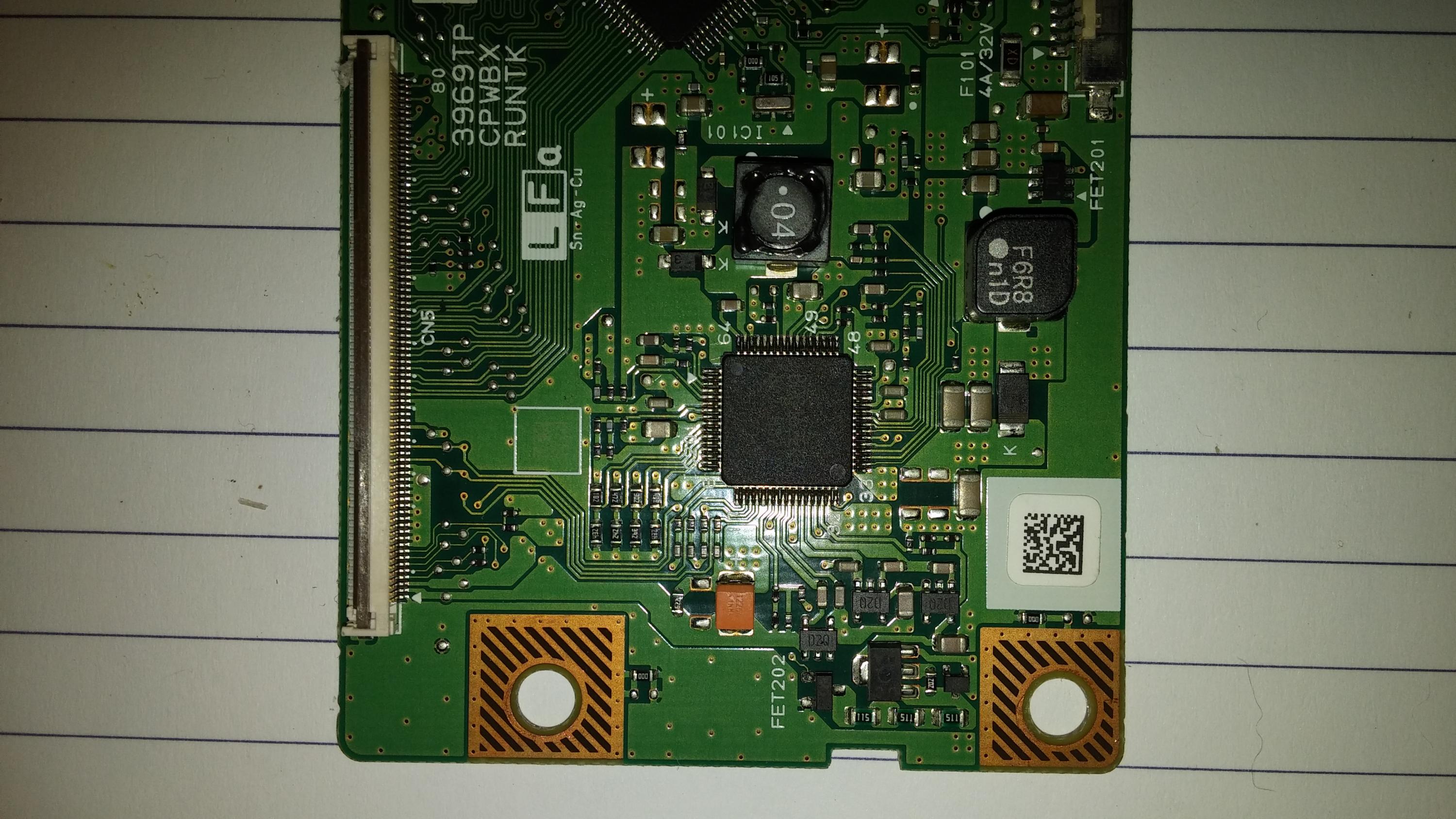

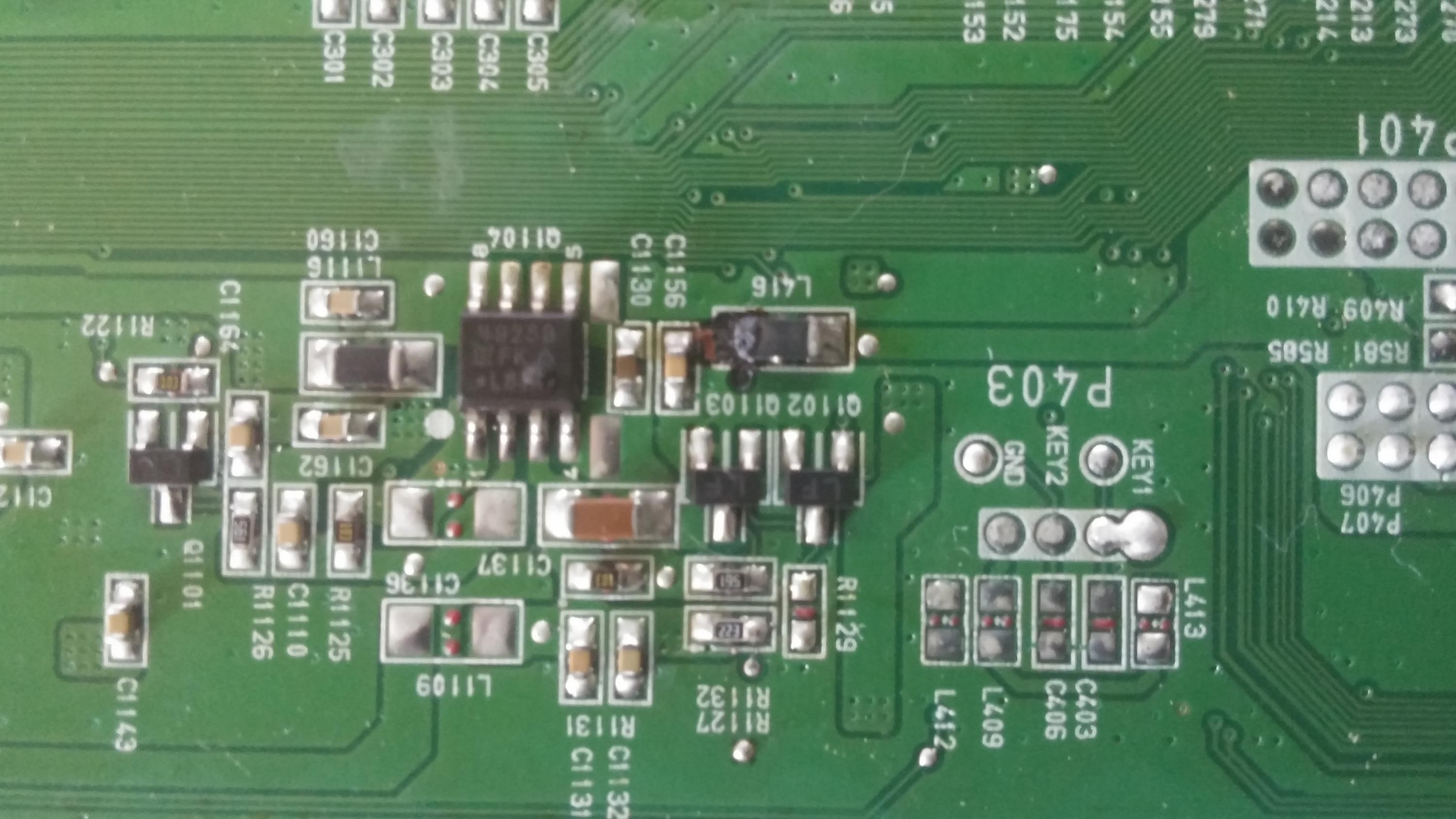

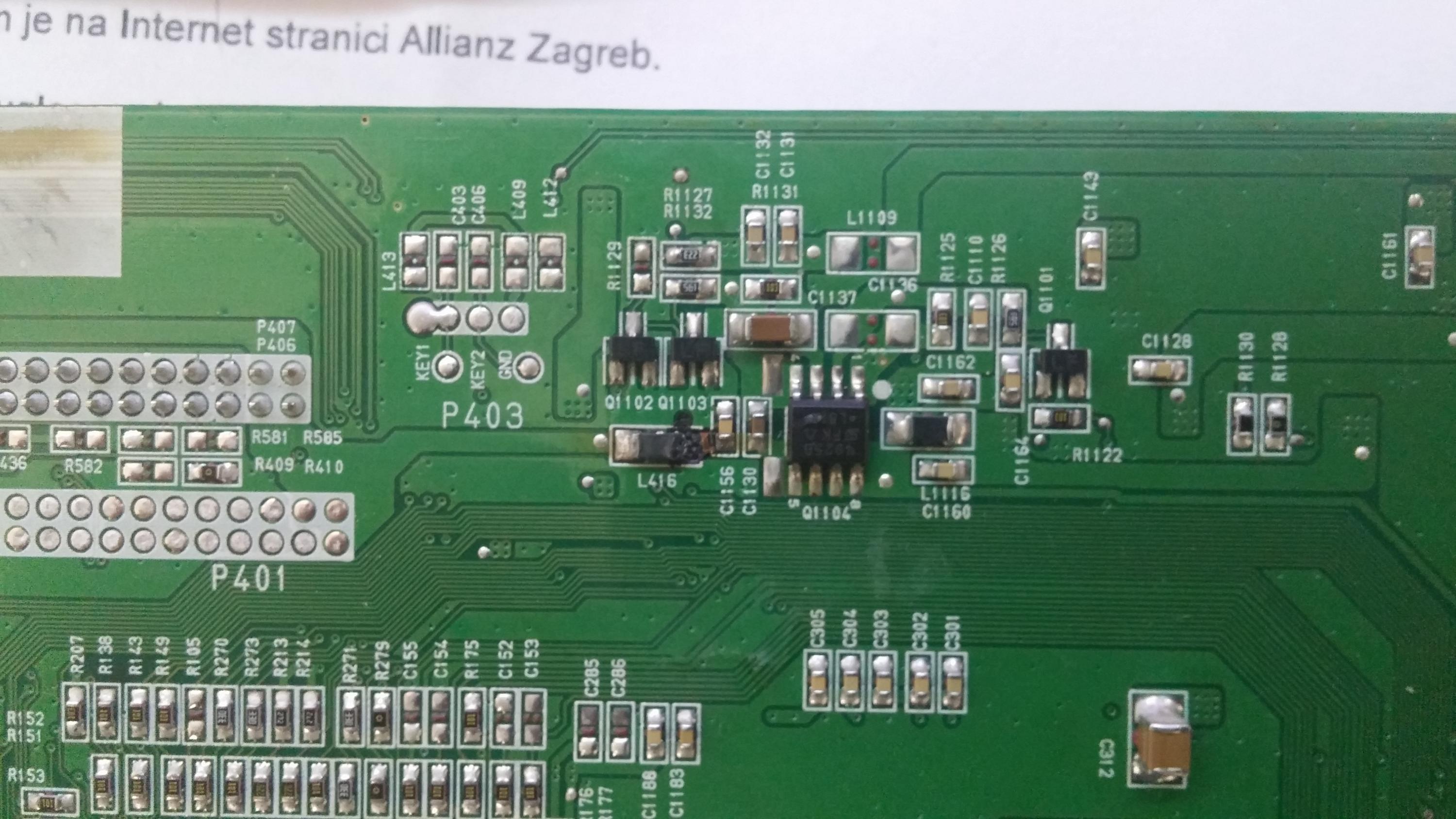

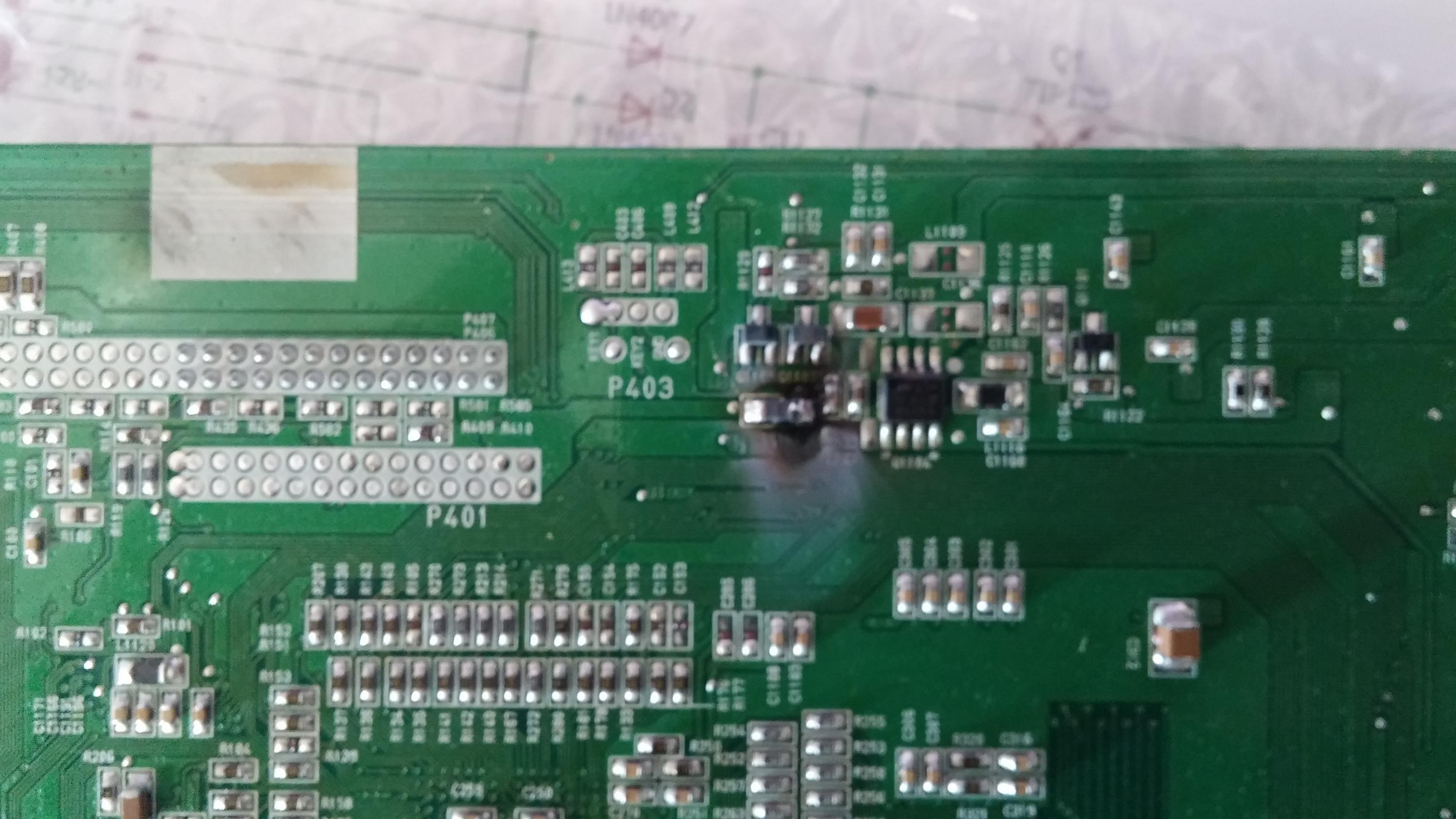

and the board picture

https://www.dropbox.com/s/ockkwymuxf...81834.jpg?dl=0

[nbdy]

Re: 32lg3000 sound ok but no picture

On your manual under module there is no L416

but you have the same MBW3216-501TF L406 on IR&LED part of manual

[budm]

Re: 32lg3000 sound ok but no picture

OK, I just download your service manual and your pictures. It is an FERRITE iNDUCTOR. I will look at the service manual and see what is going on.

[budm]

Re: 32lg3000 sound ok but no picture

OK, for that Ferrite Bead Inductor to burn up like that it has to see short circuit on the T-CON board or shorted cap C400, 401, 402, 412, 415.
So you should find out why the inductor (it is connected in series with the Load) burnt up first, and hopefully that Q1104 is not damaged.

[nbdy]

Re: 32lg3000 sound ok but no picture

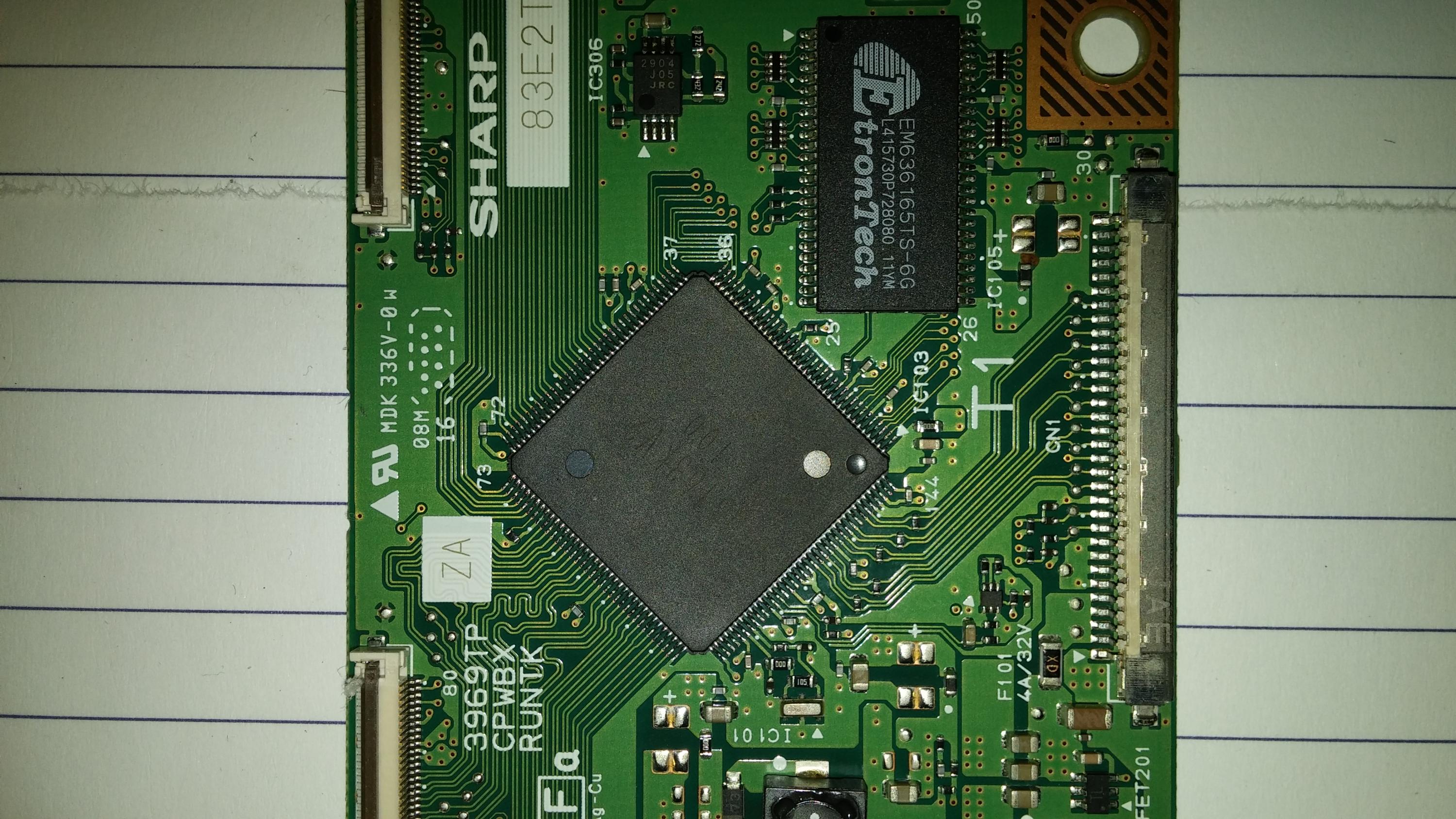

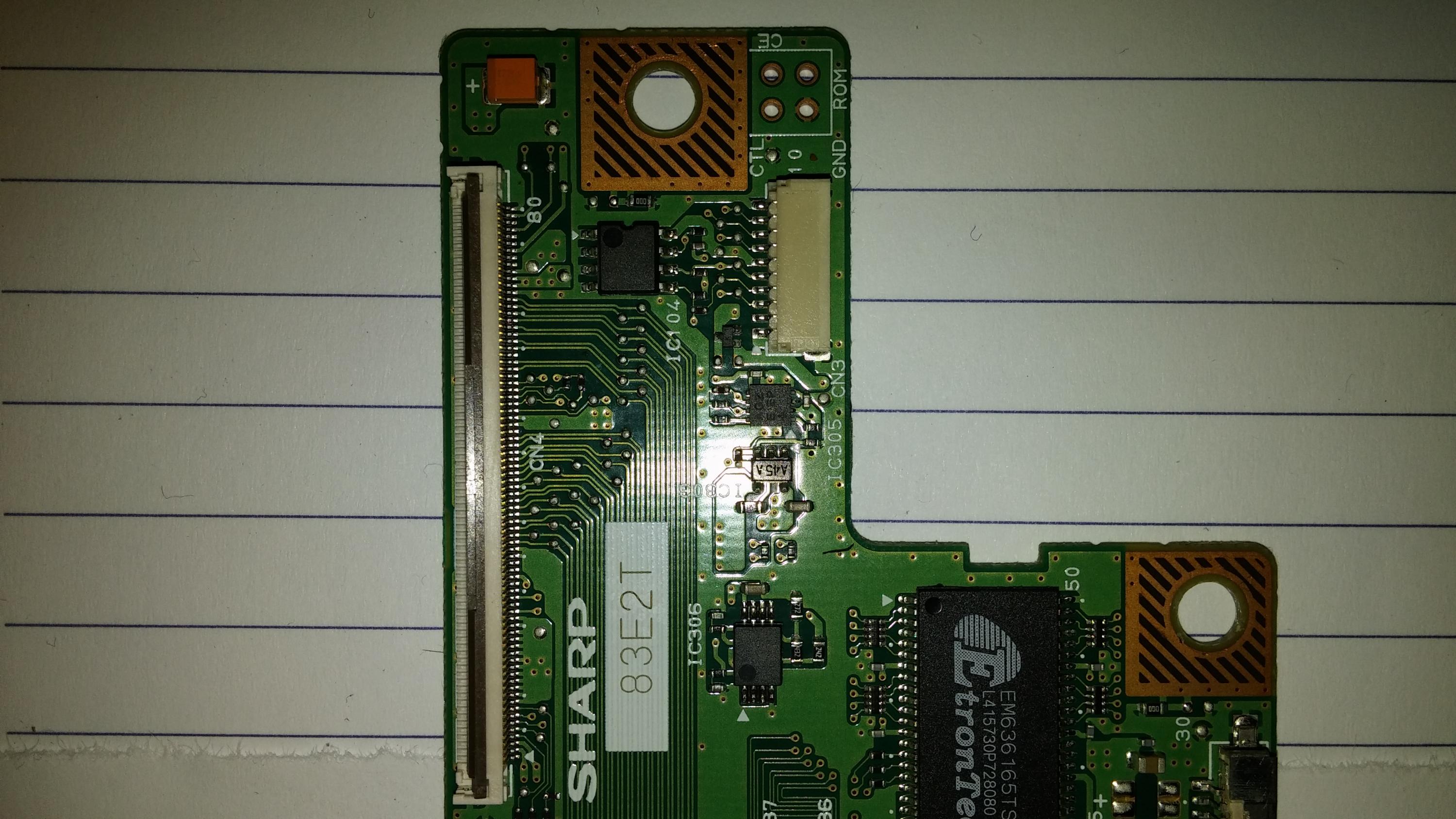

Q1104 is blown up, but the t-con board is new (new buy)

OK,but can you say what the value of this ferrite bead induktor is,hov to order a new one

Don't have the 402,412,415 caps

[budm]

Re: 32lg3000 sound ok but no picture

So the rest of the installed caps are OK? I expected the fuse on the T-CON board to blow first before the inductor to burn up and the MOSFET to be damaged that bad if the shorts is on the T-CON.
I am still trying to find the spec of that inductor, the inductance rating, the current rating, etc.
SNEC made the part but the company was bought out by SUNLOARD in 2008.
http://www.sunlordinc.com/category.aspx?NodeID=153

[budm]

Re: 32lg3000 sound ok but no picture

BTW, since L1109, 1110, 1116, 1117 sre the same P/N MBW3216-501TF, you can take the reading to find the inductance and the DCR at least.

[nbdy]

Re: 32lg3000 sound ok but no picture

Can i test it onboard?? or lift off

[budm]

Re: 32lg3000 sound ok but no picture

Yes, you can at least check the resistance (DCR) on the list I gave to see what you get. I doubt that they are 500 Ohms DCR, more like the Z of 500 Ohms.

[budm]

Re: 32lg3000 sound ok but no picture

May be something similar to this one:
ILHB-1206, Z = 500 Ohms and DCR should be evry low, It will also be high current, if you look up the LCD panel model number spec sheet, it will tell you the current requirement (typ, 2~5A) for the T-CON board.
https://cdn.badcaps-static.com/pdfs/...3b7a91bea0.pdf

[nbdy]

Re: 32lg3000 sound ok but no picture

Found one with the same markings,but 0 ohms (onboard measure)

but it is in 1206 dimensions

OFFTOPIC :

Could you help me testing : 80gl19t-23-v

thx

[budm]

Re: 32lg3000 sound ok but no picture

Found one with the same markings,but 0 ohms (onboard measure)

but it is in 1206 dimensions

OFFTOPIC :

Could you help me testing : 80gl19t-23-v

thx

As you can see, the example of the one I show has 0.06 Ohms of resistance, it will be very low DCR value.
Did you look at the PDF spec sheet for the ILHB-1206?

[nbdy]

Re: 32lg3000 sound ok but no picture

As you can see, the example of the one I show has 0.06 Ohms of resistance, it will be very low DCR value.
Did you look at the PDF spec sheet for the ILHB-1206?

Yes,that why i said that the dimensions are the same as 1206 (in milimeters)

[budm]

Re: 32lg3000 sound ok but no picture

That example should work then, ILHB-1206 is 1206. Or look for something with same spec but even higher current rating will be fine.

[nbdy]

Re: 32lg3000 sound ok but no picture

Thx for all,going to buy the ILHB and the mosfet ...

write the results after changing components
