Re: PHILIPS 42PFL3704D/F7 no picture
It is the same part number as the one n my TV but is not the board I physically have
It is the same part number as the one n my TV but is not the board I physically have
-
-
Re: PHILIPS 42PFL3704D/F7 no picture
I will get pics of all the boards tomorrow but I cannot tonight as we have company and I have nowhere to take it apart.Comment
-
Re: PHILIPS 42PFL3704D/F7 no picture
OK, then we need the pictures of your board tomorrow to see if the pins on the connector has any labeling for each pin or not.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: PHILIPS 42PFL3704D/F7 no picture
Ok Thank you.Sorry to have wasted your time this evening.Comment
-
Re: PHILIPS 42PFL3704D/F7 no picture

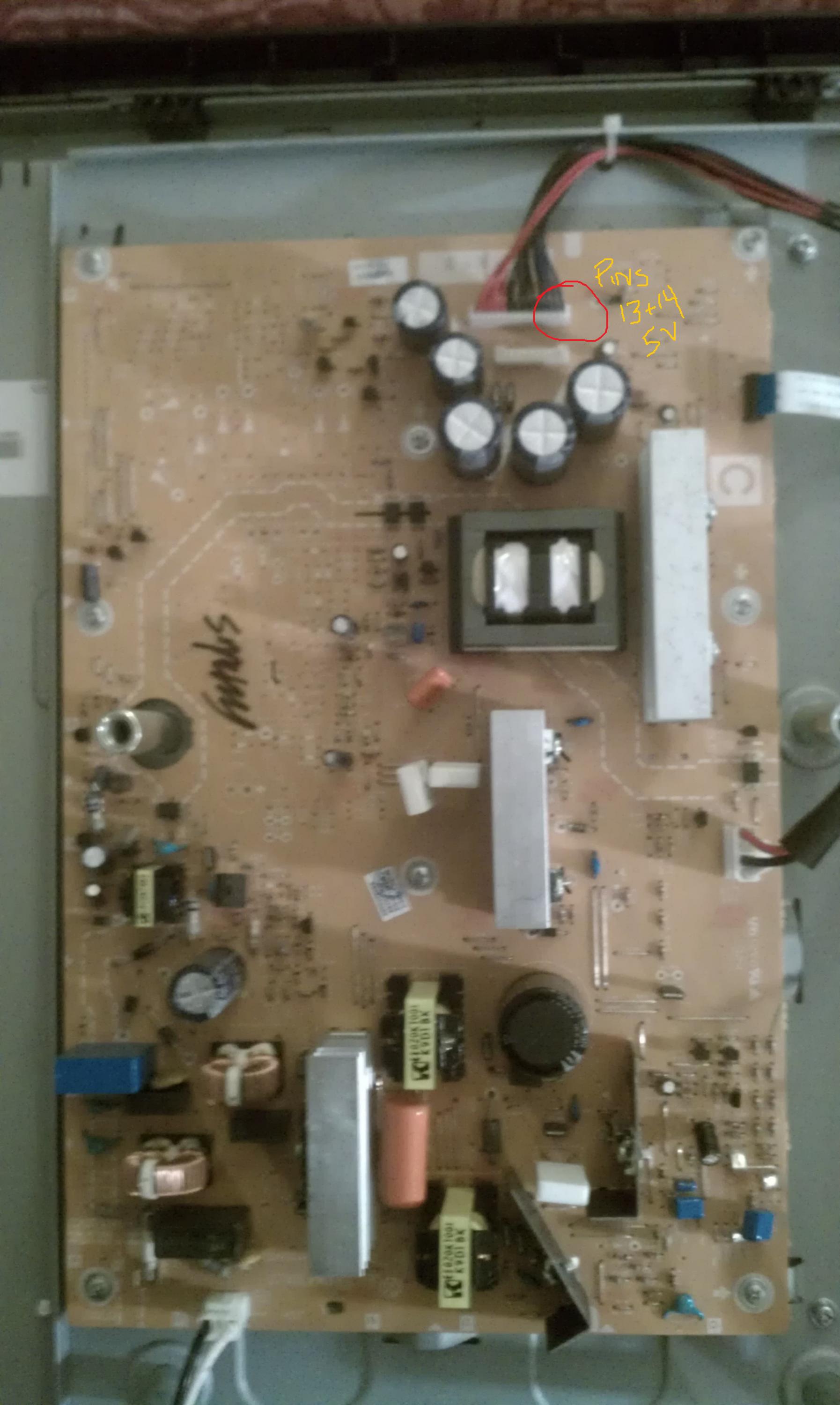

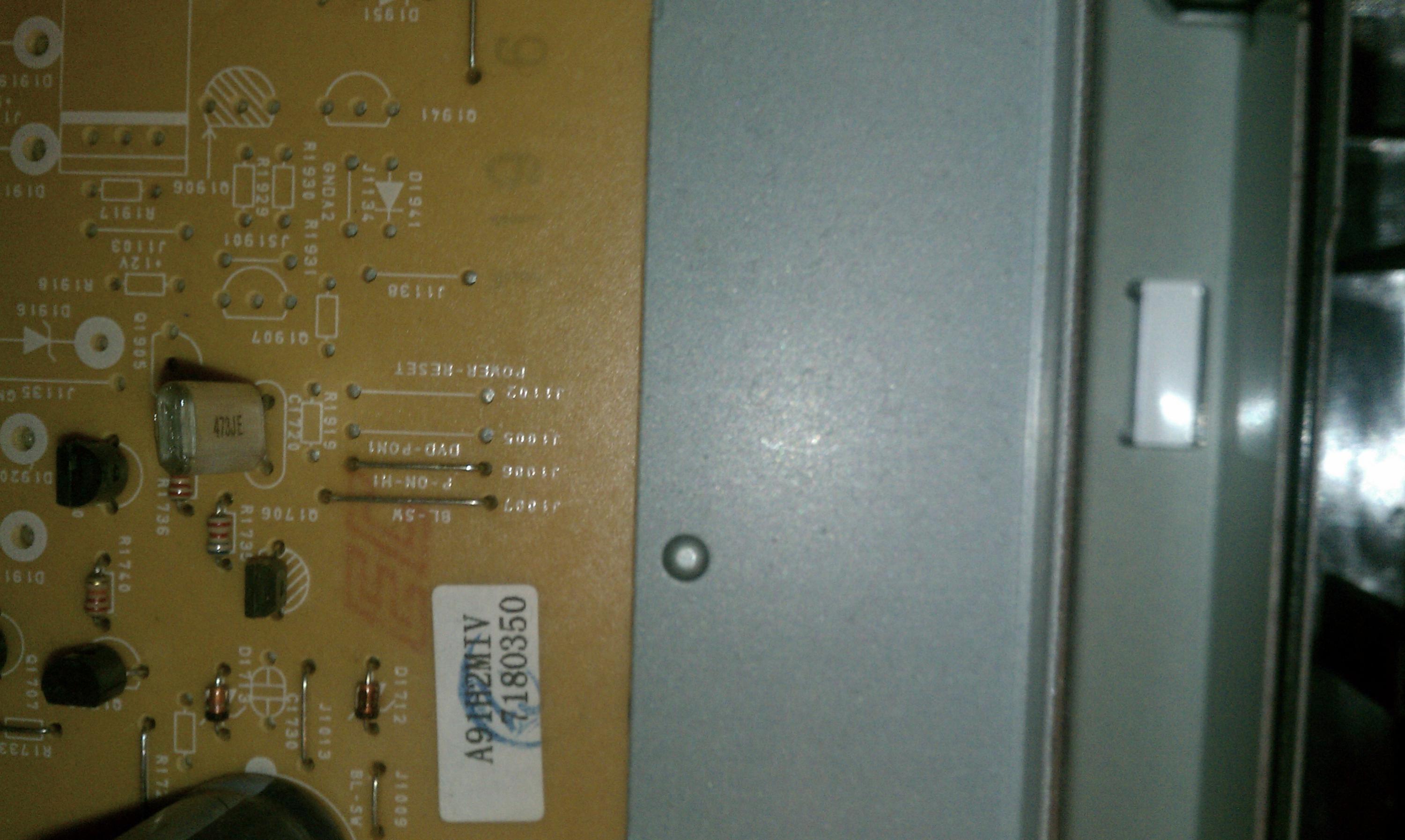

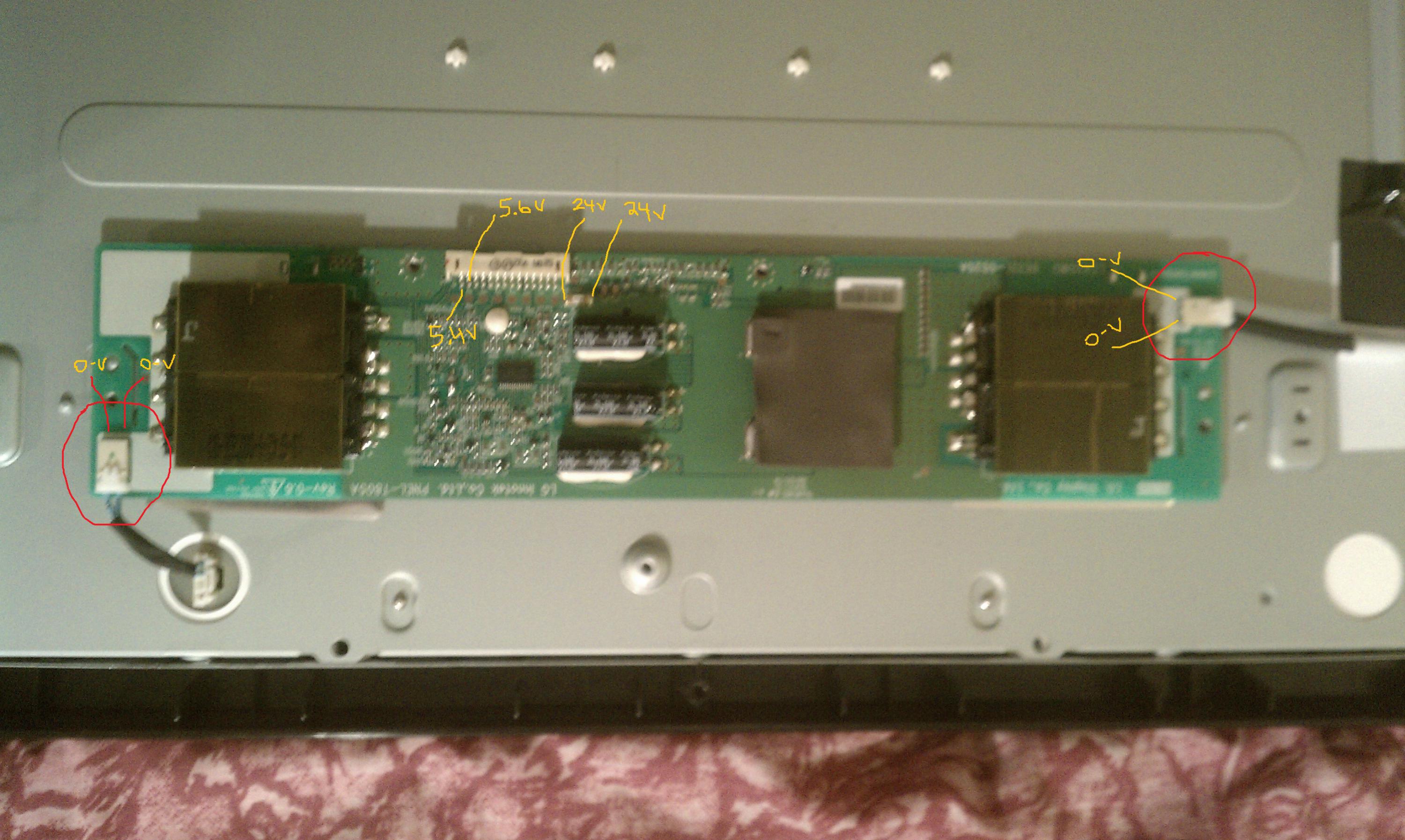

I have added some pics. I am not exactly sure what you want to see close ups of just let me know. I looked at the schematic for the tv and checked the pins that I could find labeled for backlight.. one is backlight on and the other is labeled backlight adjust. The inverter board is only connected to the main power board via the 14 pin harness as far as I know. Pins 1 - 5 have 52 volts, 6 - 12 have zero v. 13 has 5v 14 has 5.2 v. I have 24 volts on both sides of the fuse on the inverter board. no power on any wires leaving the inverterboard to the CCFTsAttached Filesif you find these attachements useful please consider making a small donation to the site
Comment
-
-
Re: PHILIPS 42PFL3704D/F7 no picture

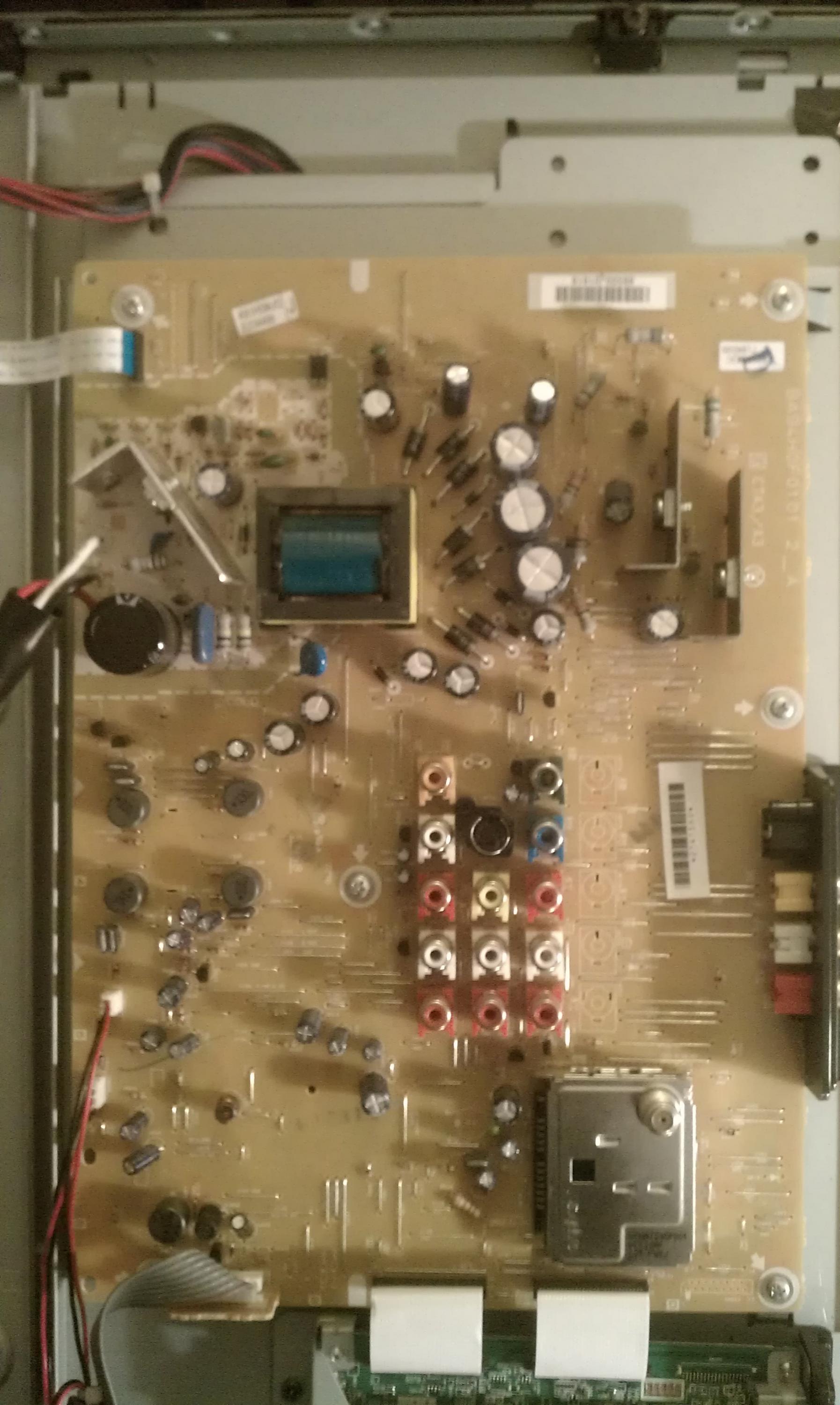

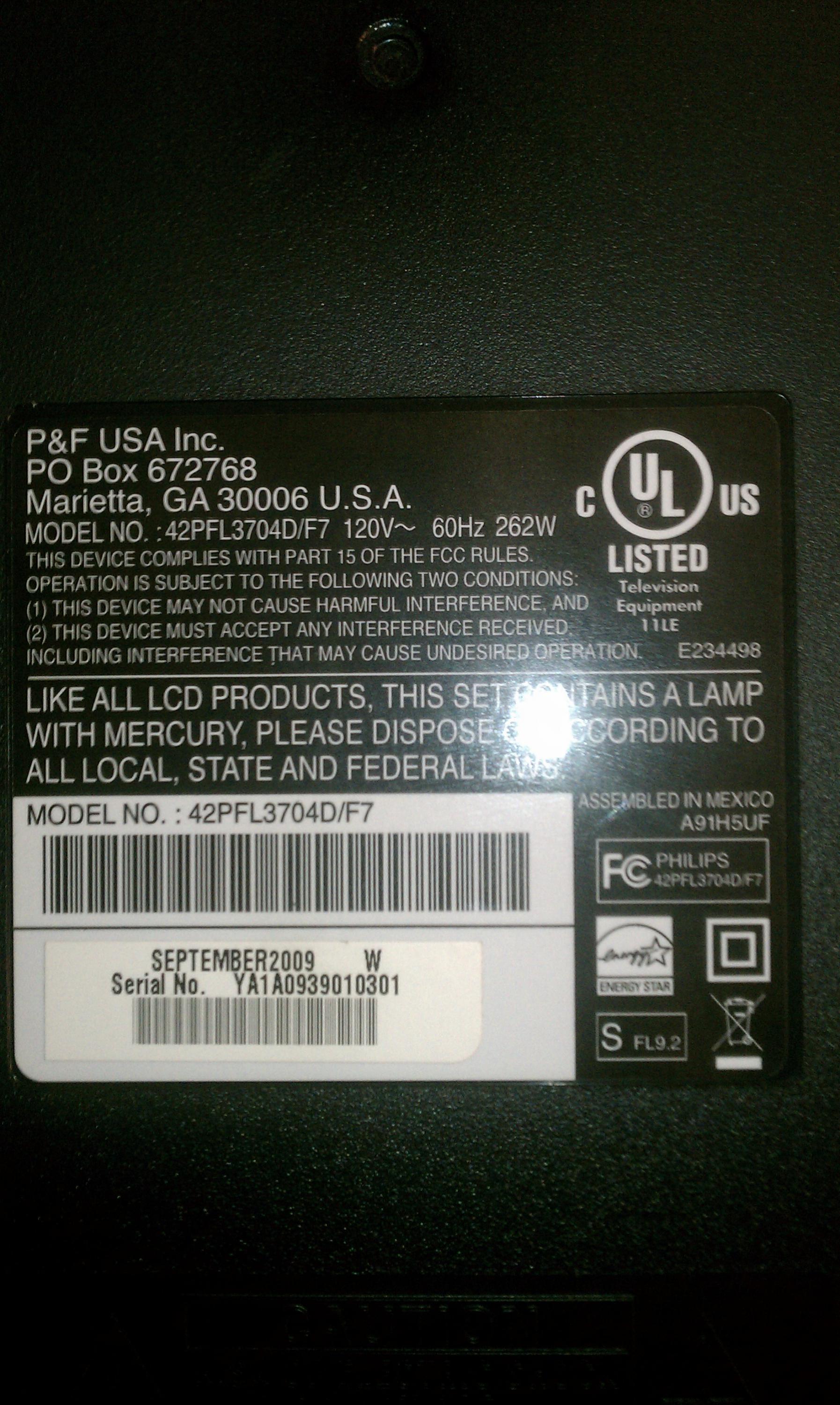

rest of picsAttached Filesif you find these attachements useful please consider making a small donation to the site
Comment
-
-
Re: PHILIPS 42PFL3704D/F7 no picture
Wires 11 and 12 are blue same as 13 and 14 but have no power going thru them.. I have attached the manual i looked at. Pages 47 and 48. I am not sure which schematic to use. they list the same part but show different wiring.Comment
-
