    Insignia TV-DVD : Model NS-LDVD26Q-10A screen problems

    Hi guys,
    I just bought this tv set from a friend who said it had a funny looking picture. I got it home, and plugged it in, and noticed at once that the screen has a problem. The top 4 inches of the screen look ok, but the rest of it is blurred and discolored,kinda looks like on old projection screen would if the convergence was WAY off. sort of. I think it has a shorted chip somewhere. I put a dvd in the drive and it has a blue background on the first few minutes of the movie, and the problem area is a light green from the 4 inch point down, and any movement in this area looks "shaky" , only way I can describe it. He was right about a "funny looking picture"! I have never seen anything like this before. Anyone with any insight on this I would appreciate your help/input, etc.

    Here is all the info I have on it at the moment:

    Insignia TV-DVD : Model number NS-LDVD26Q-10A 26 inch
    DOM 09E07-REV B 09E07A8604A Built-in dvd player, everything seems to work except the video problem, I haven't tore it down yet, too many other othere ones on the bench at the moment waiting on parts.

    I also am having trouble locating a schematic diagram for this unit, if anyone knows of one for it, that would be quite helpful.
    Tags: None
    • techietech2
      "OLD EX TV TECH
      • Jun 2013
      • 31
      • USA
      #2
      Re: Insignia TV-DVD : Model NS-LDVD26Q-10A screen problems

      I take it these are not real popular sets!

        Comment

        • tom66
          EVs Rule
          • Apr 2011
          • 32560
          • UK
          #3
          Re: Insignia TV-DVD : Model NS-LDVD26Q-10A screen problems

          What is the model of the LCD panel in this set e.g. LGPhilips, ChiMei Optoelectronics, etc. It will be written on the back metal plate of the chassis (the LCD module.)
          Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
          For service manual, schematic, boardview (board view), datasheet, cad - use our search.

            Comment

            • techietech2
              "OLD EX TV TECH
              • Jun 2013
              • 31
              • USA
              #4
              Re: Insignia TV-DVD : Model NS-LDVD26Q-10A screen problems

              Hi Tom,

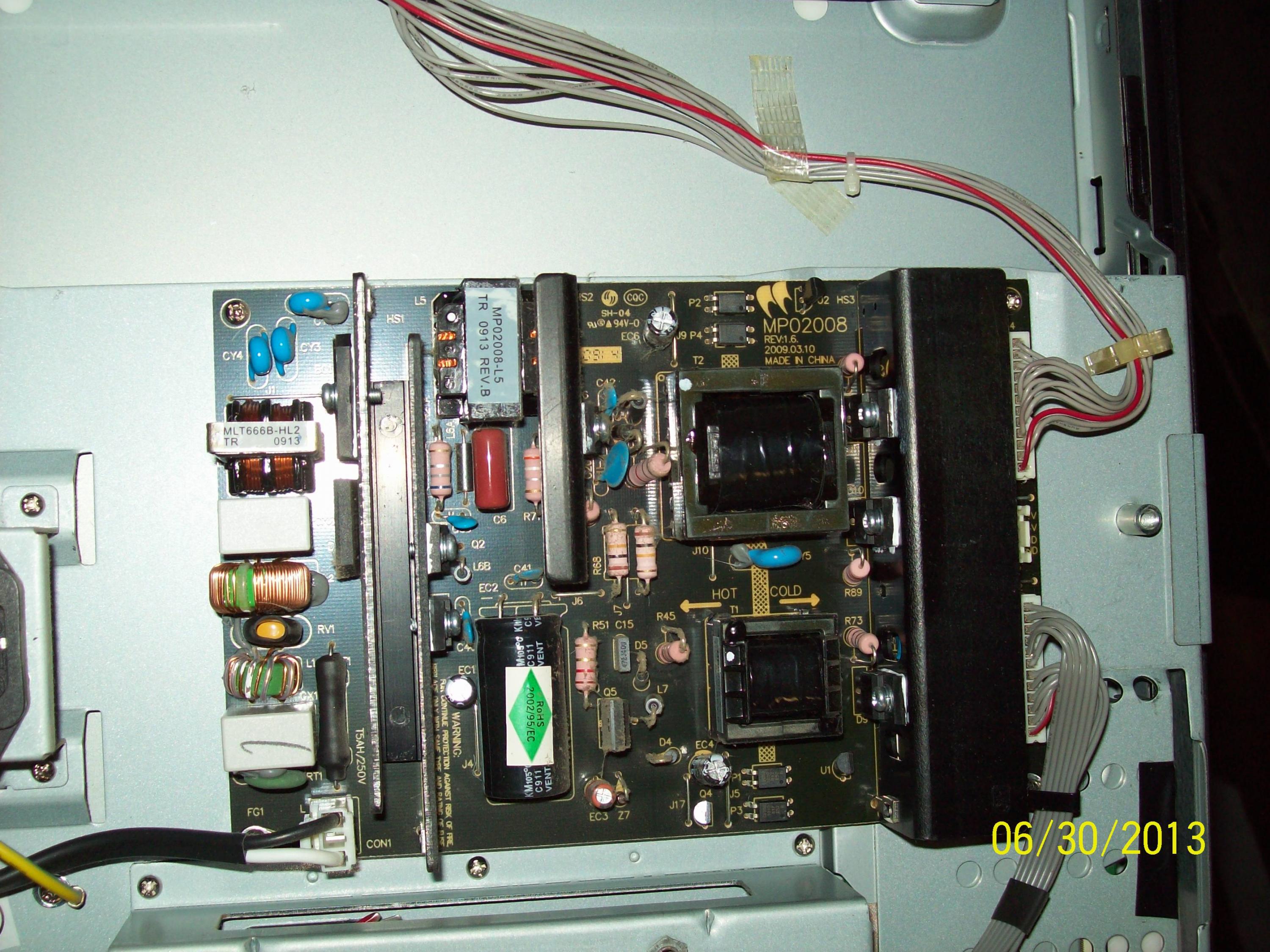

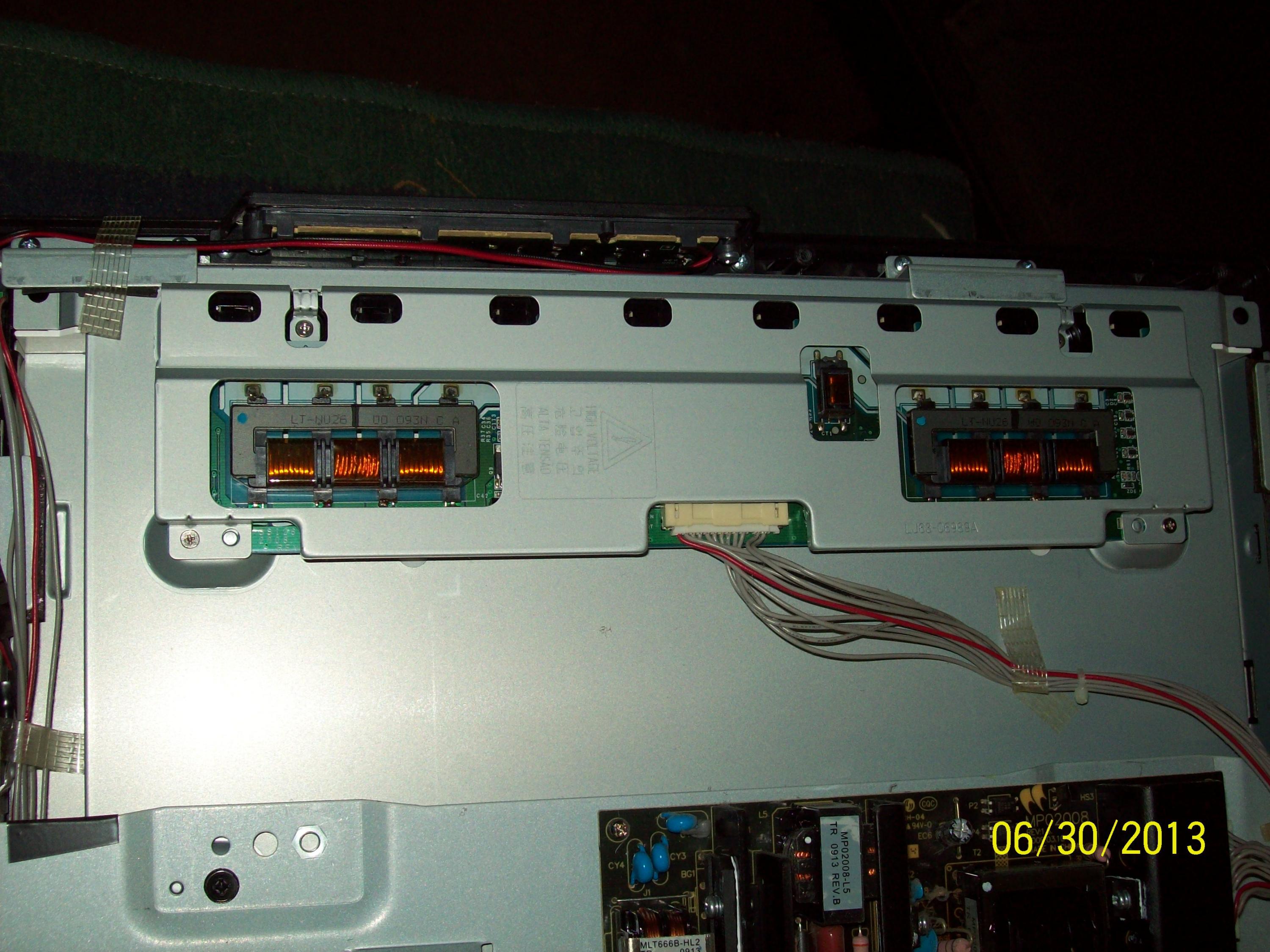

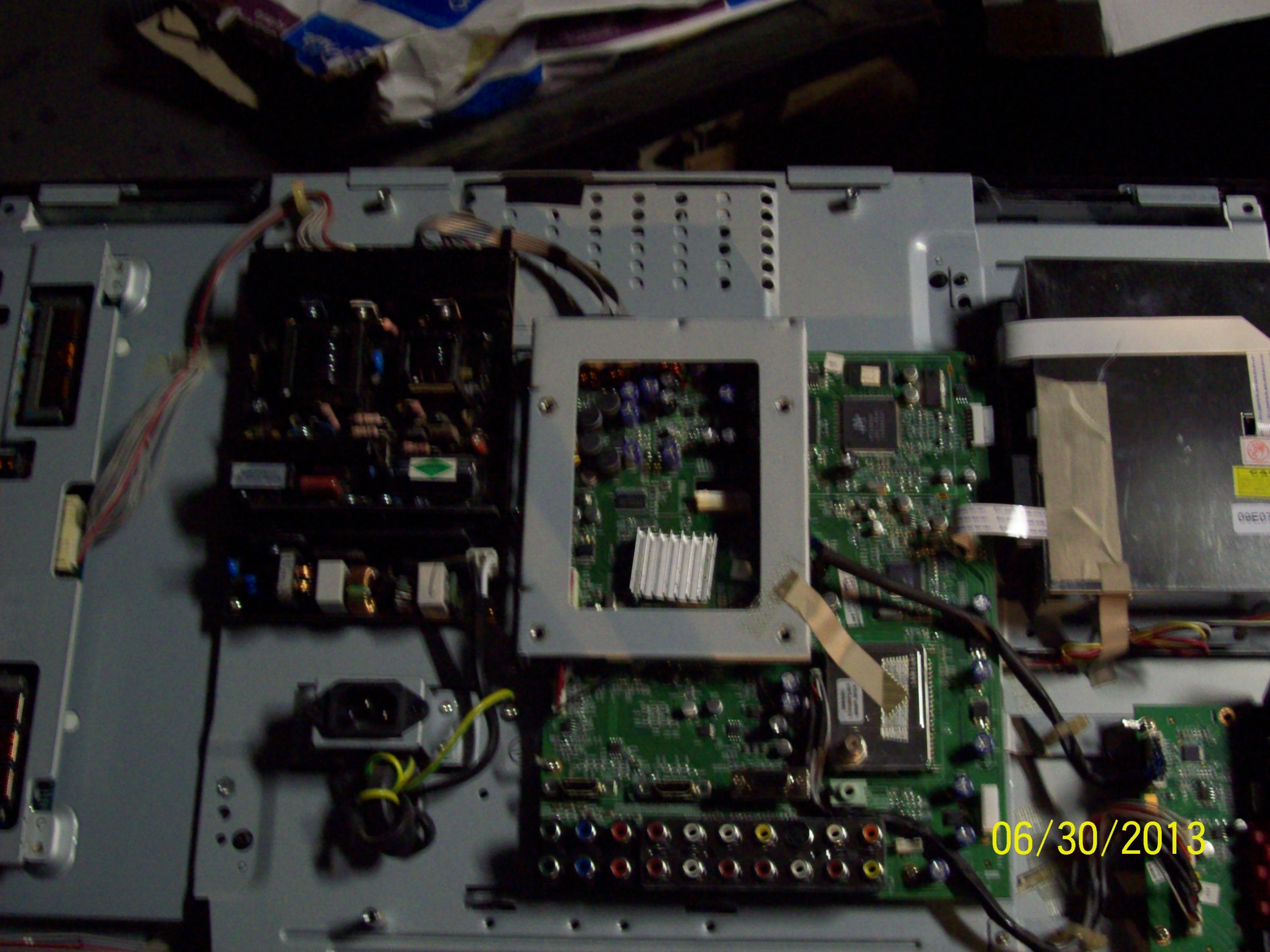

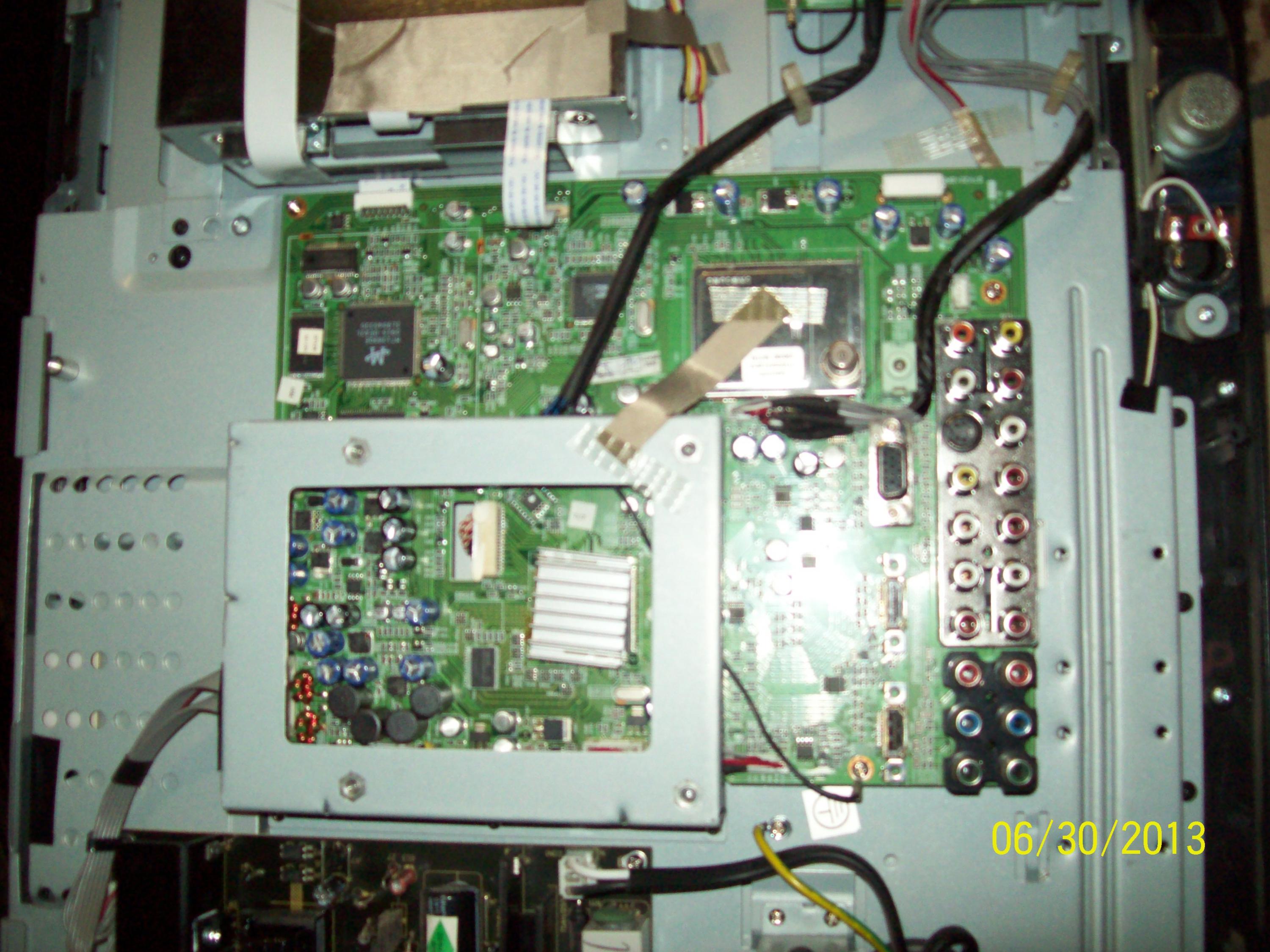

              I have attached photos of the inverter, power supply, main board, and an over-all picture of the tv. I can't find any label on the screen, the inverter board is a samsung ss1260-4ua01, the mainboard is labeled dtv32(dams)m-9000,(there is a label on the tuner cover marked samsung dtvs205pl201a), the power supply is labeled mpo2008 rev1.6 I haven't diss-asembled it yet. Still looking for a schematic, but it seems the problem is going to be a driver chip on the screen itself. I turned it on again this afternoon, and noticed that with the menu up, the top was blue, and the bottom part was a bright red. I will try to get a picture of the screen tomorrow evening after work.
              Also, thanx for the reply, I haven't been an active member of a site like this for several years, and it is taking a bit to remember all this stuff.
              Attached Files

                Comment

                • techietech2
                  "OLD EX TV TECH
                  • Jun 2013
                  • 31
                  • USA
                  #5
                  Re: Insignia TV-DVD : Model NS-LDVD26Q-10A screen problems

                  Can anyone relate to this problem?
