pl-p42w-10a shorted 5.3 volts

kornwood

Senior Member

Join Date: Jun 2011

Posts: 93
#1

pl-p42w-10a shorted 5.3 volts

04-09-2013, 08:43 PM

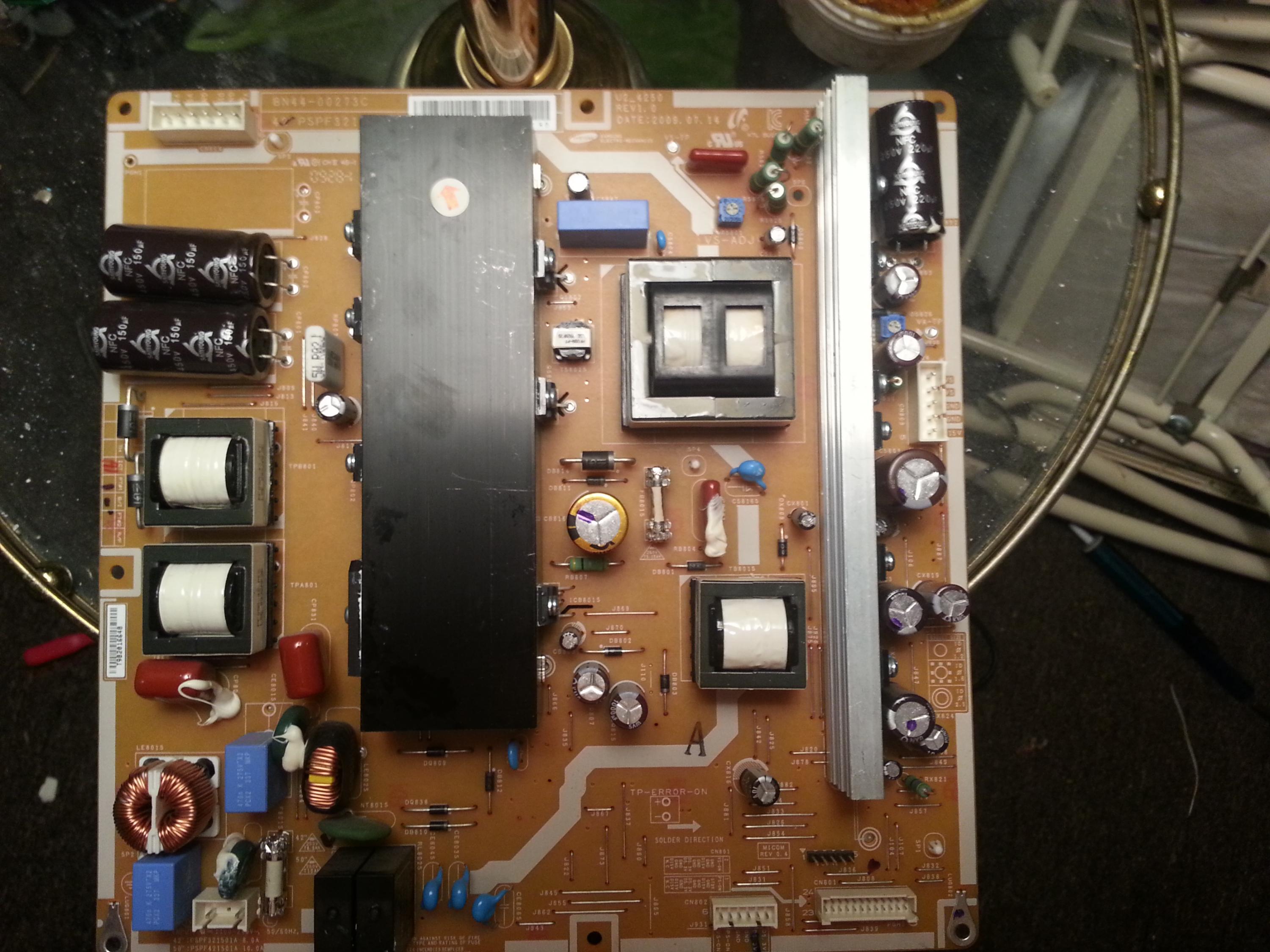

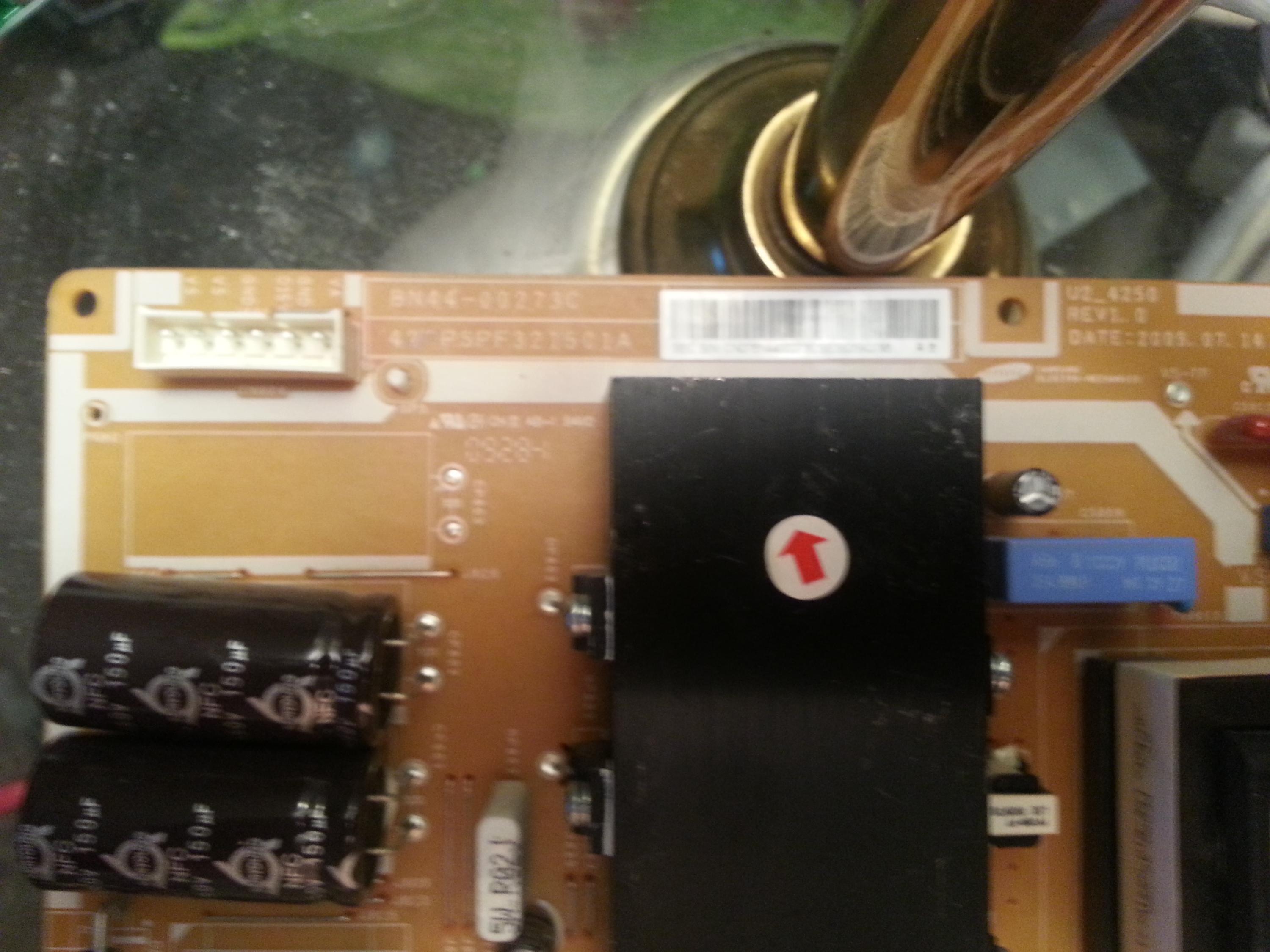

what would have shorted on this board to cause 5v to short to ground all other voltages show up after pson
Attached Files
if you find these attachements useful please consider making a small donation to the site
Tags: None
tom66

EVs Rule

Join Date: Apr 2011

Posts: 32560

Country: UK
#2

04-10-2013, 02:24 AM

Re: pl-p42w-10a shorted 5.3 volts

Two possibilities:
Bad output diode.
Bad ceramic cap near output.

Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
For service manual, schematic, boardview (board view), datasheet, cad - use our search.
Comment
kornwood

Senior Member

Join Date: Jun 2011

Posts: 93
#3

04-10-2013, 09:55 AM

Re: pl-p42w-10a shorted 5.3 volts

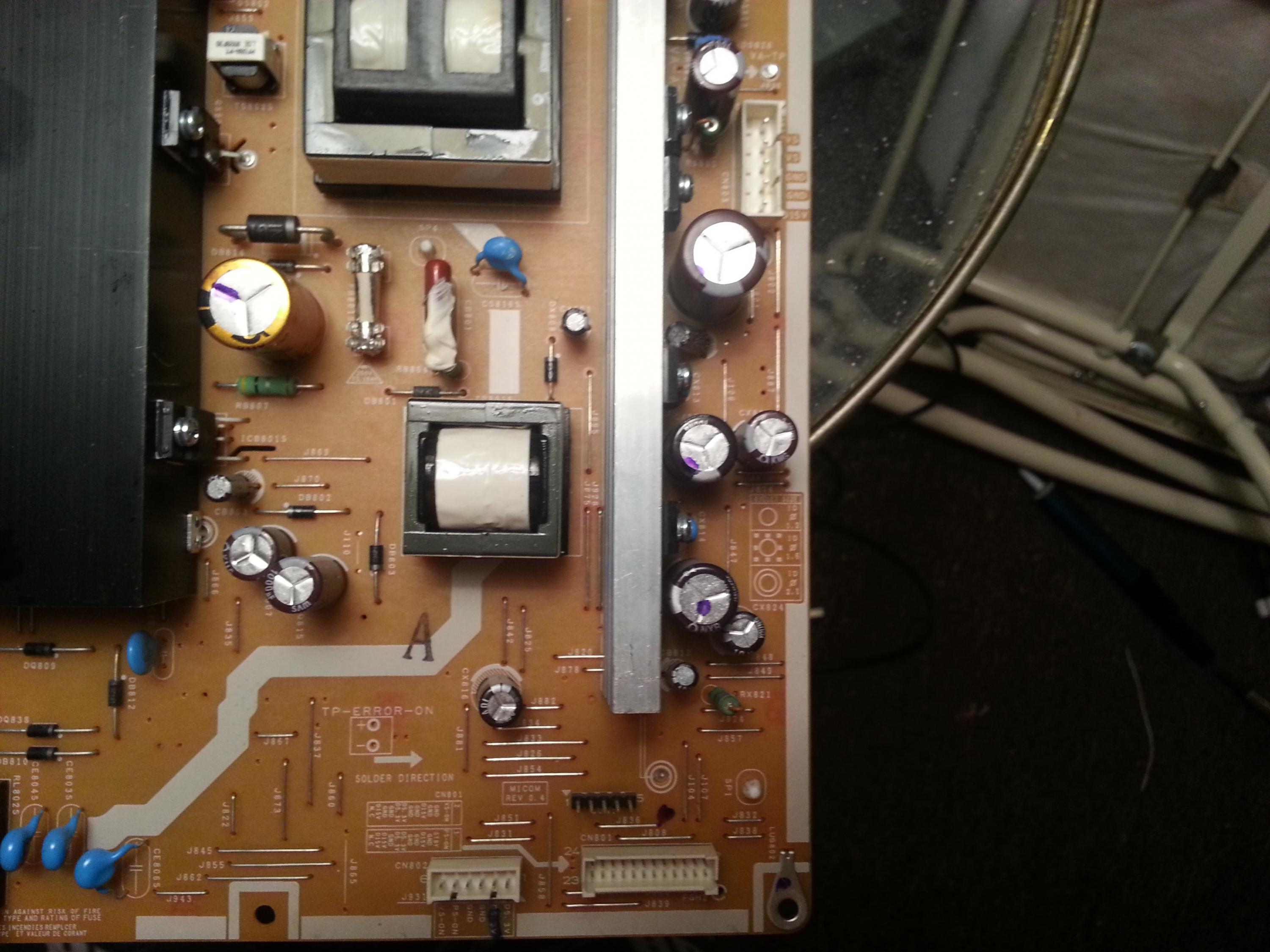

the cap and resistor show short when tested disconnected but theres still a short on the line
Attached Files
if you find these attachements useful please consider making a small donation to the site
Comment
