Westinghouse W3213 no backlights

budm

Badcaps Legend

Join Date: Feb 2010

Posts: 40746

Country: USA
#1

Westinghouse W3213 no backlights

07-03-2012, 10:58 AM

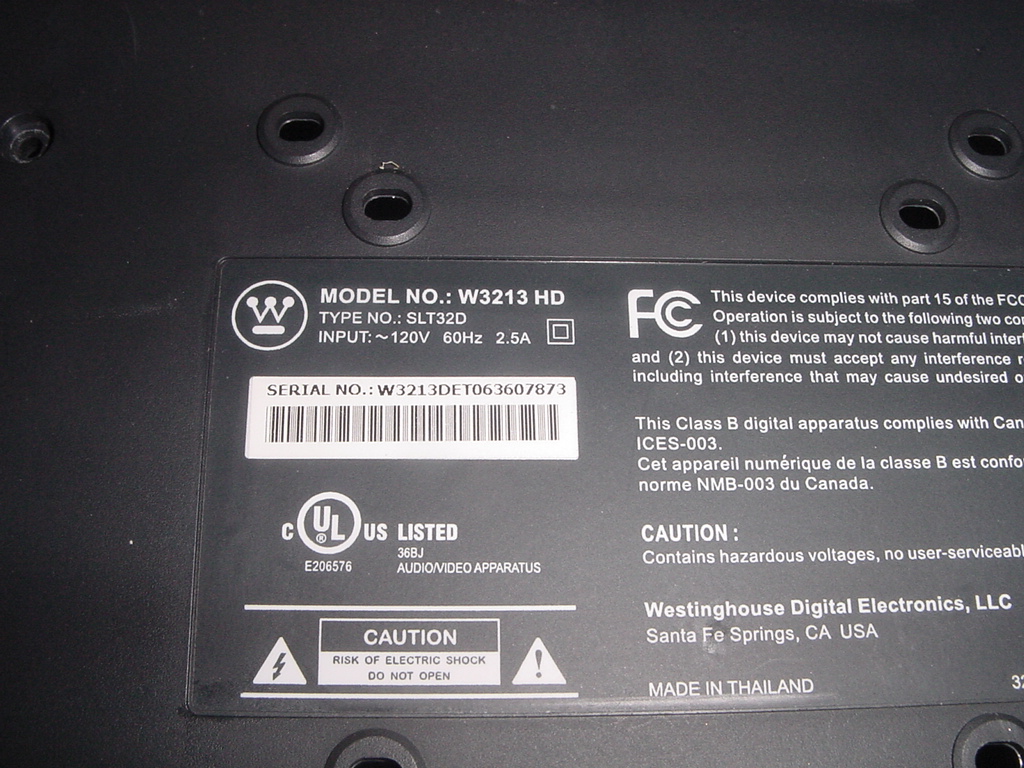

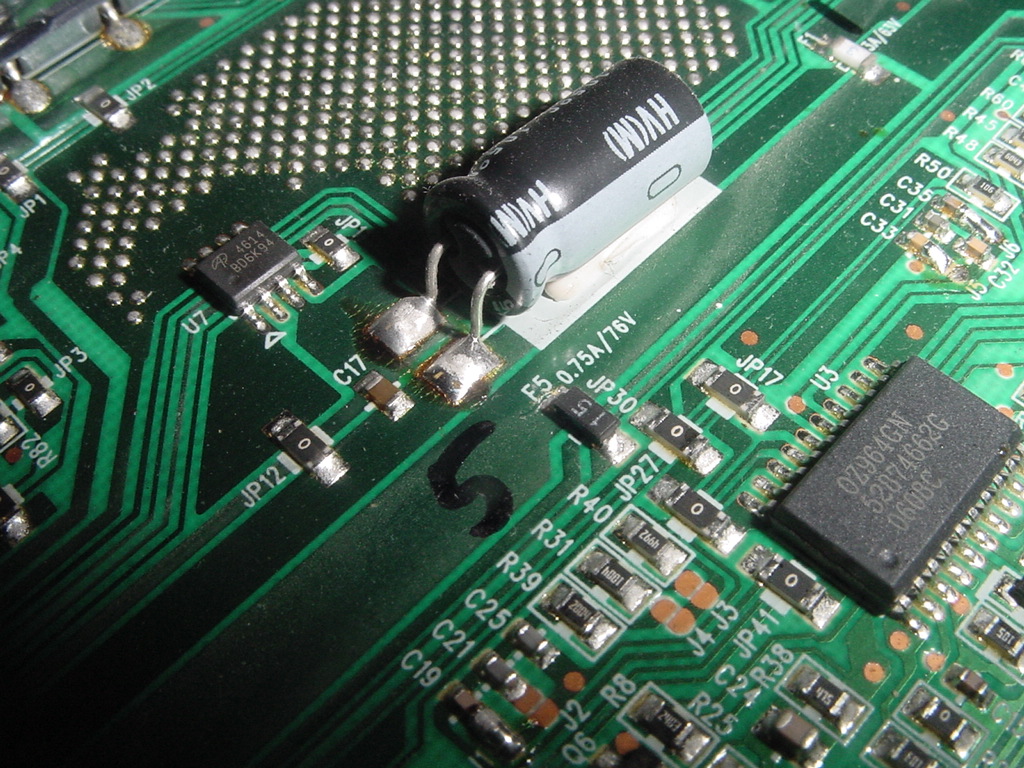

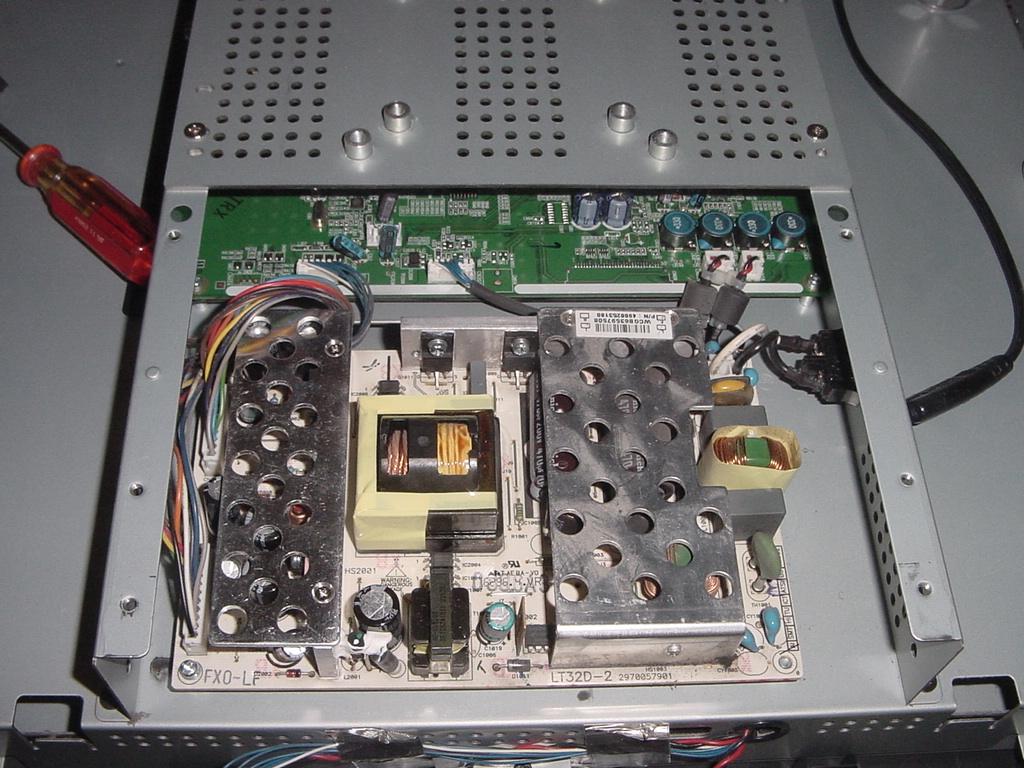

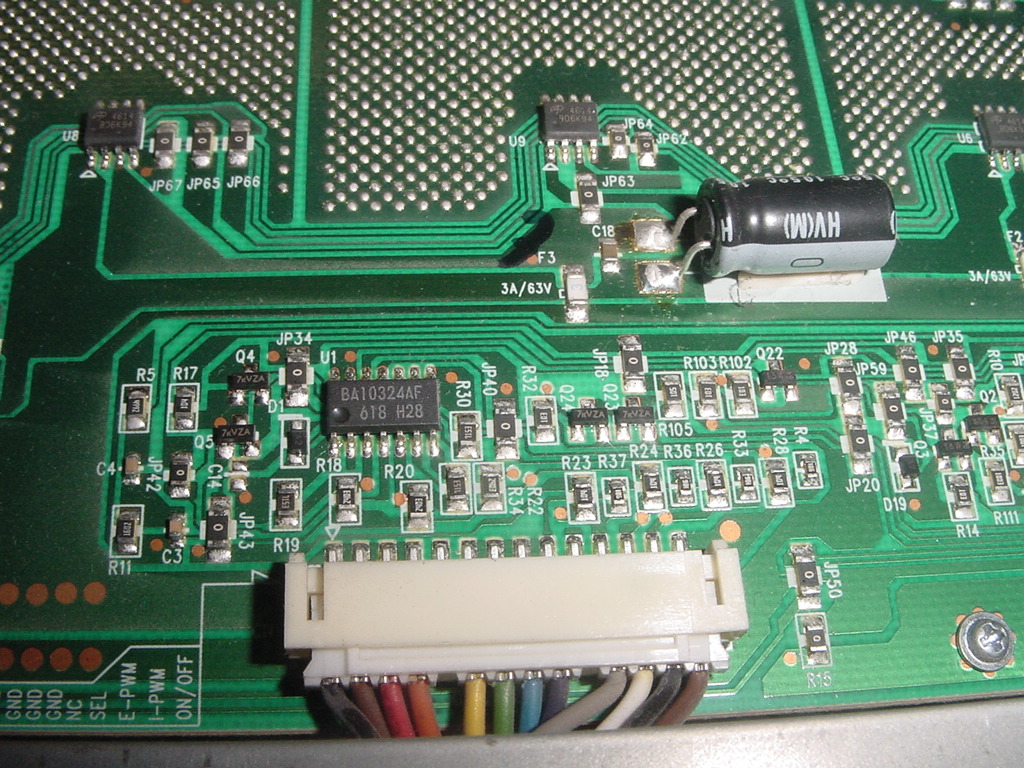

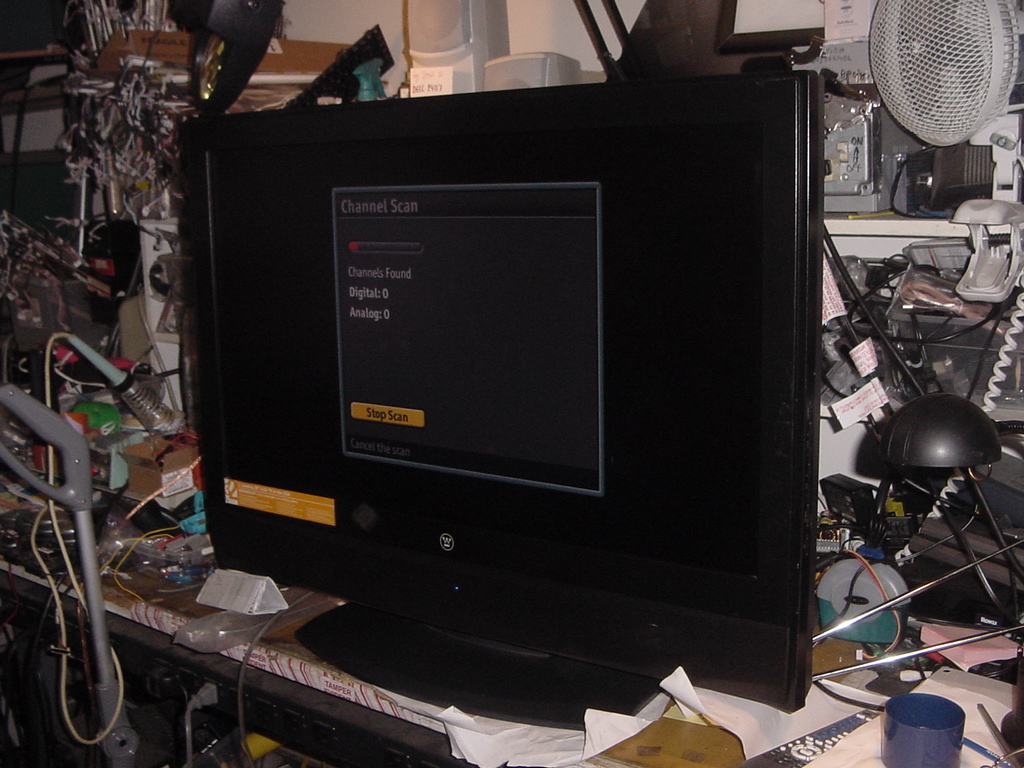

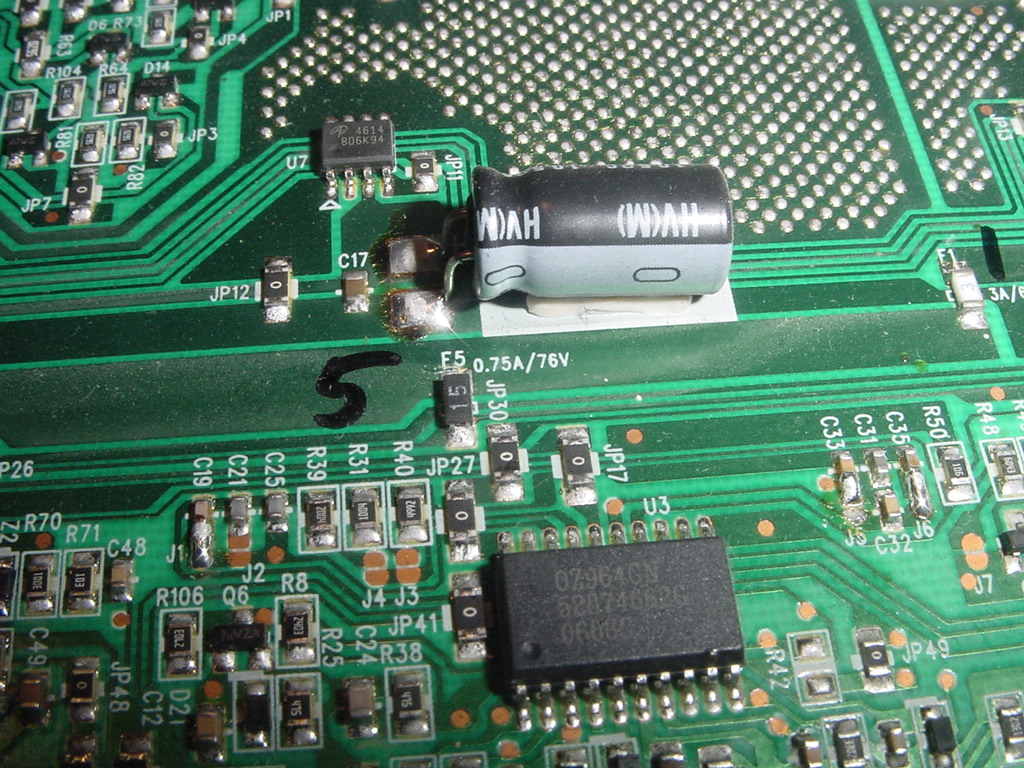

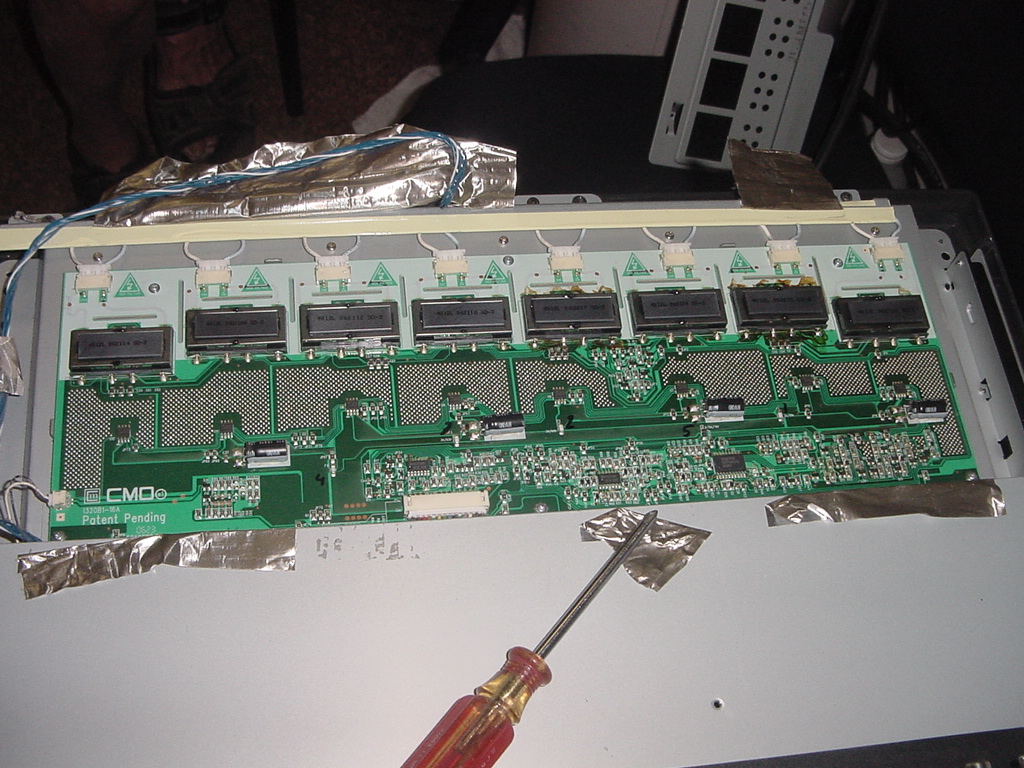

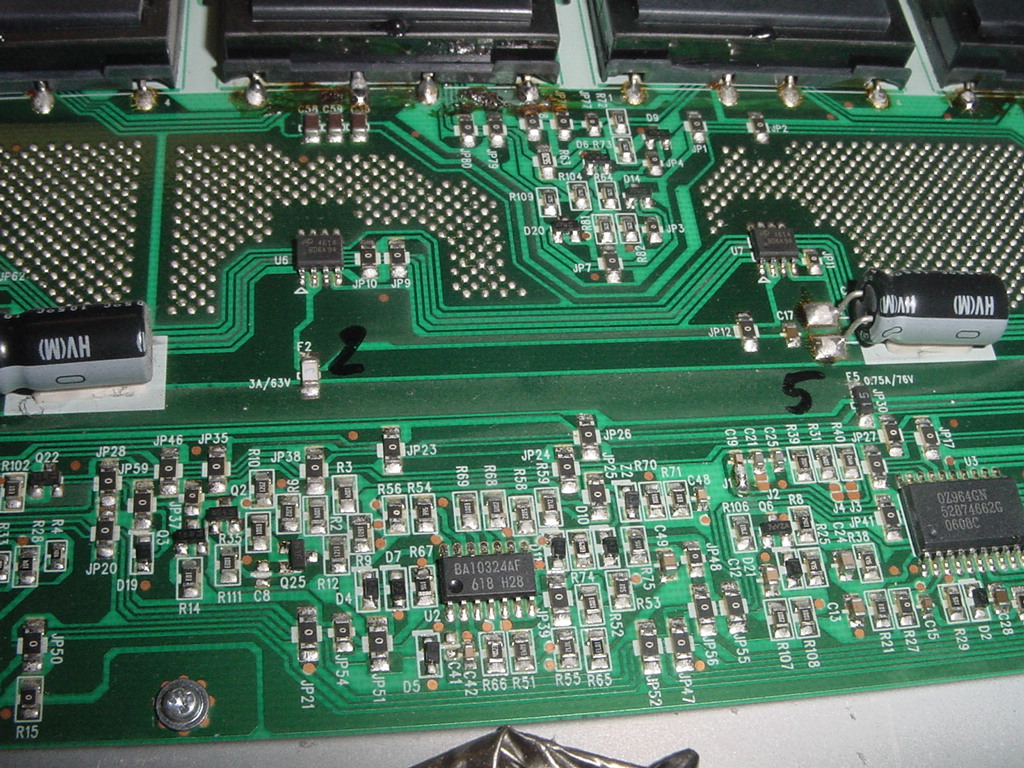

Very simple fix, fuse F5 (for the PWM IC) on the inverter board.
The TV does have all the voltages but no backlights.
Caps in the power supply should be replaced at the same time as well.
Attached Files

Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956

Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999

Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl

Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/

TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809
Tags: None
senndogg

Badcaps Veteran

Join Date: Dec 2011

Posts: 383

Country: Albania
#2

07-03-2012, 11:09 AM

Re: Westinghouse W3213 no backlights

the notorious Darfon boards!
have succeeded many times in replacing the transformers (4003L, 4006A etc).
cheers!
