Power supply PF pin question.

07-04-2019, 04:51 AM

Hi,

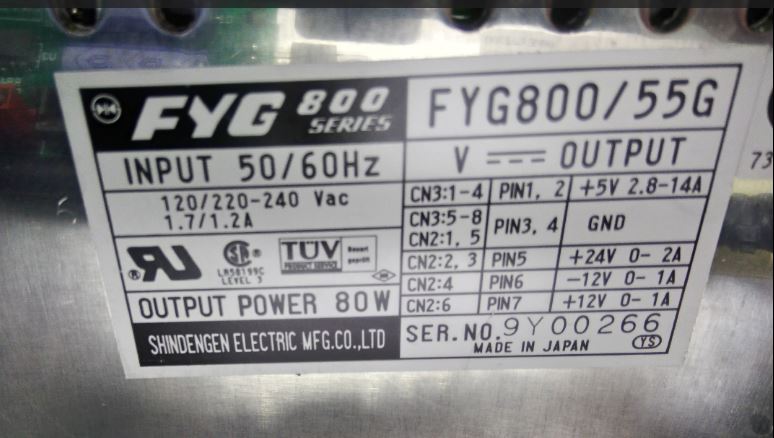

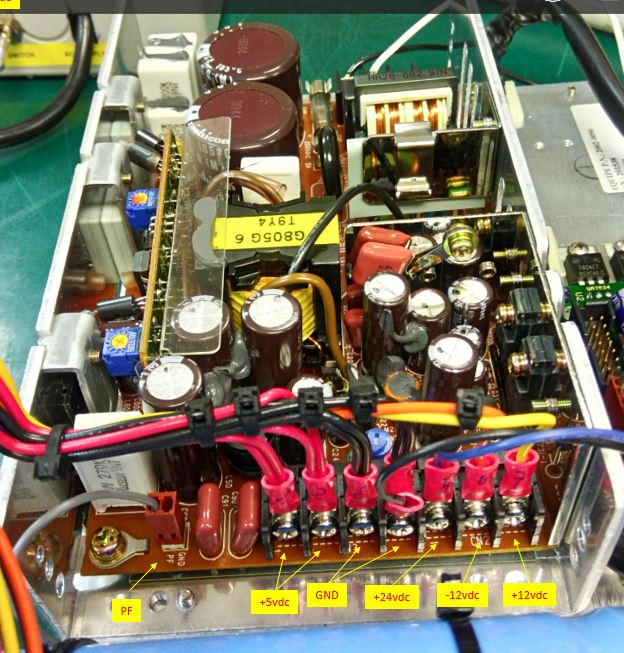

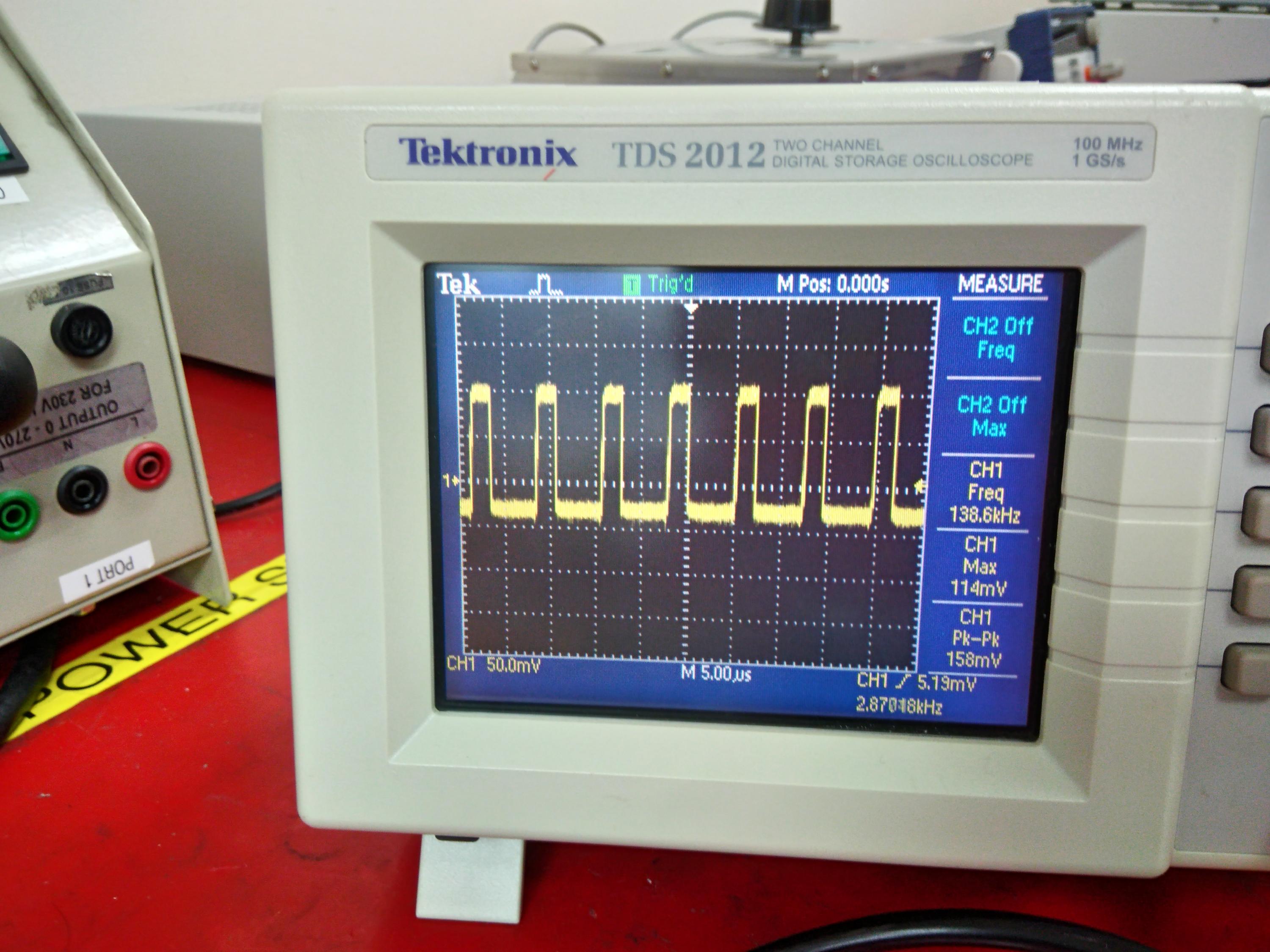

I am trying to repair a power supply with a pin label that I have not encountered before. It is labeled "PF". Below is also the picture when I tried measuring with a scope. Anybody has an idea what is it? Looks like a power good signal also.

Attached Files
Tags: None
budm

Badcaps Legend

Join Date: Feb 2010

Posts: 40746

Country: USA
#2

07-04-2019, 03:43 PM

Re: Power supply PF pin question.

Where does the PF wire go to?

Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956

Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999

Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl

Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/

TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809
Comment
R_J

Badcaps Legend

Join Date: Jun 2012

Posts: 9582

Country: Canada
#3

07-04-2019, 03:57 PM

Re: Power supply PF pin question.

It might be "Power Fail" signal
