Emacs SP2-4300f-R

08-25-2007, 08:31 PM

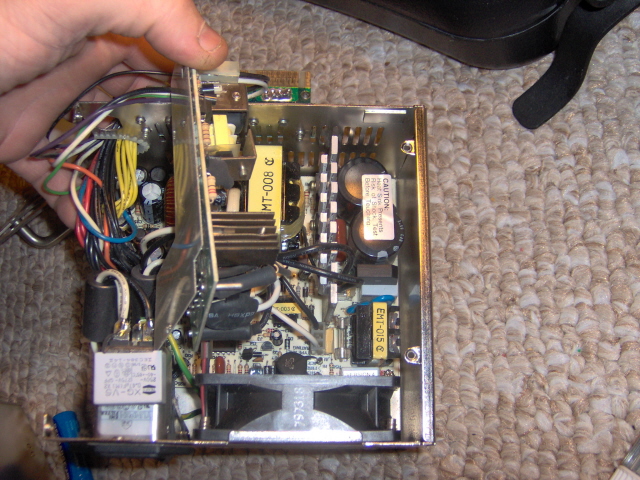

After reading Kc8adu's post about the Emacs field repair, I had to open mine up. DDAAAAAMMMMMIIIITTT!!!!!!!!!!

Massive amounts of FUUYYYJJGGHIIII caps, even on the back plane. I did find one lonley UCC with a few PCE-TUR just to piss me off. None bulged yet.

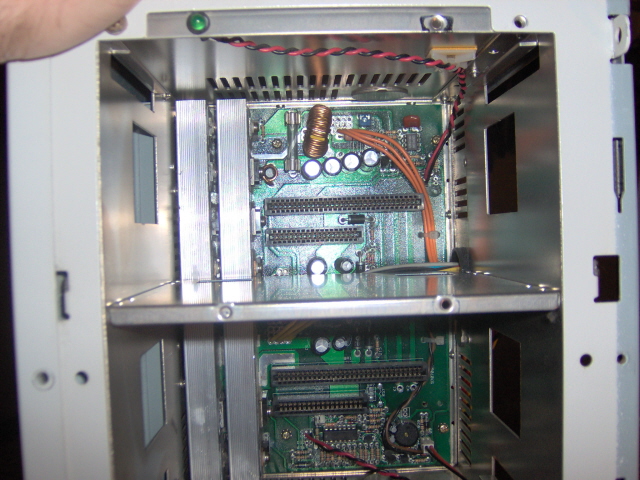

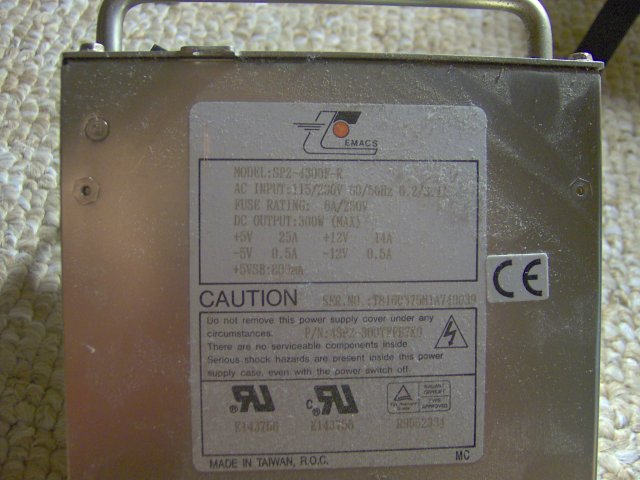

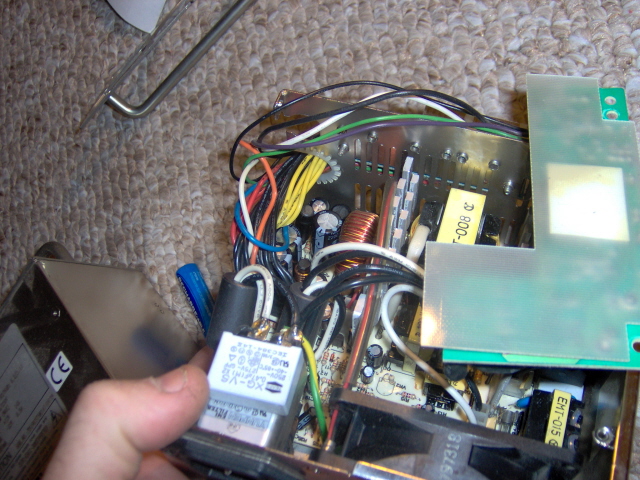

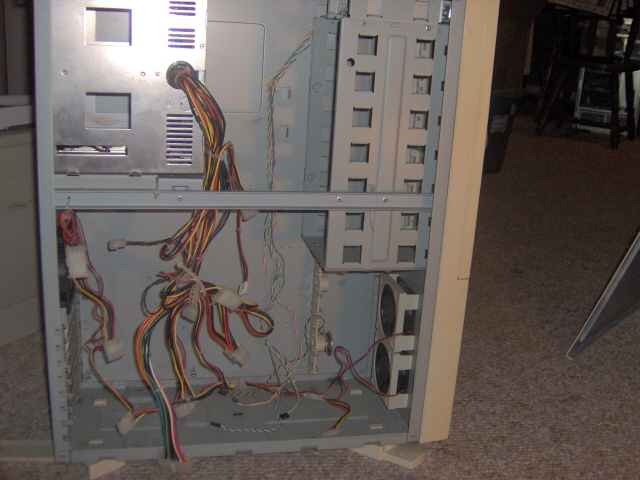

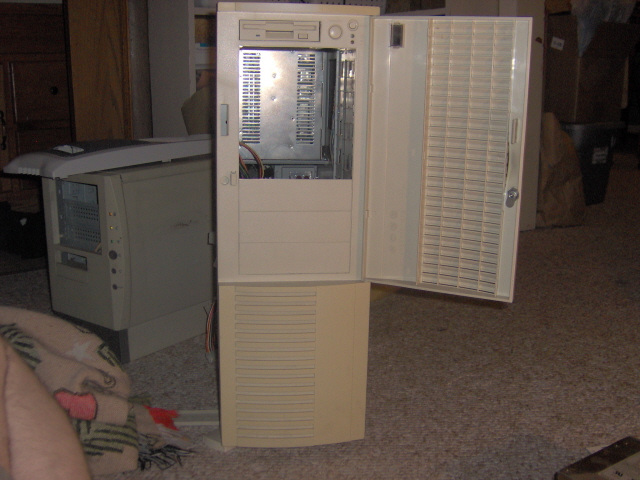

Pics of case included. For sale if anyone wants!
