Power supply build quality pictorial.closed.use part 2

[dood]

Re: Power supply build quality pictorial

Delta DPS-200PB-86 145w ATX supply (no aux connectors) (Compaq OEM)



PSU is quite old... this is a Pentium II 333mhz machine. Board says Delta on it, plus it's a typical Delta PN. No problems with it at all. Uses Chemicon and Nichicon caps.

[dood]

Re: Power supply build quality pictorial

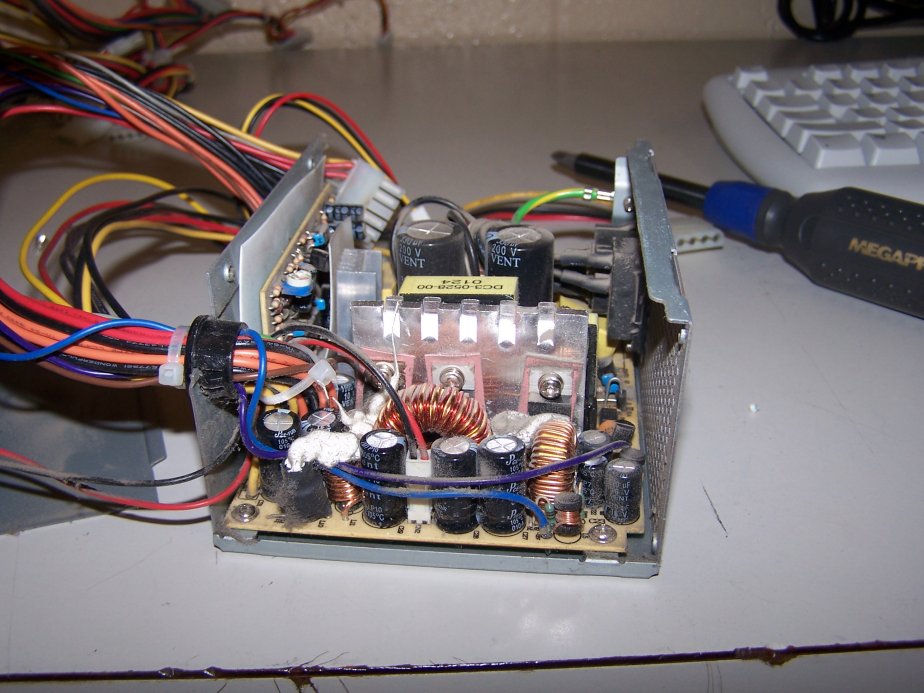

HEC-145FC 145watt MicroATX (no aux connectors)

I'm including this one to compare to the above MicroATX supply... A more "normal" chassis design in this one...



PCE-TUR caps all over.

[japlytic]

Re: Power supply build quality pictorial

Falcon Technology PE-250X (circra 1998) - CapXon, Su'scon and Viva caps, as well as 2 JP CE-TUR 200V 470uF units.

[willawake]

Re: Power supply build quality pictorial

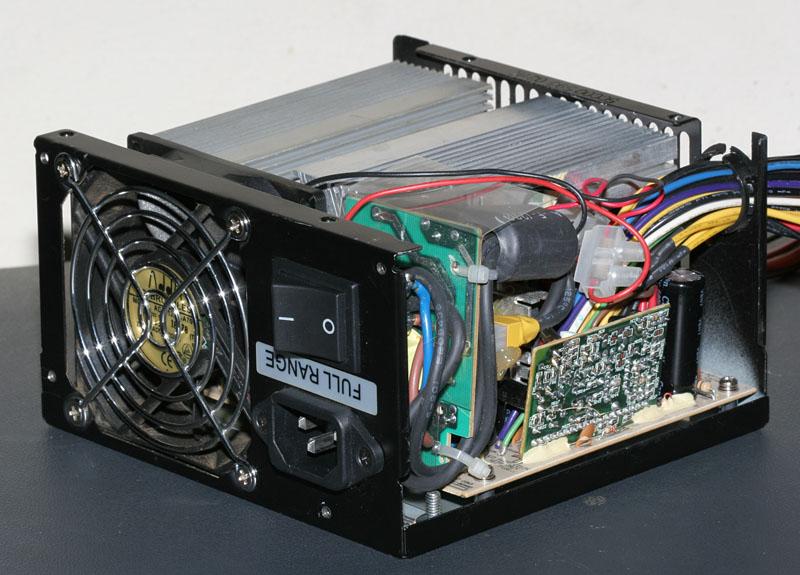

Zalman ZM400B-APS 400W



fan is not original....original fan shown removed

[willawake]

Re: Power supply build quality pictorial

more pics

[willawake]

Re: Power supply build quality pictorial

[willawake]

Re: Power supply build quality pictorial





Capxon and Ost RLP

[dood]

Re: Power supply build quality pictorial

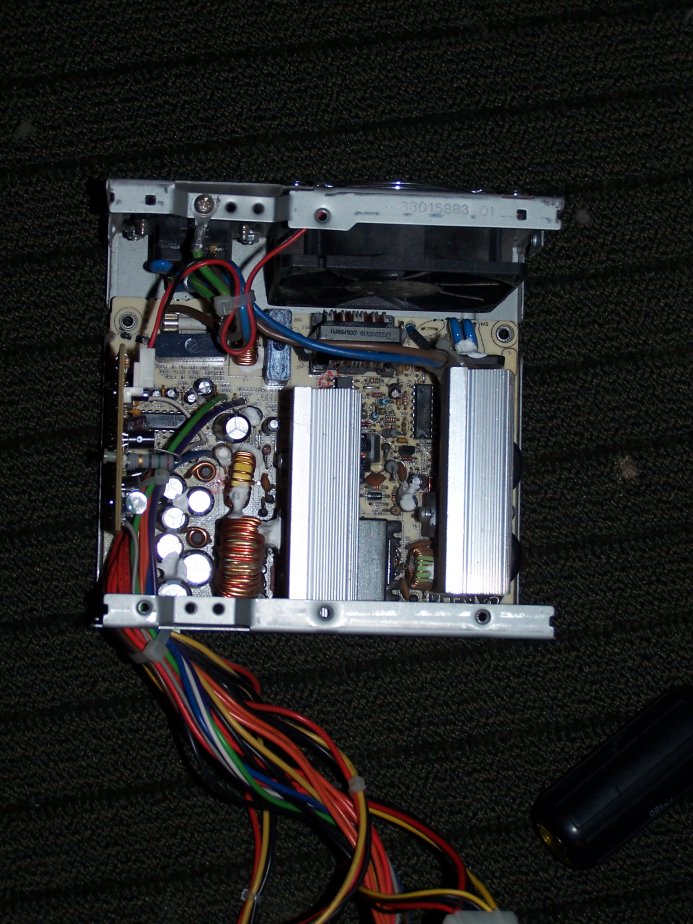

Enlight HPC-300-101 (EN-8304946) Peak load 300w ATX +12v




Notice the plastic sheet that makes the air enter at the opposite end of the PSU for optimal cooling from the single 80mm fan




Dirty... this one came from our welding department... nasty stuff.




I see Jenpo and Teapo in here...

[willawake]

Re: Power supply build quality pictorial

The enlight is a High Power built unit.

can you guys start posting only two pics per post, so if you had 6 pics to post you would make 3 posts. This will help to load the pages faster as they will have less images per page. The pages break on number of posts (i think it is 15 posts then new page)

[PeteS in CA]

Re: Power supply build quality pictorial

Those Falcon and HEC units look like someone forgot to install the heatsinks.

[Oklahoma Wolf]

Re: Power supply build quality pictorial

Capxon and Ost RLP

Very interesting - that Zalman is a Fortron built unit, but I'm used to seeing those with all Teapo on the secondary side since they're an old design. Must be relatively recently they moved to OST/Capxon.

[bobcaygeon]

Re: Power supply build quality pictorial

Fortron FSP400-60PFN. Its got a single Hitachi cap on the input and a combination of Teapo and CapXon on the output.

[bobcaygeon]

Re: Power supply build quality pictorial

The diametric opposite, of the above (unbranded Generic 450W pulled out of a cheap case... after opening it looks like a Leadman LP-8860) loaded with caps from the netherregions. Not a single brand I recognize... TS brand 470uF caps on the I/P and a combination of TEK, Yicon, and Chmec on the output. This one is rated higher than the Fortron 400W I posted above... looking at the insides, makes me think twice.

[bobcaygeon]

Re: Power supply build quality pictorial

Topower TSP-350P4 (350W). CapXon on the Input side, and an all Fujiyyu lineup on the output side.

[Oklahoma Wolf]

Re: Power supply build quality pictorial

Channel Well CWT420-ATX12, revision F. Loaded with all Fuhjyyu and Capxon. Needs 4 caps replaced at this time.

[Per Hansson]

Re: Power supply build quality pictorial

Enermax EG365AX FMA, 353w, +5v 32a, +12v 26a, +3.3v 32a. +5v & +3.3v 185w max. 220uf Hitachi primary cap, secondary side Pce-Tur, no bulging after years of use...

[dood]

Re: Power supply build quality pictorial

Hipro HP-250NLXAK Max output 250w ATX (no +12v)





Teapo main caps, Su'scon output caps, two of which are bulged and leaking. Has been in service for a few years...

[larrymoencurly]

Re: Power supply build quality pictorial

Delta 300W DPS300-BB. Rubycon, Chemicon, and Nichicon caps:

[japlytic]

Re: Power supply build quality pictorial

Vogue (rebadged Deer) 230W AT unit, manufactured July 2000. Viva primary caps; the rest Rulycon (my first real sighting of this brand!) and one CapXon.

[Oklahoma Wolf]

Re: Power supply build quality pictorial

Enermax E200P-U AT power supply that came with a 486 SX33 system. Main filter caps are Rubycon, secondary caps are all PCE-TUR.
