need schematic for DELL P69G001 board SL KBL-R A00 17810-1 28JF7
or help me identify IC that can cause problem
or help me identify IC that can cause problem
Attached Files
-
Last edited by ktmmotocross; 04-07-2021, 08:53 AM. -
Re: need schematic for DELL P69G001 board SL KBL-R A00 17810-1 28JF7 or identify IC

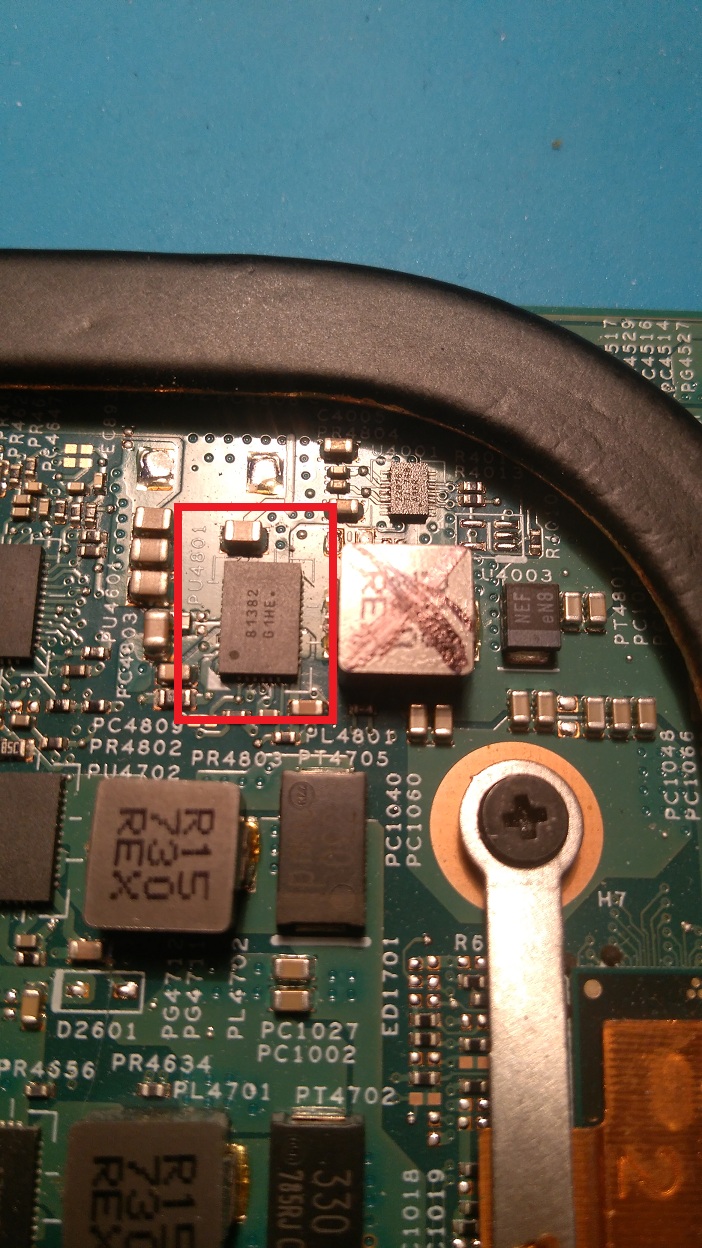

looks like the ic is NCP81382 -
Re: need schematic for DELL P69G001 board SL KBL-R A00 17810-1 28JF7 or identify IC
SchematicComment
-
Comment
-
Re: need schematic for DELL P69G001 board SL KBL-R A00 17810-1 28JF7 or identify IC
But this is not schema for my board. ic that giving me trouble is PU4801 and it is not in this schemaComment
-
Re: need schematic for DELL P69G001 board SL KBL-R A00 17810-1 28JF7 or identify IC
Page 48OpenBoardView — https://github.com/OpenBoardView/OpenBoardViewComment
-
Re: need schematic for DELL P69G001 board SL KBL-R A00 17810-1 28JF7 or identify IC
what a stupid marking on that schemaComment
-
Comment
-
Re: need schematic for DELL P69G001 board SL KBL-R A00 17810-1 28JF7 or identify IC
its not the same schematic, i need sl kbl -r A00 17810-1 28JF7 SCHEMATICComment
-
Re: need schematic for DELL P69G001 board SL KBL-R A00 17810-1 28JF7 or identify IC
here schematic & boardviewComment
-
The scheme is not completeComment
-
My question pertains to understanding the control circuity inside a Dell PT434 type battery used in Dell E6400, E6410 and other Dell notebooks?
Does anyone have a circuit diagram for the inside of a Dell PT434 battery and/or a description of how the control lines work to control this battery?
My reason for asking is I have a battery which I cannot get to charge beyond 1% in a Dell E6410 or E6400.
The LED bar graph charge indicator on the battery shows one LED lighted when the info button is pressed.
I have tried multiple different Dell power adapters. My Dell... -
Hi all, I've been trying to find some information about this 2024 DELL XPS 9730 Have found absolutely no board views or schematics anywhere.
The laptop suffered some minor water damage around a power mosfet which I cleaned up and replaced. From what I can tell that p channel power mosfet source receives a 12V rail when a power supply is connected but its not passing voltage through the drain.
When I plug in the USB C charger with battery removed I'm drawing .2A at 20V
With battery connected it stays at 5V
Under a thermal camera I can see that this component... -
I would like to share my experience about charging issues with Dell power supplies with the tech community. I am working on a Dell Inspiron 5590, Mainboard 18778-1 with charging problems. The device can be switched on and works so far, only the message appears at startup:
Alert! The AC power adapter wattage and Type cannot be determined. The battery may not change. The System will adjust the performace to match the power available.
The power supply unit is not recognized in the Bios and the charging process is set to "idle". I use original Dell battery, type... -
Hello all,
this is my first post, so if I make mistakes please do not hesitate to point them out, thank you in advance.
I got a Dell Latitude 5420 (Service Tag: 7RFM6D3, Motherboard: GDF40 LA-491P Rev.: 2.0 (A01)) which does not start and I want to repair it. These are the symptoms:
If the laptop is only connected to the AC adapter (battery removed):
When I press the power button, the keyboard backlight and the display backlight are turning on. Caps key light is lightning, but key does not respond to pressing it.
The power/battery... -
I have a Dell Latitude 5530 with a damaged RJ45 network connector. See the attached pictures.
Have already searched on Farnell / Aliexpress / Ebay and had contact with several suppliers on Aliexpress and Ebay, but they cannot deliver this connector.
Is there someone inside the EU, who has these connector(s) or perhaps defective motherboard(s) for these laptop models I have mentioned in the topic title.
Pictures of these boards:
Dell Latitude 5520 https://www.ebay.com/itm/256052956663
Dell Latitude 5530 https://www.ebay.com/itm/125844181534
Dell...
