    About M2ssd Connectors ??

    Hello All. 😀😃😄

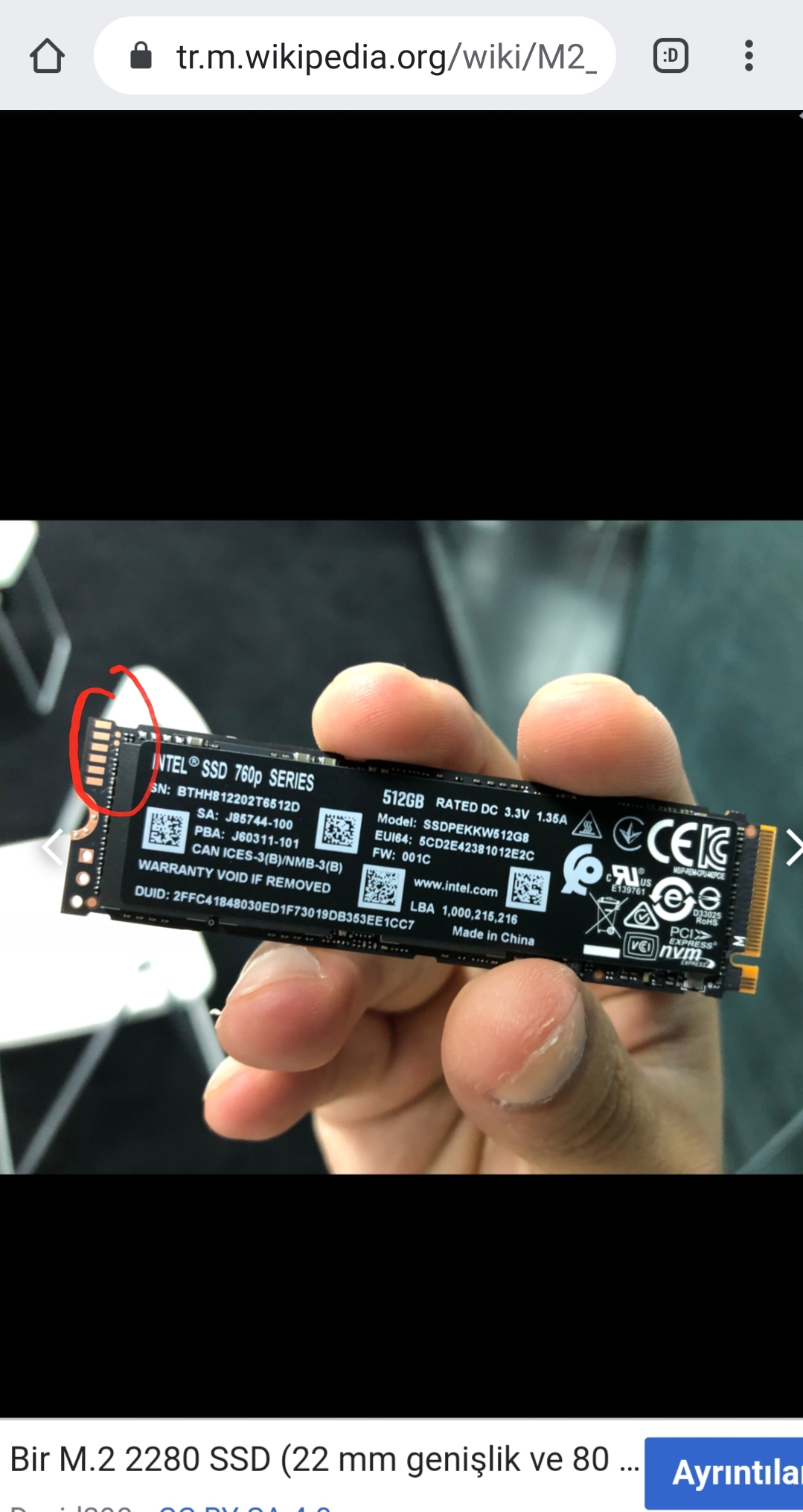

    I saw an 6 or sometimes 5 pin connectors on most of m2ssd 's over on top right side corner of as shown on attached picture which was marked with red circle 😀😃

    I searched web many times but couldn't find any info or datasheet about what is this connectors for ? Or any pinouts about them , are they normal sata connection?? Or for USB connection?? Someboady have any idea or information that what is those connectors for what ??
    Attached Files
    Tags: None
    • KvnTM
      Badcaps Veteran
      • May 2018
      • 434
      • Germany
      #2
      Re: About M2ssd Connectors ??

      I‘d say JTAG to program/debug the controller chip at the manufacturing stage.
