Identify unknown component

[endruw18]

Hello dear forum members!

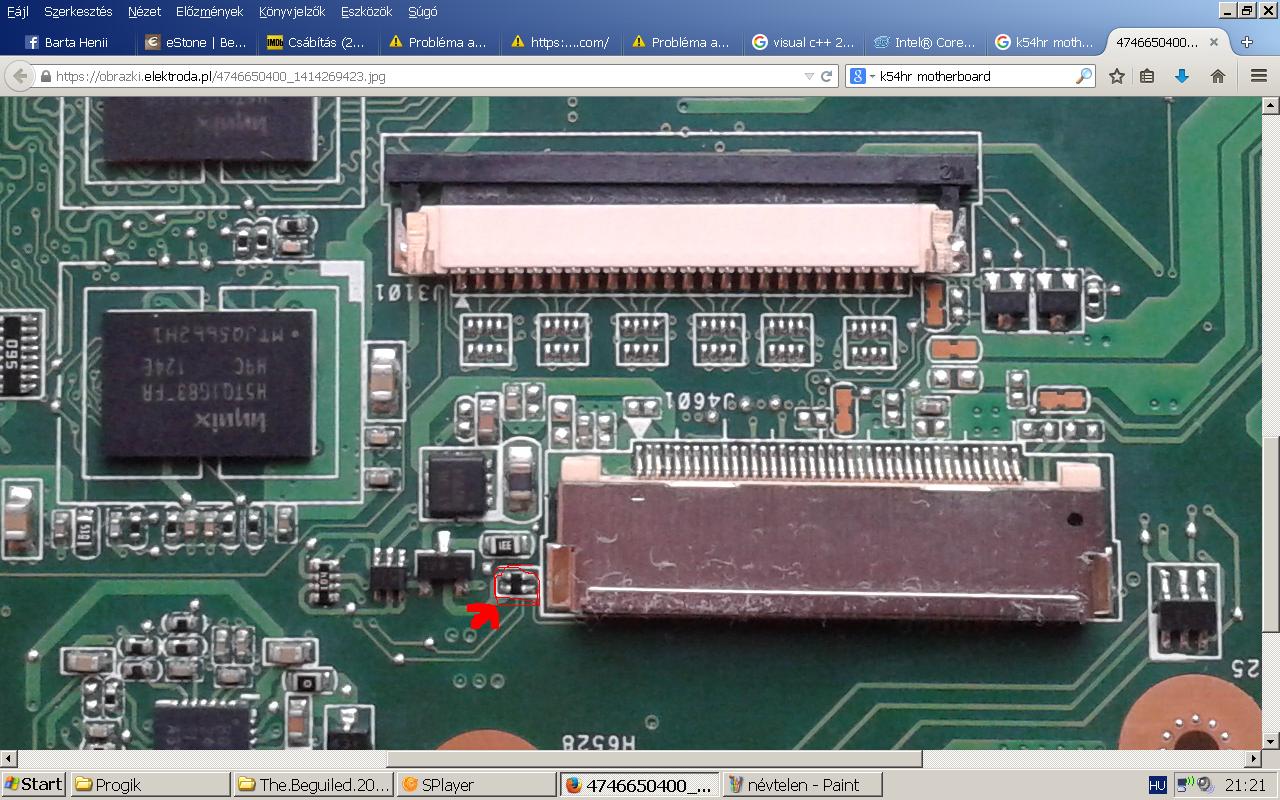

Does anyone has idea about what is this? (circled with red) I think maybe a transistor or some kind of diode.

[meritosari]

Re: Identify unknown component

Resistor Network
RES A 2.2K OHM 1/16W(0402)2R4P TA-I/CN22JTN222

[endruw18]

Re: Identify unknown component

Wow thanks!

But it has 4 legs ,so can I replace it with 2 black same sized resistor?

[meritosari]

Re: Identify unknown component

it has 4 legs ,so can I replace it with 2 black same sized resistor?

Yes, make sure those are same sizes and values (2.2K ohm)

[endruw18]

Re: Identify unknown component

Thanks. But it has no markings ,nor the 4 leg, nor the black little resistors what i desoldered from other board, can you help me find the schematic for that board? It's asus x54 or k54hr. Thank you for your time.

[mcplslg123]

Re: Identify unknown component

Thanks. But it has no markings ,nor the 4 leg, nor the black little resistors what i desoldered from other board, can you help me find the schematic for that board? It's asus x54 or k54hr. Thank you for your time.

Why do you need markings?? Just measure the resistance of the resistor-it should be 2.2k.

[endruw18]

Re: Identify unknown component

I measured i have 2.2k resistor, but how do you know it must be 2.2k? Do you have schematic for this board? Because i measured all similar components and they are 4.7k resistors.

[meritosari]

Re: Identify unknown component

I measured i have 2.2k resistor, but how do you know it must be 2.2k? Do you have schematic for this board? Because i measured all similar components and they are 4.7k resistors.

Asus schematic only few present, many only for old mobo, AFAIK for new model (2010-2014 )only UX31A2, X552MD,K72JK,N73SV. Others usually only boardview. without labeling on PCB for part component even have schematic, hard to trace any line.

Sadly have boardview but can't share for badcaps forum ( I'll eliminated from russian forum).

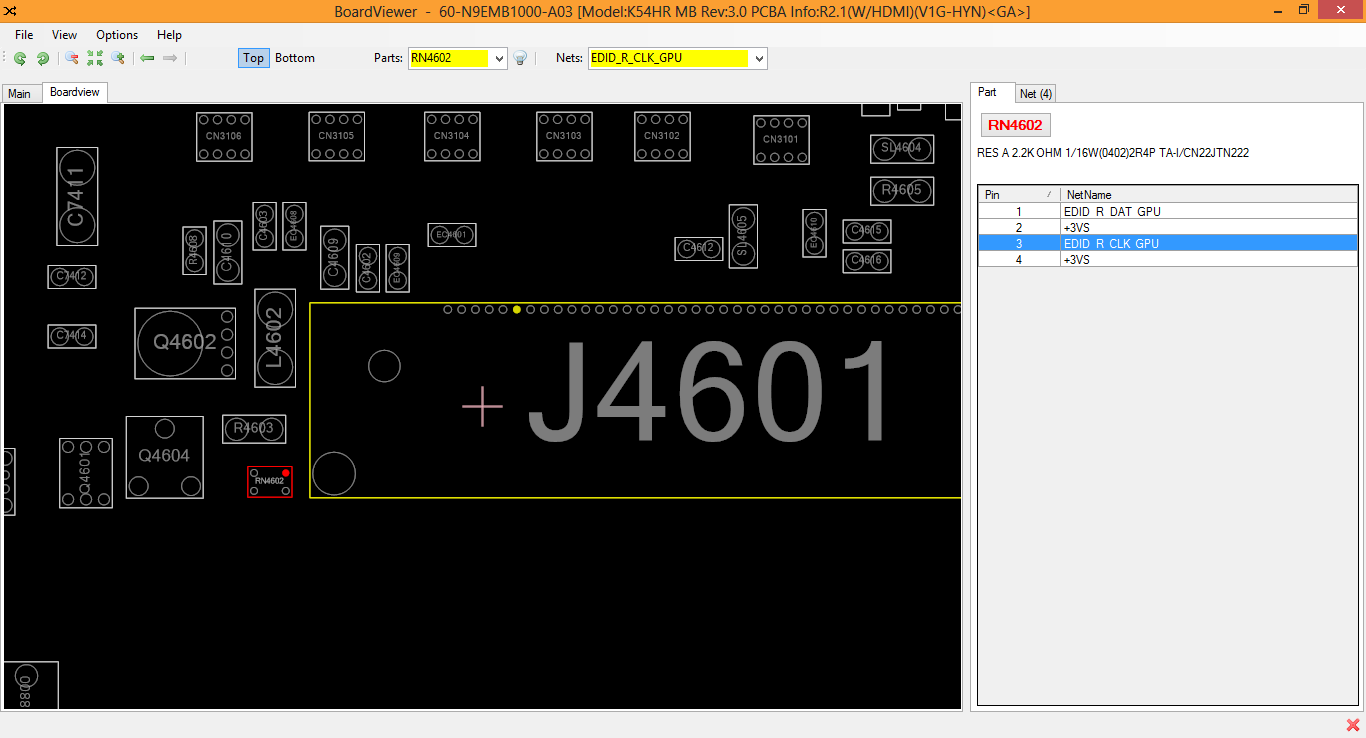

Anyway, only screen shoot

[endruw18]

Re: Identify unknown component

Thank you for your help. Can you send me the boardview ofthis motherboard to my email:endruw18@gmail.com ?

[endruw18]

Re: Identify unknown component

The r4603 resistor is how many ohm? Can you send me the boardview?
