    MSI GF63 MS-16W21 - Black Screen LCD - Working HDMI

    Hello,
    I have an MSI GF63 laptop with a MS-16W21 motherboard on my table, and there is no image on the LCD screen. However, when connected via HDMI, the image displays correctly.

    Voltages on the EDP 40-pin connector pins:

    3pin = 012V,
    5pin = 1.75V,
    6 pin = 5V,
    7 PIN = 3.3V
    32 PIN = 2.2V
    33 - 36 PIN = 3.3V
    38-40PIN - 19V

    PU21 - MP2143

    1 - 5V
    2 - 5V
    3 - 3.3V
    4 - 0V
    5 - 3.3V
    6 - 0V
    7 - 0.6V
    8 - 3.3

    Help me please

    #2
    Help me please

    Comment


      #3
      Measure voltage on pin14/15 of edp connector.
      Is it dimm display issue or no display issue on internal screen?
      The measurement given are for PU21 or PU22?
      Last edited by mcplslg123; 03-24-2025, 11:13 PM.

      Comment


        #4
        EDP

        14 - 0V
        15 - 0V

        PU21

        Laptop working HDMI

        Comment


          #5
          I had no way to test the matrix on another laptop, I ordered a new original one for MSI. The effect is the same, no image. The voltage +3V_LCD appears for a moment and drops to 0V

          Comment


            #6
            Dont have the exact boardview/schematic for this model in my database. I beleive PU21 is responsible for generating +3V_LCD. If yes, then there should be a coil nearby PU21 where this +3V_LCD goes.
            Try de soldering this coil and measre resistance to GND on both sides of this coil( on the IC side+ on the edp side).
            Share the values.

            Comment


              #7
              IC 7.5kohm / edp 8kohm - replacement MP2143 , +3V_LCD will appear for a moment and then drop to 0

              Comment


                #8
                What are the full topside markings on PU22 (drives the power rail to the LCD)?

                Post a clear pic of this part. Have only the boardview file for this model. Would you have a full schematic?

                If you are also missing the image then there may be a mux (multiplexer) that steers the data from the graphics processor to HDMI or this target LCD.

                Comment


                  #9

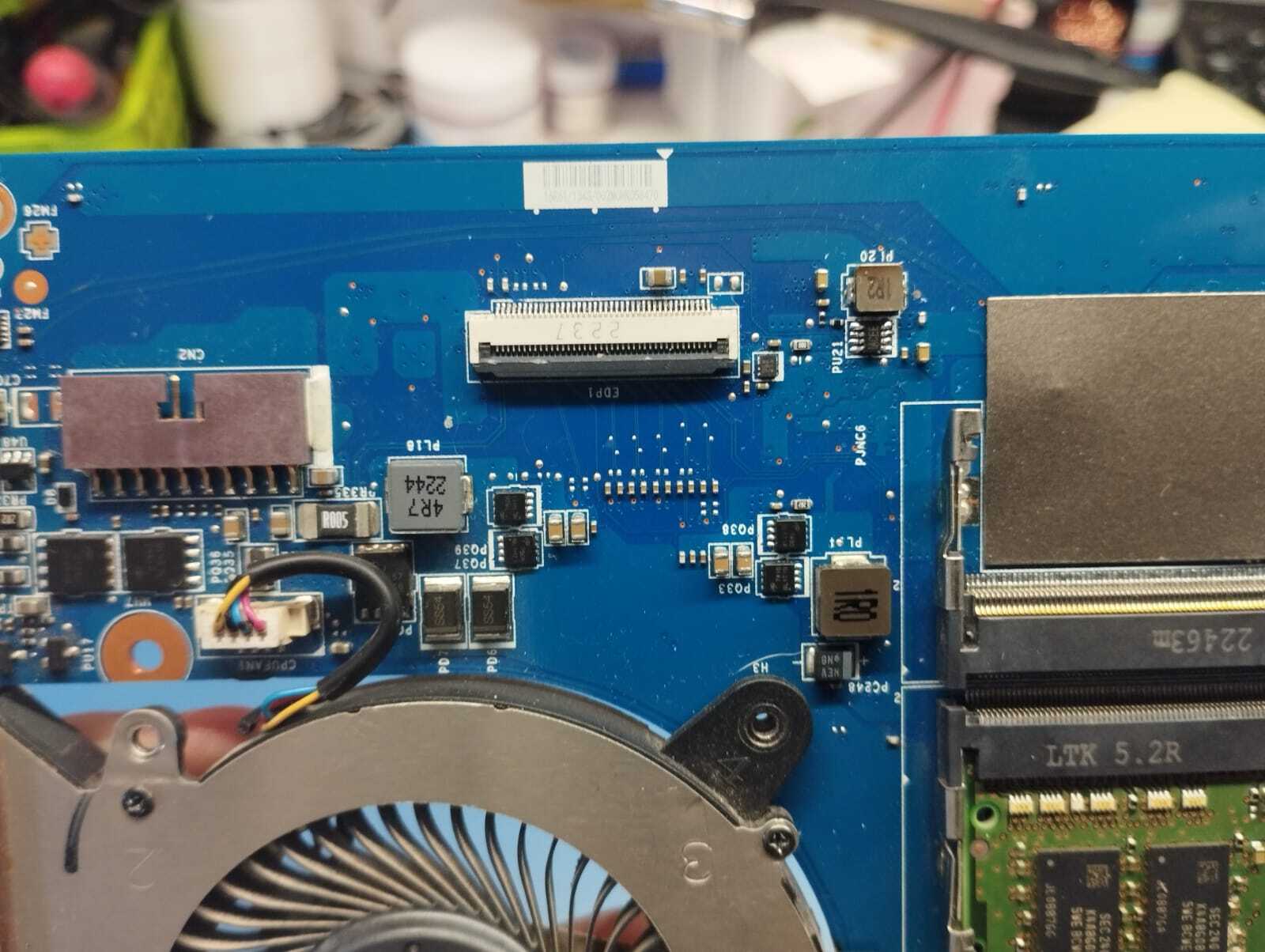

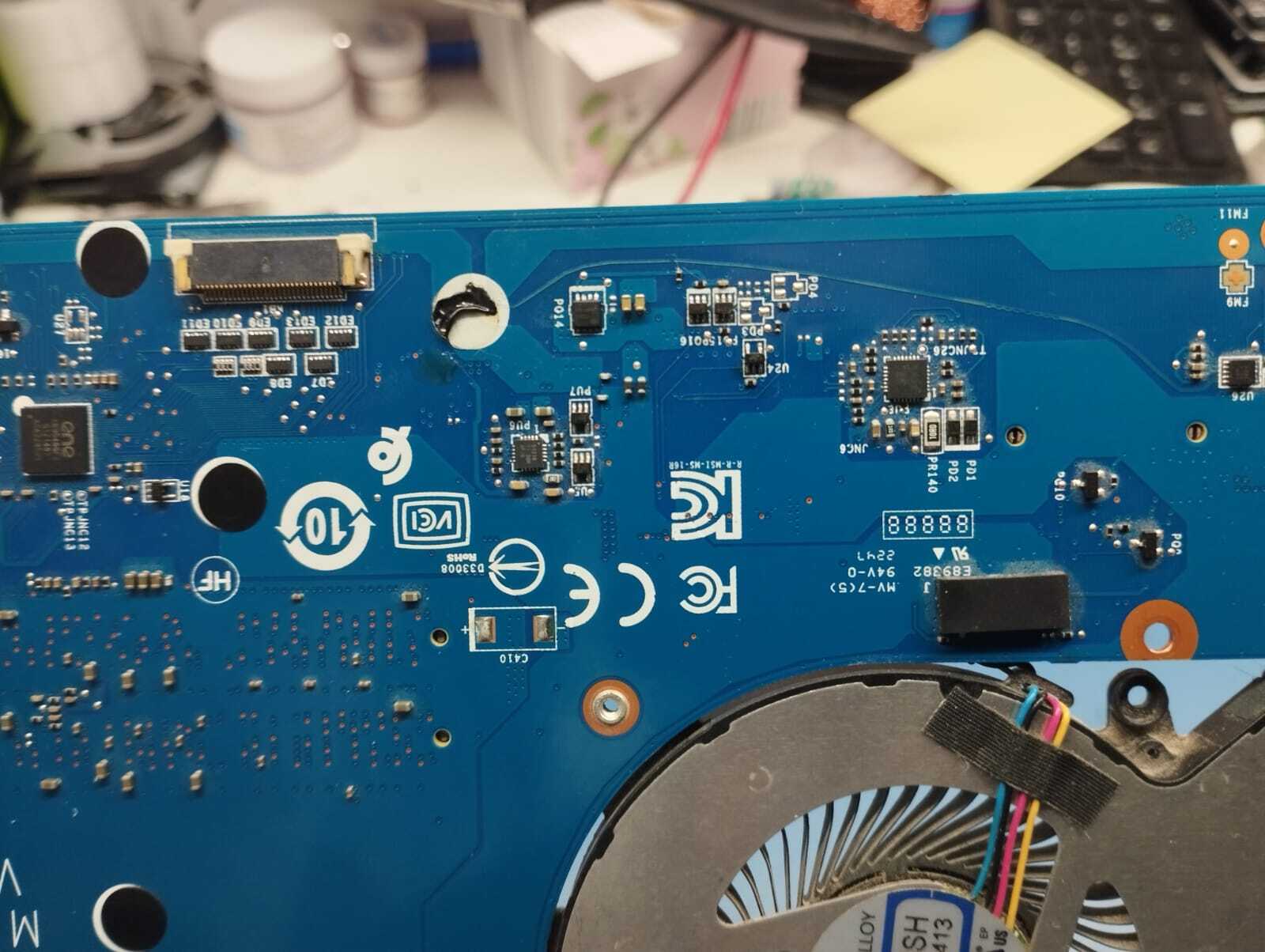

                  I am posting a photo - PU21 system, as a precaution I did a PCH reflow, programmed the BIOS.
                  Attached Files

                  Comment


                    #10
                    the signal EDP_OD# is from the KBC kb9548qf2 BGA chip, shouldn't it be 3V?

                    Comment


                      #11
                      De-solder PL20 and inject 3V on edp connector side from another source. Do you get display?

                      Comment


                        #12
                        Check also the lid sensor at the back of your display connector which is U24 that gives +3valw and backlight on

                        Comment


                          #13
                          On the PL20 coil I have a constant voltage of 3.3V all the time, on U24 I have +3VALW, U21 pin 4 - BL-ON 0V.
