    FPD2485W - Fried Circuit board

    Hello everyone

    My monitor suddenly stopped working with a little smoke coming from the back,

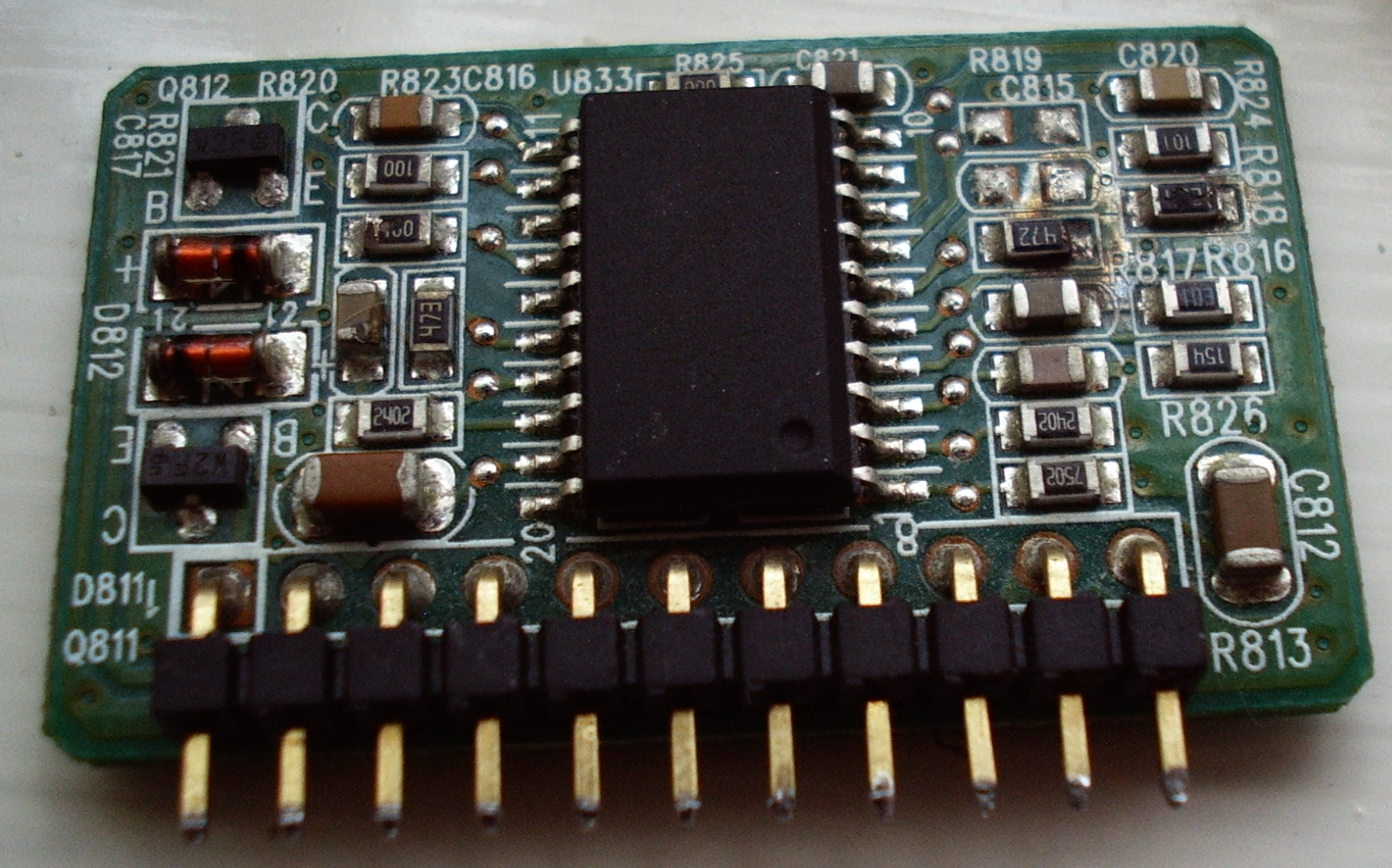

    inside on the powerboard there is a small circuit board with some burnt up and missing smd resistors and capacitors.
    I also found a mosfet (2761I) to be shorted (which i think might have caused the damage) and a large Capacitor which had burnt up badly.

    I didn't notice any of these little black resistors loose in the case so i assume they've been disintegrated or just fell out without me noticing.
    But i do believe they where there according to other people's pictures i've looked at.

    Does anyone just happen the have one of these power boards handy so you could take a picture of it for me?
    Attached Files
    Tags: None
    • dumpystig
      Badcaps Veteran
      • Jul 2011
      • 485
      • UK
      #2
      Re: FPD2485W - Fried Circuit board

      The cap @ centre left looks goosed too. Also I would say that the two sets of pads (R819, C815?) were probably vacant at manufacture.
