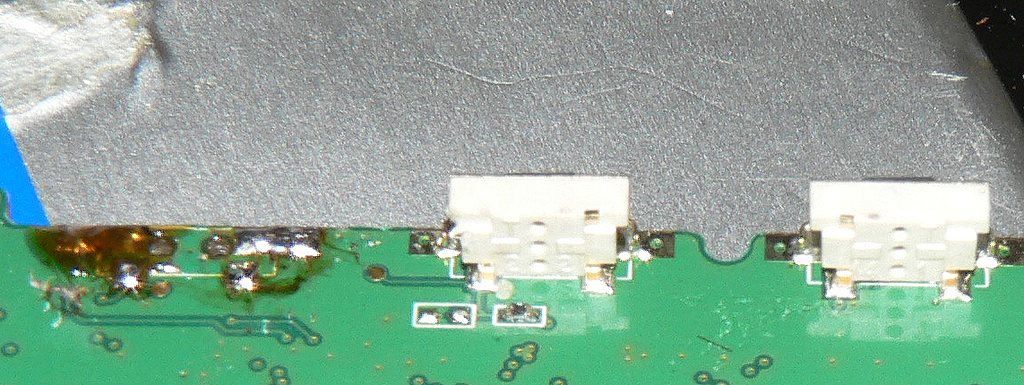

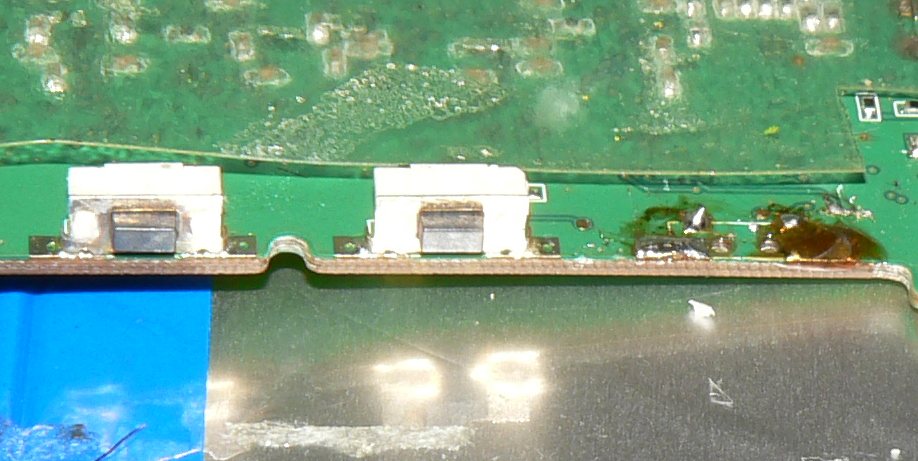

    Looking for yet another tacticle SMD switch

    After previous sucessfull search (the MP3 is back in operation…well, after resoldering the switch 3 times it almost does not hold in there while being pushed hard), I am looking for another SMD switch, this time for Point of View tablet. Check images for reference.

    The problem is, it measures aprox. 11 (12 with the metal plate) x 2.3 x 3.7 mm (W x D x H) and is right-angled. I have not seen anything like that, there are tons of 6mm switches everywhere.

    I may be able to use switch which has contacts aprox. 4 mm far, but those through-hole plastic pins (which help to hold in in place) are aprox. 2.5 mm far. Any idea?
    Attached Files
    Less jewellery, more gold into electrotech industry! Half of the computer problems is caused by bad contacts

    Exclusive caps, meters and more!
    Hardware Insights - power supply reviews and more!
  • stj
    Great Sage 齊天大聖
    • Dec 2009
    • 30978
    • Albion

    #2
    Re: Looking for yet another tacticle SMD switch

    it looks like it can take a throughhole version - how about a topdown foto?

    Comment

    • Behemot
      Badcaps Legend
      • Dec 2009
      • 4845
      • CZ

      #3
      Re: Looking for yet another tacticle SMD switch

      Through hole? How? That won't hold for long.
      Less jewellery, more gold into electrotech industry! Half of the computer problems is caused by bad contacts

      Exclusive caps, meters and more!
      Hardware Insights - power supply reviews and more!

      Comment

      • tom66
        EVs Rule
        • Apr 2011
        • 32560
        • UK

        #4
        Re: Looking for yet another tacticle SMD switch

        Why not? Through hole has greater mechanical strength than surface mount.
        Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
        For service manual, schematic, boardview (board view), datasheet, cad - use our search.

        Comment

        • newtothis
          Badcaps Legend
          • Mar 2013
          • 1556
          • england

          #5
          Re: Looking for yet another tacticle SMD switch

          Indeed, A through hole will actually be stronger.

          Though... You are saying it is not strong enough.... Now unless the pads are lifting then it is the soldering joint that is failing... This is a fault with your soldering not the switch
          Last edited by newtothis; 04-20-2015, 05:18 PM.

          Comment

          • Behemot
            Badcaps Legend
            • Dec 2009
            • 4845
            • CZ

            #6
            Re: Looking for yet another tacticle SMD switch

            It has only two contacts, I doubt it will be better than four solder tabs. Besides, it may tear off a layer of the PCB itself.

            Anyway, owner took the tablet away that it's not worth looking for the switch so I don't need it anymore…but if someone runs into these switches, post it here, may be good for next time.

            newtothis: yeah I soldered it better the third time, hopefully. But it is design flaw anyway, that particular switch in that MP3 gets toren off way too often. IIRC, this MP3 has been RMA'd with this problem two times while still under warranty and than I got it some time later with bad navigation switch, too. It'S in stupid place right next to a connector so you cannot even solder in there properly.
            Last edited by Behemot; 04-21-2015, 03:41 AM.
            Less jewellery, more gold into electrotech industry! Half of the computer problems is caused by bad contacts

            Exclusive caps, meters and more!
            Hardware Insights - power supply reviews and more!

            Comment

            • newtothis
              Badcaps Legend
              • Mar 2013
              • 1556
              • england

              #7
              Re: Looking for yet another tacticle SMD switch

              Take it the tracks didn't flow through to the underside of the board then?

              I take it you were using an iron to solder them?

              Comment

              • stj
                Great Sage 齊天大聖
                • Dec 2009
                • 30978
                • Albion

                #8
                Re: Looking for yet another tacticle SMD switch

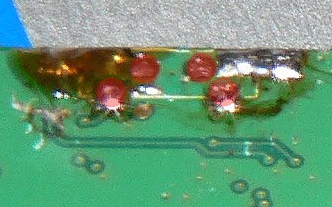

                there arent 2 through-holes in that photo, there are 4.

                Comment

                • newtothis
                  Badcaps Legend
                  • Mar 2013
                  • 1556
                  • england

                  #9
                  Re: Looking for yet another tacticle SMD switch

                  There are 2 plus one from a track.

                  Comment

                  • ben7
                    Capaholic
                    • Jan 2011
                    • 4059
                    • USA

                    #10
                    Re: Looking for yet another tacticle SMD switch

                    Had a bit of time to kill, but it didn't take more than a minute or two to find this:
                    https://cdn.badcaps-static.com/pdfs/...e0f642db9f.pdf
                    http://www.mouser.com/ProductDetail/...52boN6ltMN0%3d

                    If possible, I would probably put some sort of thing behind the switch (glue it on) to give it more strength.
                    Last edited by ben7; 04-21-2015, 05:47 AM.
                    Muh-soggy-knee

                    Comment

                    • stj
                      Great Sage 齊天大聖
                      • Dec 2009
                      • 30978
                      • Albion

                      #11
                      Re: Looking for yet another tacticle SMD switch

                      think so?
                      Attached Files

                      Comment

                      • stj
                        Great Sage 齊天大聖
                        • Dec 2009
                        • 30978
                        • Albion

                        #12
                        Re: Looking for yet another tacticle SMD switch

                        a bit like this:
                        http://www.rapidonline.com/electroni...e-switch-77306

                        Comment

                        • Behemot
                          Badcaps Legend
                          • Dec 2009
                          • 4845
                          • CZ

                          #13
                          Re: Looking for yet another tacticle SMD switch

                          …through-hole plastic pins (which help to hold it in place)
                          Less jewellery, more gold into electrotech industry! Half of the computer problems is caused by bad contacts

                          Exclusive caps, meters and more!
                          Hardware Insights - power supply reviews and more!

                          Comment

                          • ben7
                            Capaholic
                            • Jan 2011
                            • 4059
                            • USA

                            #14
                            Re: Looking for yet another tacticle SMD switch

                            All three posts above ^^^ have me very confused
                            Muh-soggy-knee

                            Comment

                            • Behemot
                              Badcaps Legend
                              • Dec 2009
                              • 4845
                              • CZ

                              #15
                              Re: Looking for yet another tacticle SMD switch

                              I have no idea what stj is trying to say either.

                              Anyway, those switches you found are too small, the original ones are 11-12 mm, yours are only 6,9 mm. I already stated there are shitloads of 6mm switches, but I have found nothing as wide as 12 mm.
                              Less jewellery, more gold into electrotech industry! Half of the computer problems is caused by bad contacts

                              Exclusive caps, meters and more!
                              Hardware Insights - power supply reviews and more!

                              Comment

                              • ben7
                                Capaholic
                                • Jan 2011
                                • 4059
                                • USA

                                #16
                                Re: Looking for yet another tacticle SMD switch

                                Originally posted by Behemot
                                I have no idea what stj is trying to say either.


                                Originally posted by Behemot
                                Anyway, those switches you found are too small, the original ones are 11-12 mm, yours are only 6,9 mm. I already stated there are shitloads of 6mm switches, but I have found nothing as wide as 12 mm.
                                Darn! I could've sworn they were the right size .. oh well xD
                                Muh-soggy-knee

                                Comment
