Tried googling for them but came upl with nothing. pls help guys
-
Guns don't solve problems. I'll take 12
-
Re: KZCJ and Yec Datasheets pls
Is KZCJ some odd-ball brand or a series?
.
What flavor of YEC are you looking for?
.Mann-Made Global Warming.
- We should be more concerned about the Intellectual Climate.
-
Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.
- Dr Seuss
-
You can teach a man to fish and feed him for life, but if he can't handle sushi you must also teach him to cook.
-
-
Re: KZCJ and Yec Datasheets pls
KZCJ I guess is some odd-ball brand as you say, only markings are 470uf 16v 105C no date code no nothing.
Yec are blue lytics 470uf 25v SH105C and on the back of the cap are two numbers
61 and 11Guns don't solve problems. I'll take 12Comment
-
Re: KZCJ and Yec Datasheets pls
YEC quit making caps except for two series.
I have some old catalogs on file.
They didn't do a data sheet for each series. - Crammed them all into one giant PDF.
Too big to upload. - Will take a look.
.Mann-Made Global Warming.
- We should be more concerned about the Intellectual Climate.
-
Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.
- Dr Seuss
-
You can teach a man to fish and feed him for life, but if he can't handle sushi you must also teach him to cook.
-
Comment
-
Re: KZCJ and Yec Datasheets pls
Their SH series are GP caps.
The 470 25v SH shows as 10x16mm.
Ripple is 440mA at 120Hz.
.
The correction factor for over 10kHz is 1.20 so Ripple at 100kHz would be 528mA.
.Last edited by PCBONEZ; 02-11-2012, 09:35 AM.Mann-Made Global Warming.
- We should be more concerned about the Intellectual Climate.
-
Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.
- Dr Seuss
-
You can teach a man to fish and feed him for life, but if he can't handle sushi you must also teach him to cook.
-
Comment
-
Re: KZCJ and Yec Datasheets pls
Thanks for the quick reply!! Really helped me alot. Do you know where can I download the complete Yec datasheet?Guns don't solve problems. I'll take 12Comment
-
Re: KZCJ and Yec Datasheets pls
Not online anymore AFAIK.
It's 3.57 MB and I don't think it will upload, but I'll try.
.
Upload failed 3 times.
.
BCN has a java glitch that TC hasn't been able to figure out.
[I'm not the only one that has mentioned the problem.]
What happens is it keeps logging me out via some kind of time-out....
I start the upload and I get logged out before it finishes so the upload fails.
~ Or at least that's what appears to happen.
.
See:

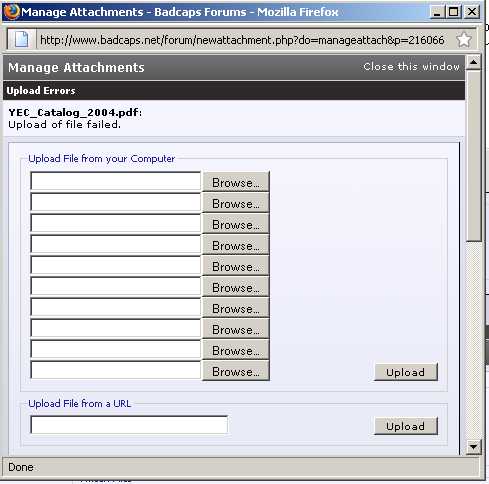

.Attached FilesLast edited by PCBONEZ; 02-11-2012, 11:08 AM.Mann-Made Global Warming.
- We should be more concerned about the Intellectual Climate.
-
Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.
- Dr Seuss
-
You can teach a man to fish and feed him for life, but if he can't handle sushi you must also teach him to cook.
-
Comment
-
-
Re: KZCJ and Yec Datasheets pls
PC - Do you have a place where you can FTP it to? Then you can use the "Upload File from a URL" function of Manage Attachments.
If not, email the sheet to me and I'll do it.
I noted this problem long ago after TC did the increase in file sizes, but it was never acknowledged. IIRC, PDF's from your computer won't work if they are ~1.2 MB in size or more. It times out.
Toast
Correction: Just tried it again and it's around 1.77MB / 1,880KB.
Tried from FF 3.6 and IE8
EDIT # 3: Found the SH cap sheet! WTH did I get this from...?
Recent file date on the computer too, 1/23/2012....?
.Last edited by Toasty; 02-11-2012, 11:30 AM.veritas odium paritComment
-
Re: KZCJ and Yec Datasheets pls
I did until about a week ago.
Just canceled by hosting because it was up for renewal.
[In about a week they'll offer me like 30% off to come back...]
.
[EDIT]
Actually they offered the 30% 3 days after I fired them.
I figure I'll wait until next payday and see if they offer me more off.
I'm the cheapest skate on the block when it come to things like that...
.Last edited by PCBONEZ; 02-11-2012, 12:00 PM.Mann-Made Global Warming.
- We should be more concerned about the Intellectual Climate.
-
Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.
- Dr Seuss
-
You can teach a man to fish and feed him for life, but if he can't handle sushi you must also teach him to cook.
-
Comment
-
Re: KZCJ and Yec Datasheets pls
That's the problem I've posted about multiple times. The attachment window says that PDF files of up to 9.54MB can be uploaded, but in reality, the limit is 1.91MB just like for some other file types (RAR, PNG, etc.) for some strange reason.
If temporary storage is enough for now, you could use my own little upload thingy on the paid webspace I'm sharing with my brother.
Don't worry about the "error trying to get progress data" when you click on "upload". I somehow screwed something in the script up while translating the whole upload thing from German to English. Just click OK and it'll upload it regardless.
http://upload.djevolution.de
Max. 5MB, files are kept for 90 days. I could move the file elsewhere on the server to make it permanent.
Comment
-
Re: KZCJ and Yec Datasheets pls
Most of these links appear to actually work.
http://web.archive.org/web/200709180...oducts-1-3.asp
The one for SH series does anyway.
https://cdn.badcaps-static.com/pdfs/...7890888307.pdfLast edited by PCBONEZ; 02-11-2012, 11:59 AM.Mann-Made Global Warming.
- We should be more concerned about the Intellectual Climate.
-
Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.
- Dr Seuss
-
You can teach a man to fish and feed him for life, but if he can't handle sushi you must also teach him to cook.
-
Comment
-
Mann-Made Global Warming.
- We should be more concerned about the Intellectual Climate.
-
Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.
- Dr Seuss
-
You can teach a man to fish and feed him for life, but if he can't handle sushi you must also teach him to cook.
-
Comment
-
Re: KZCJ and Yec Datasheets pls
You mean like the one I uploaded in Post 8...????
veritas odium paritComment
-
Re: KZCJ and Yec Datasheets pls
Found the file I was trying to upload online.
Was listed as 'untitled' which helped a lot.
Mann-Made Global Warming.
- We should be more concerned about the Intellectual Climate.
-
Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.
- Dr Seuss
-
You can teach a man to fish and feed him for life, but if he can't handle sushi you must also teach him to cook.
-
Comment
-
Re: KZCJ and Yec Datasheets pls
Yeah but that link has the rest of them too.
I only found 2 links that don't work.
.
But people better grab the files now because it looks like they are only there because YEC forgot to clean out their profile at hinet.net when they quit making those caps.
.Mann-Made Global Warming.
- We should be more concerned about the Intellectual Climate.
-
Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.
- Dr Seuss
-
You can teach a man to fish and feed him for life, but if he can't handle sushi you must also teach him to cook.
-
Comment
-
Re: KZCJ and Yec Datasheets pls
Uploaded here, for posterity.
YEC 2004 Aluminum Electrolytic Capacitor Catalog from 2004 - Jian Long Electronic (Bao An) Co., LTD.
There. That's enough tag words.
UPDATE: The files on the Wayback web.archive.org site are just extracted pages from the big 2004 catalog. Note the filenames such as YHLP57-P59.pdf are the YHL series, found on pages 57-59.
.Last edited by Toasty; 02-11-2012, 03:16 PM.veritas odium paritComment
-
Re: KZCJ and Yec Datasheets pls
Thanks for the Yec Datasheet guys, any word on the KZCJ caps?Guns don't solve problems. I'll take 12Comment
-
Re: KZCJ and Yec Datasheets pls
Nope.
I couldn't find anything on those.
.Mann-Made Global Warming.
- We should be more concerned about the Intellectual Climate.
-
Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.
- Dr Seuss
-
You can teach a man to fish and feed him for life, but if he can't handle sushi you must also teach him to cook.
-
Comment
-
Re: KZCJ and Yec Datasheets pls
They aren't -in- the Wayback archive.Uploaded here, for posterity.
YEC 2004 Aluminum Electrolytic Capacitor Catalog from 2004 - Jian Long Electronic (Bao An) Co., LTD.
There. That's enough tag words.
UPDATE: The files on the Wayback web.archive.org site are just extracted pages from the big 2004 catalog. Note the filenames such as YHLP57-P59.pdf are the YHL series, found on pages 57-59.
.
Wayback just has -links- to an another site where they haven't been deleted yet.
That means they can go *poof* at any moment.
.Last edited by PCBONEZ; 02-11-2012, 04:06 PM.Mann-Made Global Warming.
- We should be more concerned about the Intellectual Climate.
-
Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.
- Dr Seuss
-
You can teach a man to fish and feed him for life, but if he can't handle sushi you must also teach him to cook.
-
Comment
-
Re: KZCJ and Yec Datasheets pls
If you are looking to replace the KZCJ, it would help if dimensions, what they're in, and their usage or application were given.
May not be able to get you a datasheet, but a replacement should be easy.
Are they by any chance double-sleeved?veritas odium paritComment
-
