where can i find a schematic diagram for a defcon b159-001 power supply that has all the voltages its a sanyo/pansonic set and i believe the psu is stuck everything on board looks good just dont know what volts are suppose to be were.. Help
-
-
Re: b159-001 psu
Can we get a lot more details as to what we are dealing with?
Make and model of the unit.
Pictures showing how all the boards are connected together.
Pictures of this power supply board.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809 -
Re: b159-001 psu
its a sanyo dp42720-04. no led indacator on front. when pluged in all set does is clicks several times and then the screen grows. power switch does nothing. changed out the board (should be logic board) connects lvds cable to y main still same problem. only way to get rid of screen glow is to disco power from this board (tnpa5305) i'm sure psu is working just don't think its working right. this set has an analog and digital board connected and and even disconnecting the lvds cable from the digatal board still have screen glow that board should not power up until told to, i'm i right in thinking thisComment
-
Re: b159-001 psu

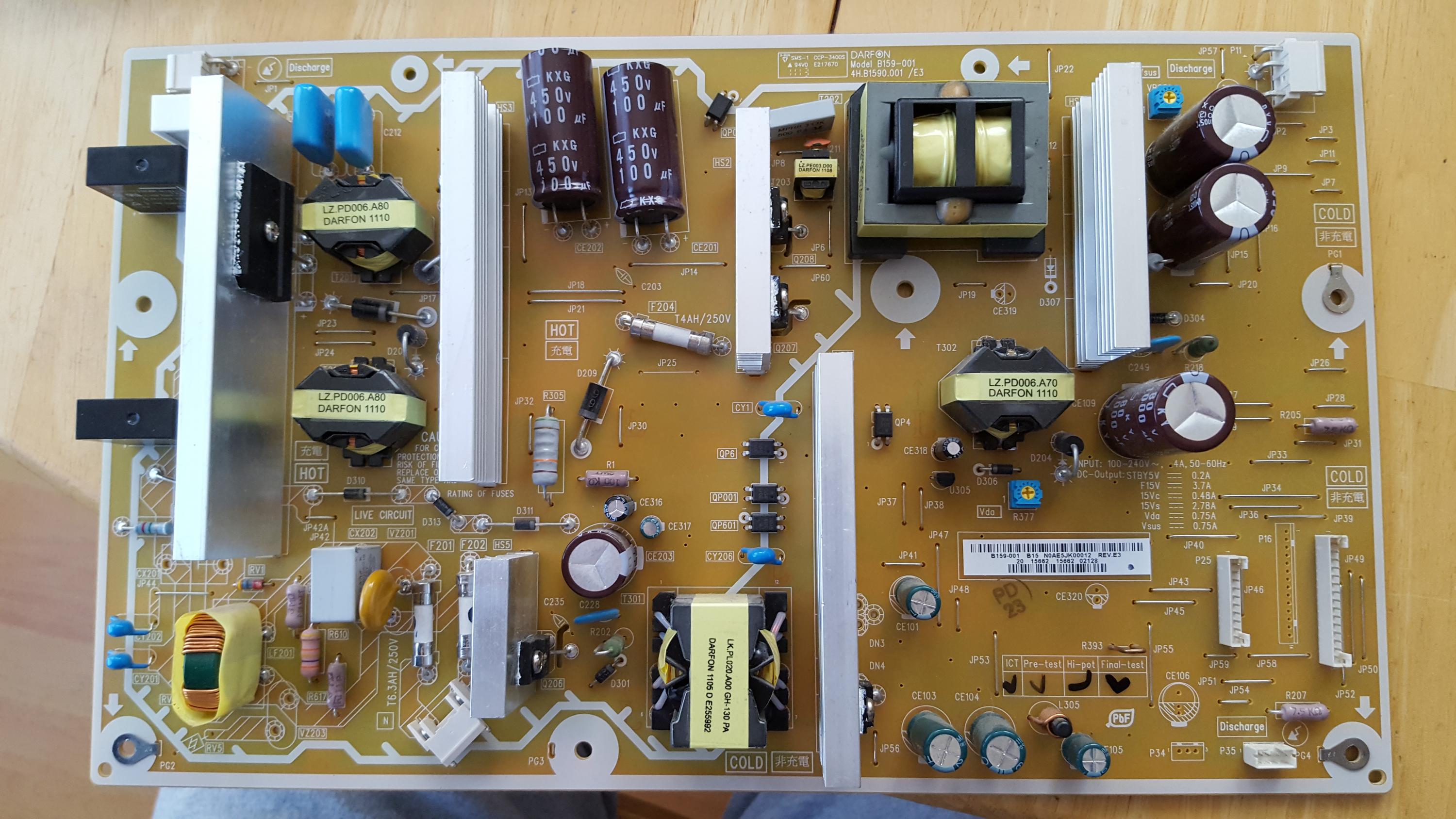

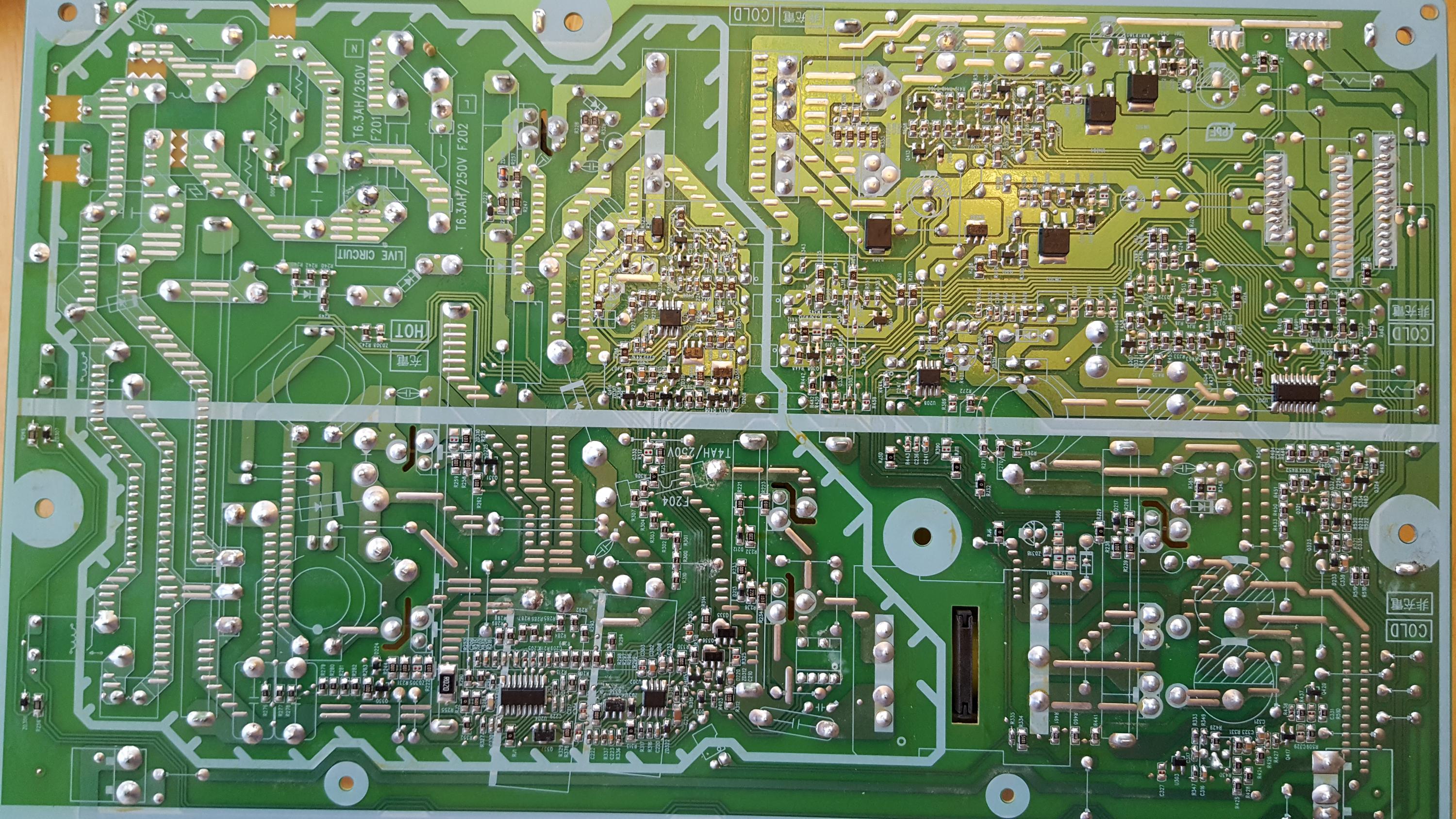

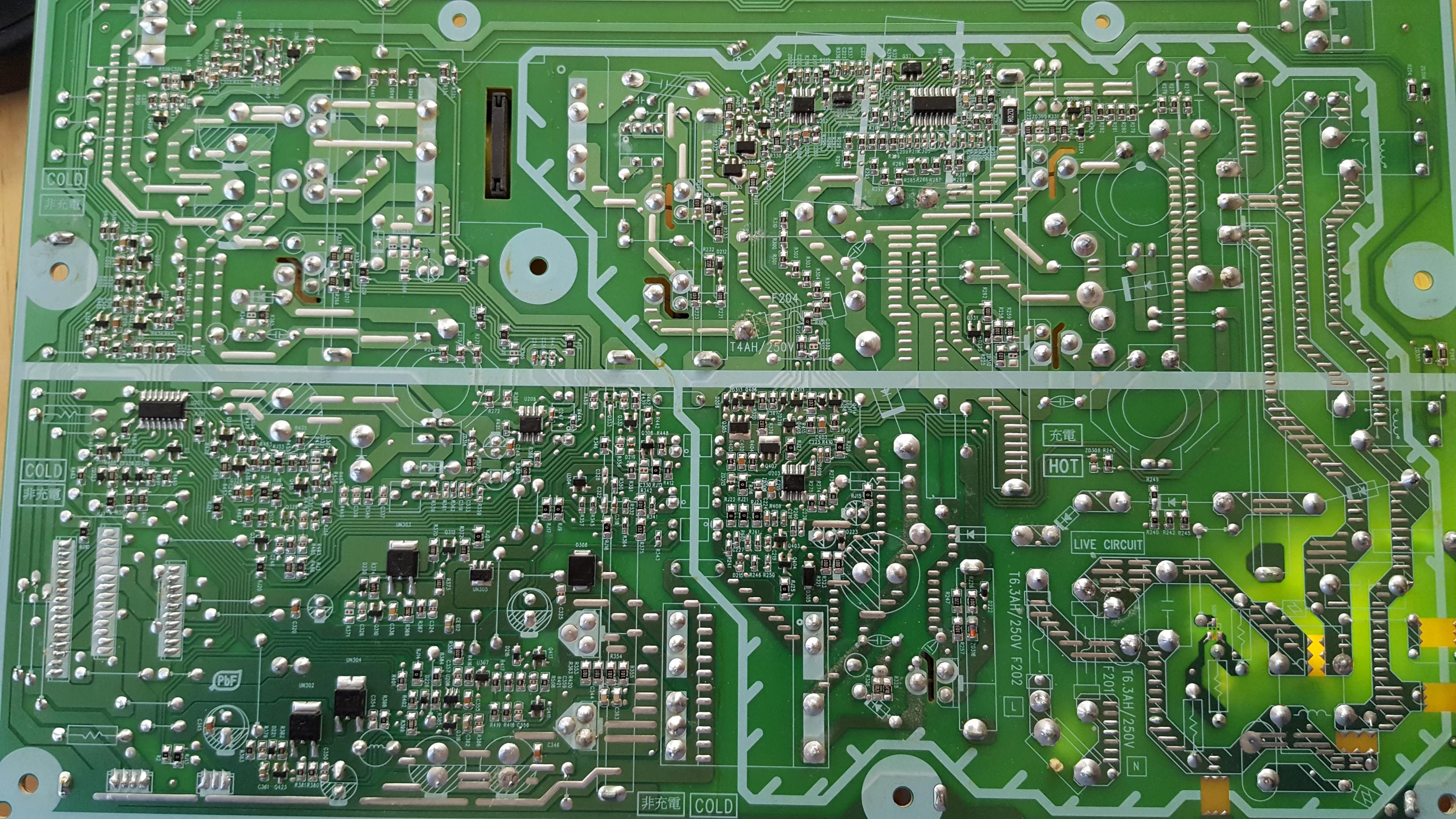

These are the psu picsAttached FilesComment
-
-
Re: b159-001 psu

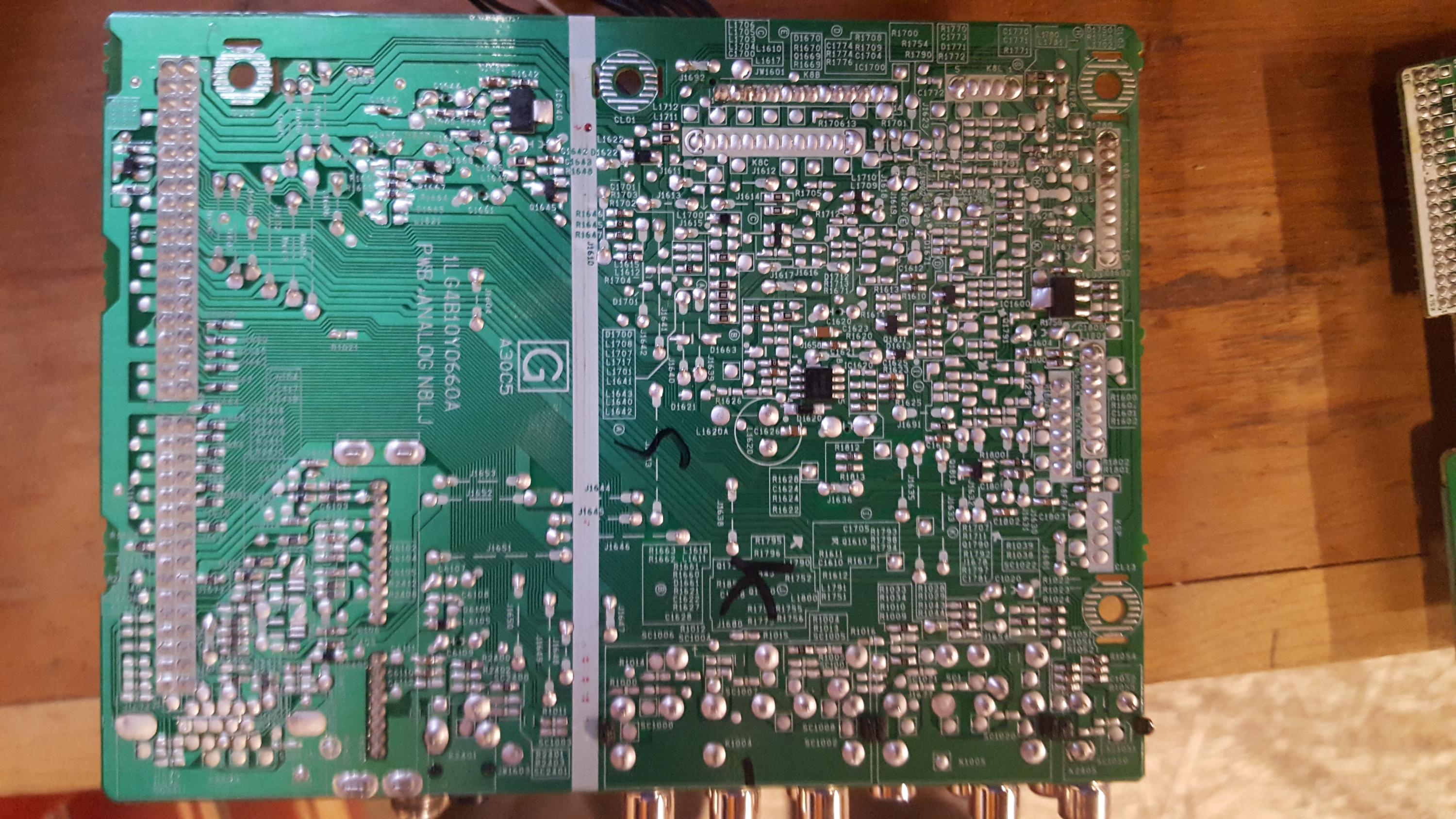

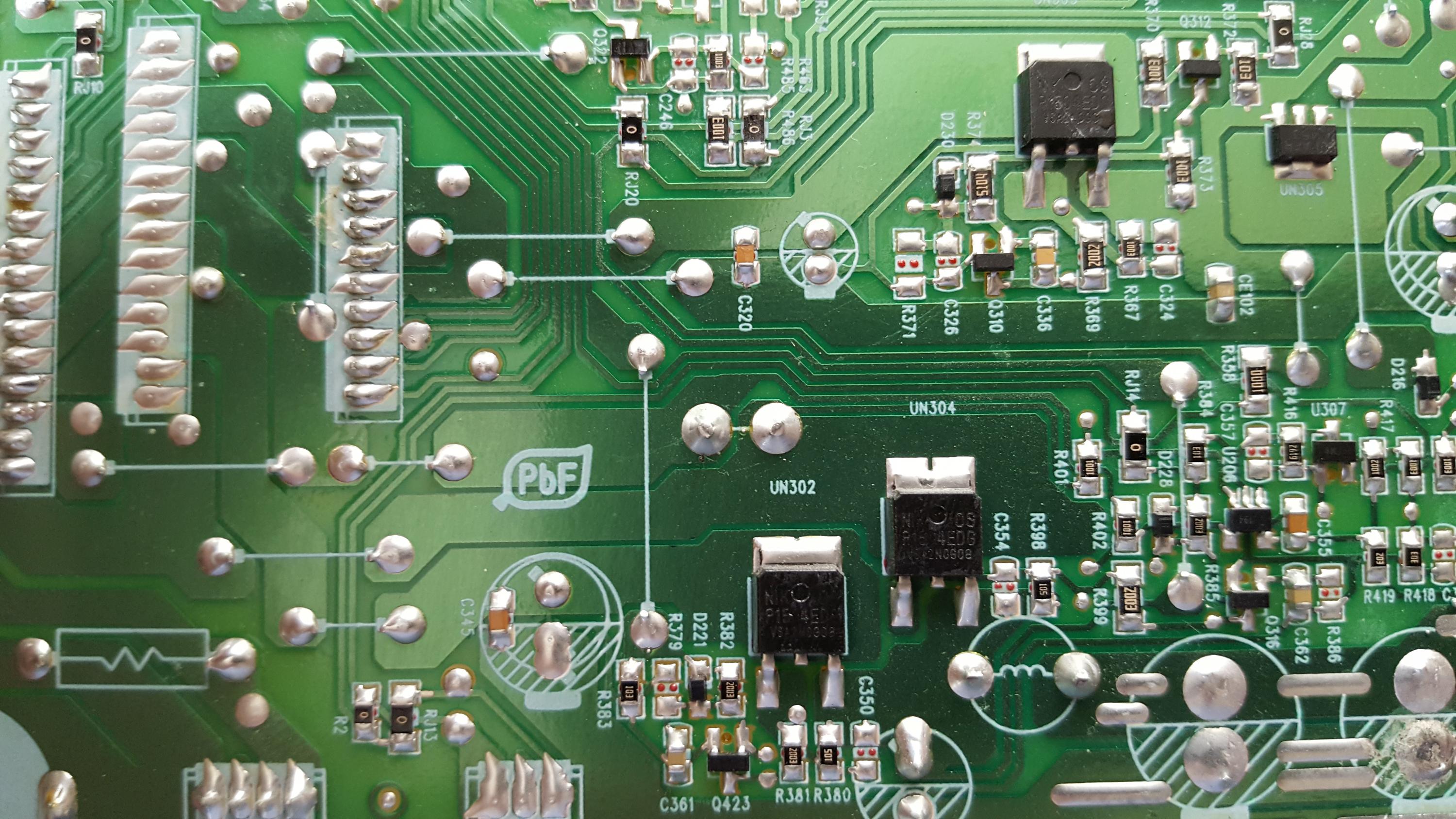

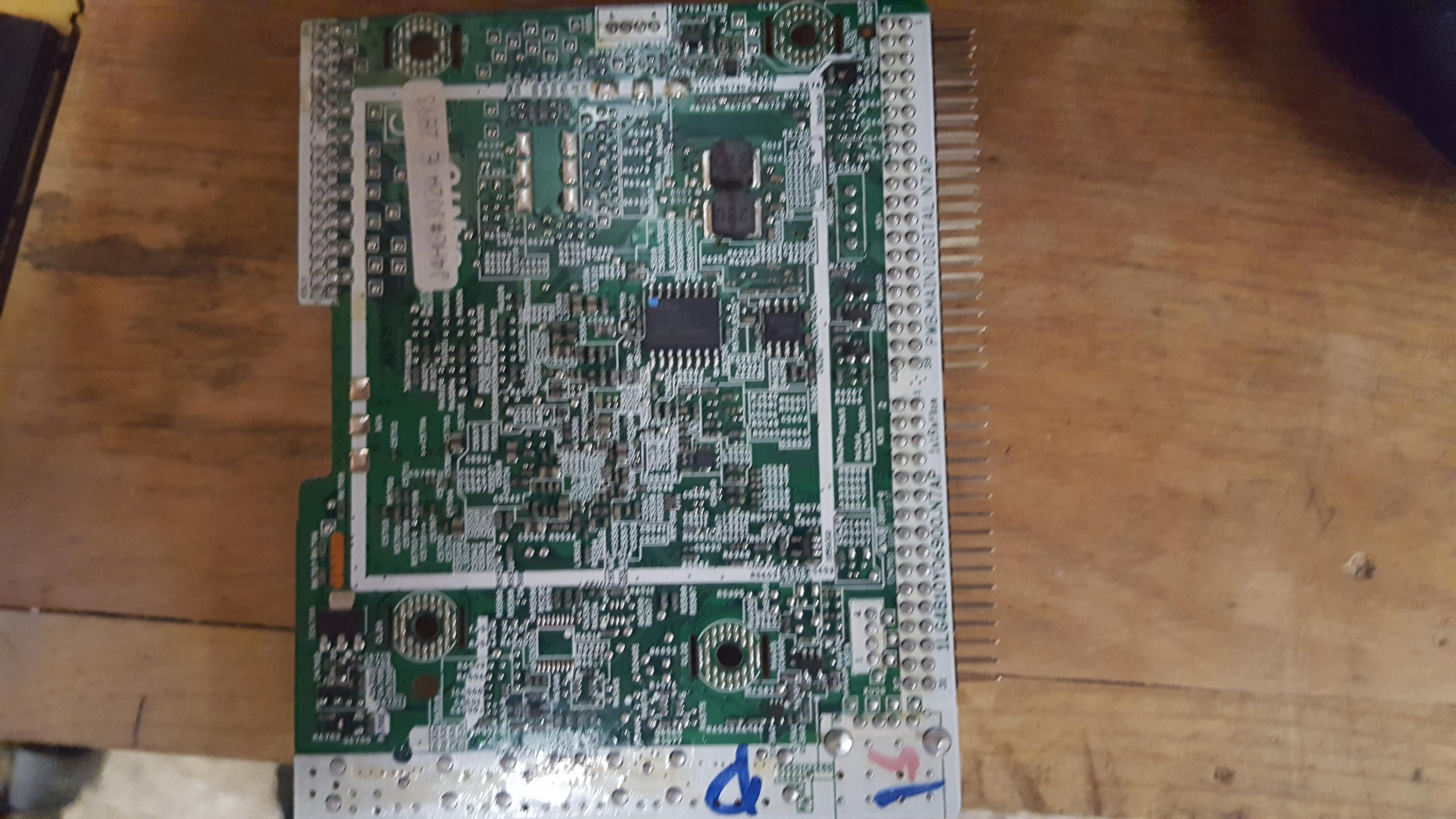

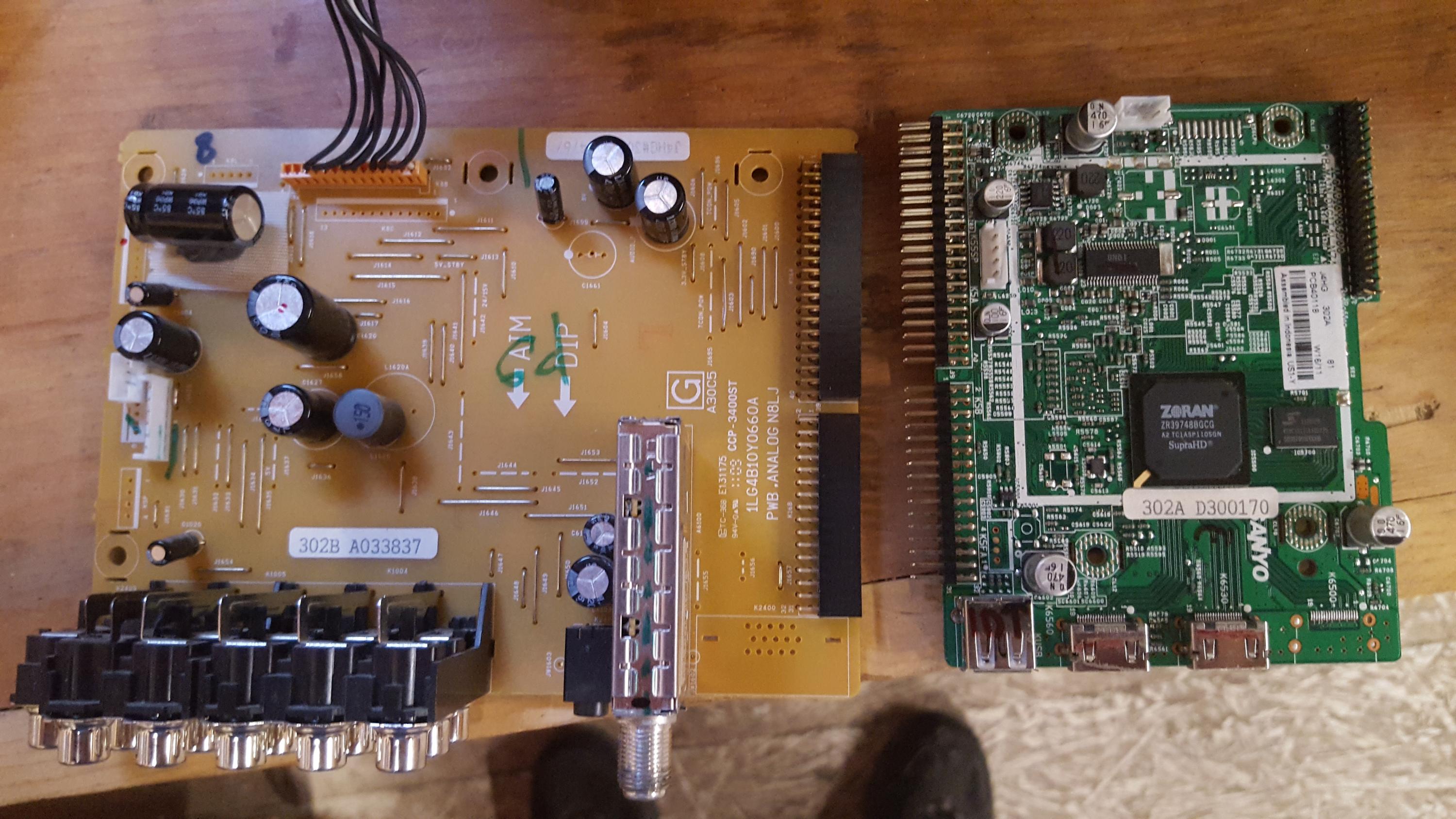

Here are pics of other boardsAttached FilesComment
-
-
Re: b159-001 psu

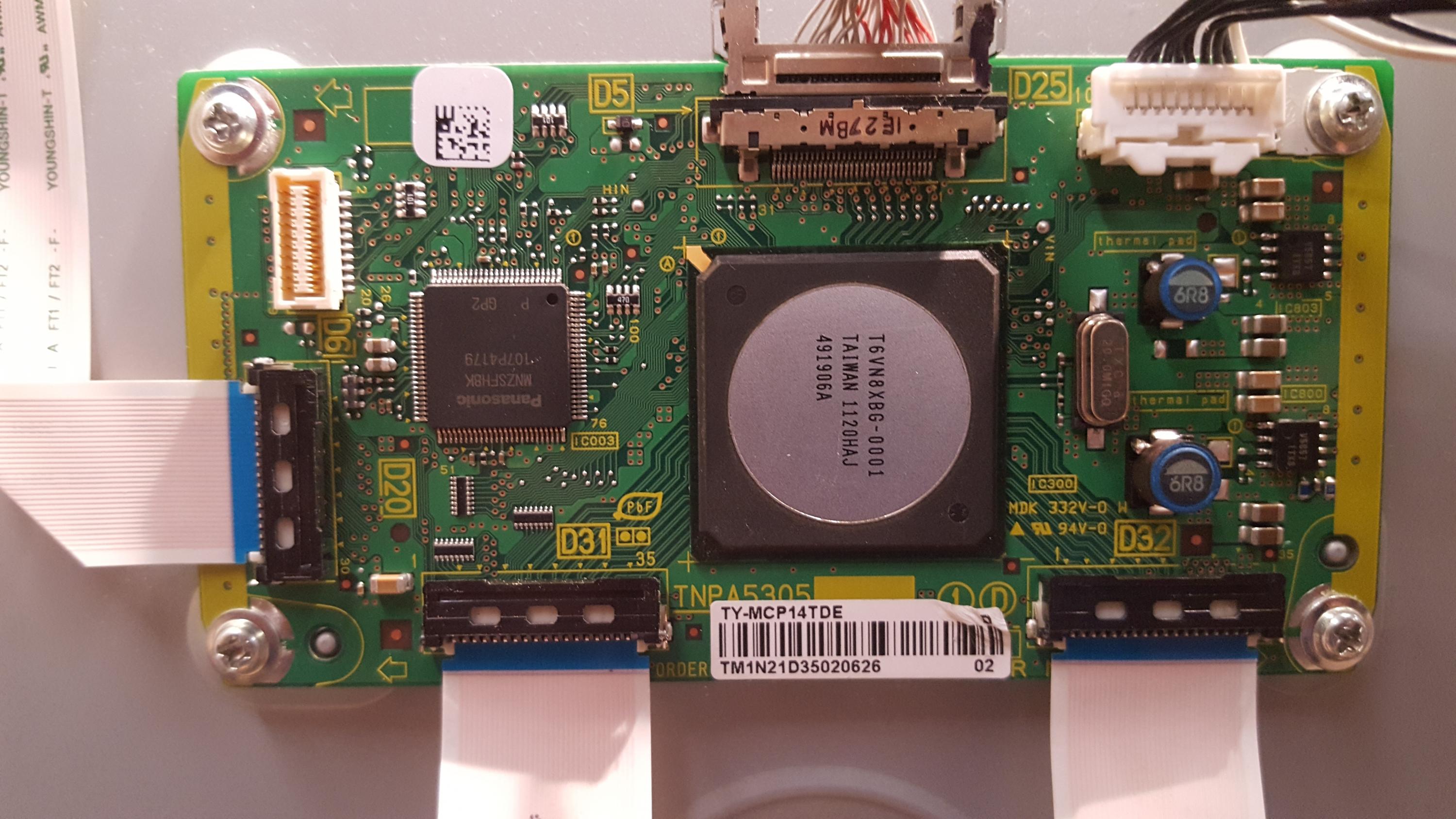

The fist pic is the board is replaced from shop jimmyComment
-
Re: b159-001 psu
any help would be good here, only diagram i can find is for a b159-002 not the same thoComment
-
