    sony kdl-40z5100 14 blinks

    hey guys so I picked up this TV today and when plugged in no lights no back lights no screen but it shuts off with the original 13 blink then a 14 link error code I checked the pins and inverter error is getting 1.9 volts BL error is 0 all other voltages are there I read on the forums about other similar TVs but I cannot find this model I know that 14 blanks means LCD panel air but I can't determine what's going on all fuses check out good on t-con board and main board and power supply.

    I want.to try to power up the back lights because that is zero volts but what I apply 3.3 votes to it or what I short backlight on to ground?
    Did I leave the soldering iron on?
  • budm
    Badcaps Legend
    • Feb 2010
    • 40746
    • USA

    #2
    Re: sony kdl-40z5100 14 blinks

    If the T-CON does not get the 12V feeding it, then it will give you the error. Check the DC voltage at both ends of the fuse of the T-CON board with ref. to the chassis ground to see what you have. The error codes may not apply t this chassis, Ii cannot find the serrvice manual for this model yet.
    Last edited by budm; 12-04-2013, 03:13 PM.
    Never stop learning
    Basic LCD TV and Monitor troubleshooting guides.
    http://www.badcaps.net/forum/showthr...956#post305956

    Voltage Regulator (LDO) testing:
    http://www.badcaps.net/forum/showthr...999#post300999

    Inverter testing using old CFL:
    http://www.badcaps.net/forum/showthr...er+testing+cfl

    Tear down pictures : Hit the ">" Show Albums and stories" on the left side
    http://s807.photobucket.com/user/budm/library/

    TV Factory reset codes listing:
    http://www.badcaps.net/forum/showthread.php?t=24809

    Comment

    • freakaftr8
      Badcaps Legend
      • Oct 2012
      • 3743
      • USA

      #3
      Re: sony kdl-40z5100 14 blinks

      Ok that makes sense. There are like 6 or 7 fuses in the tcon all test good. But ill check for 12v input to tcon.
      Did I leave the soldering iron on?

      Comment

      • budm
        Badcaps Legend
        • Feb 2010
        • 40746
        • USA

        #4
        Re: sony kdl-40z5100 14 blinks

        "There are like 6 or 7 fuses in the tcon" That can't be right.
        Never stop learning
        Basic LCD TV and Monitor troubleshooting guides.
        http://www.badcaps.net/forum/showthr...956#post305956

        Voltage Regulator (LDO) testing:
        http://www.badcaps.net/forum/showthr...999#post300999

        Inverter testing using old CFL:
        http://www.badcaps.net/forum/showthr...er+testing+cfl

        Tear down pictures : Hit the ">" Show Albums and stories" on the left side
        http://s807.photobucket.com/user/budm/library/

        TV Factory reset codes listing:
        http://www.badcaps.net/forum/showthread.php?t=24809

        Comment

        • freakaftr8
          Badcaps Legend
          • Oct 2012
          • 3743
          • USA

          #5
          Re: sony kdl-40z5100 14 blinks

          Im serious. There is. Ill take a pic later
          Did I leave the soldering iron on?

          Comment

          • freakaftr8
            Badcaps Legend
            • Oct 2012
            • 3743
            • USA

            #6
            Re: sony kdl-40z5100 14 blinks

            I checked. Yes im receiving 12v on the tcon.
            Did I leave the soldering iron on?

            Comment

            • freakaftr8
              Badcaps Legend
              • Oct 2012
              • 3743
              • USA

              #7
              Re: sony kdl-40z5100 14 blinks

              Ok im not getting any pri_vcc 12v to the inverters.
              Did I leave the soldering iron on?

              Comment

              • freakaftr8
                Badcaps Legend
                • Oct 2012
                • 3743
                • USA

                #8
                Re: sony kdl-40z5100 14 blinks

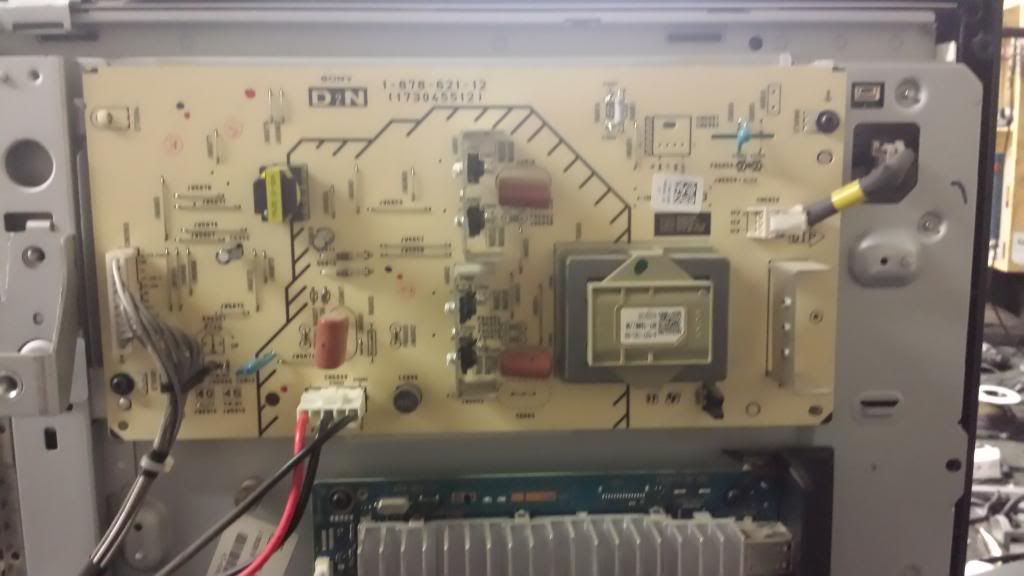

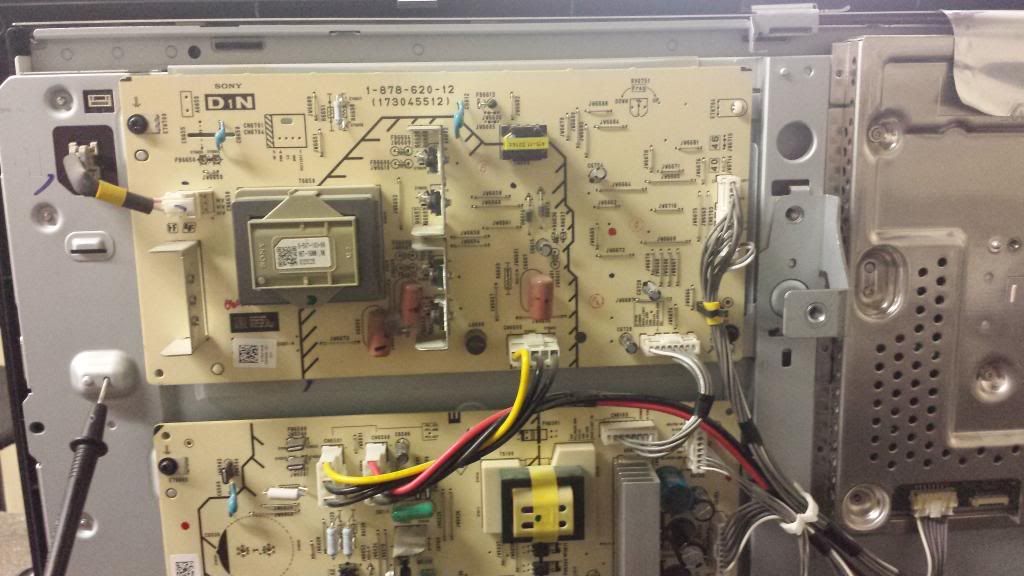

                http://i845.photobucket.com/albums/a...ps101ed65d.jpg


                http://i845.photobucket.com/albums/a...ps70c56d75.jpg


                http://i845.photobucket.com/albums/a...psb940eaaf.jpg
                Did I leave the soldering iron on?

                Comment

                • freakaftr8
                  Badcaps Legend
                  • Oct 2012
                  • 3743
                  • USA

                  #9
                  Re: sony kdl-40z5100 14 blinks

                  Also there is no voltage to backlight on no voltage to balancer error but there is 1.9v on inverter error. Groynded it and still same issue. Tcon is receiving 12v and there is bo power on the big wiires to the inverters. No 12v on the yellow wire or no pfc out 395v.
                  Did I leave the soldering iron on?

                  Comment

                  • freakaftr8
                    Badcaps Legend
                    • Oct 2012
                    • 3743
                    • USA

                    #10
                    Re: sony kdl-40z5100 14 blinks

                    Scratch that. There is pfc and 12v going to the inverters. Had to use pfc ground to measure. Thinking bad mainboard
                    Did I leave the soldering iron on?

                    Comment

                    • freakaftr8
                      Badcaps Legend
                      • Oct 2012
                      • 3743
                      • USA

                      #11
                      Re: sony kdl-40z5100 14 blinks

                      Ok heres the tcon lower half. You can see right off the bat 5 fuses so far.


                      http://i845.photobucket.com/albums/a...ps89b5af07.jpg
                      Did I leave the soldering iron on?

                      Comment

                      • freakaftr8
                        Badcaps Legend
                        • Oct 2012
                        • 3743
                        • USA

                        #12
                        Re: sony kdl-40z5100 14 blinks

                        okay I figured it out I took a heat gun and started heating up the t-con board TV immediately came on perfect picture now I just have to figure out what are the t-con board is bad most likely a capacitor
                        Did I leave the soldering iron on?

                        Comment

                        • budm
                          Badcaps Legend
                          • Feb 2010
                          • 40746
                          • USA

                          #13
                          Re: sony kdl-40z5100 14 blinks

                          Holy cow, that is one big T-CON board with about 9 switching power supplies on board. I would try heating those two Lytics SMD on the left side first. I am not sure how good your meter with frequency counter function, you can try to see what you read right at the tow legs of each caps.
                          I use my meter to locate bad caps on the logic board using my Fluke.
                          https://www.badcaps.net/forum/showth...+cap+frequency
                          Never stop learning
                          Basic LCD TV and Monitor troubleshooting guides.
                          http://www.badcaps.net/forum/showthr...956#post305956

                          Voltage Regulator (LDO) testing:
                          http://www.badcaps.net/forum/showthr...999#post300999

                          Inverter testing using old CFL:
                          http://www.badcaps.net/forum/showthr...er+testing+cfl

                          Tear down pictures : Hit the ">" Show Albums and stories" on the left side
                          http://s807.photobucket.com/user/budm/library/

                          TV Factory reset codes listing:
                          http://www.badcaps.net/forum/showthread.php?t=24809

                          Comment

                          • freakaftr8
                            Badcaps Legend
                            • Oct 2012
                            • 3743
                            • USA

                            #14
                            Re: sony kdl-40z5100 14 blinks

                            Yea it is.
                            Well here's where the problem in lies.

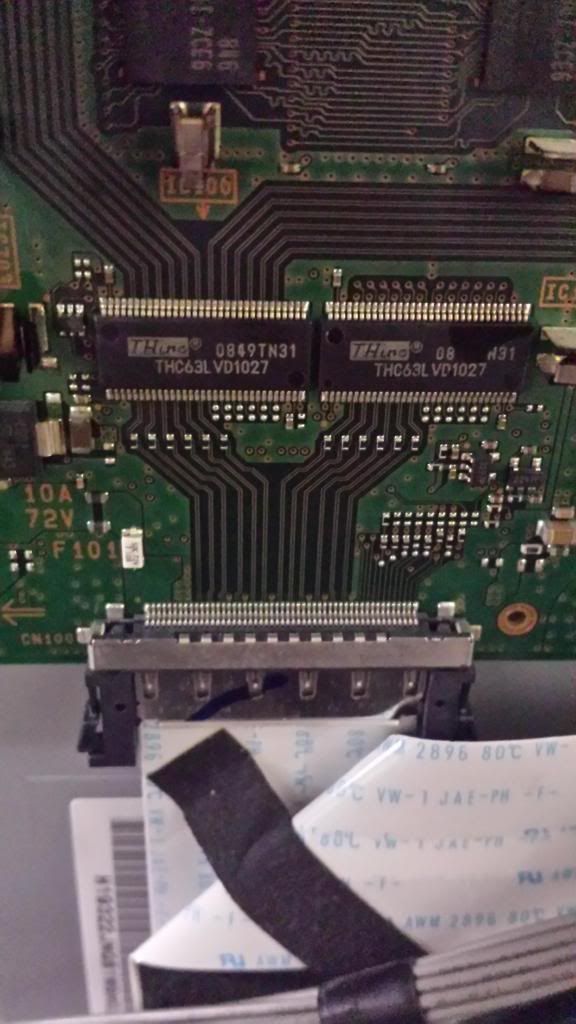

                            The left ic has to be heated for it to turn on. These pick up off the lvds cable on the tcon.


                            http://i845.photobucket.com/albums/a...ps5077d5bd.jpg
                            Did I leave the soldering iron on?

                            Comment

                            • budm
                              Badcaps Legend
                              • Feb 2010
                              • 40746
                              • USA

                              #15
                              Re: sony kdl-40z5100 14 blinks

                              Hmm, need to look up the spec to see what they are for.
                              Never stop learning
                              Basic LCD TV and Monitor troubleshooting guides.
                              http://www.badcaps.net/forum/showthr...956#post305956

                              Voltage Regulator (LDO) testing:
                              http://www.badcaps.net/forum/showthr...999#post300999

                              Inverter testing using old CFL:
                              http://www.badcaps.net/forum/showthr...er+testing+cfl

                              Tear down pictures : Hit the ">" Show Albums and stories" on the left side
                              http://s807.photobucket.com/user/budm/library/

                              TV Factory reset codes listing:
                              http://www.badcaps.net/forum/showthread.php?t=24809

                              Comment

                              • freakaftr8
                                Badcaps Legend
                                • Oct 2012
                                • 3743
                                • USA

                                #16
                                Re: sony kdl-40z5100 14 blinks

                                Here they are. They are lvds repeaters.


                                https://www.thine.co.jp/en/products/...63LVD1027.html
                                Did I leave the soldering iron on?

                                Comment

                                • freakaftr8
                                  Badcaps Legend
                                  • Oct 2012
                                  • 3743
                                  • USA

                                  #17
                                  Re: sony kdl-40z5100 14 blinks

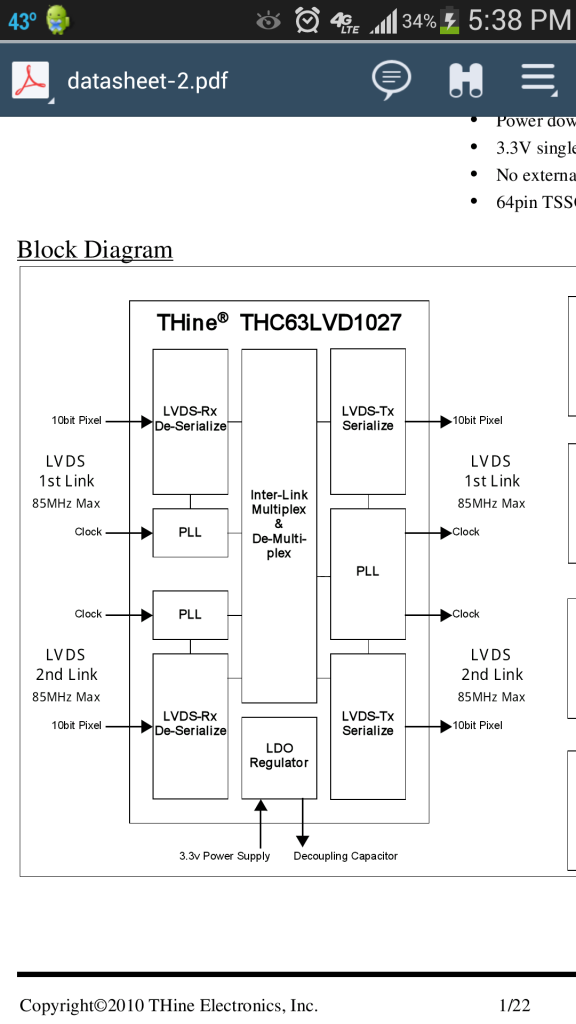

                                  Looks to have a ldo regulator and the decoupling cap I have a feeling is bad.


                                  http://i845.photobucket.com/albums/a...ps99d43610.png
                                  Did I leave the soldering iron on?

                                  Comment

                                  • freakaftr8
                                    Badcaps Legend
                                    • Oct 2012
                                    • 3743
                                    • USA

                                    #18
                                    Re: sony kdl-40z5100 14 blinks

                                    Well the decoupling cap is good. Here is a close up of the ic pinout. Im getting good vdd. Im thinking it would be cheaper to replace the tcon than repair it.


                                    http://i845.photobucket.com/albums/a...psb0a6d796.png
                                    Did I leave the soldering iron on?

                                    Comment
