    Need photos for Akai PDP4216M

    Got an Akai televsion that was taken apart and given to me. I am trying to reassemble the unit, but wondering if anyone has some photos of the inside particularly the connectors coming off the power unit. This was in a lot of 5 tvs, and trying to sort out where all the pieces and connectors go.

    Thanks!
    Tags: None
    • drpj23
      Badcaps Veteran
      • May 2012
      • 528
      • USA
      #2
      Re: Need photos for Akai PDP4216M

      This looks to be an LG PDP so there are probably variants to how the TV was built/assembled.
      Just be sure the parts work with the panel and you should be fine.
      Attached Files

        Comment

        • tom66
          EVs Rule
          • Apr 2011
          • 32560
          • UK
          #3
          Re: Need photos for Akai PDP4216M

          SM may help: http://www.tgohome.com/ServiceManual...&Search=Submit
          Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
          For service manual, schematic, boardview (board view), datasheet, cad - use our search.

            Comment

            • troxel
              Member
              • Jan 2013
              • 34
              • USA
              #4
              Re: Need photos for Akai PDP4216M

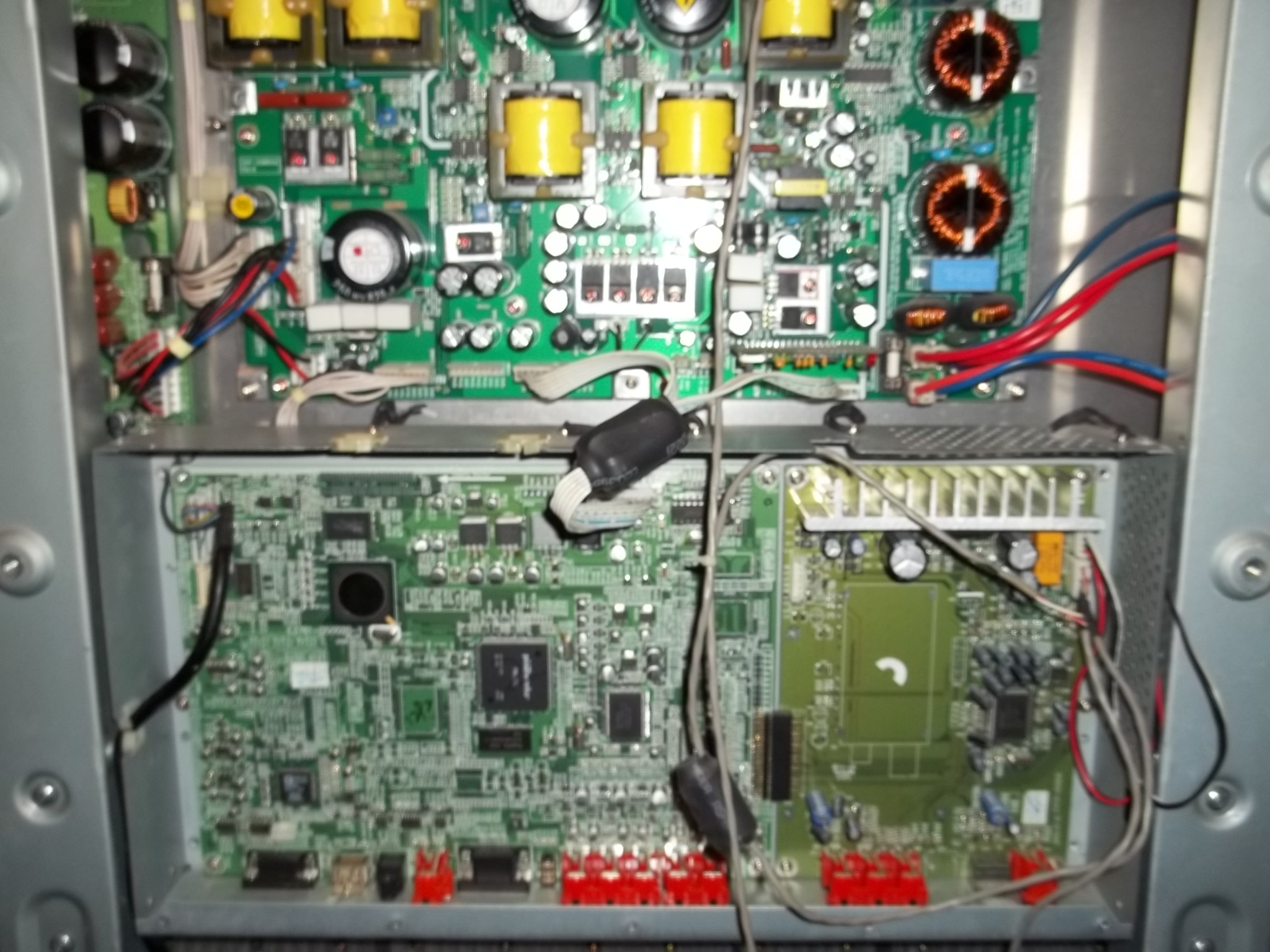

              Thanks for the help. I forgot to mention that I downloaded the service manual, and was using that as a guide. The problem that I am running into is I have 3 main (video)&tuner/audio boards, and each one has a different connector/housing on the pcb. I have a few empty connectors and don't know if that is by design or not.

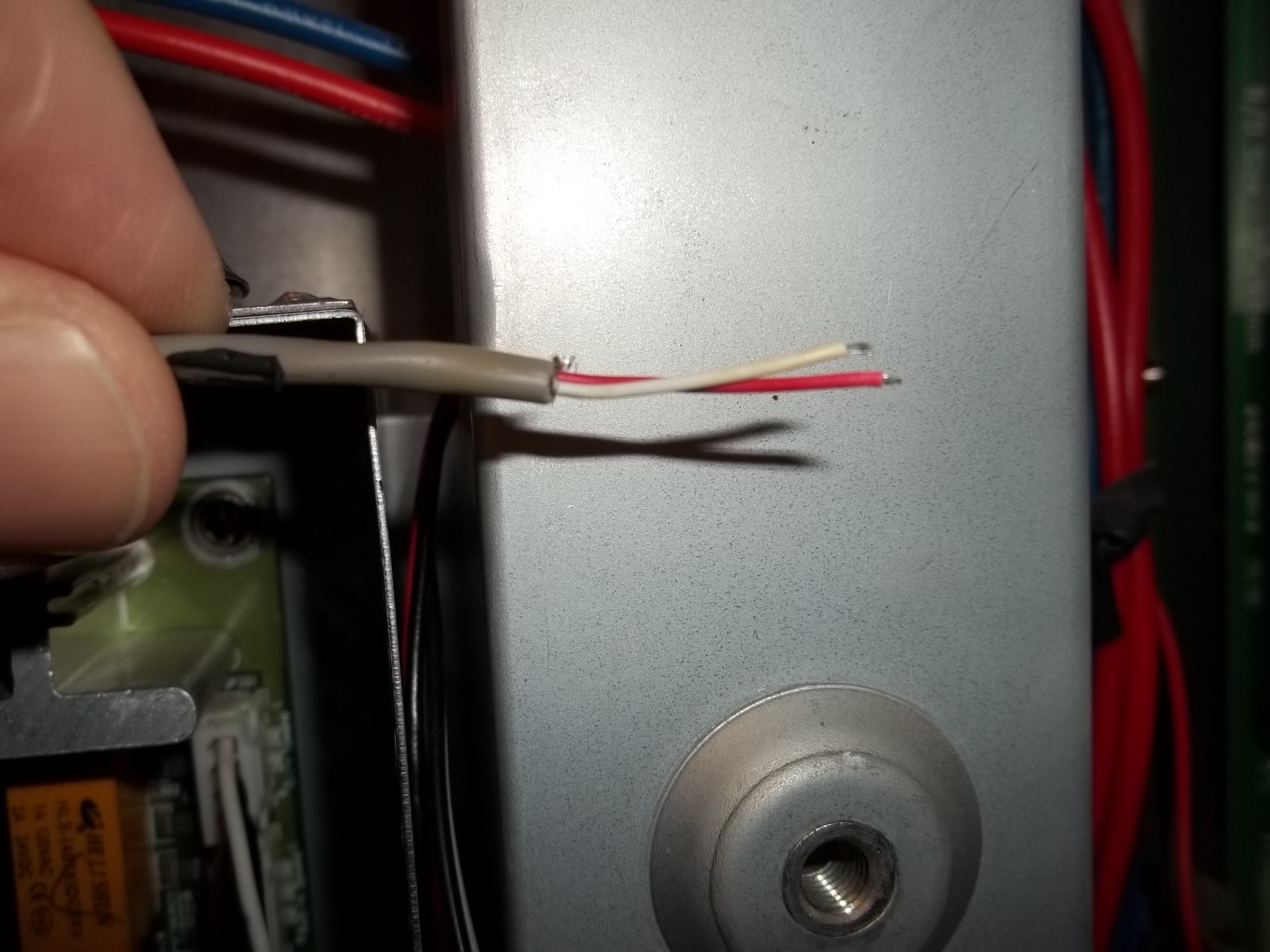

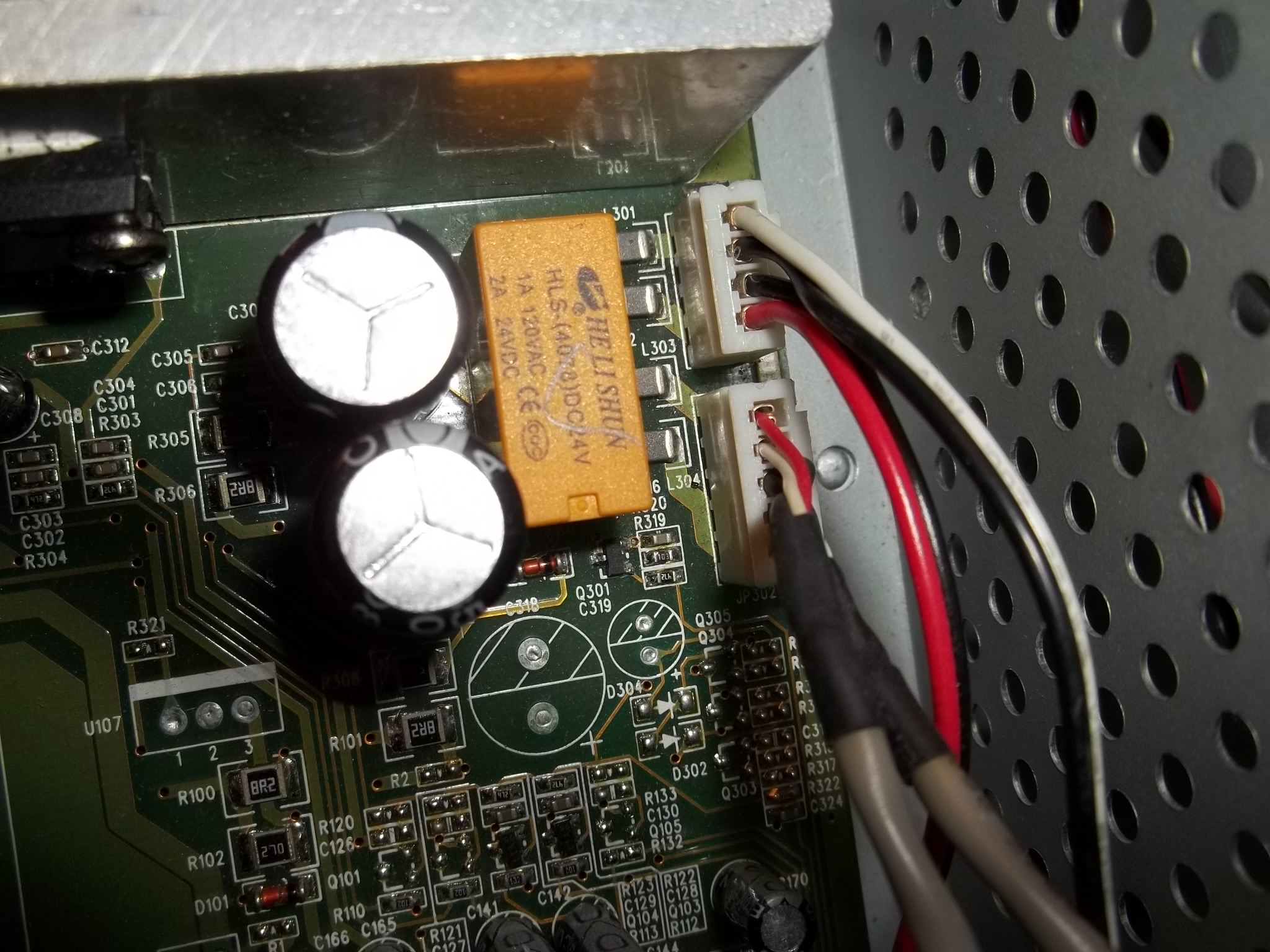

              I did find a spliced connector (photo 4) and not sure where that should go. The other end goes to the two connectors in (photo 5).

              I have attached some photos and wondering if anyone can help fill in the missing pieces.

              Thanks again!
              Attached Files

                Comment

                • tom66
                  EVs Rule
                  • Apr 2011
                  • 32560
                  • UK
                  #5
                  Re: Need photos for Akai PDP4216M

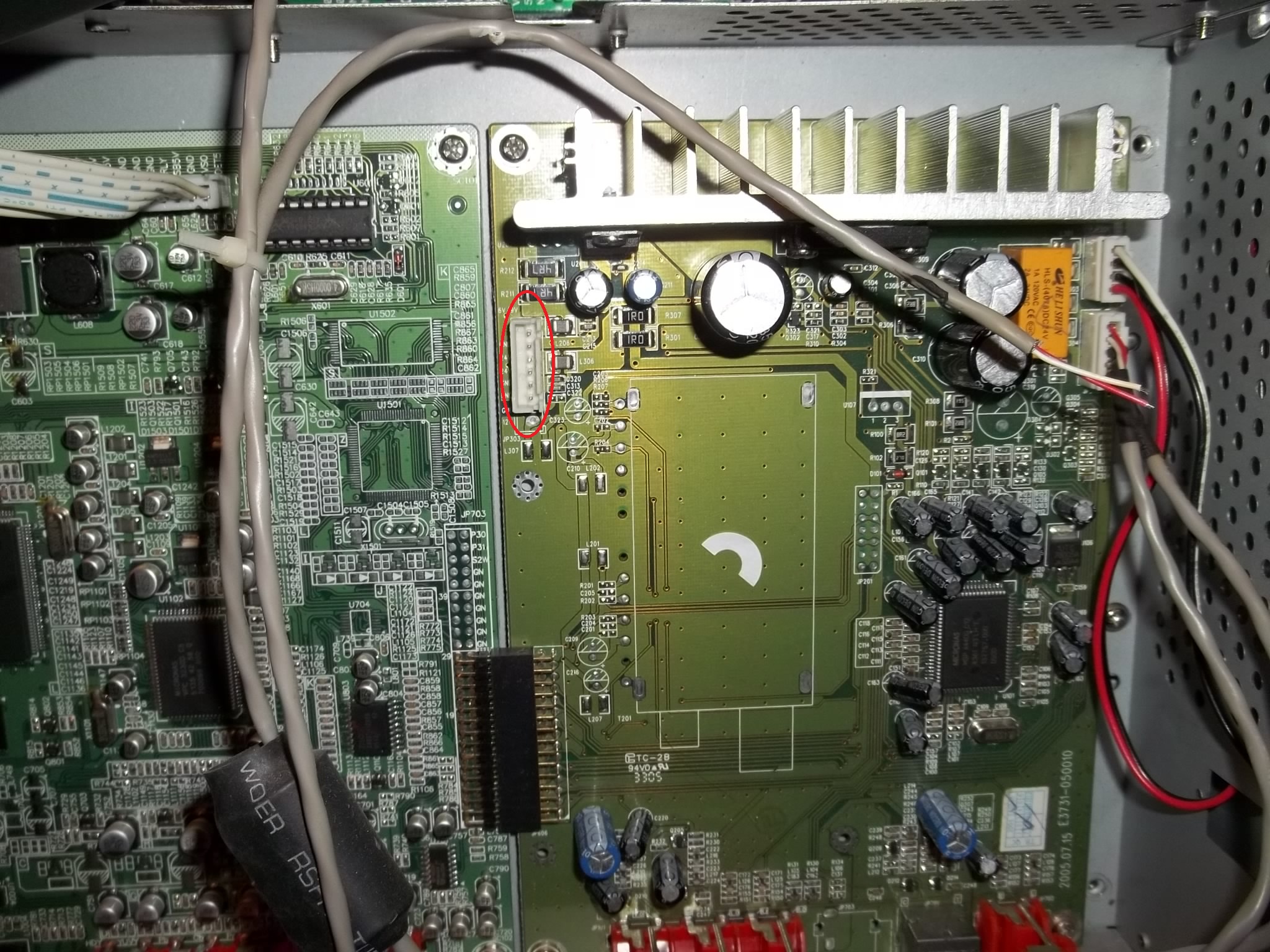

                  2nd pic might be designed for another plasma panel. The other looks like it will only affect audio - so perhaps see if it works for a picture without them connected...
