Power Supply Pin Out help?

doanh

Member

Join Date: Feb 2011

Posts: 35
#1

Power Supply Pin Out help?

03-02-2011, 12:50 AM

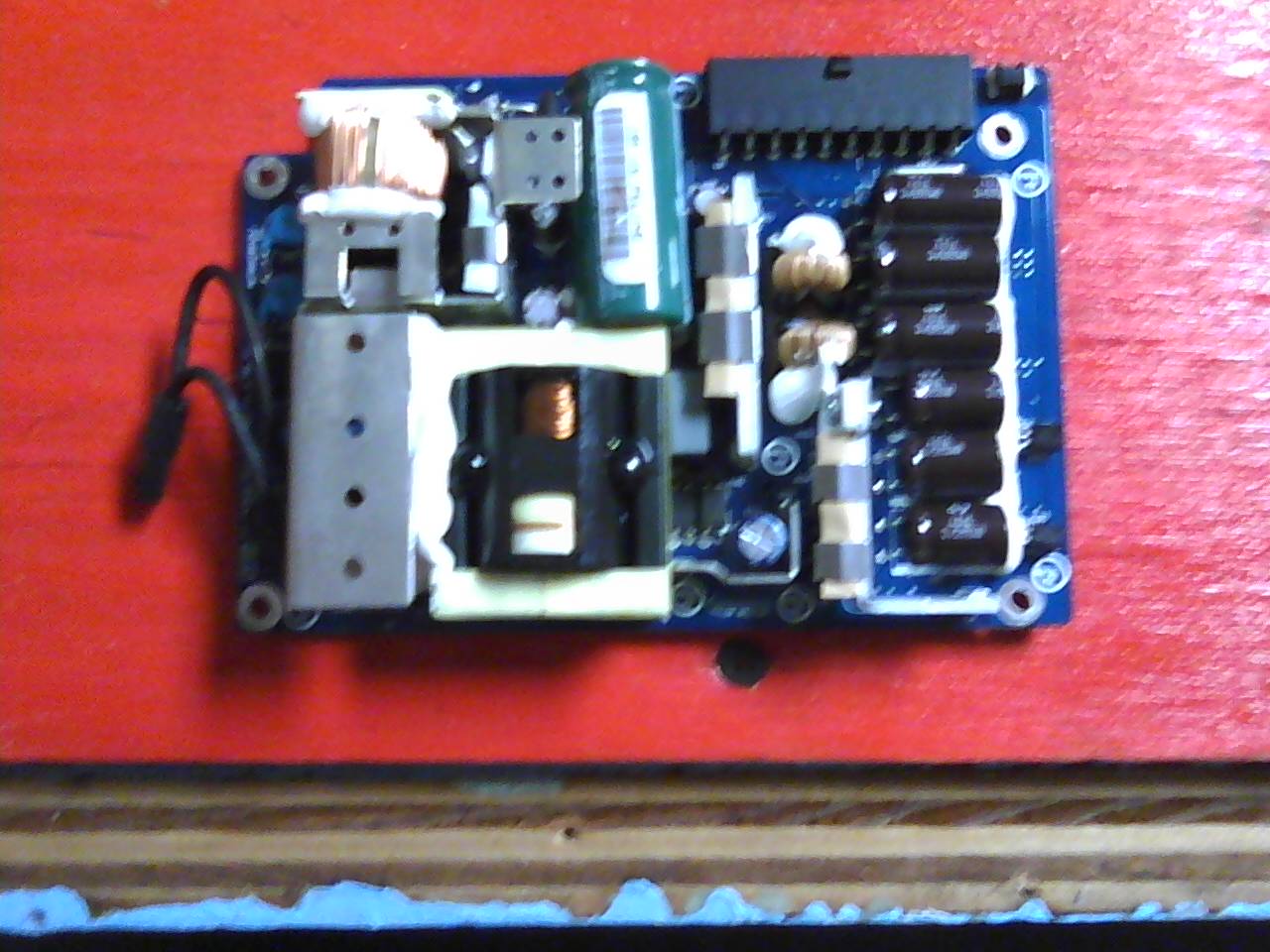

My friend sees me working on my Imac PSU and wanted to know if he can get info on fixing his PSU.

His is from the nicer aluminum Imac G5 20 inch computer. This power supply is completely different from my Acbel. This Hipro psu

What he cannot seem to locate is the pin out for the output side. It has 10 pins total compared to my5 pins.

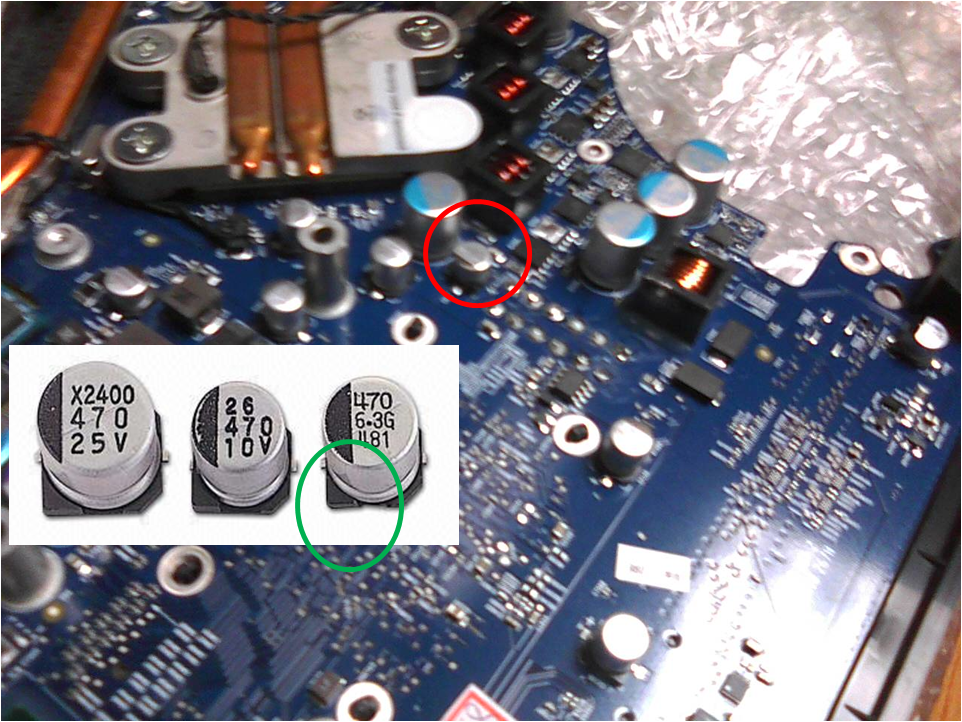

His other question is SMD capacitor, how to remove them without a smd desoldering gun? can you test them in circuit?
Attached Files
Tags: None
Scenic

o.O

Join Date: Sep 2007

Posts: 2642

Country: Germany
#2

03-02-2011, 02:02 AM

Re: Power Supply Pin Out help?

posting the apple part number / model number of the psu would help.
toasty (forum member) is the apple PSU specialist here
Comment
doanh

Member

Join Date: Feb 2011

Posts: 35
#3

03-02-2011, 08:45 AM

Re: Power Supply Pin Out help?

I thought it typed it in but the sentence is incomplete...

HiPro 614-0415 is the psu part number. I am surprised it is complete different than my Imac psu even though it is still an Imac model.
Comment
