help ic identification...

05-24-2025, 08:45 PM

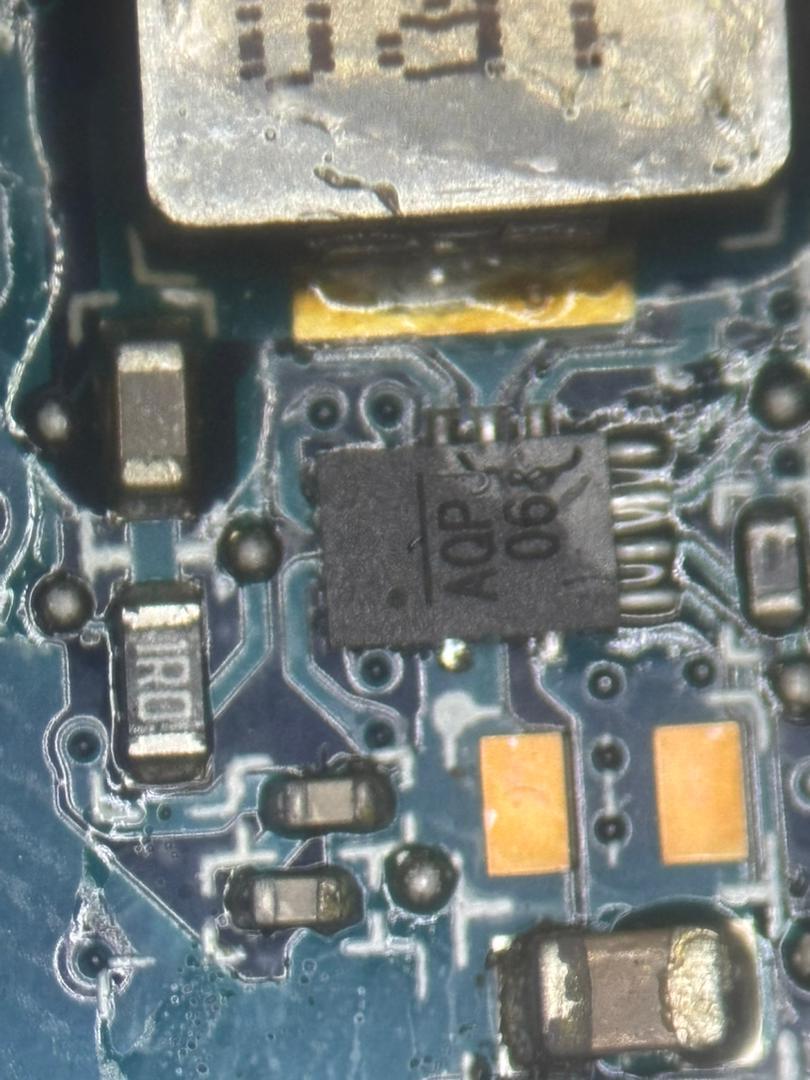

im working on HP Probook 450 g5 with no power issue and found out coil beside this ic is short to ground...i remove the ic and short gone....ic code AQP,...looking on this ic marking code but not found https://www.badcaps.net/forum/troubl...and-datasheets
Attached Files
Tags: None
mon2

Badcaps Legend

Join Date: Dec 2019

Posts: 14320

Country: Canada
#2

05-24-2025, 09:38 PM

MPS # NB681AGD

https://www.monolithicpower.com/en/d...ument_id/6394/
Comment
dqtech

Badcaps

Join Date: Jul 2018

Posts: 630

Country: N/A
#3

05-24-2025, 09:47 PM

Originally posted by mon2

MPS # NB681AGD

https://www.monolithicpower.com/en/d...ument_id/6394/

thank you sir
