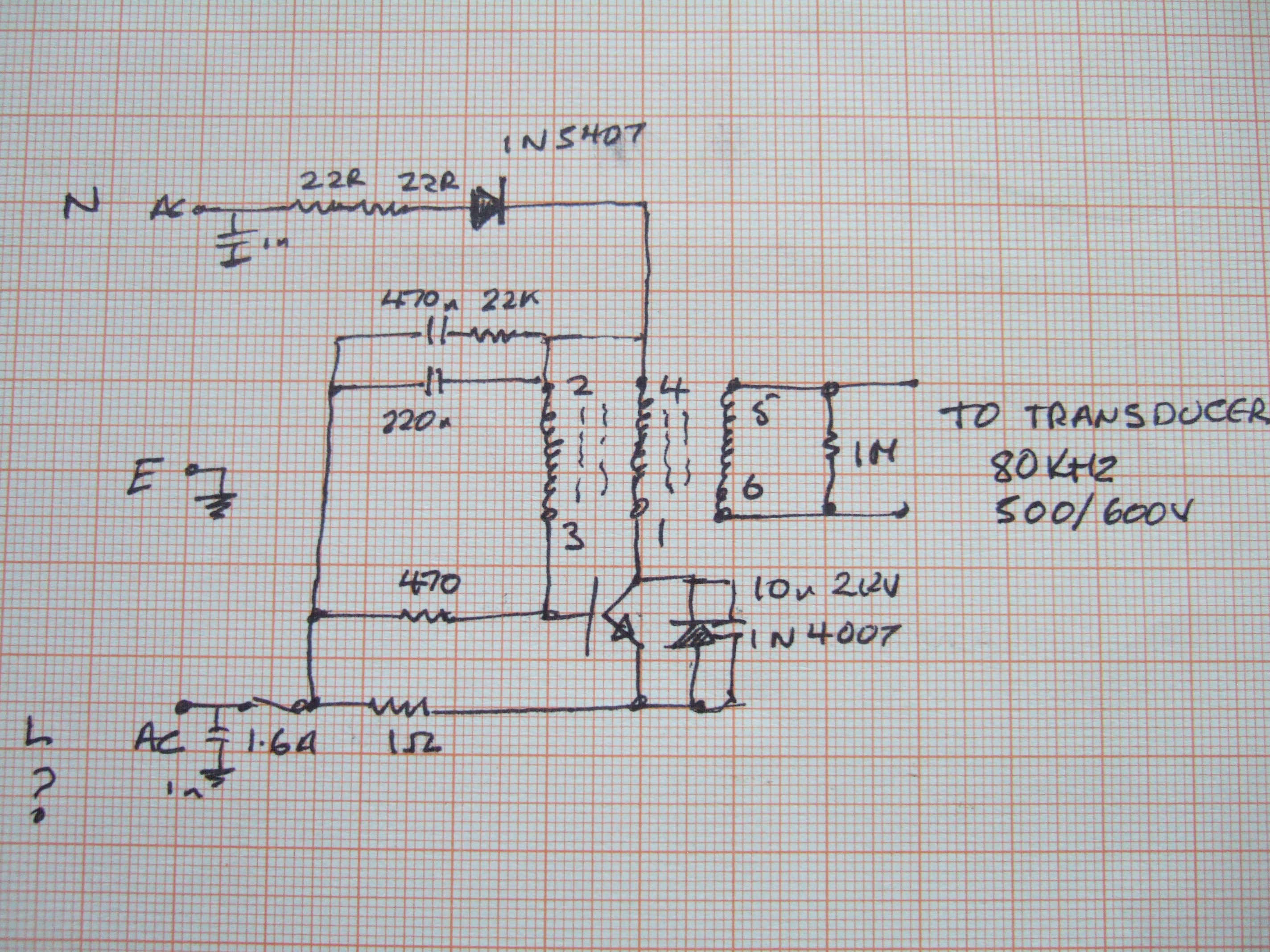

Circuit for an Ultrawave bath ,the recovery diiode was short circuit.
Barry Wilkins
Barry Wilkins
Attached Files
-
Does anyone know much about ultrasonic baths?
I got one here at work, a NEY Ultrasonik 2QT/H, was in the trash, lovely smell of "magic smoke" having recently been emitted. Might have been the Engineering Dept that dumped it.
Anyway, the sonic and heating lights on the front come on when plugged in and switched on, but no familiar noise I'd expect (like the sound effects from old Flash Gordon tv series of the 30's).
Opened it up, and see some remains of something that was on the piezoelectric device on the underside of the bath, but not sure... -
Hi,
I am repairing a ups which doesn't turn on ,it has the following ICs:
SG3525 used to drive inverter mosfets.
couple of uc3483, one for the power supply and another to drive a big mosfet at the output stage(i think the technique is called boost)
A LM358 and TL074 for control mechanism and of course the uController.
The SG3525 is shutting down every time the ups is turned on.
I want your help to know the function of LM358 and TL074 in the system.
I reverse engineered the LM358 circuit and i think that one of the block(A) is used for battery level... -
Hi friends of electronics
What you see in the video and pictures attached is the circuit for charging the batteries of a DC motor.
The problem is that this circuit cannot charge the batteries (3 1800mAH NiMH batteries) any more. When the circuit was OK, its green LEDs lit up one at a time to show that the batteries have charged more. But now that the circuit is flawed, LEDs light up as you see in the video and at the same time successive beeps are heard.
Please help me fix this circuit.
(the datasheet of the IC: https://pdf.datasheet.live/28... -
Hello friends,
Looking for some guidance here. The RAM voltage circuit on this motherboard keeps burning out PU301 which is a RT8231AGQW. Copy of the board with the burnt chip attached with some voltage measurements and copy of the schematics also included.
I think I've checked almost every component in the circuit, but when I change the RT8231, the laptop starts I have 1.2V on the inductor for about 10 seconds and then the RT8231 goes south and no more voltage on the inductor. All other voltages on the laptop are good, this is the only one conking out for a reason I... -
Hello.
I have seen a short circuit tester made with 3 * 9V batteries, a voltage limiter component and a resistor connected to the probes of a multimeter.
The theory is that the meter becomes sensitive enough to read very low resistances and the lowest resistance to ground on a circuit is likely to be a short circuit in that area.
Link
The Amazing $1 Short Finder Upgraded! Convert ... - YouTube
https://www.youtube.com/watch?v=0eixDdCpiO4
My multimeter isn't normally sensitive to very small resistance, but when I put a 1 mega ohm resistor...
