  • s_henya
    Badcaps Veteran
    • Jan 2011
    • 480
    • Israel
    #1

    01g-p3-1313-kr schematic

    Hi guys,

    i want to challenge myself to fix this graphics card- I know it's low value :-)
    01g-p3-1313-kr (GeForce 210)

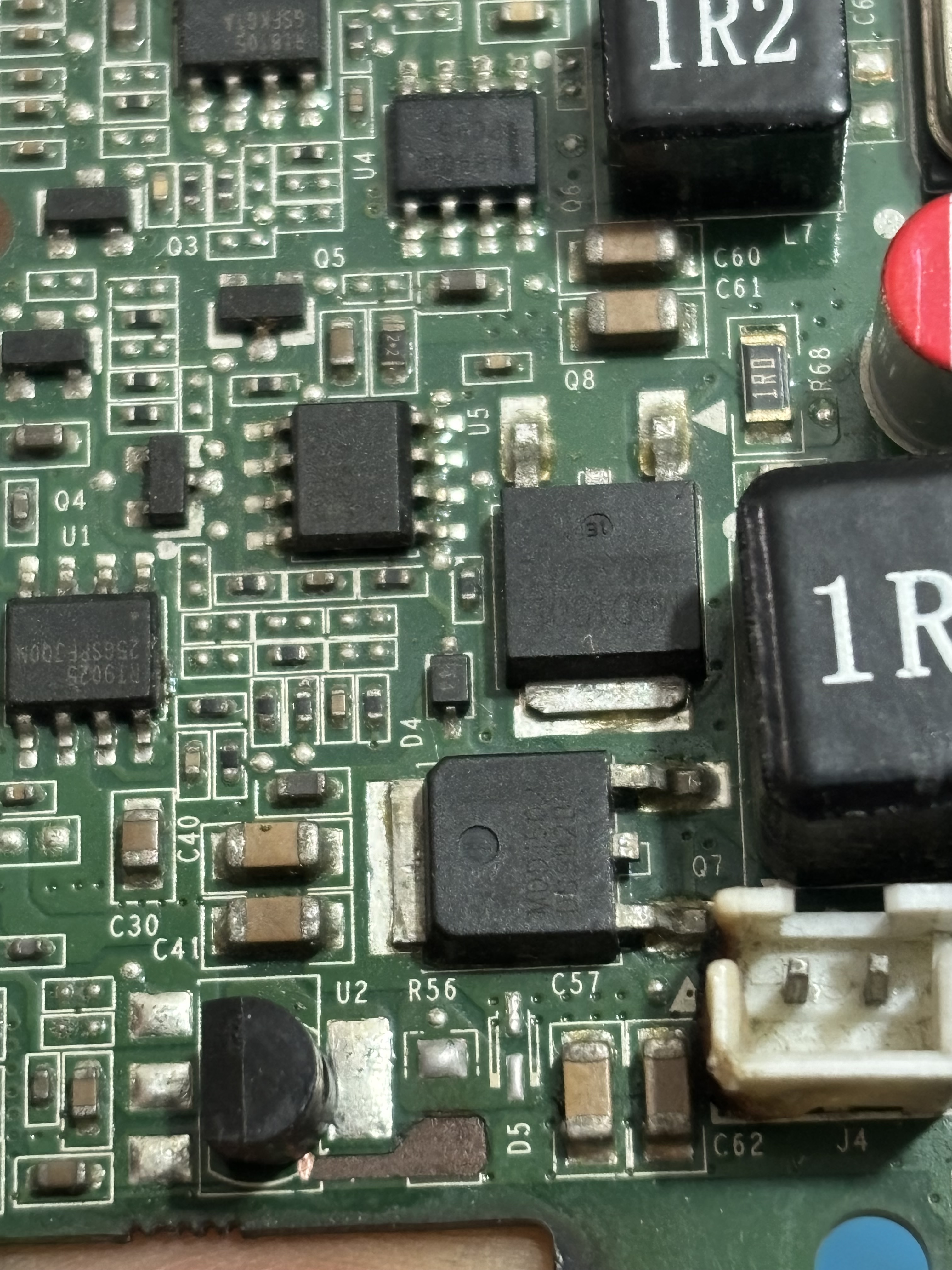

    found 1 blown fusible resistor R56 ( already removed)
    1 shorted diode D5 (already removed)
    and i suspect short on U2 (ic itself isn't shorted)

    i would like to know substitute diode and look at the diagram of that circuit.
    Attached Files
    Tags: None
